Hanmer Details

PropertyValue
Rupture Count40,998
Ruptures Above Sect Min Mag40,839
Ruptures w/ Nonzero Rates27
Magnitude Range[5.30, 8.51]
Length Range[4, 1,071] km
Total Rate5.7675823E-4 /yr
Multi-Fault Rate5.7675823E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults108

Table Of Contents

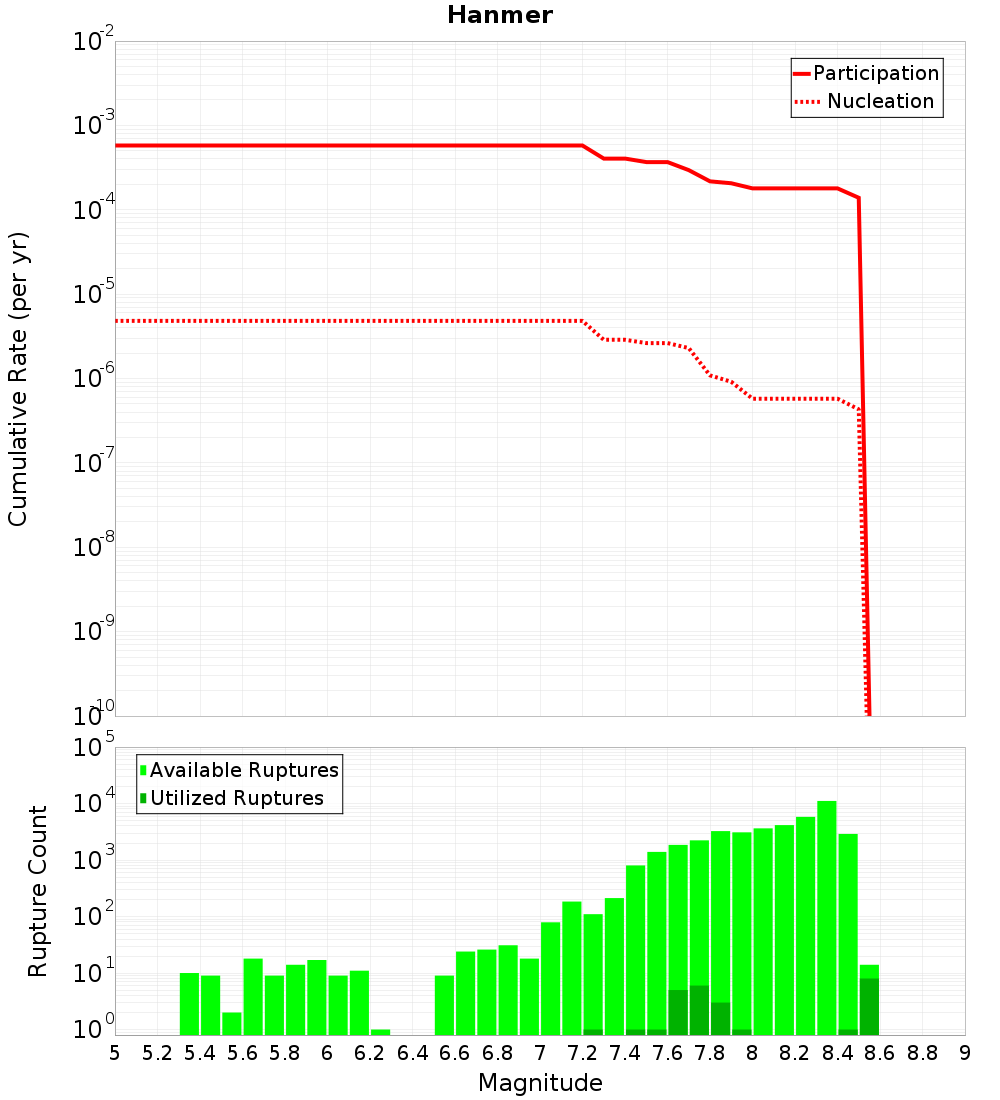

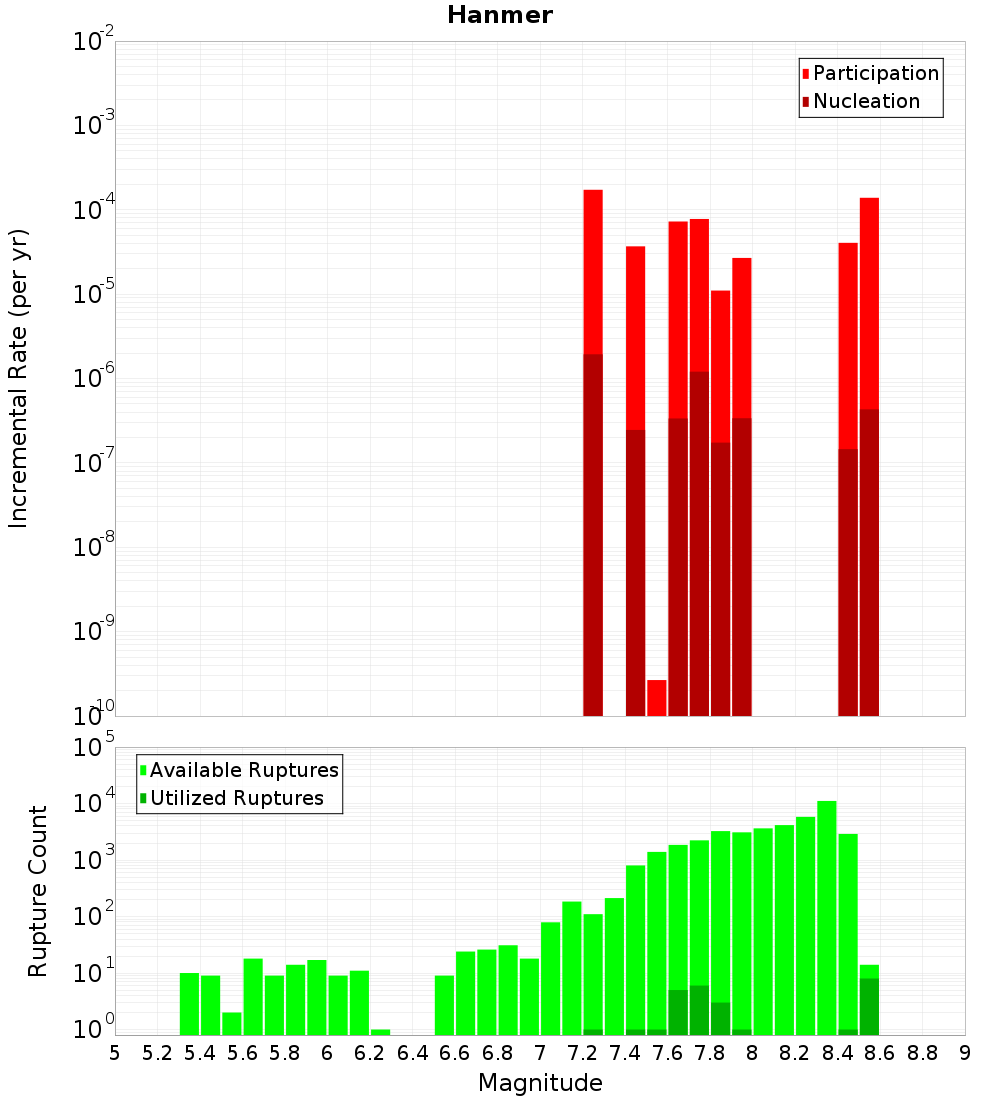

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

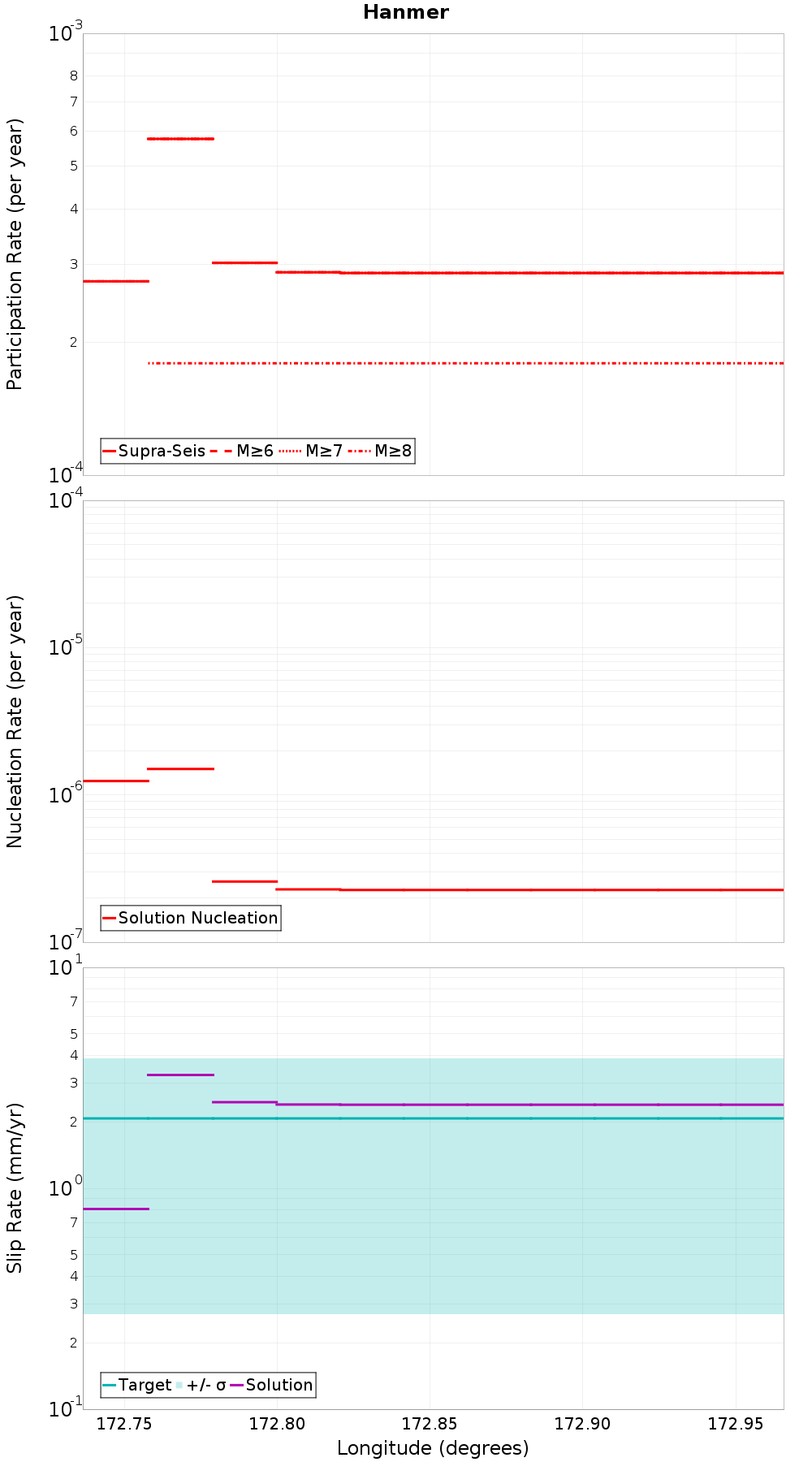

Along-Strike Values

(top)

Along-strike plot

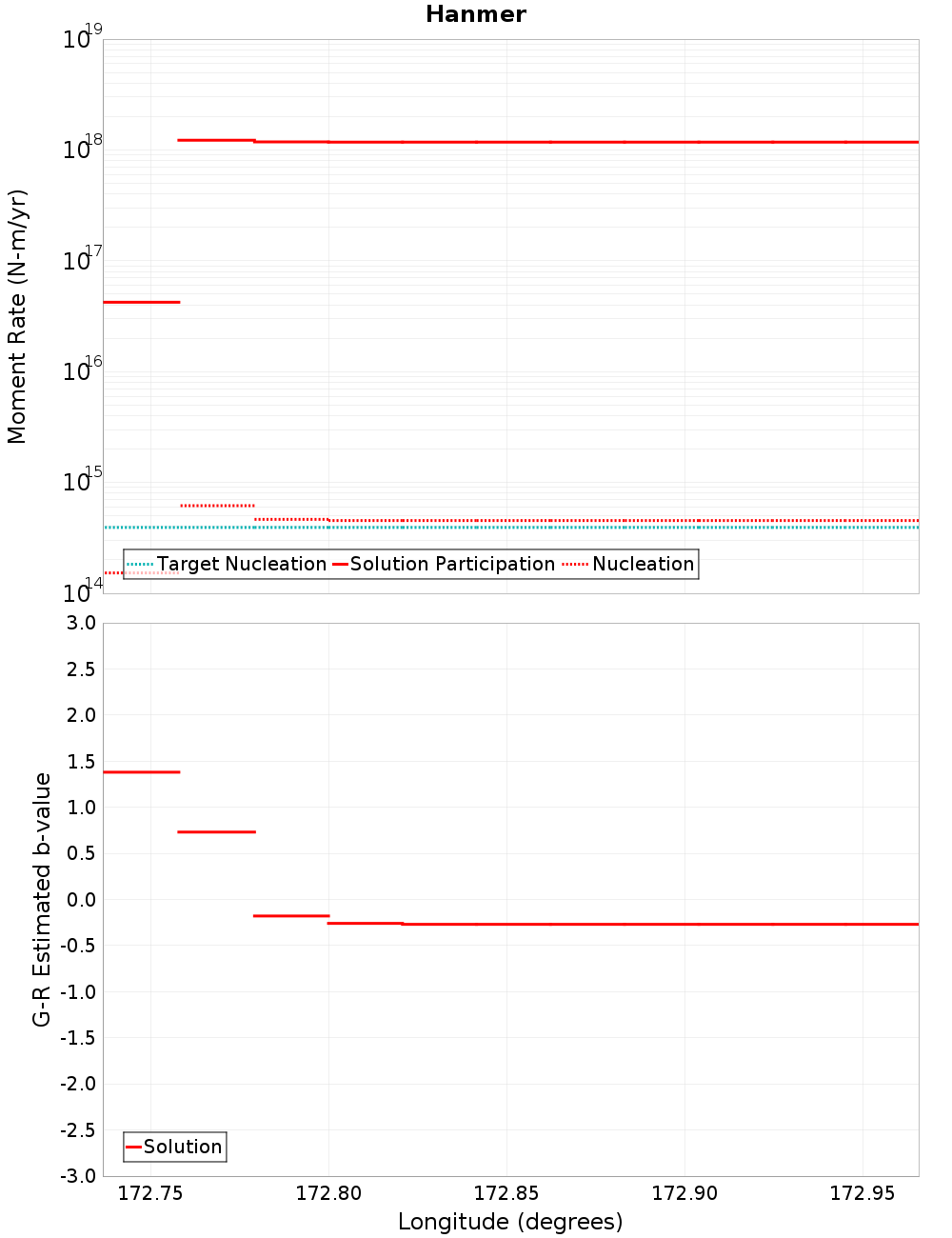

Moment-Rates and b-Values

(top)

Along-strike plot

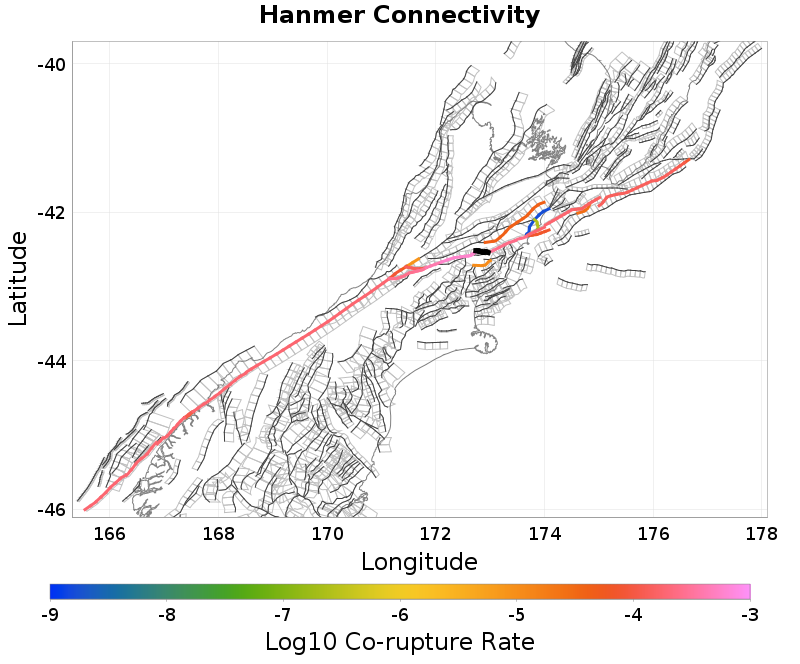

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Conway, 0 km awayElliott, 12.46 km away
Hope: Hanmer SE, 0 km awayClarence: Central, 13.21 km away
Hope: Hanmer NW, 0.16 km awayHope: Hope River, 14.35 km away
Hope: Hanmer SW, 3.33 km awayKakapo, 14.45 km away
Hope: Kakapo-2-Hamner, 8.11 km awayLeader: South, 14.77 km away
The Humps, 9.2 km awayKaiwara North, 16.38 km away
Mt Culverden, 11.42 km awayLeonard Mound, 17.71 km away
Clarence: Southwest, 11.45 km awayEsk North, 18.7 km away

Hope: Conway, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count30,592
Co-rupture Rate2.8673306E-4

Hope: Hanmer SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count4,955
Co-rupture Rate0.0

Hope: Hanmer NW, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.16 km
Min Rate-Weighted Dist0.16 km
Co-rupture Count17,329
Co-rupture Rate5.7675794E-4

Hope: Hanmer SW, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.33 km
Co-rupture Count21,503
Co-rupture Rate0.0

Hope: Kakapo-2-Hamner, 8.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count36,856
Co-rupture Rate5.6599383E-4

The Humps, 9.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Mt Culverden, 11.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate1.0764106E-5

Clarence: Southwest, 11.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Elliott, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1,108
Co-rupture Rate4.054441E-5

Clarence: Central, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count70
Co-rupture Rate0.0

Hope: Hope River, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count25,313
Co-rupture Rate5.6599383E-4

Kakapo, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count11,495
Co-rupture Rate0.0

Leader: South, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count249
Co-rupture Rate0.0

Kaiwara North, 16.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate0.0

Leonard Mound, 17.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Esk North, 18.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
