Kaiwara South Details

Property	Value
Rupture Count	26
Ruptures Above Sect Min Mag	25
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.97, 7.82]
Length Range	[23, 157] km
Total Rate	5.627048E-5 /yr
Multi-Fault Rate	5.627048E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

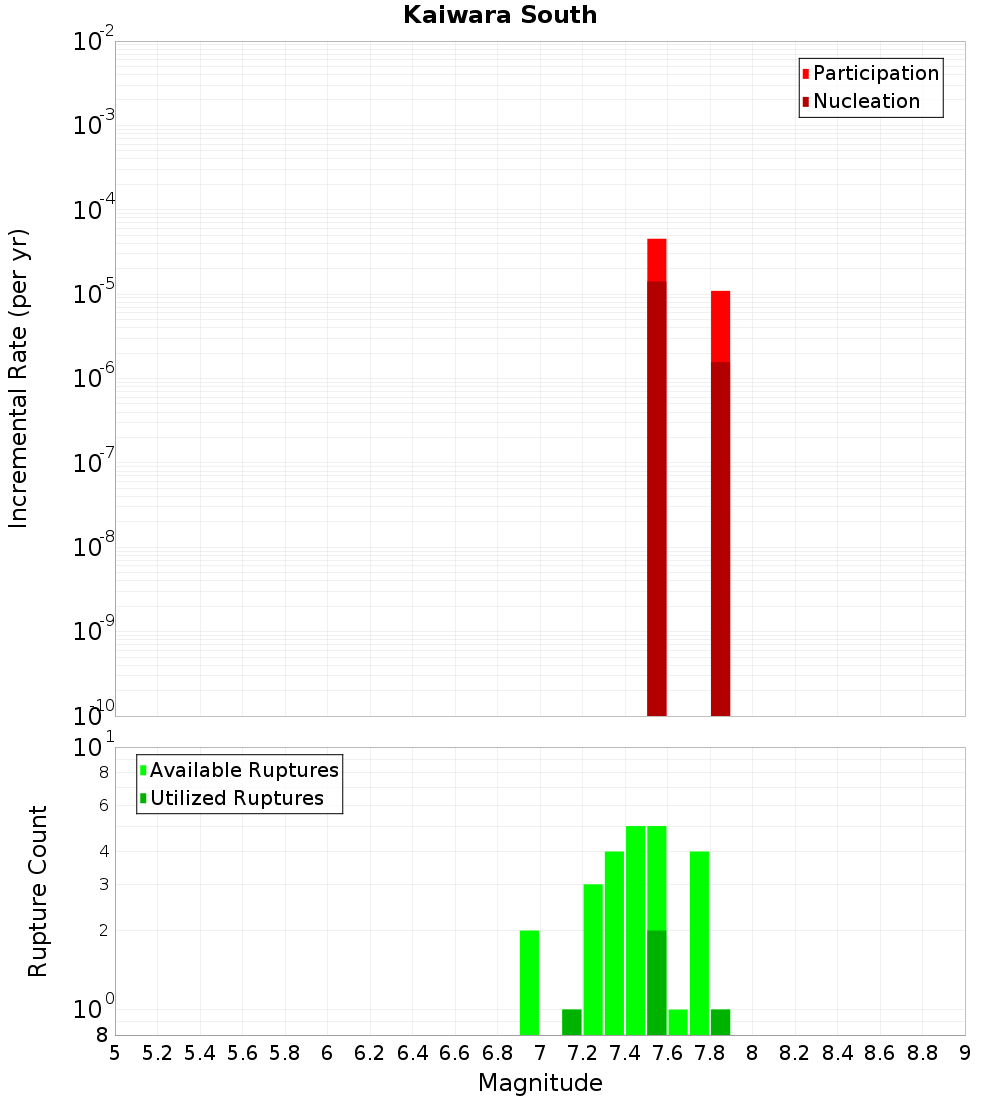

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

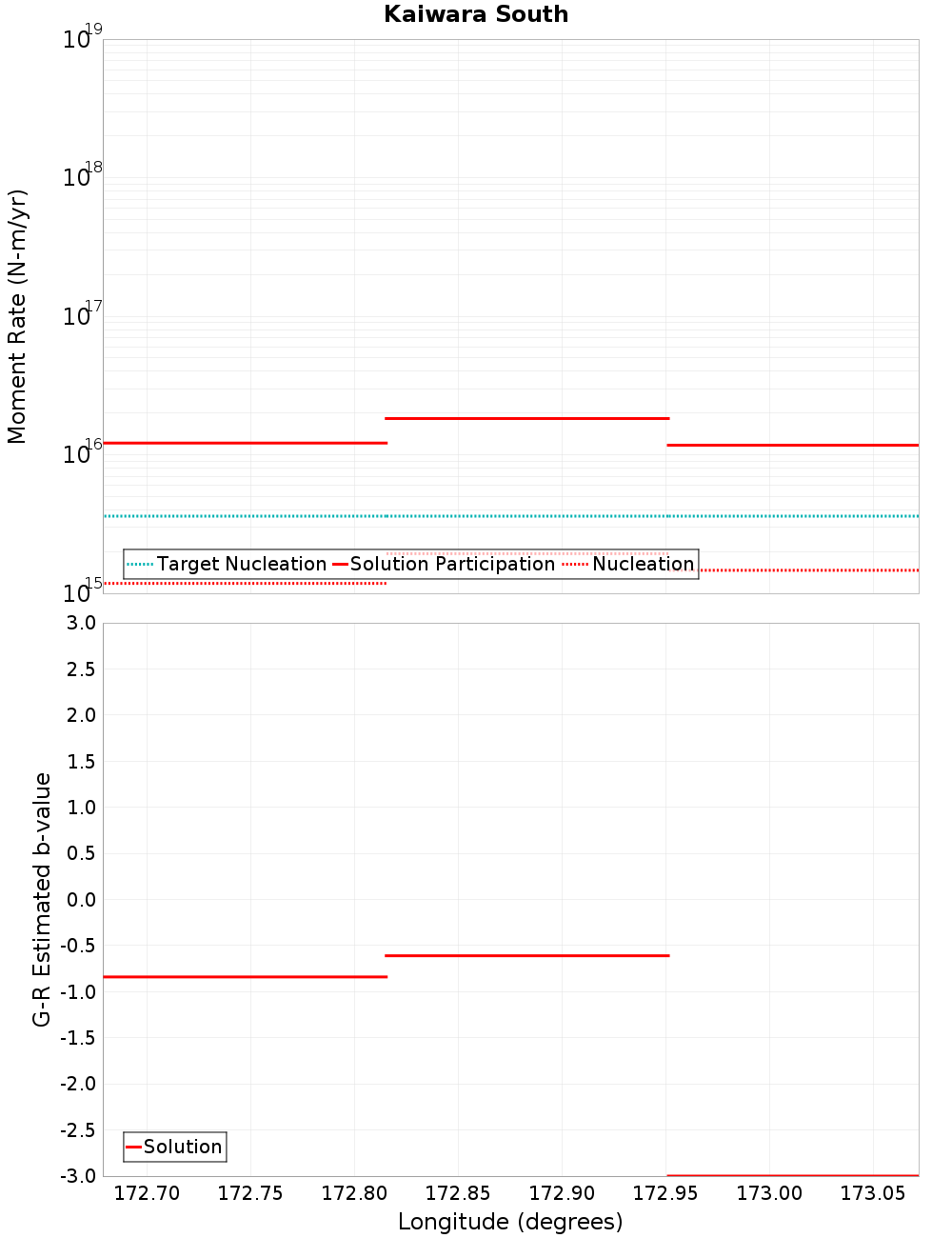

Moment-Rates and b-Values

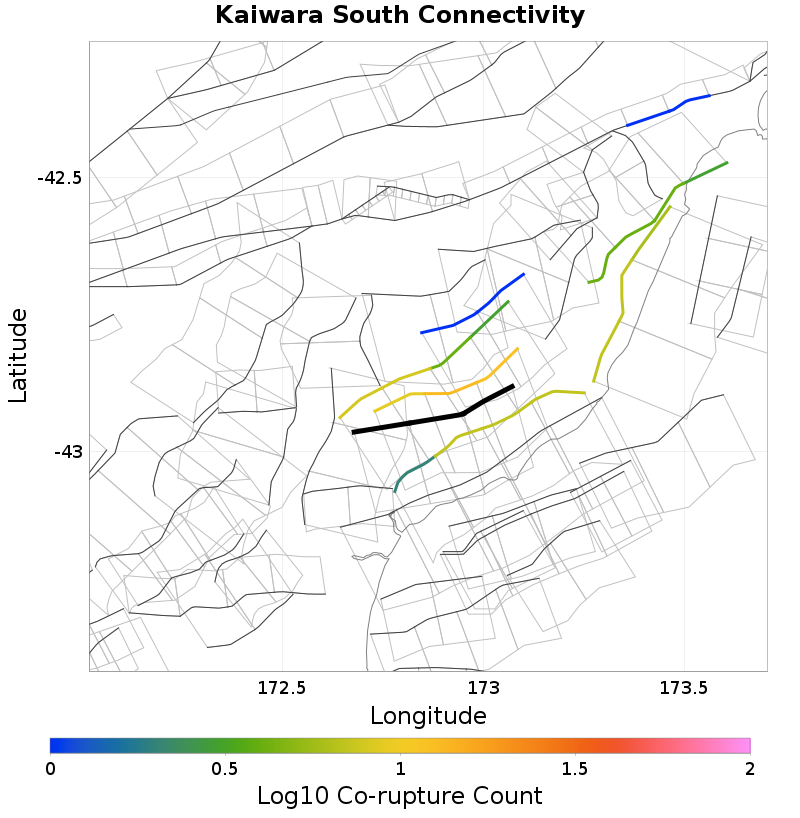

Connectivity

Nearby Sections

Fault Section	Fault Section
Doctors, 1 km away	Virginia, 12.91 km away
Boby Stream, 2.03 km away	Starvation - Ashley, 14.42 km away
Alexander, 2.76 km away	Pancake, 15.21 km away
Lowry, 3 km away	Motunau, 15.32 km away
OmihiLwrHuru, 3.03 km away	Hawkswood, 16.48 km away
AmberBlyth, 8.44 km away	Point Gibson, 16.79 km away
Balmoral, 8.47 km away	North Canterbury Shelf 2, 16.82 km away
Kaiwara North, 11.67 km away	Leithfield - NCVI - NCVII, 17.66 km away
Mt Arden, 12.38 km away	Mt Culverden, 17.85 km away
Leonard Mound, 12.48 km away	North Canterbury Shelf 11, 18.62 km away
Hurunui Peak, 12.73 km away	Mt Lawry, 19.49 km away

Doctors, 1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Boby Stream, 2.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alexander, 2.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.76 km
Min Rate-Weighted Dist	2.76 km
Co-rupture Count	13
Co-rupture Rate	3.3092085E-5

Lowry, 3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3 km
Min Rate-Weighted Dist	6.62 km
Co-rupture Count	8
Co-rupture Rate	4.5335877E-5

OmihiLwrHuru, 3.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.03 km
Co-rupture Count	9
Co-rupture Rate	1.0934604E-5

AmberBlyth, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Balmoral, 8.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaiwara North, 11.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Arden, 12.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 12.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	2.3178396E-5

Hurunui Peak, 12.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Virginia, 12.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Starvation - Ashley, 14.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pancake, 15.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motunau, 15.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkswood, 16.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	1.0934604E-5

Point Gibson, 16.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

North Canterbury Shelf 2, 16.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leithfield - NCVI - NCVII, 17.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Culverden, 17.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

North Canterbury Shelf 11, 18.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Lawry, 19.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
