Masterton Details

Property	Value
Rupture Count	671
Ruptures Above Sect Min Mag	665
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.41, 8.13]
Length Range	[11, 397] km
Total Rate	4.987929E-4 /yr
Multi-Fault Rate	4.987929E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	36

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

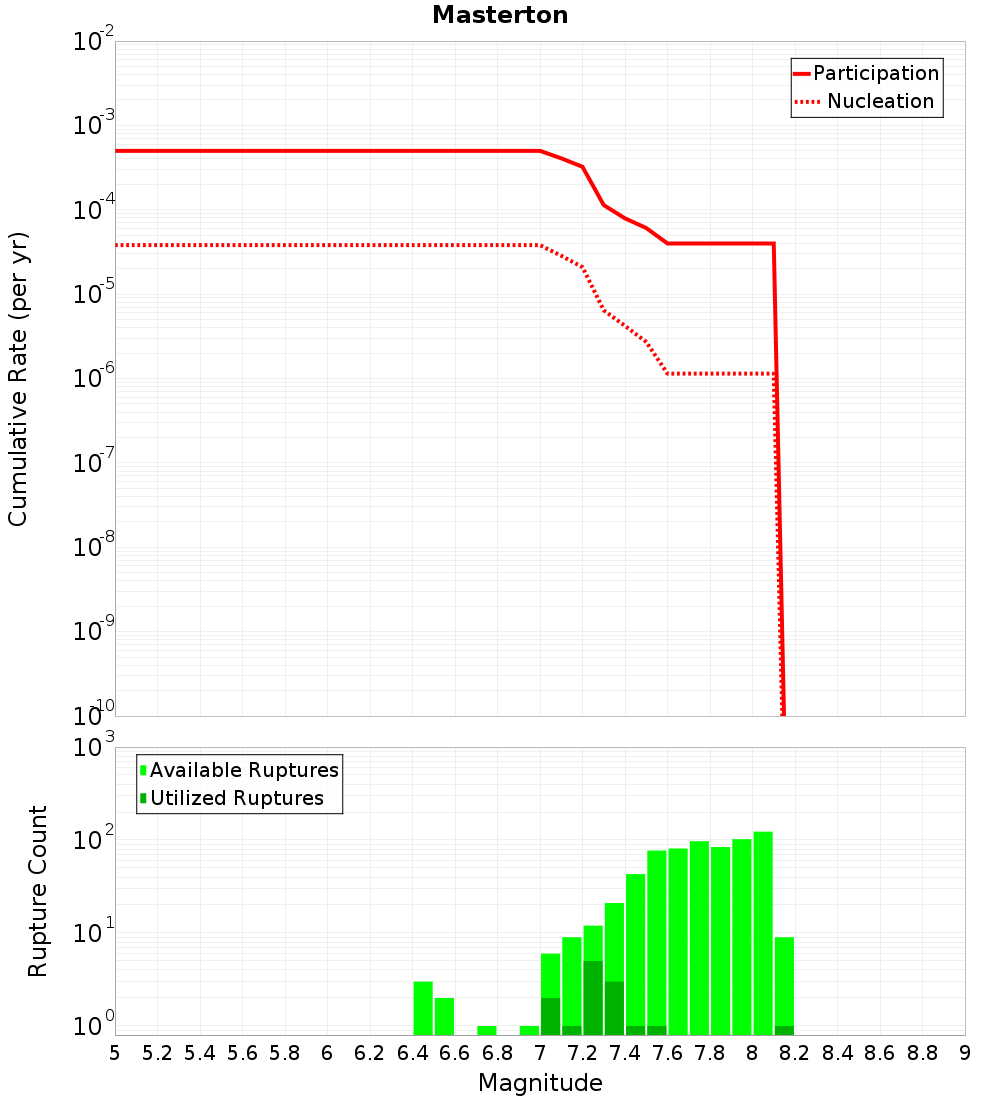

Magnitude-Frequency Distribution

Incremental	Cumulative

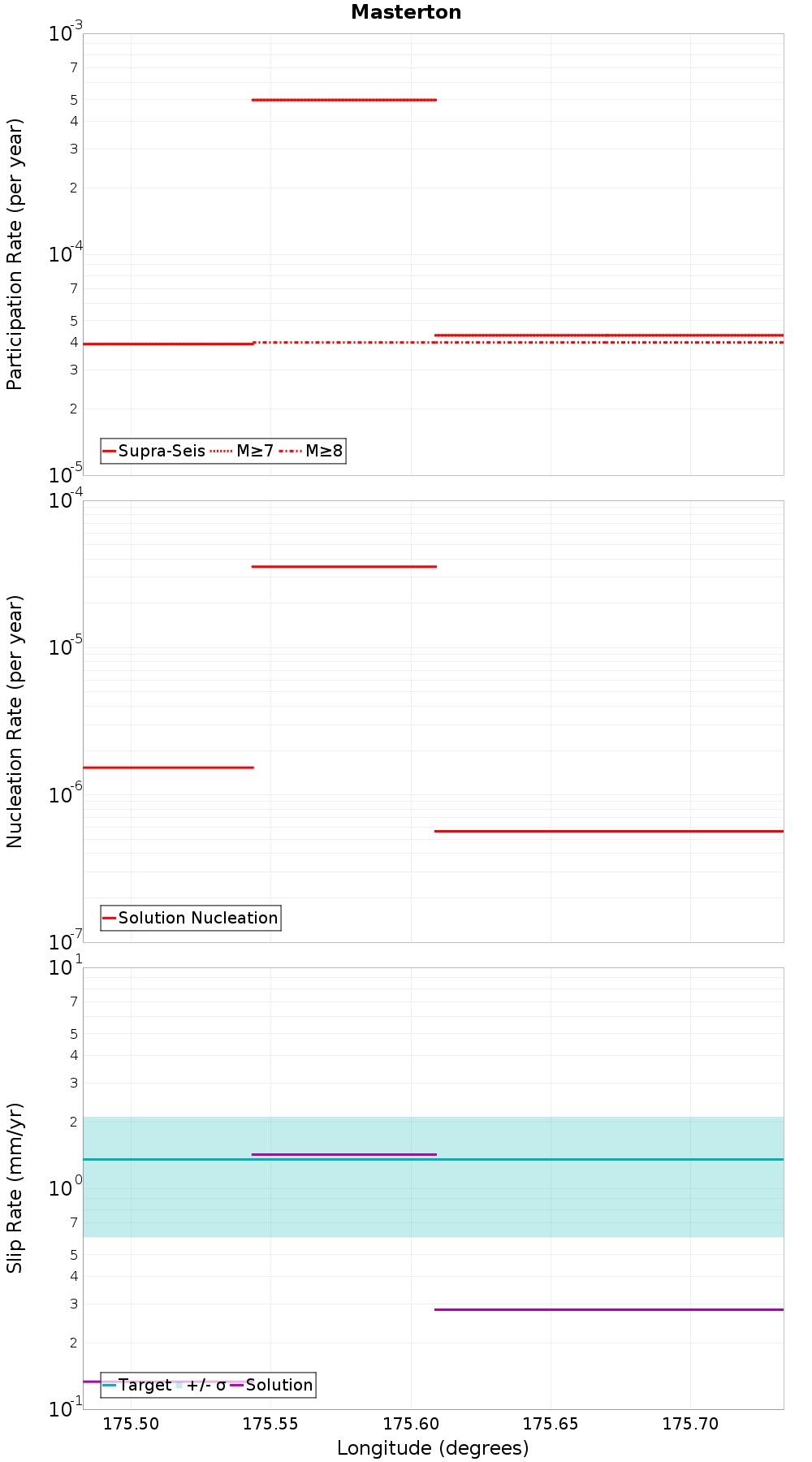

Along-Strike Values

Moment-Rates and b-Values

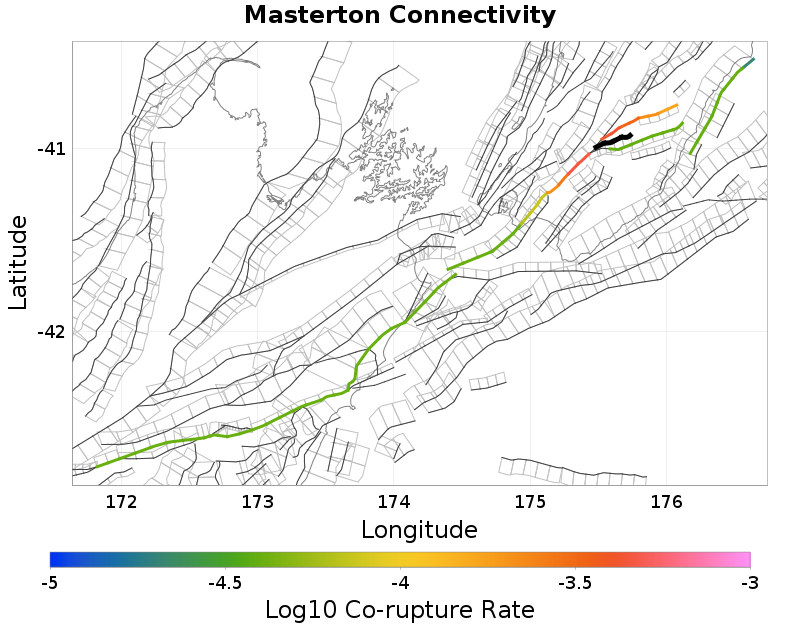

Connectivity

Nearby Sections

Fault Section
Carterton, 0.31 km away
Wairarapa: 3, 0.33 km away
Martinborough, 2.53 km away
Mokonui Southwest, 2.89 km away
Kaumingi, 4.03 km away
Wairarapa: 2, 5.69 km away
Bidwill, 8.57 km away
Wellington: Tararua 2, 9.41 km away
Dry River - Huangarua: 3, 10.11 km away
Mokonui Northeast, 11.3 km away
Wellington: Tararua 3, 11.85 km away
Dry River - Huangarua: 2, 13.59 km away
Dreyers Rock, 18.15 km away

Carterton, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	1.23 km
Min Rate-Weighted Dist	1.23 km
Co-rupture Count	116
Co-rupture Rate	3.9198992E-5

Wairarapa: 3, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	148
Co-rupture Rate	0.0

Martinborough, 2.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Southwest, 2.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.89 km
Min Rate-Weighted Dist	2.89 km
Co-rupture Count	453
Co-rupture Rate	4.166681E-4

Kaumingi, 4.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 5.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.69 km
Min Rate-Weighted Dist	11.34 km
Co-rupture Count	652
Co-rupture Rate	4.595939E-4

Bidwill, 8.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 2, 9.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 3, 10.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Northeast, 11.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	175
Co-rupture Rate	2.1016879E-4

Wellington: Tararua 3, 11.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 2, 13.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dreyers Rock, 18.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
