Moumahaki - Okaia 4 Details
| Property | Value |
|---|---|
| Rupture Count | 972 |
| Ruptures Above Sect Min Mag | 862 |
| Ruptures w/ Nonzero Rates | 26 |
| Magnitude Range | [6.22, 7.31] |
| Length Range | [10, 122] km |
| Total Rate | 1.4649809E-4 /yr |
| Multi-Fault Rate | 1.4649809E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

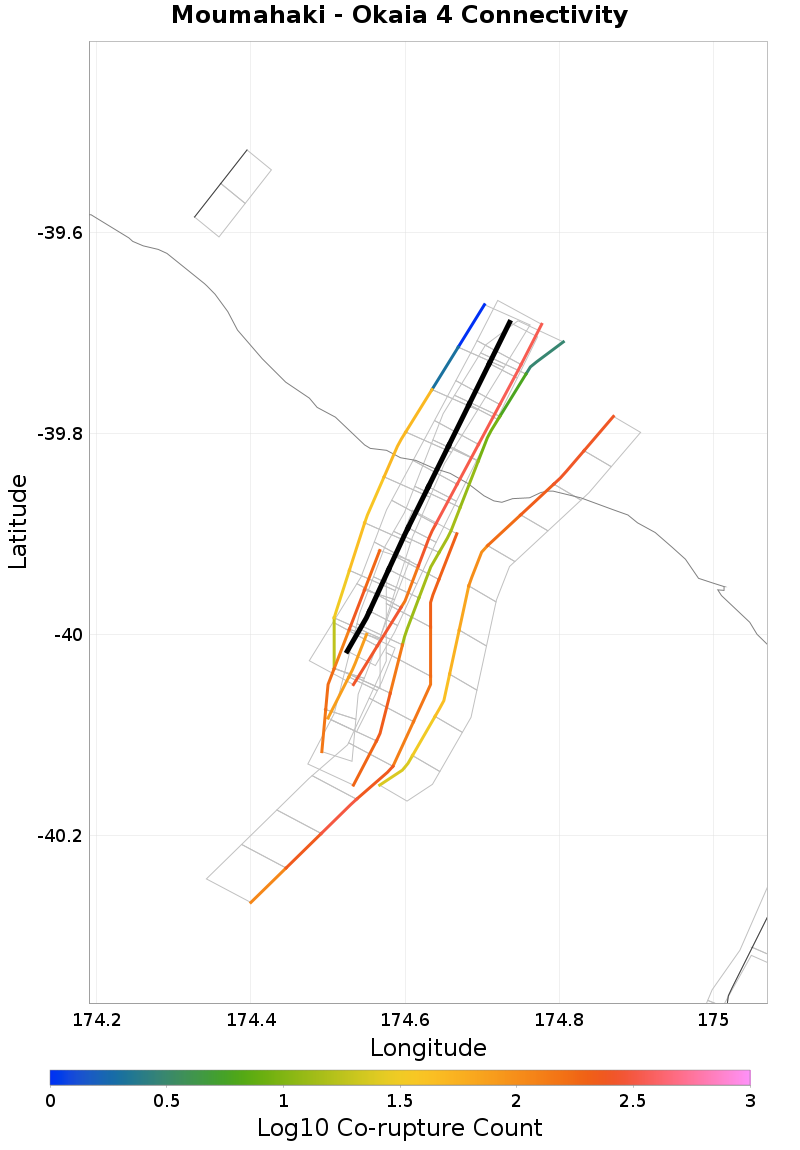

Connectivity
 |  |
|---|
Nearby Sections
Waitotara 8 & 9, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.15 km |
| Min Rate-Weighted Dist | 0.15 km |
| Co-rupture Count | 443 |
| Co-rupture Rate | 8.536049E-5 |
Ridge Road - Okaia 2, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.31 km |
| Min Rate-Weighted Dist | 0.31 km |
| Co-rupture Count | 578 |
| Co-rupture Rate | 5.8052457E-5 |
Waitotara 10 & 11, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.4 km |
| Min Rate-Weighted Dist | 0.4 km |
| Co-rupture Count | 241 |
| Co-rupture Rate | 1.10818655E-5 |
Waverley - Okaia 1, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.23 km |
| Co-rupture Count | 58 |
| Co-rupture Rate | 0.0 |
Okaia 5, 0.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.64 km |
| Min Rate-Weighted Dist | 0.64 km |
| Co-rupture Count | 303 |
| Co-rupture Rate | 5.97779E-6 |
Okaia 3, 0.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.93 km |
| Co-rupture Count | 77 |
| Co-rupture Rate | 0.0 |
Nukumuru - Waitotara 1-6, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.97 km |
| Min Rate-Weighted Dist | 8.46 km |
| Co-rupture Count | 261 |
| Co-rupture Rate | 2.2910433E-5 |
