Mt Culverden Details

PropertyValue
Rupture Count231
Ruptures Above Sect Min Mag231
Ruptures w/ Nonzero Rates6
Magnitude Range[7.10, 7.92]
Length Range[28, 276] km
Total Rate7.55658E-5 /yr
Multi-Fault Rate7.55658E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults21

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

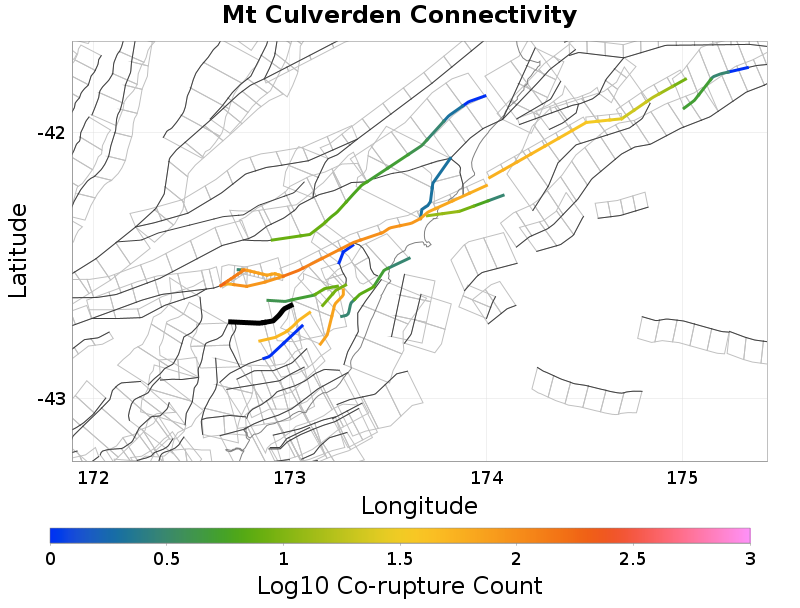

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Balmoral, 0.28 km awayHope: Conway, 12.62 km away
Kaiwara North, 0.48 km awayAlexander, 14.58 km away
Doctors, 0.77 km awayHope: Hanmer NW, 14.91 km away
Hurunui Peak, 1.53 km awayHope: Hanmer SW, 15.12 km away
The Humps, 1.71 km awayHope: Kakapo-2-Hamner, 15.65 km away
Leonard Mound, 4.8 km awayHundalee, 16.46 km away
Lowry, 7.58 km awayKakapo, 17.08 km away
Hanmer, 11.42 km awayHope: Hope River, 17.08 km away
Leader: South, 11.61 km awayKaiwara South, 17.85 km away
Esk North, 12.11 km awayVirginia, 17.86 km away
Hope: Hanmer SE, 12.56 km away

Balmoral, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 0.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.48 km
Co-rupture Count70
Co-rupture Rate0.0

Doctors, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 1.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 1.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.71 km
Co-rupture Count8
Co-rupture Rate0.0

Leonard Mound, 4.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.8 km
Co-rupture Count50
Co-rupture Rate0.0

Lowry, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hanmer, 11.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate1.0764106E-5

Leader: South, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Esk North, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer SE, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count87
Co-rupture Rate6.480169E-5

Hope: Conway, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count151
Co-rupture Rate7.55658E-5

Alexander, 14.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 14.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist14.91 km
Min Rate-Weighted Dist14.91 km
Co-rupture Count203
Co-rupture Rate7.55658E-5

Hope: Hanmer SW, 15.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate6.480169E-5

Hope: Kakapo-2-Hamner, 15.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Kakapo, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hope River, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 17.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 17.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
