Needles East 2 Details

Property	Value
Rupture Count	2,613
Ruptures Above Sect Min Mag	2,613
Ruptures w/ Nonzero Rates	4
Magnitude Range	[7.10, 8.50]
Length Range	[25, 912] km
Total Rate	1.307297E-4 /yr
Multi-Fault Rate	1.307297E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	112

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

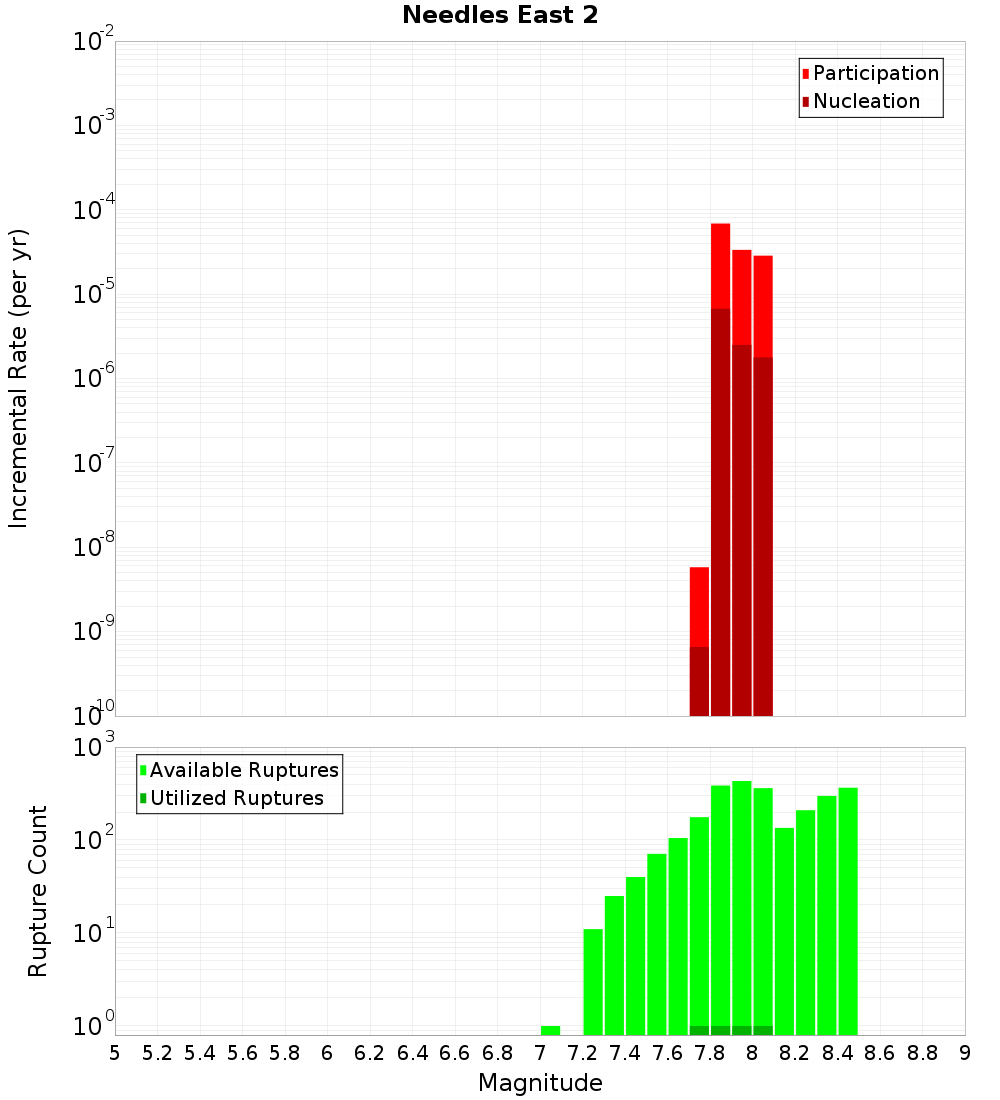

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
London Hill, 0.11 km away	BooBoo, 10.51 km away
Needles, 0.13 km away	Wairarapa: Needles, 12.75 km away
Chancet, 2.61 km away	Awatere: Northeast 2, 13.14 km away
Vernon 2, 3.99 km away	Upper Slope, 13.38 km away
Vernon 3, 4.42 km away	Cloudy 2, 13.39 km away
Kekerengu 1, 4.78 km away	Cloudy 3, 14.9 km away
Vernon 4, 6.26 km away	Hope: Te Rapa, 15.49 km away
Cloudy 1, 7.07 km away	Campbell Bank, 17.08 km away
Clarence: Northeast, 7.34 km away	Awatere: Northeast 1, 17.15 km away
Vernon 1, 8.66 km away	Te Rapa 1, 17.81 km away
Wharanui, 9.25 km away

London Hill, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.11 km
Co-rupture Count	285
Co-rupture Rate	0.0

Needles, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.13 km
Min Rate-Weighted Dist	4.29 km
Co-rupture Count	996
Co-rupture Rate	6.205179E-5

Chancet, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.61 km
Min Rate-Weighted Dist	2.61 km
Co-rupture Count	244
Co-rupture Rate	6.867792E-5

Vernon 2, 3.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.99 km
Min Rate-Weighted Dist	3.99 km
Co-rupture Count	434
Co-rupture Rate	6.205179E-5

Vernon 3, 4.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kekerengu 1, 4.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.78 km
Min Rate-Weighted Dist	4.78 km
Co-rupture Count	1,856
Co-rupture Rate	6.867792E-5

Vernon 4, 6.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 1, 7.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clarence: Northeast, 7.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Vernon 1, 8.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Wharanui, 9.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

BooBoo, 10.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	482
Co-rupture Rate	6.205179E-5

Wairarapa: Needles, 12.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	184
Co-rupture Rate	0.0

Awatere: Northeast 2, 13.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Upper Slope, 13.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Cloudy 2, 13.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 3, 14.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Te Rapa, 15.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Campbell Bank, 17.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Northeast 1, 17.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	141
Co-rupture Rate	6.205179E-5

Te Rapa 1, 17.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
