Northern Ohariu Details

PropertyValue
Rupture Count10,397
Ruptures Above Sect Min Mag10,394
Ruptures w/ Nonzero Rates16
Magnitude Range[6.81, 8.28]
Length Range[19, 540] km
Total Rate2.3302916E-4 /yr
Multi-Fault Rate2.3302916E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults86

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

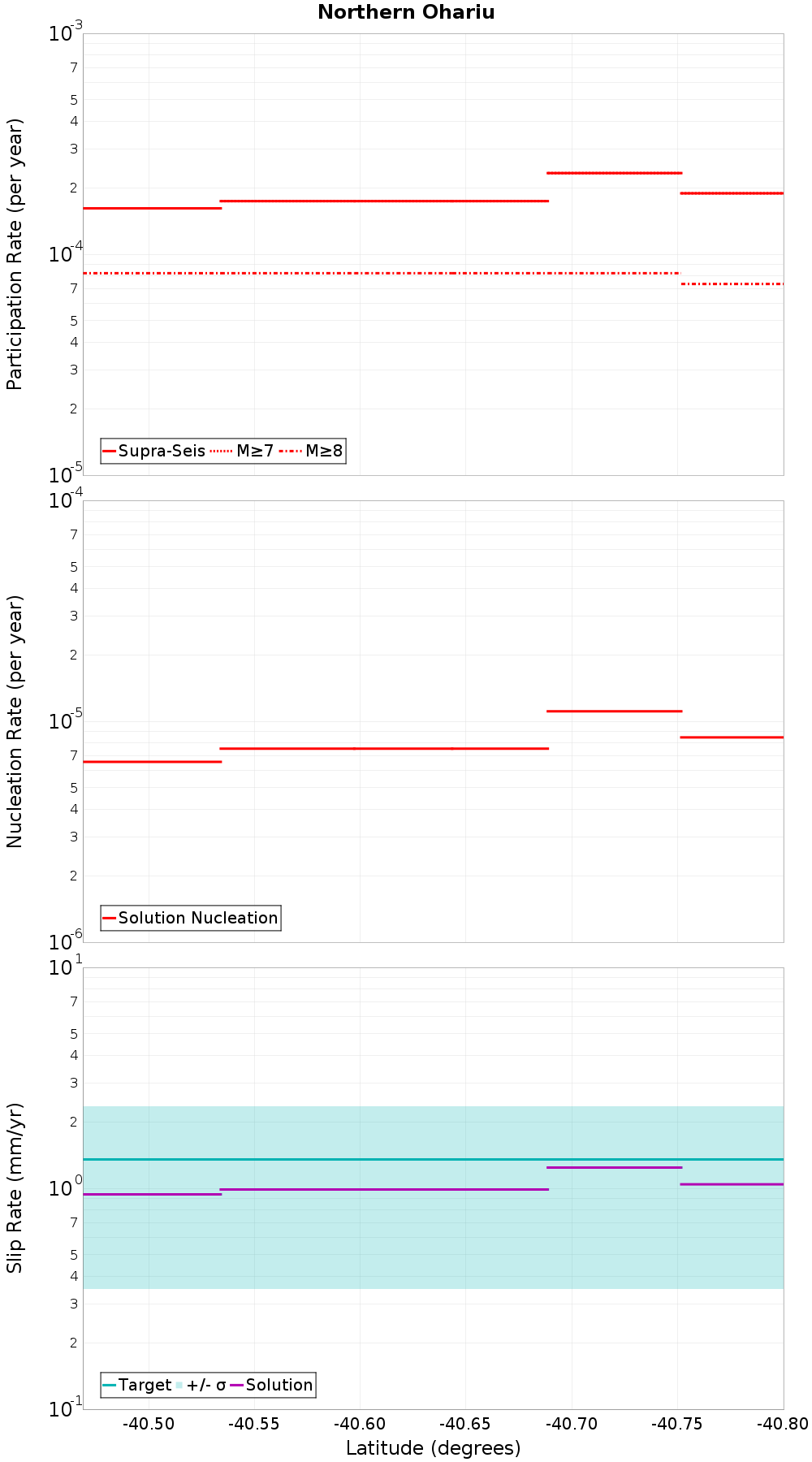

Along-Strike Values

(top)

Along-strike plot

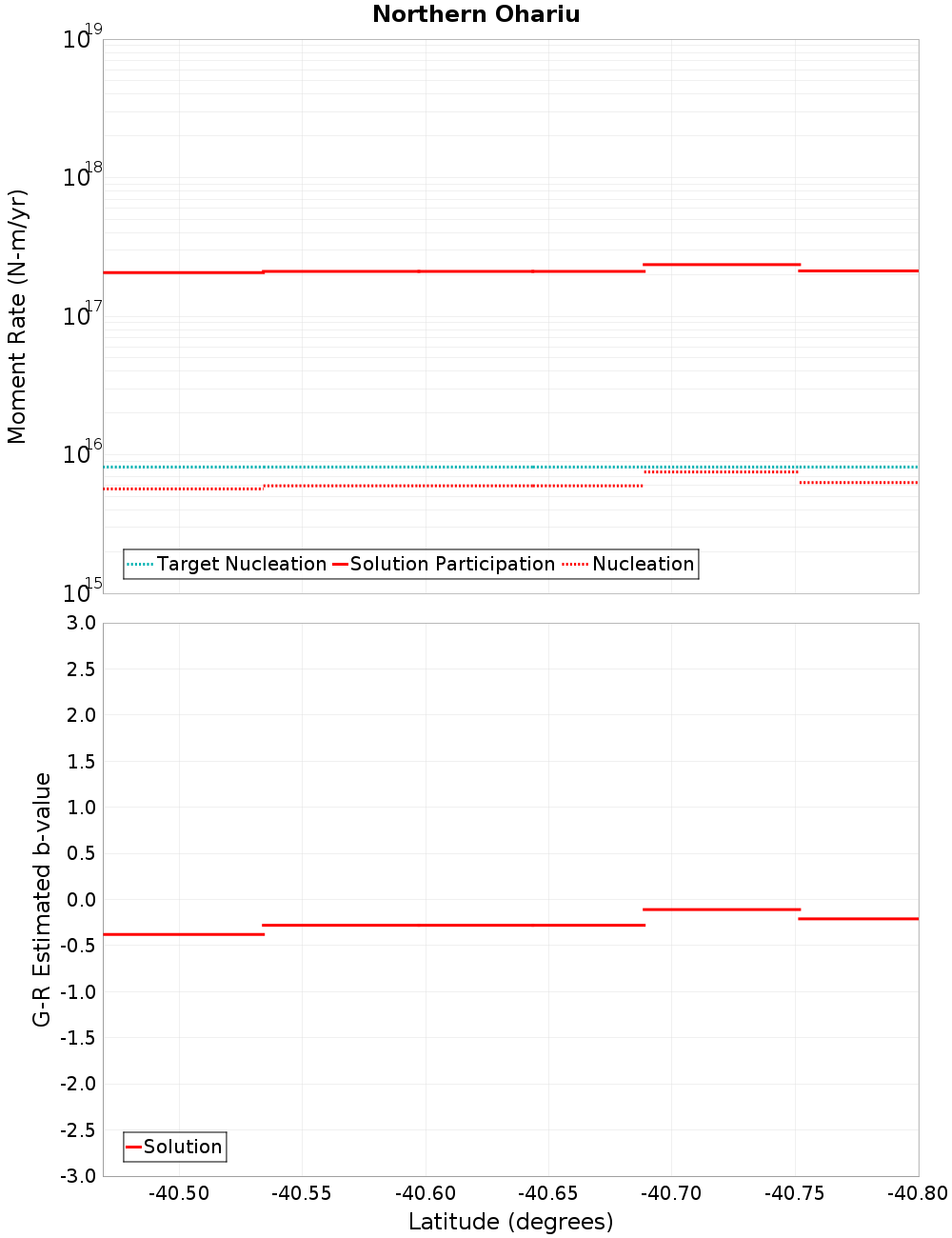

Moment-Rates and b-Values

(top)

Along-strike plot

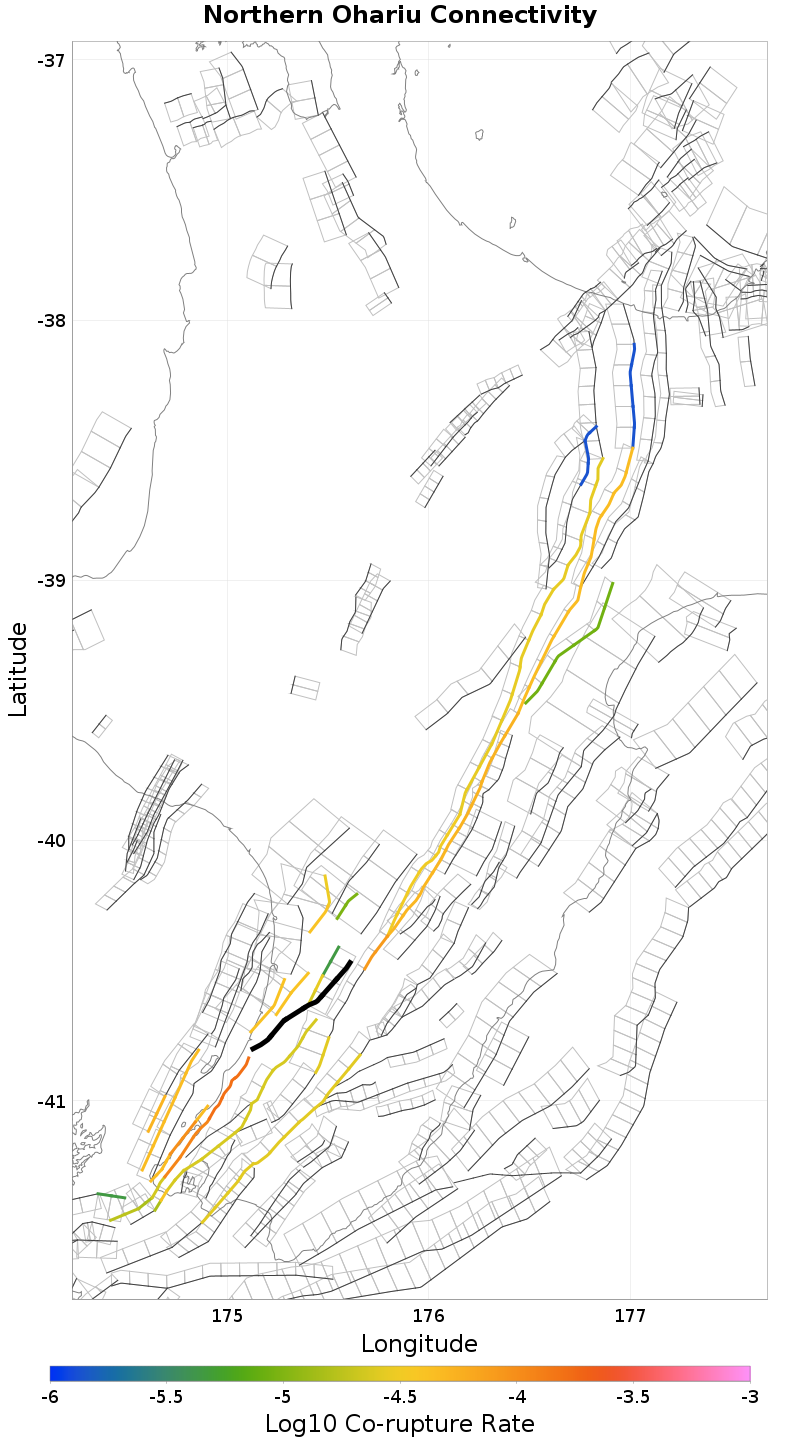

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tokomaru, 0.09 km awayRangitikei Offshore 1, 13.65 km away
Wellington: Tararua 3, 1.64 km awayOnepoto, 15.04 km away
Wellington: Pahiatua, 3.03 km awayPahiatua, 15.16 km away
Levin Anticline, 4.08 km awayHimatangi, 15.18 km away
Ohariu, 4.32 km awayMascarin, 17.61 km away
Poroutawhao, 6.82 km awayWellington: Tararua 2, 17.76 km away
Otaki Forks: 2, 7.03 km awayFisherman 3, 18.1 km away
Otaki Forks: 1, 7.35 km awayMohaka: South, 18.27 km away
Otaheke North, 11.55 km awayRuahine: South, 18.38 km away
Otaheke South, 11.86 km awayTaonui, 19.61 km away
Pohangina, 13.14 km awayFisherman 2, 19.86 km away

Tokomaru, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.09 km
Min Rate-Weighted Dist0.17 km
Co-rupture Count171
Co-rupture Rate2.7440721E-5

Wellington: Tararua 3, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.64 km
Min Rate-Weighted Dist6.77 km
Co-rupture Count1,183
Co-rupture Rate2.609635E-5

Wellington: Pahiatua, 3.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.03 km
Min Rate-Weighted Dist3.19 km
Co-rupture Count9,922
Co-rupture Rate8.201363E-5

Levin Anticline, 4.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.08 km
Min Rate-Weighted Dist4.08 km
Co-rupture Count41
Co-rupture Rate3.9346414E-5

Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.32 km
Min Rate-Weighted Dist4.32 km
Co-rupture Count7,532
Co-rupture Rate1.6127259E-4

Poroutawhao, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.82 km
Min Rate-Weighted Dist6.92 km
Co-rupture Count104
Co-rupture Rate4.1020816E-5

Otaki Forks: 2, 7.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate2.300332E-5

Otaki Forks: 1, 7.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count220
Co-rupture Rate2.300332E-5

Otaheke North, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate0.0

Pohangina, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count150
Co-rupture Rate0.0

Rangitikei Offshore 1, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 15.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 17.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Wellington: Tararua 2, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count452
Co-rupture Rate0.0

Fisherman 3, 18.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 18.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count6,823
Co-rupture Rate5.4571898E-5

Ruahine: South, 18.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count4,510
Co-rupture Rate3.131184E-5

Taonui, 19.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate9.478202E-6

Fisherman 2, 19.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
