Okaia 3 Details
| Property | Value |
|---|---|
| Rupture Count | 454 |
| Ruptures Above Sect Min Mag | 411 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.22, 7.33] |
| Length Range | [10, 123] km |
| Total Rate | 1.9206609E-5 /yr |
| Multi-Fault Rate | 1.9206609E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

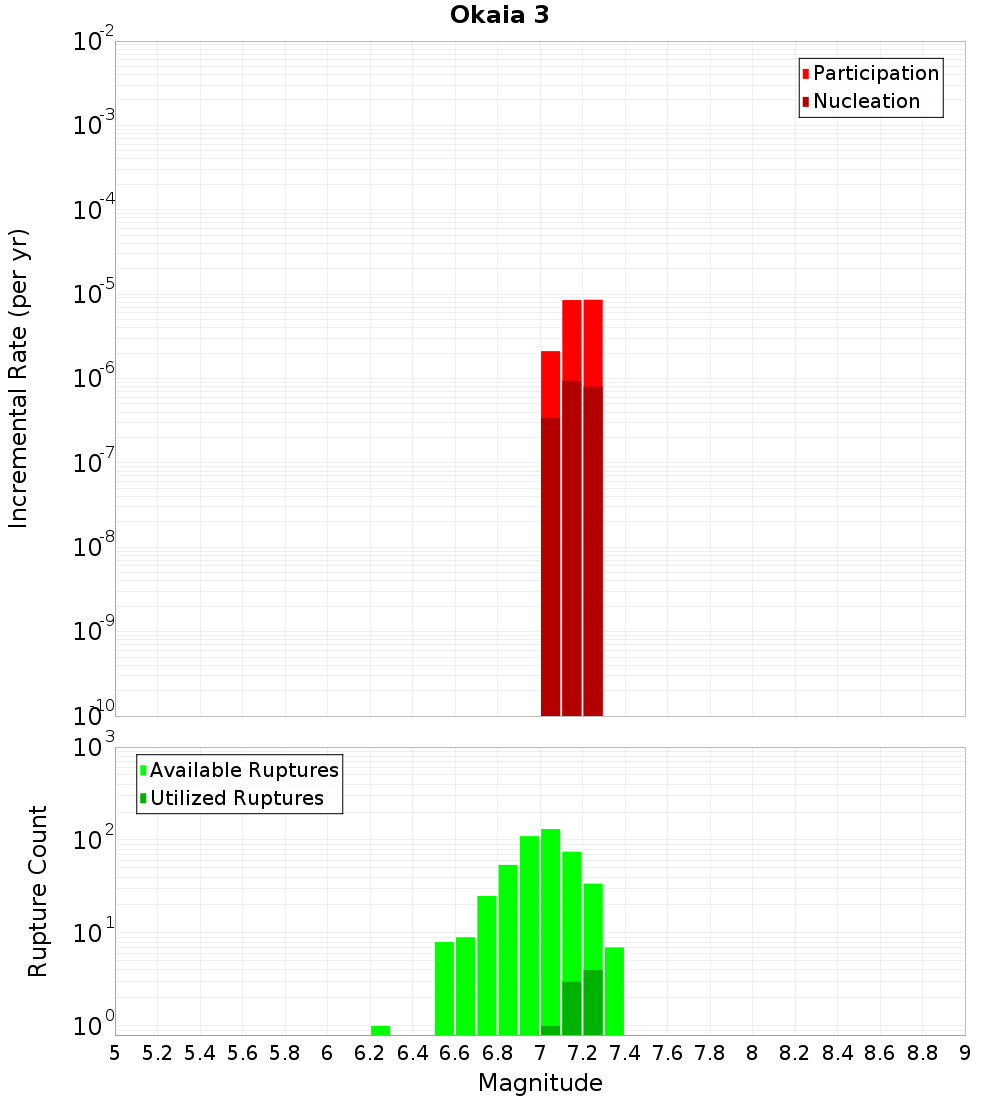

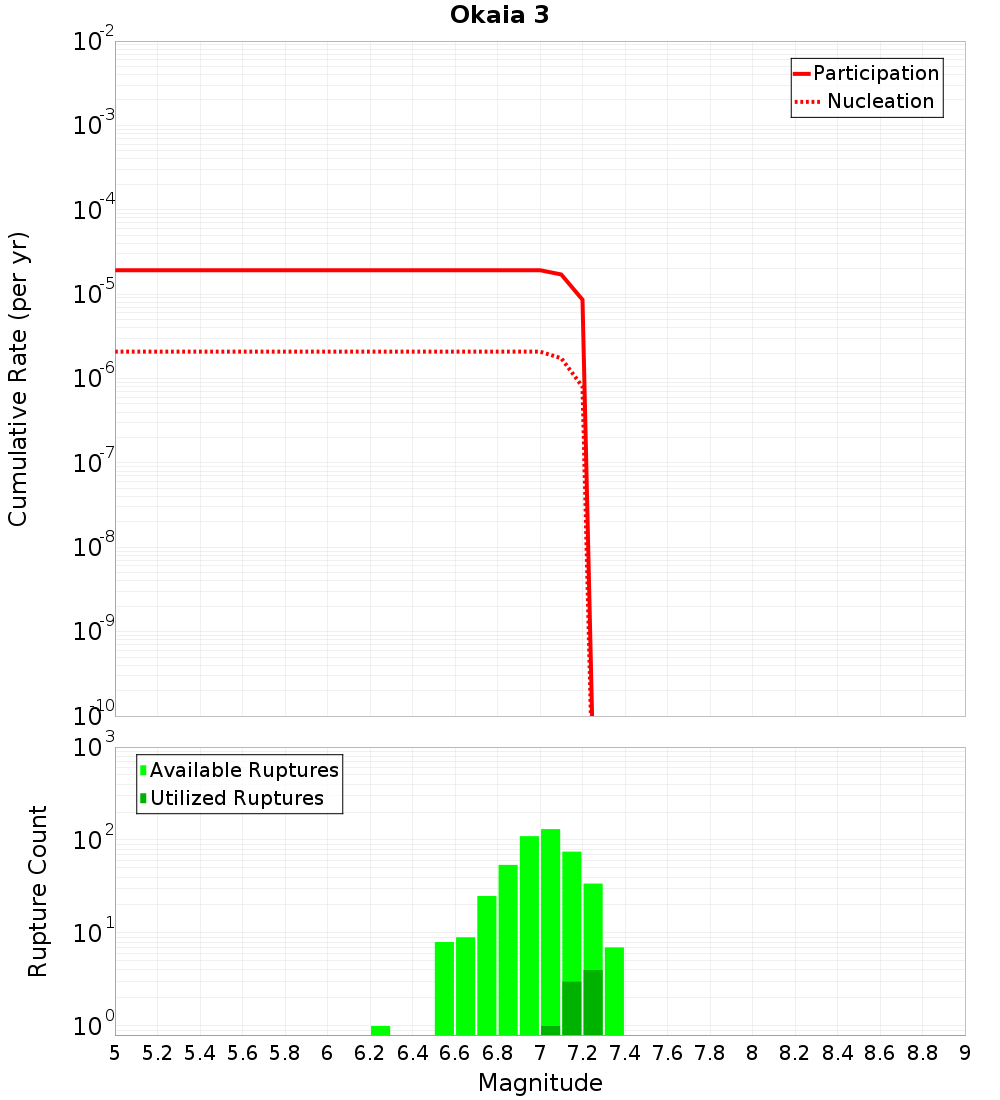

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

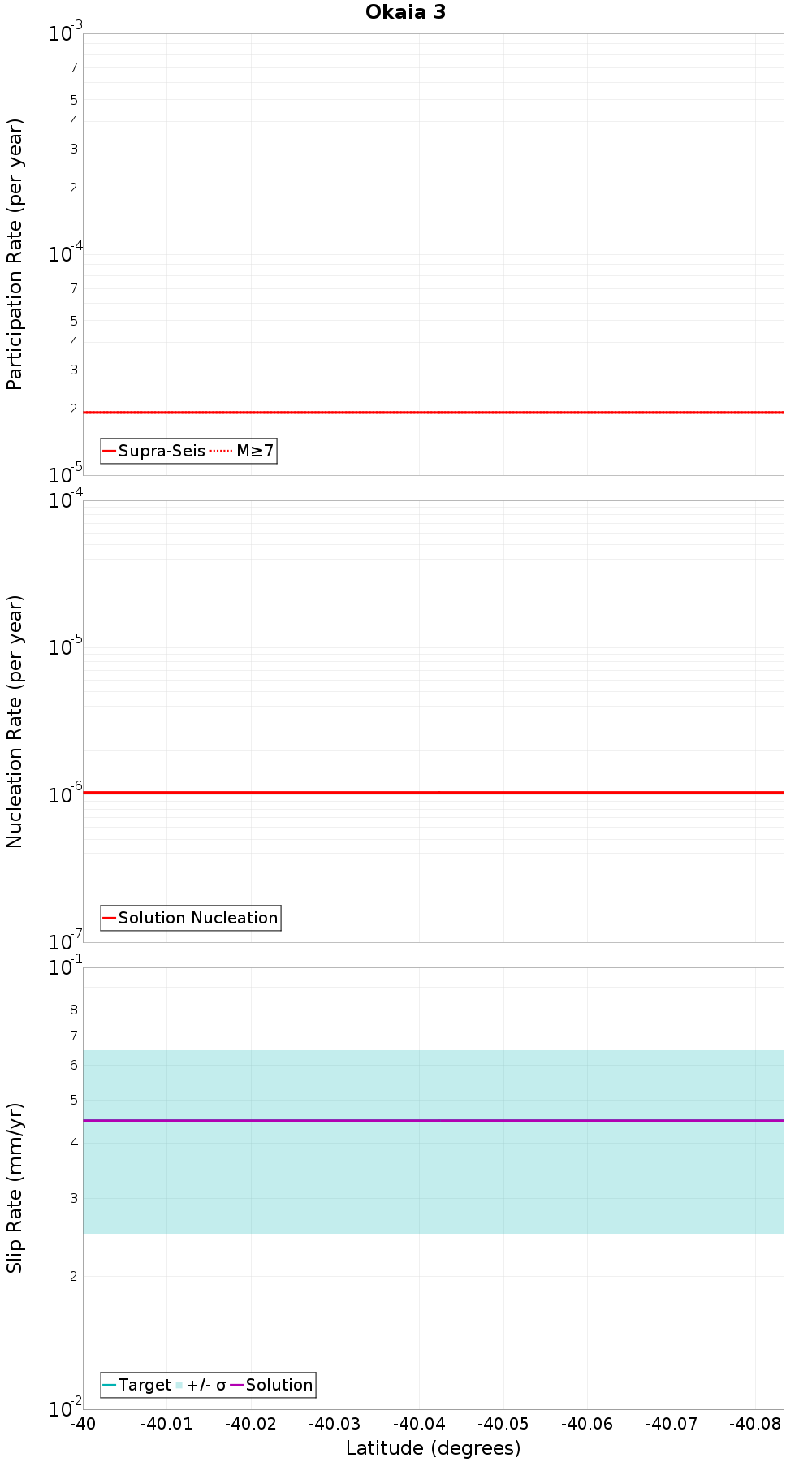

Along-Strike Values

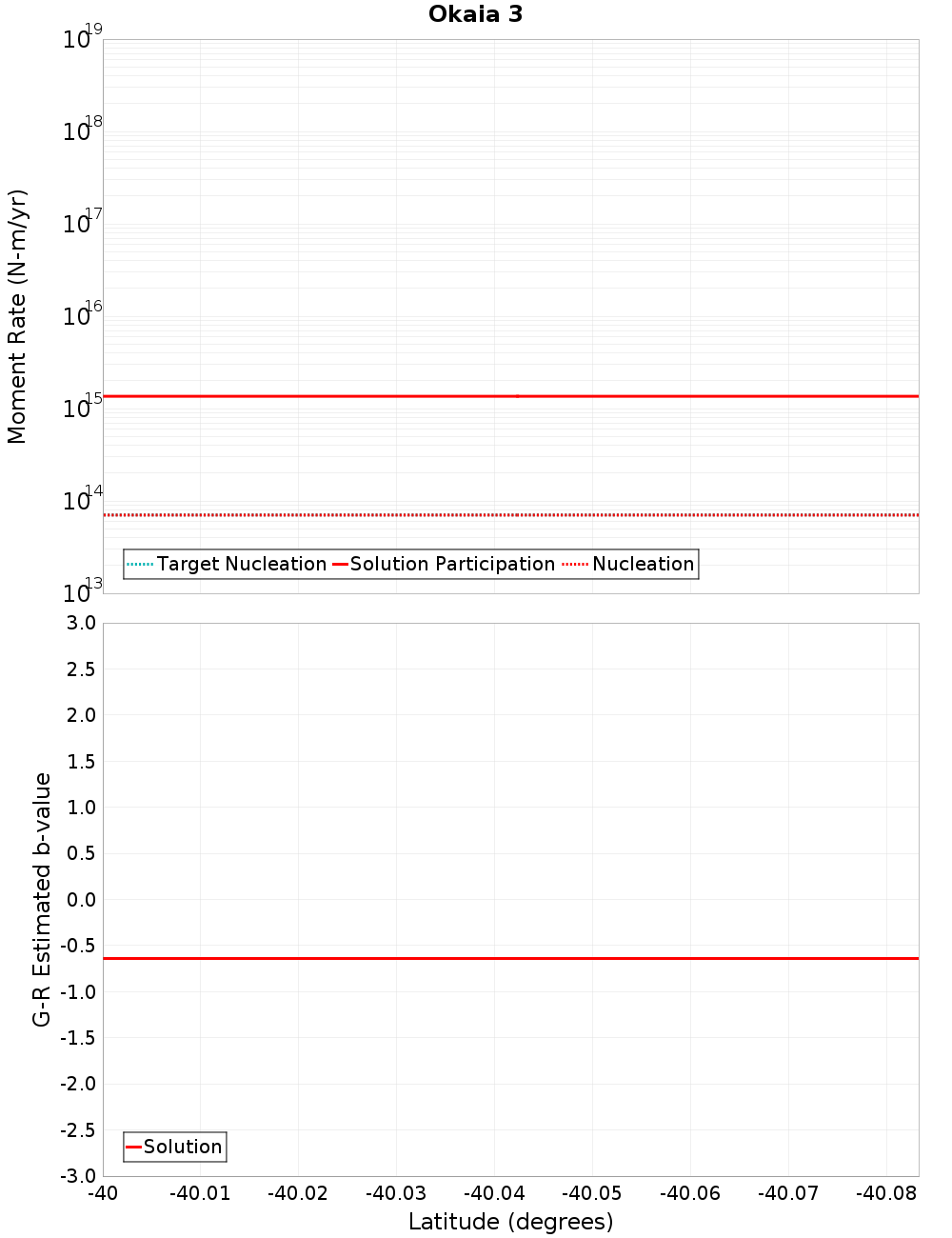

Moment-Rates and b-Values

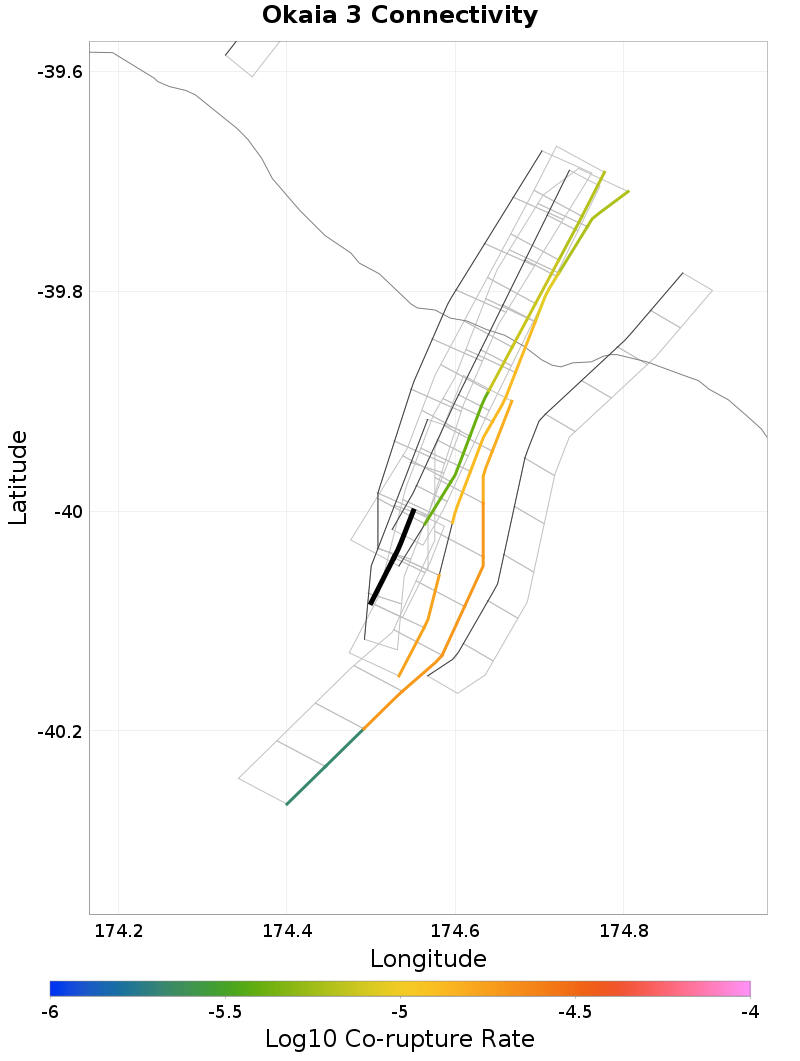

Connectivity
 |  |
|---|
Nearby Sections
Waitotara 8 & 9, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.11 km |
| Min Rate-Weighted Dist | 0.11 km |
| Co-rupture Count | 221 |
| Co-rupture Rate | 1.9206609E-5 |
Ridge Road - Okaia 2, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.28 km |
| Min Rate-Weighted Dist | 0.28 km |
| Co-rupture Count | 222 |
| Co-rupture Rate | 7.3541023E-6 |
Waitotara 10 & 11, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.29 km |
| Min Rate-Weighted Dist | 0.7 km |
| Co-rupture Count | 372 |
| Co-rupture Rate | 3.014905E-5 |
Okaia 5, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.32 km |
| Co-rupture Count | 179 |
| Co-rupture Rate | 0.0 |
Waverley - Okaia 1, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.89 km |
| Co-rupture Count | 184 |
| Co-rupture Rate | 0.0 |
Moumahaki - Okaia 4, 0.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.93 km |
| Co-rupture Count | 77 |
| Co-rupture Rate | 0.0 |
Nukumuru - Waitotara 1-6, 8.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 0.0 |
