Orakeikorako Details
| Property | Value |
|---|---|
| Rupture Count | 3,778 |
| Ruptures Above Sect Min Mag | 3,522 |
| Ruptures w/ Nonzero Rates | 54 |
| Magnitude Range | [6.11, 7.64] |
| Length Range | [8, 180] km |
| Total Rate | 6.7311694E-4 /yr |
| Multi-Fault Rate | 6.7311694E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

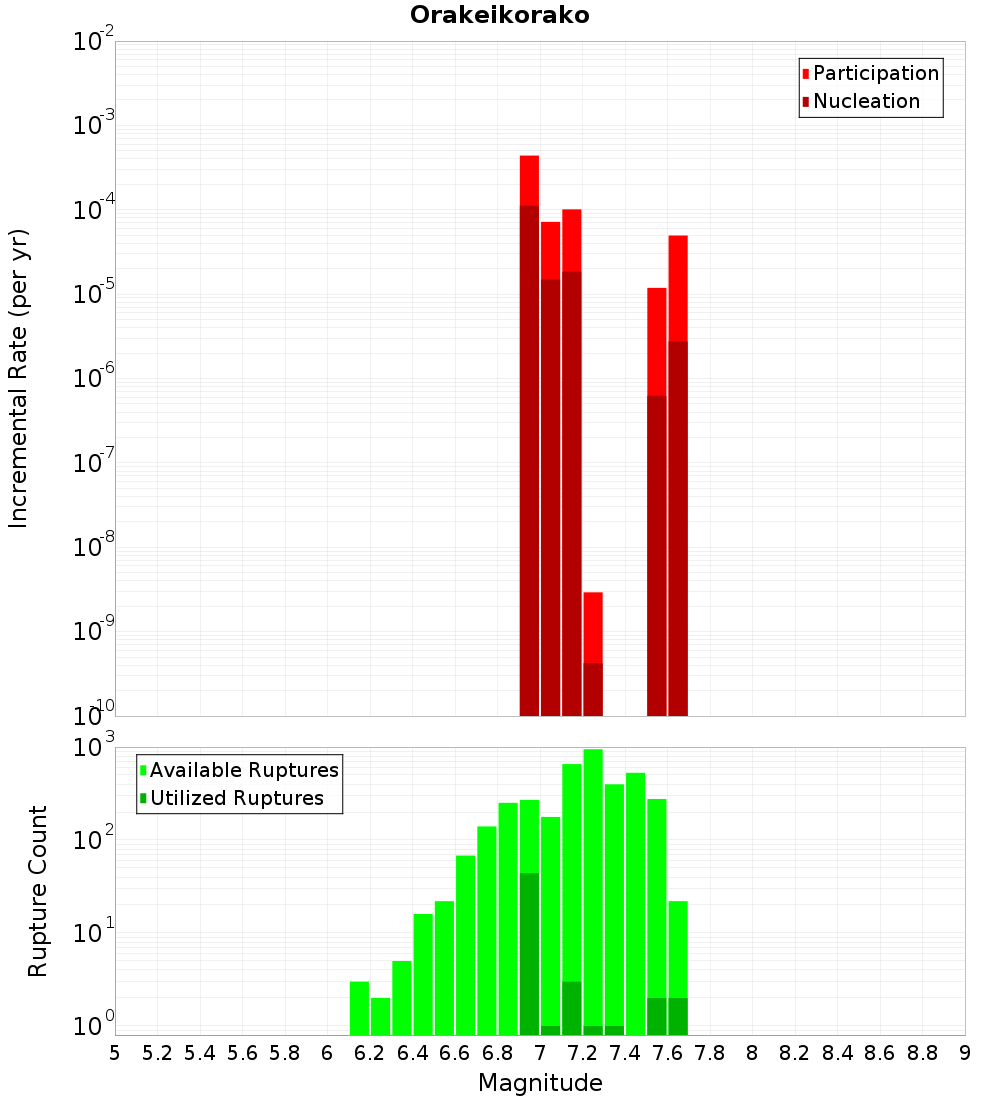

Magnitude-Frequency Distribution

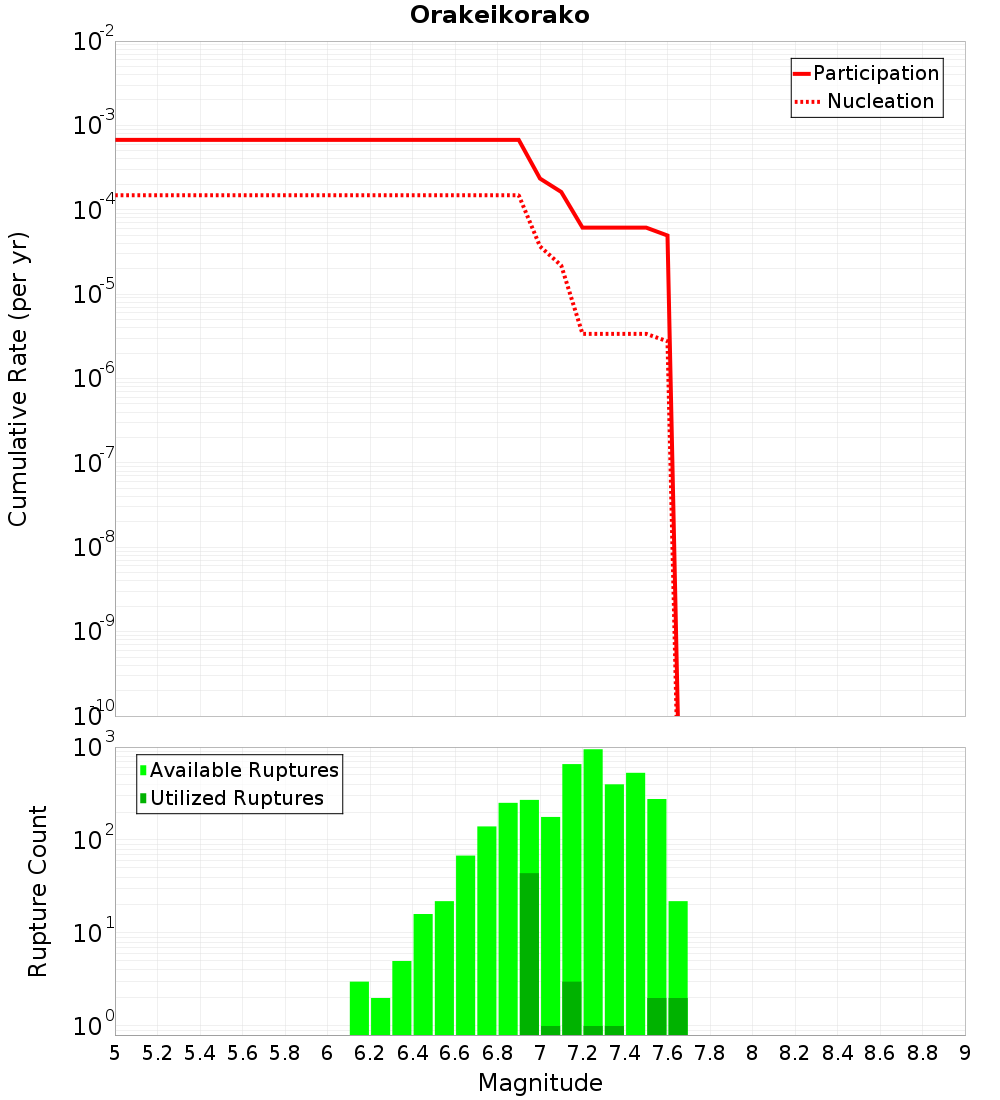

| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Whangamata West, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.46 km |
| Min Rate-Weighted Dist | 0.61 km |
| Co-rupture Count | 2,083 |
| Co-rupture Rate | 3.9868543E-4 |
Maleme, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Min Rate-Weighted Dist | 0.38 km |
| Co-rupture Count | 2,159 |
| Co-rupture Rate | 3.6721237E-4 |
Paeroa, 0.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.93 km |
| Min Rate-Weighted Dist | 0.93 km |
| Co-rupture Count | 2,430 |
| Co-rupture Rate | 3.0590454E-4 |
Puketerata, 2.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.99 km |
| Min Rate-Weighted Dist | 2.99 km |
| Co-rupture Count | 457 |
| Co-rupture Rate | 1.7042821E-5 |
Puketerata North, 3.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.28 km |
| Min Rate-Weighted Dist | 3.4 km |
| Co-rupture Count | 627 |
| Co-rupture Rate | 4.2418207E-5 |
Kaiapo, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.37 km |
| Min Rate-Weighted Dist | 4.37 km |
| Co-rupture Count | 1,146 |
| Co-rupture Rate | 3.3312387E-4 |
EarthquakeFlat - Tumunui, 19.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,215 |
| Co-rupture Rate | 3.6721237E-4 |
