Riversdale Details
| Property | Value |
|---|---|
| Rupture Count | 843 |
| Ruptures Above Sect Min Mag | 839 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [6.64, 8.17] |
| Length Range | [16, 457] km |
| Total Rate | 7.9097186E-4 /yr |
| Multi-Fault Rate | 7.9097186E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 38 |
Table Of Contents

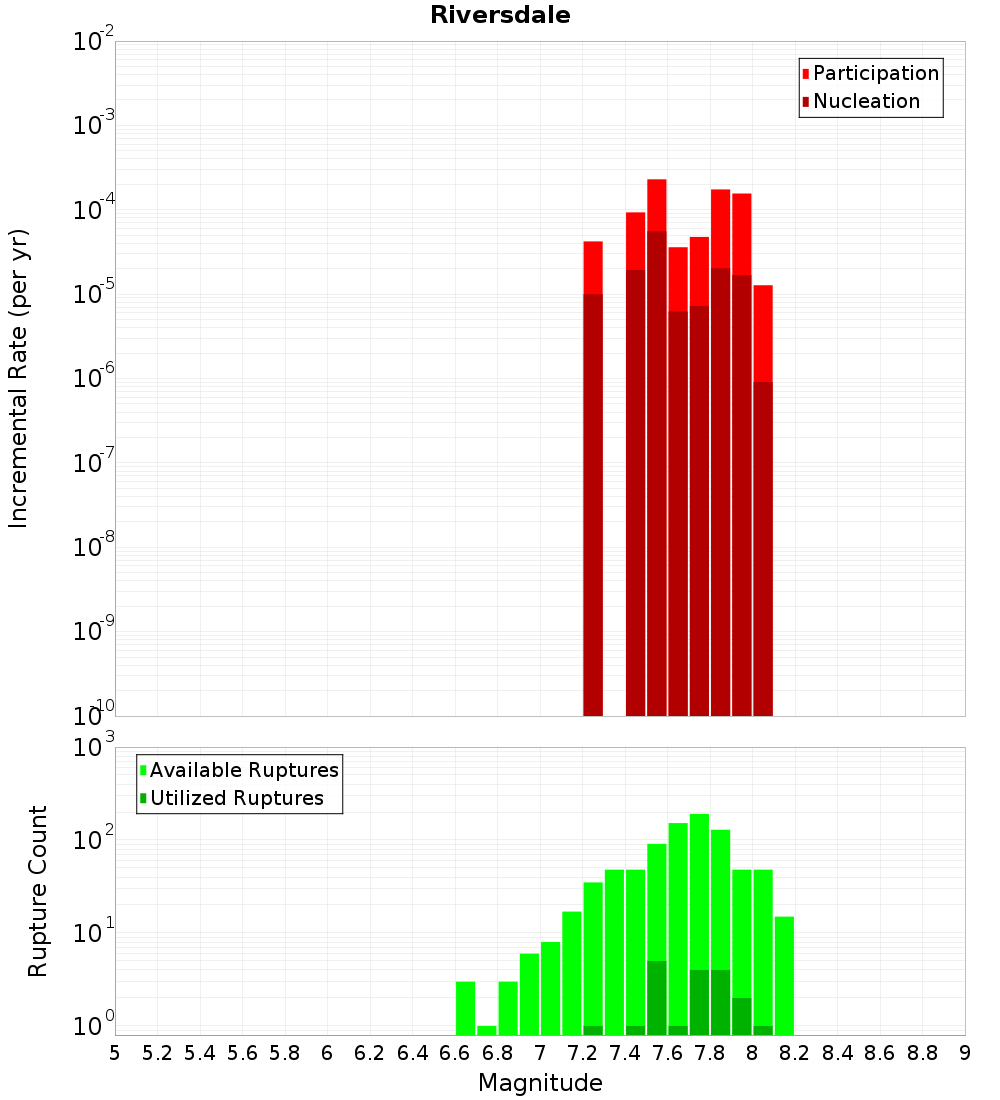

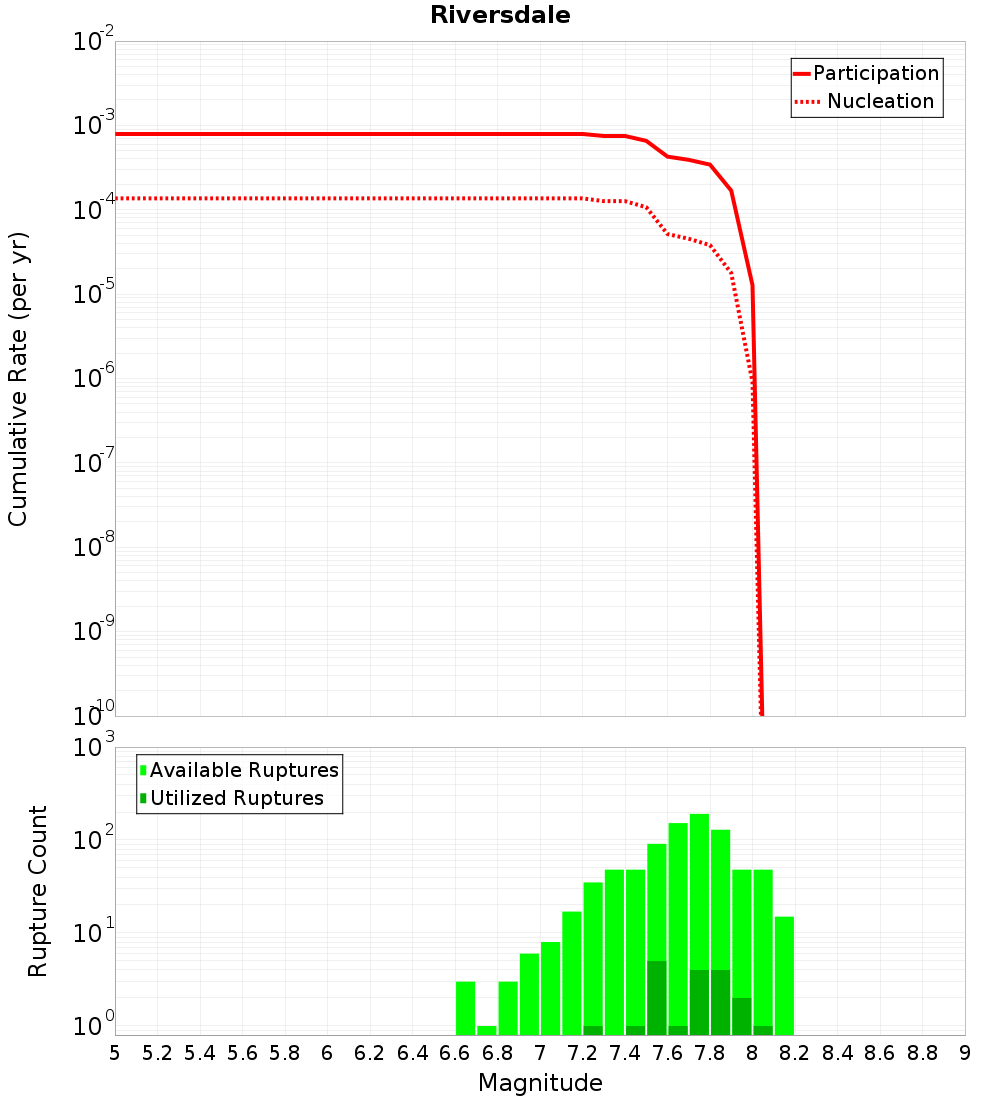

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

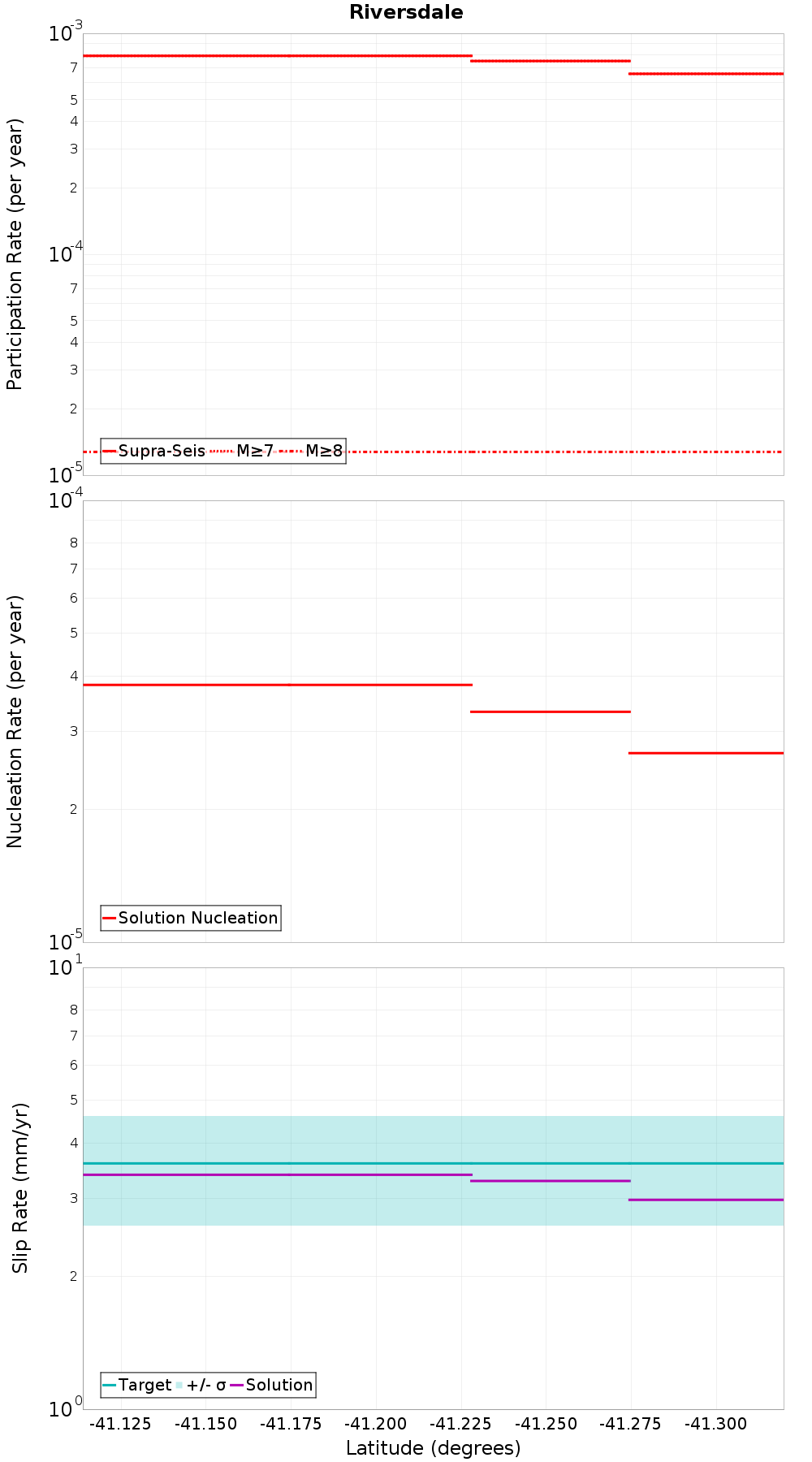

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Uruti Point, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.21 km |
| Co-rupture Count | 146 |
| Co-rupture Rate | 0.0 |
Riversdale North, 1.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.12 km |
| Min Rate-Weighted Dist | 1.12 km |
| Co-rupture Count | 209 |
| Co-rupture Rate | 4.175429E-4 |
Palliser - Kaiwhata, 3.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.26 km |
| Min Rate-Weighted Dist | 3.26 km |
| Co-rupture Count | 606 |
| Co-rupture Rate | 3.8621257E-4 |
Whareama Bank, 5.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.4 km |
| Min Rate-Weighted Dist | 5.4 km |
| Co-rupture Count | 360 |
| Co-rupture Rate | 2.3381763E-4 |
Mataikona, 6.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 202 |
| Co-rupture Rate | 4.175429E-4 |
Honeycomb, 6.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Uruti Basin, 8.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.5 km |
| Min Rate-Weighted Dist | 8.93 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 3.085691E-6 |
Kaumingi, 11.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Carterton, 12.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mataikona East, 18.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Opouawe - Uruti, 19.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 65 |
| Co-rupture Rate | 0.0 |
Uruti Basin 2, 19.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
