South Wedge 2 Details

PropertyValue
Rupture Count6,164
Ruptures Above Sect Min Mag6,152
Ruptures w/ Nonzero Rates16
Magnitude Range[6.55, 8.49]
Length Range[14, 892] km
Total Rate2.683608E-4 /yr
Multi-Fault Rate2.683608E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults56

Table Of Contents

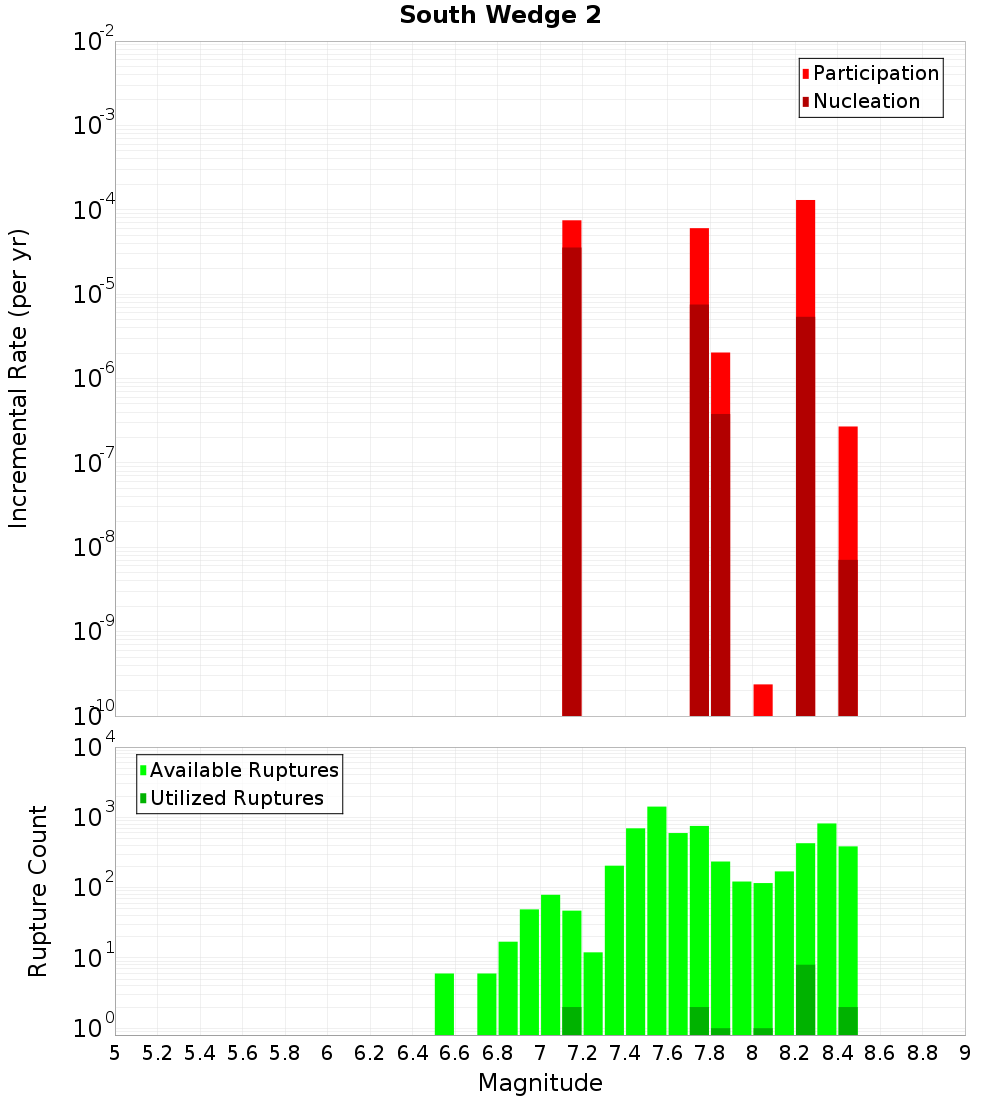

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

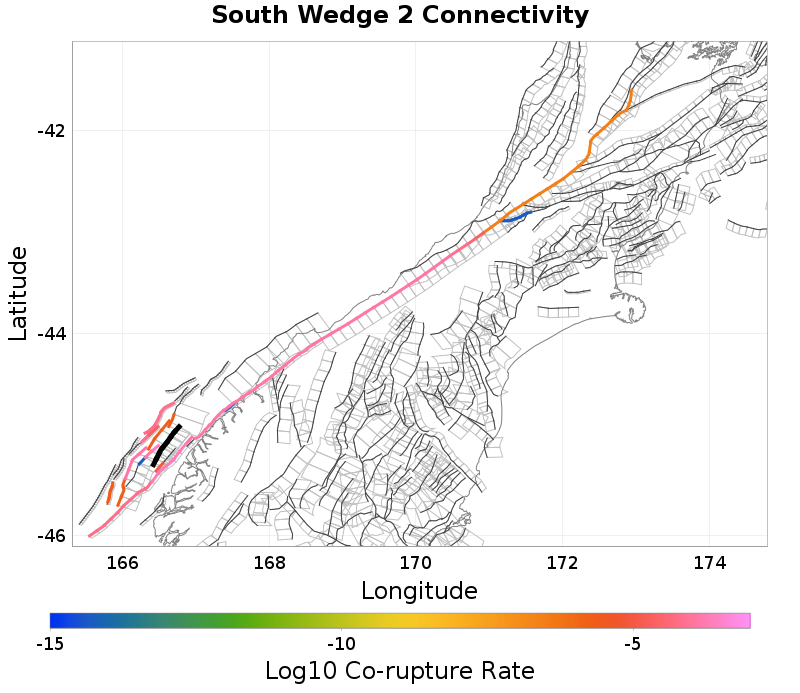

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
South Wedge 1, 0.1 km away
Alpine: Resolution - Dagg, 0.17 km away
South Wedge 3-6-10, 2.13 km away
Central Wedge 1 & 2 & 3, 3.88 km away
Alpine: Resolution - Charles, 4.8 km away
Central Wedge 4 - South Wedge 411, 5.03 km away
South Wedge 5, 6.48 km away
Alpine: Nancy, 7.19 km away
Alpine: Caswell, 8.13 km away
Caswell High 5, 15.79 km away
Caswell High 67, 19.24 km away

South Wedge 1, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.1 km
Min Rate-Weighted Dist0.1 km
Co-rupture Count1,113
Co-rupture Rate1.3445939E-5

Alpine: Resolution - Dagg, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.17 km
Min Rate-Weighted Dist0.17 km
Co-rupture Count2,781
Co-rupture Rate1.9131639E-4

South Wedge 3-6-10, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.13 km
Min Rate-Weighted Dist2.26 km
Co-rupture Count3,165
Co-rupture Rate2.0582133E-4

Central Wedge 1 & 2 & 3, 3.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.88 km
Min Rate-Weighted Dist3.88 km
Co-rupture Count3,184
Co-rupture Rate2.0331663E-6

Alpine: Resolution - Charles, 4.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1,608
Co-rupture Rate1.3081006E-4

Central Wedge 4 - South Wedge 411, 5.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count104
Co-rupture Rate2.0331663E-6

South Wedge 5, 6.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1,209
Co-rupture Rate1.3284323E-4

Alpine: Nancy, 7.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count675
Co-rupture Rate0.0

Alpine: Caswell, 8.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count2,212
Co-rupture Rate1.3081006E-4

Caswell High 5, 15.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count764
Co-rupture Rate7.501127E-5

Caswell High 67, 19.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1,292
Co-rupture Rate7.501127E-5
