Spylaw Details
| Property | Value |
|---|---|
| Rupture Count | 368 |
| Ruptures Above Sect Min Mag | 368 |
| Ruptures w/ Nonzero Rates | 9 |
| Magnitude Range | [7.27, 8.29] |
| Length Range | [31, 379] km |
| Total Rate | 6.555779E-5 /yr |
| Multi-Fault Rate | 1.8508033E-5 /yr (28.23%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

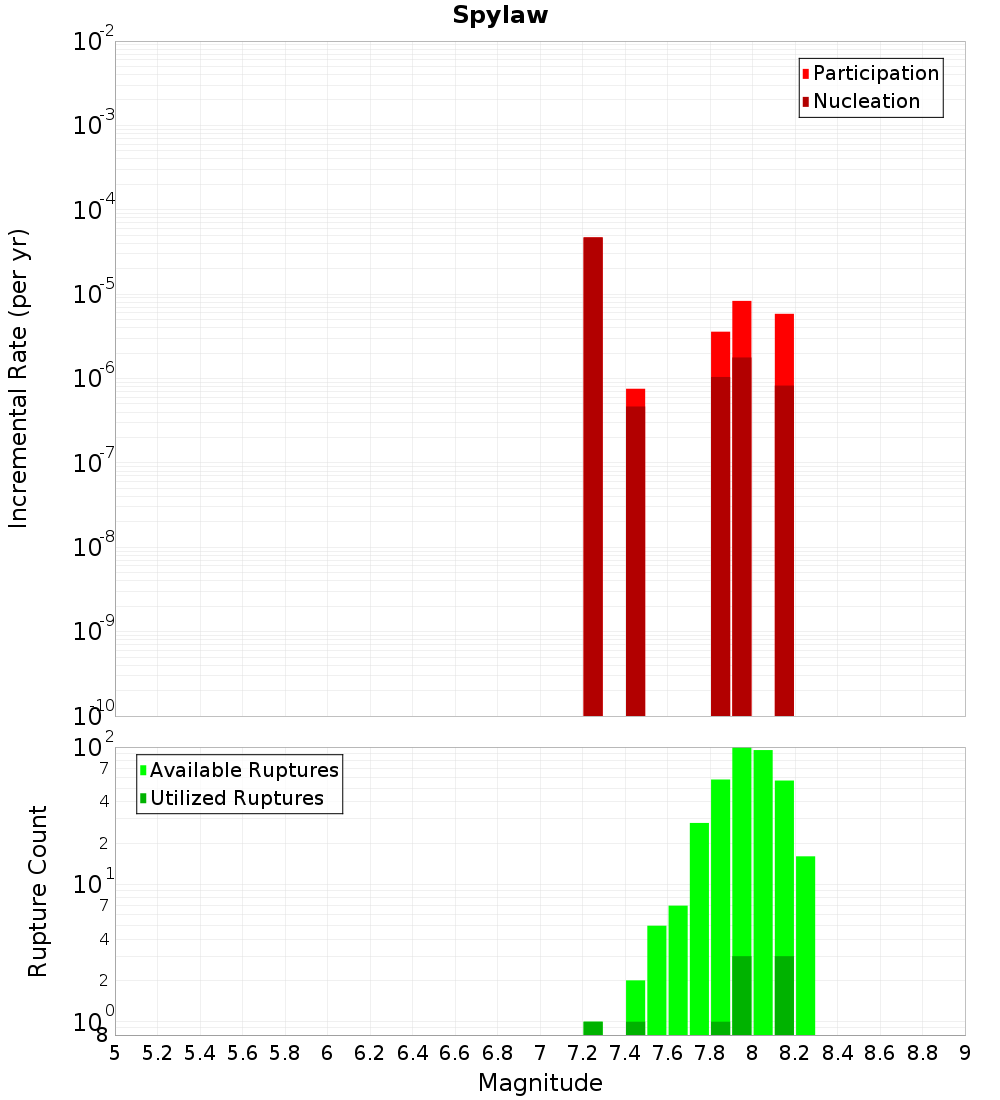

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Teviot, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.12 km |
| Min Rate-Weighted Dist | 0.12 km |
| Co-rupture Count | 205 |
| Co-rupture Rate | 2.554602E-6 |
Beacon Hill, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Min Rate-Weighted Dist | 0.38 km |
| Co-rupture Count | 128 |
| Co-rupture Rate | 7.968587E-6 |
Waikaka, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuapeka, 2.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wendon Valley, 3.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Blue Mountain, 3.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.92 km |
| Min Rate-Weighted Dist | 3.92 km |
| Co-rupture Count | 227 |
| Co-rupture Rate | 1.5197041E-5 |
Backbone, 4.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 23 |
| Co-rupture Rate | 1.7808968E-11 |
Clifton, 10.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 0.0 |
Old Man, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Hillfoot, 12.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 12.08 km |
| Min Rate-Weighted Dist | 12.1 km |
| Co-rupture Count | 115 |
| Co-rupture Rate | 3.3109936E-6 |
Beaumont River, 12.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 111 |
| Co-rupture Rate | 3.2923042E-6 |
Waikaia, 15.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hyde South - The Twins, 19.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 1.1904736E-5 |
Hedgehope, 19.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
