Tauranga Trough East 2 Details
| Property | Value |
|---|---|
| Rupture Count | 341 |
| Ruptures Above Sect Min Mag | 339 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.80, 7.94] |
| Length Range | [17, 271] km |
| Total Rate | 3.340659E-4 /yr |
| Multi-Fault Rate | 3.340659E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 21 |
Table Of Contents

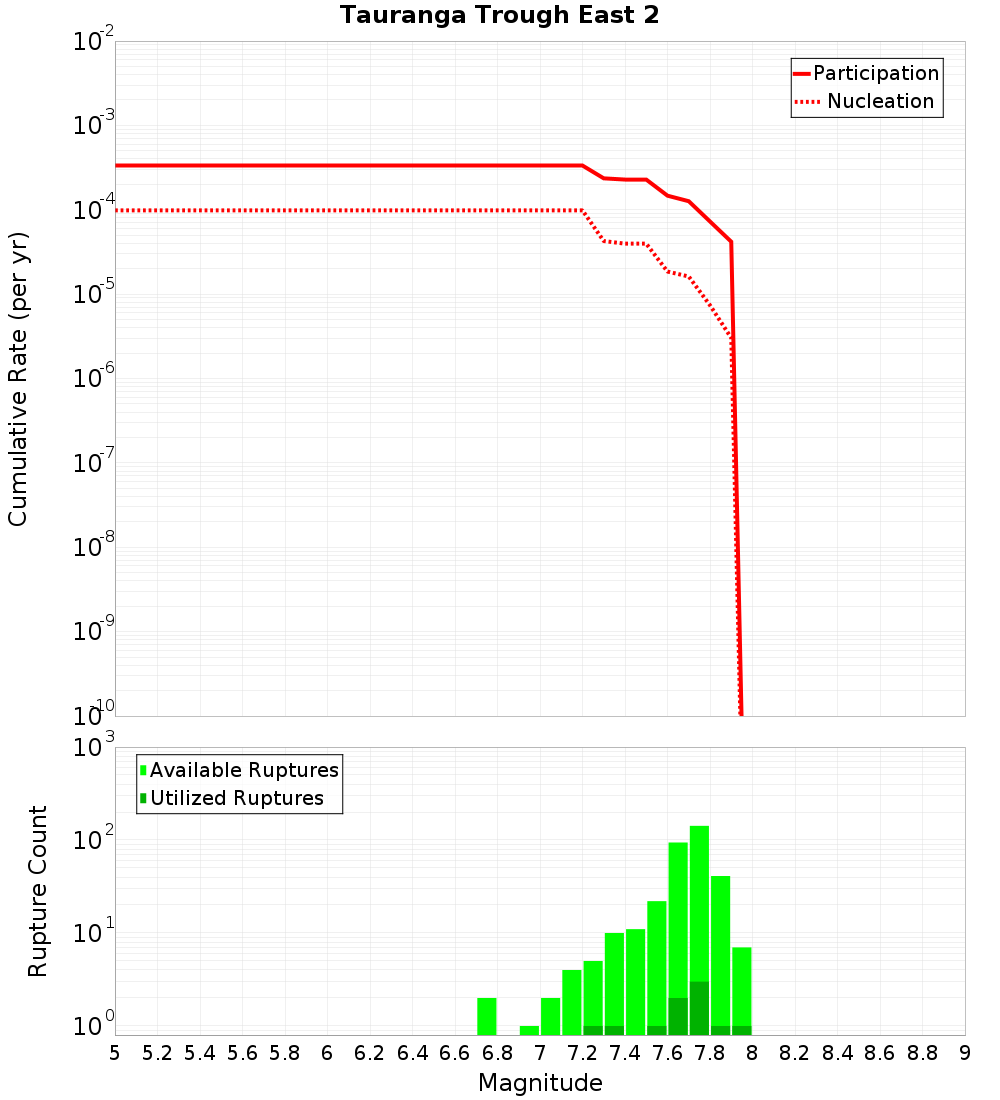

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

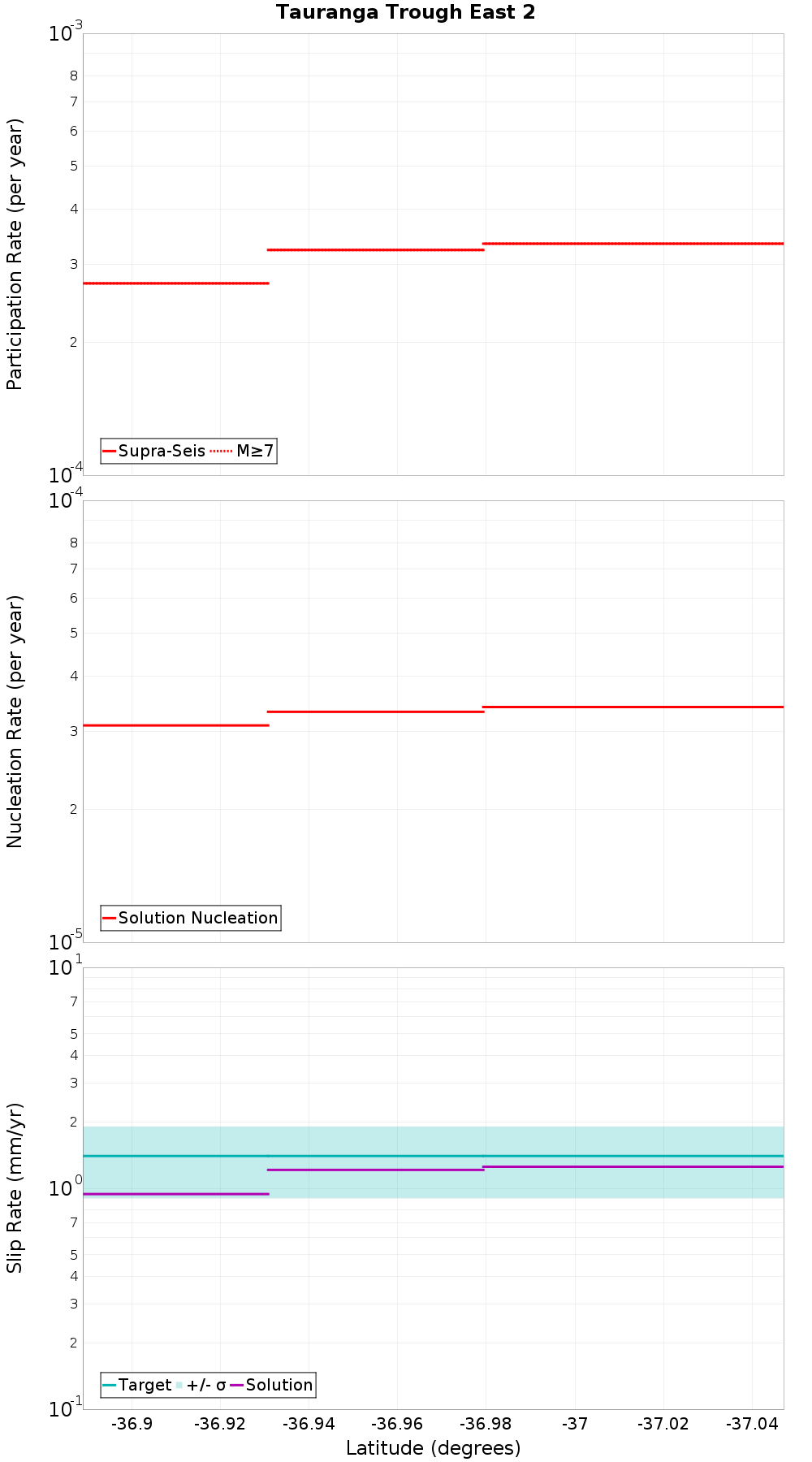

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Ngatoro South 2, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.28 km |
| Min Rate-Weighted Dist | 0.29 km |
| Co-rupture Count | 120 |
| Co-rupture Rate | 1.3606524E-4 |
Tuakana 7, 0.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.61 km |
| Min Rate-Weighted Dist | 0.61 km |
| Co-rupture Count | 330 |
| Co-rupture Rate | 2.3557682E-4 |
Ohena 2, 4.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.39 km |
| Min Rate-Weighted Dist | 5.15 km |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.9800065E-4 |
Ohena 3, 7.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 3, 9.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough West 2, 9.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Otara West 2, 9.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohena 4, 13.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara East 2, 14.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara West 1, 16.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otara East 1, 17.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Volkner 4, 19.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 303 |
| Co-rupture Rate | 1.4677767E-4 |
Tuakana 6, 19.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 321 |
| Co-rupture Rate | 2.2788336E-4 |
