Tuatoru 2 Details

PropertyValue
Rupture Count4,559
Ruptures Above Sect Min Mag4,558
Ruptures w/ Nonzero Rates16
Magnitude Range[6.73, 8.27]
Length Range[14, 550] km
Total Rate3.9491037E-4 /yr
Multi-Fault Rate3.9491037E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults62

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

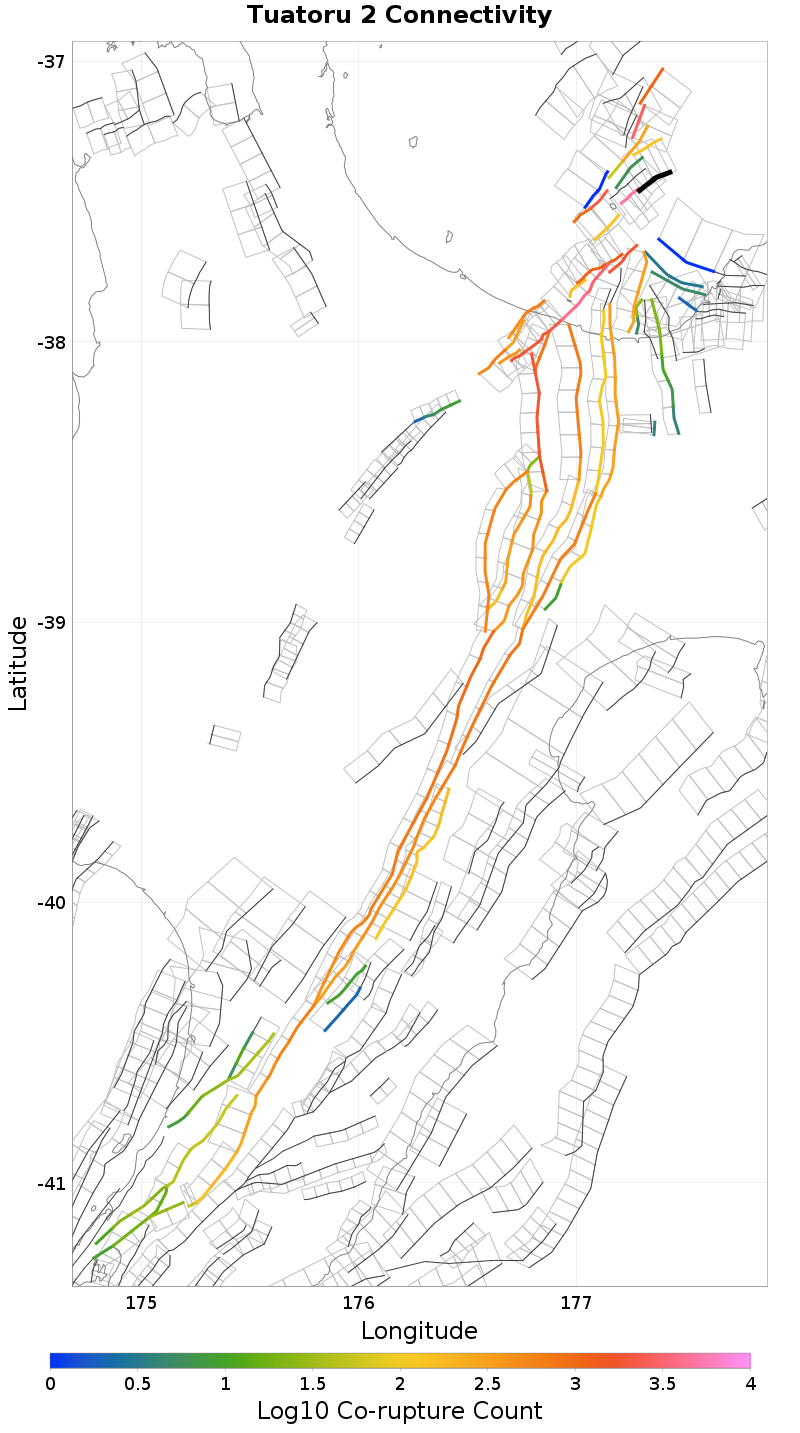

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Arawa 2, 0.08 km away
Te Arawa 3, 0.14 km away
Otara East 1, 0.28 km away
Tuatoru 1, 0.42 km away
Te Arawa 1, 0.42 km away
Otara West 3, 5.09 km away
Otara East 2, 8.64 km away
Volkner 4, 10.03 km away
Whakaari 4, 11.04 km away
Otara West 1, 12.35 km away
Volkner 3, 12.56 km away
Calypso 2, 12.9 km away
Otara West 2, 15.91 km away
Hariki, 18.73 km away
White Island 2, 19.43 km away

Te Arawa 2, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Te Arawa 3, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count135
Co-rupture Rate8.06674E-5

Otara East 1, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.28 km
Min Rate-Weighted Dist0.28 km
Co-rupture Count2,964
Co-rupture Rate3.9491037E-4

Tuatoru 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.42 km
Min Rate-Weighted Dist0.42 km
Co-rupture Count4,502
Co-rupture Rate3.9491037E-4

Te Arawa 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 3, 5.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara East 2, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1,073
Co-rupture Rate2.8492764E-4

Volkner 4, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count291
Co-rupture Rate2.1842314E-5

Whakaari 4, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count2,321
Co-rupture Rate1.9385736E-6

Otara West 1, 12.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Calypso 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count138
Co-rupture Rate1.03544044E-4

Otara West 2, 15.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

White Island 2, 19.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1,777
Co-rupture Rate2.3533426E-4
