Waiohau: North Details

PropertyValue
Rupture Count23,681
Ruptures Above Sect Min Mag23,663
Ruptures w/ Nonzero Rates12
Magnitude Range[6.61, 8.32]
Length Range[16, 602] km
Total Rate1.4055656E-4 /yr
Multi-Fault Rate1.4055656E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults88

Table Of Contents

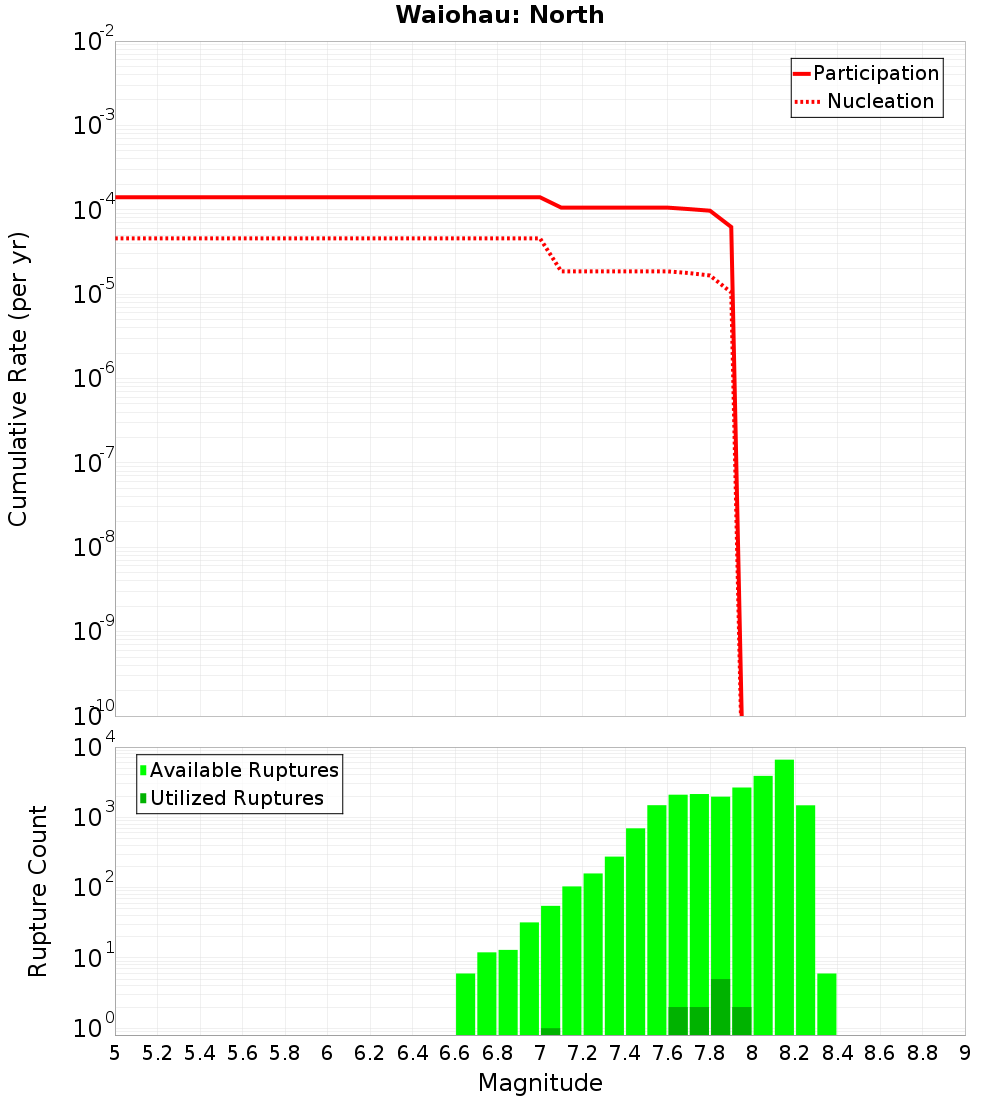

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

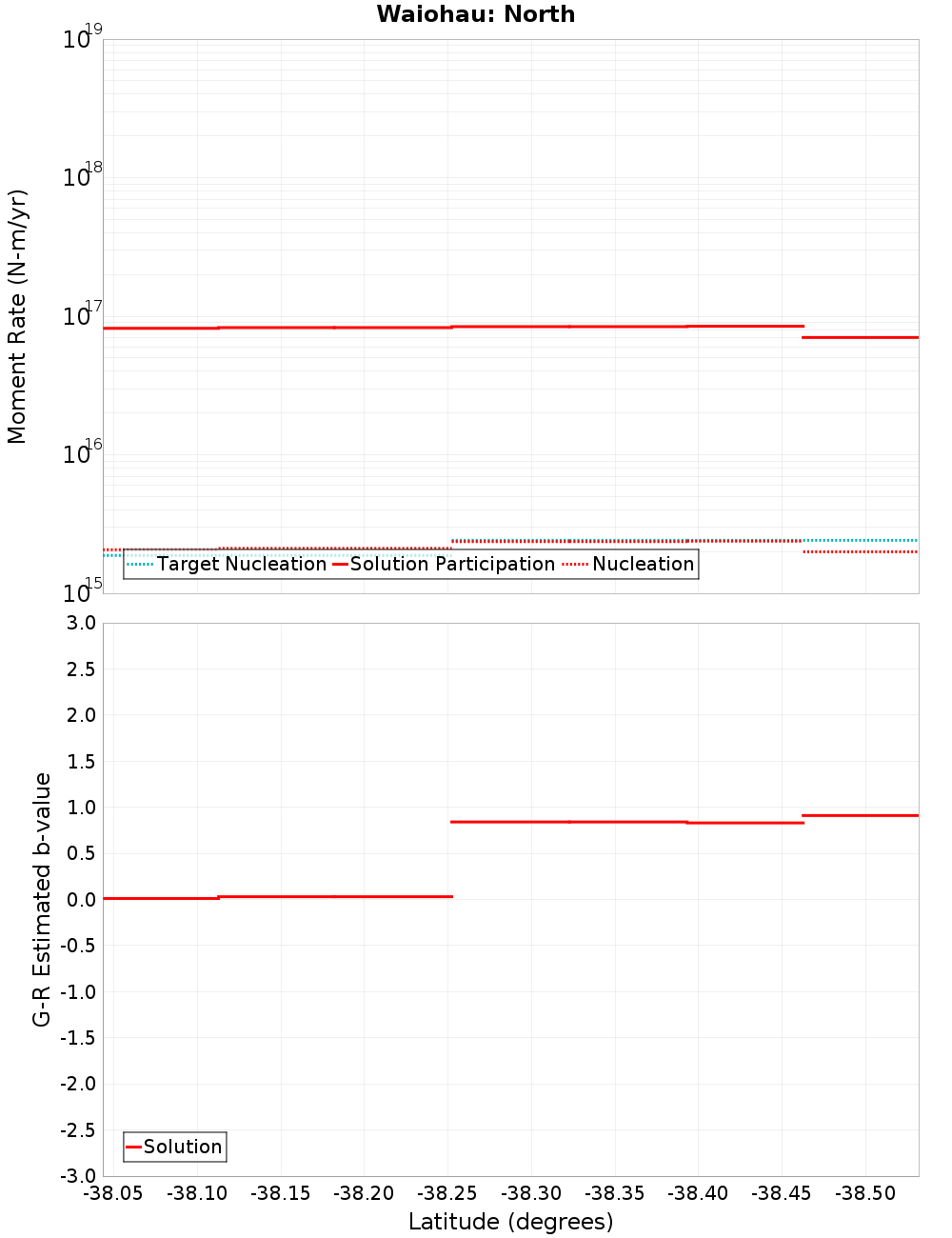

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayMatata, 6.37 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Braemar, 0.18 km awayWheao: South, 11.29 km away
Te Whaiti North, 0.22 km awayEdgecumbe Coastal, 11.47 km away
Rotoitipakau, 0.38 km awayWhakatane: North, 12.32 km away
Te Whaiti South, 1.47 km awayWaimana: South, 17.98 km away
Wheao: North, 2.09 km awayWhite Island 1, 18.73 km away
Edgecumbe 1987, 2.2 km awayWaimana: North, 18.89 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist5.8 km
Co-rupture Count6,227
Co-rupture Rate2.0608968E-5

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.13 km
Min Rate-Weighted Dist0.13 km
Co-rupture Count5,557
Co-rupture Rate1.565649E-6

Braemar, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.18 km
Min Rate-Weighted Dist2.92 km
Co-rupture Count3,927
Co-rupture Rate1.558192E-5

Te Whaiti North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.22 km
Min Rate-Weighted Dist0.22 km
Co-rupture Count193
Co-rupture Rate3.90342E-5

Rotoitipakau, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.38 km
Min Rate-Weighted Dist2.61 km
Co-rupture Count609
Co-rupture Rate2.88053E-6

Te Whaiti South, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.47 km
Min Rate-Weighted Dist2.1 km
Co-rupture Count7,203
Co-rupture Rate4.179649E-5

Wheao: North, 2.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.09 km
Min Rate-Weighted Dist2.09 km
Co-rupture Count6,713
Co-rupture Rate3.623636E-5

Edgecumbe 1987, 2.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.2 km
Min Rate-Weighted Dist2.2 km
Co-rupture Count11,547
Co-rupture Rate8.469478E-5

Matata, 6.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count3,475
Co-rupture Rate1.846245E-5

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wheao: South, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count8,151
Co-rupture Rate3.6218647E-5

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count12,438
Co-rupture Rate8.6260436E-5

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.53 km
Co-rupture Count263
Co-rupture Rate0.0

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count14,971
Co-rupture Rate1.0472288E-4

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count178
Co-rupture Rate0.0
