Waitawhiti Details

Property	Value
Rupture Count	87
Ruptures Above Sect Min Mag	86
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.32, 8.14]
Length Range	[10, 430] km
Total Rate	3.0133038E-4 /yr
Multi-Fault Rate	3.0133038E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

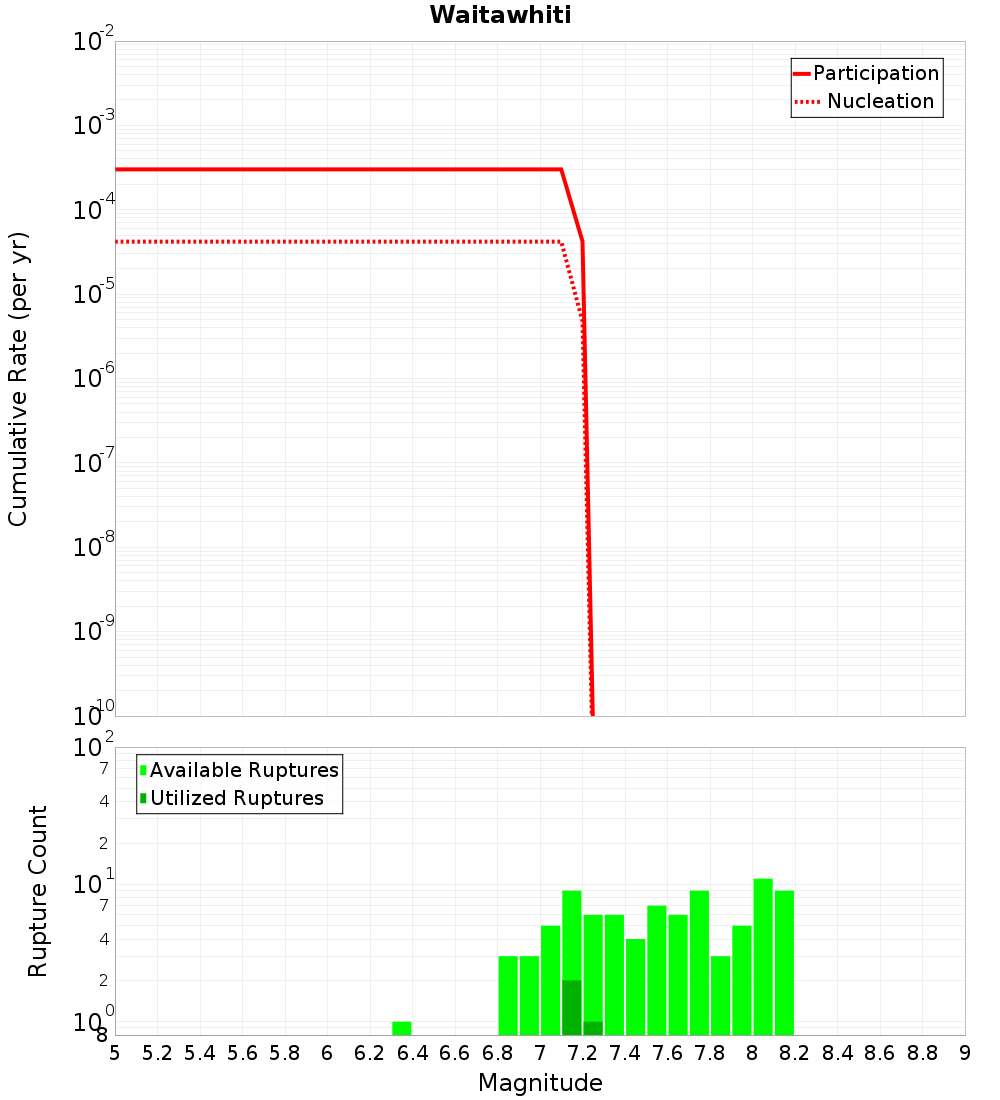

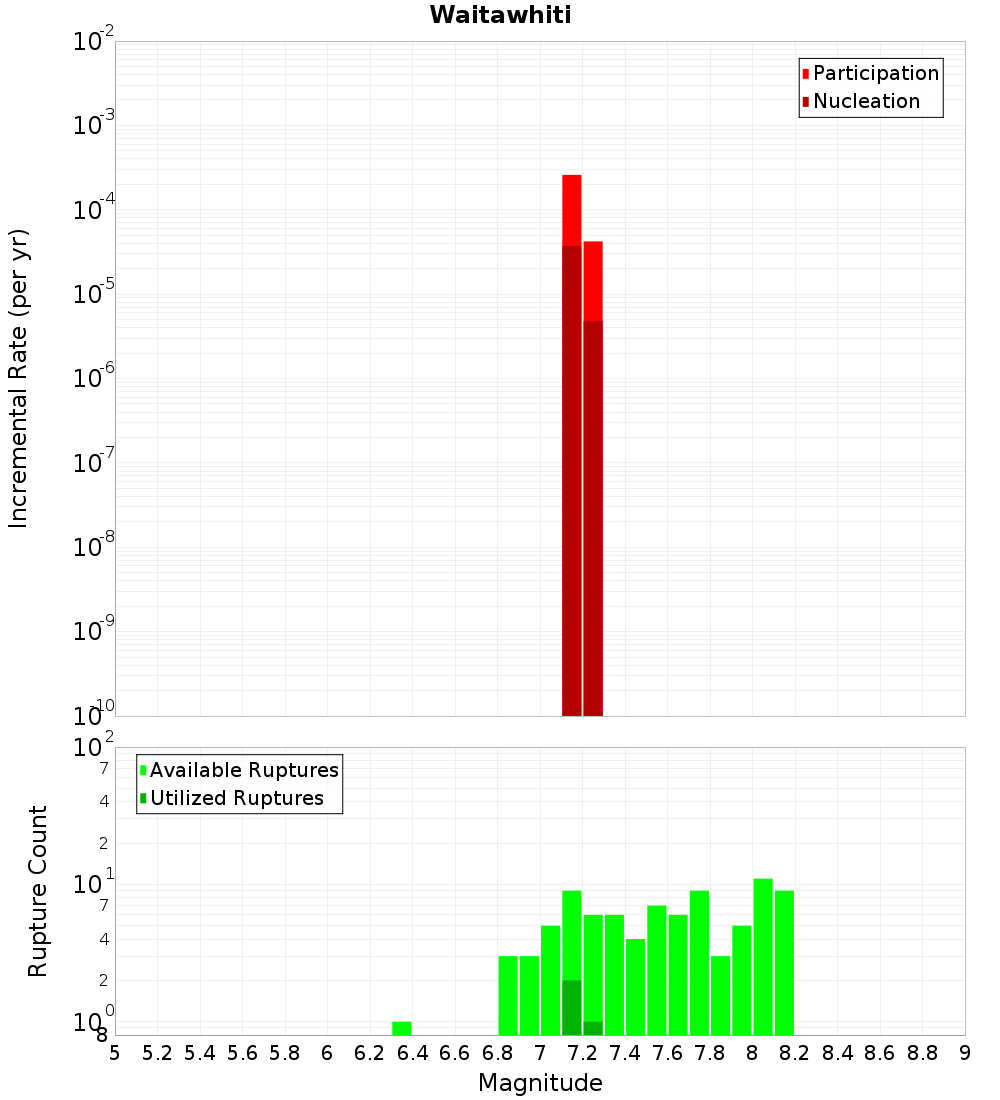

Magnitude-Frequency Distribution

Incremental	Cumulative

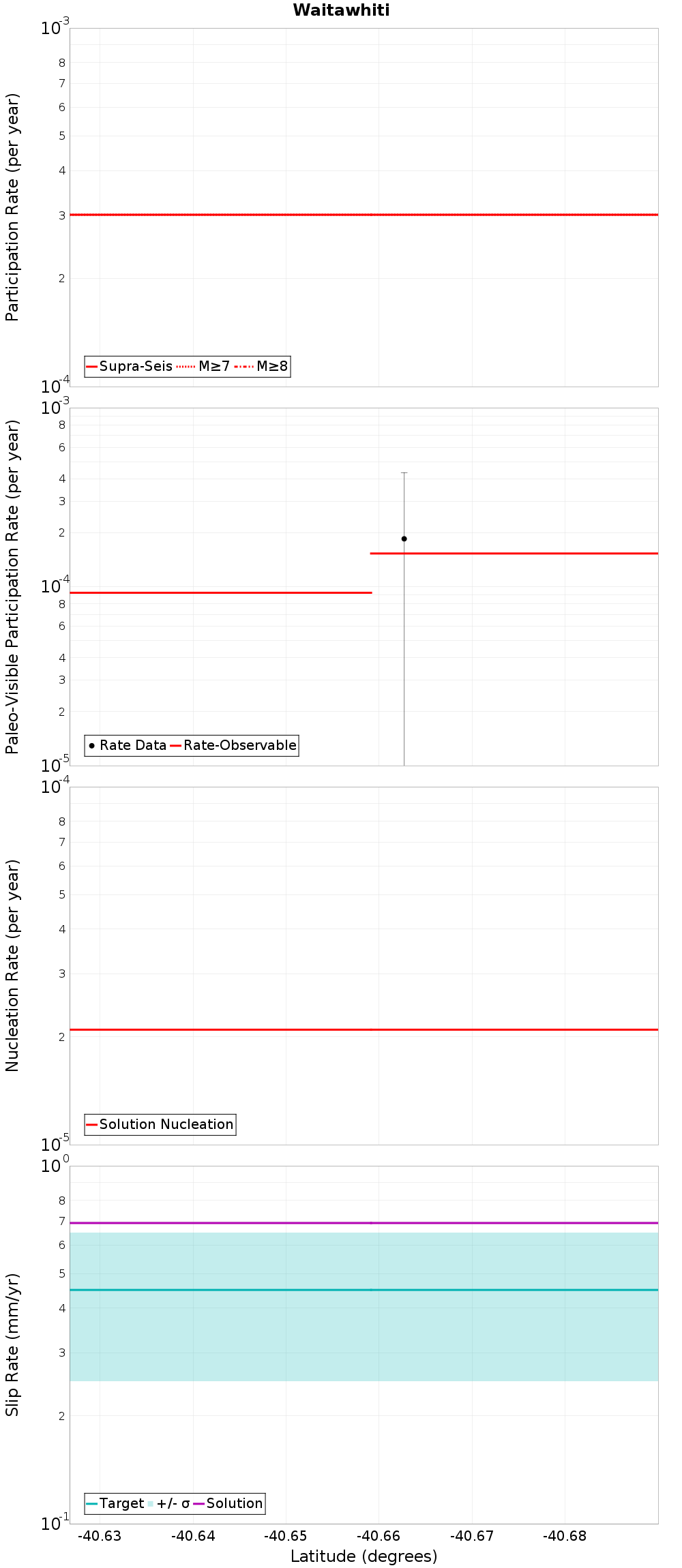

Along-Strike Values

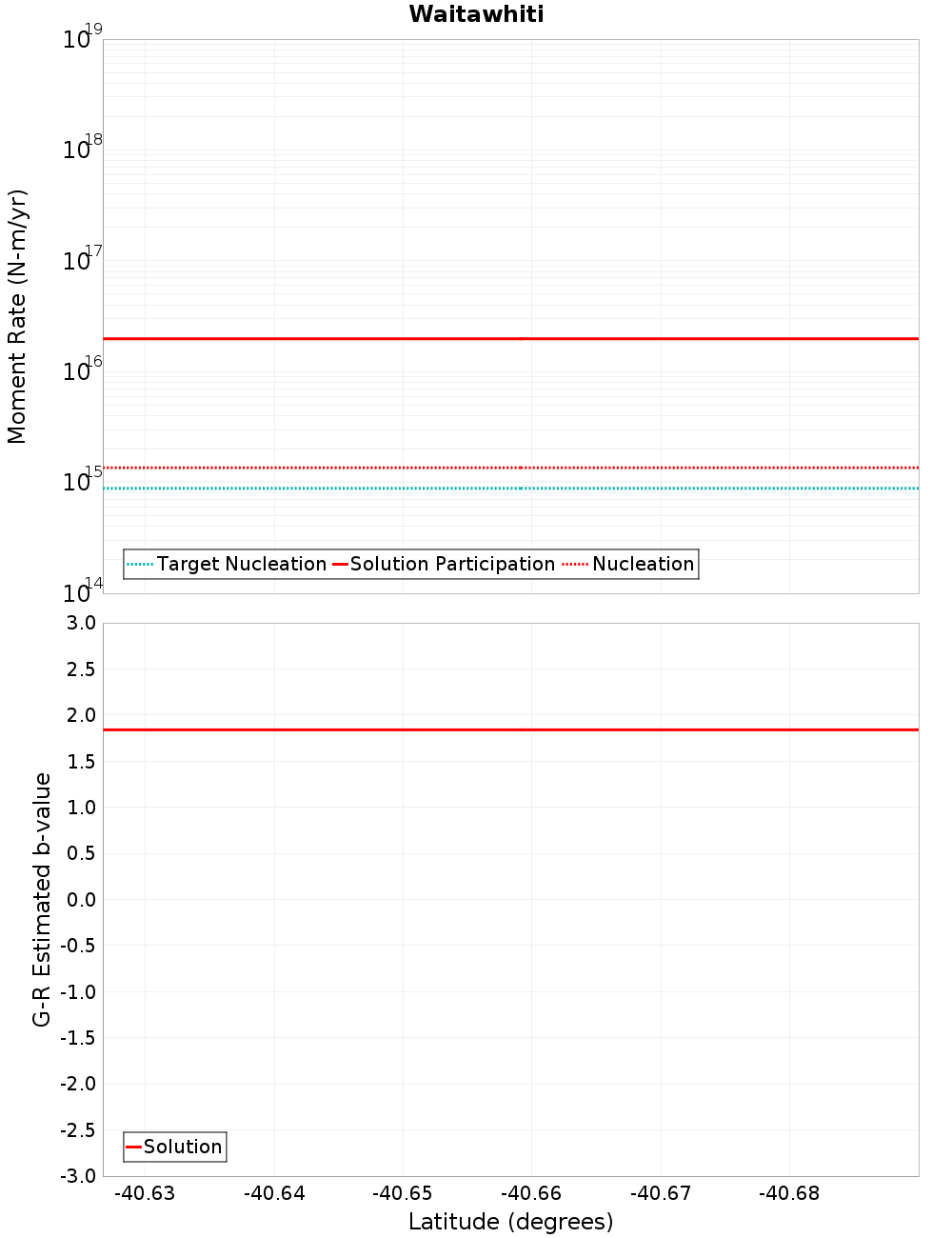

Moment-Rates and b-Values

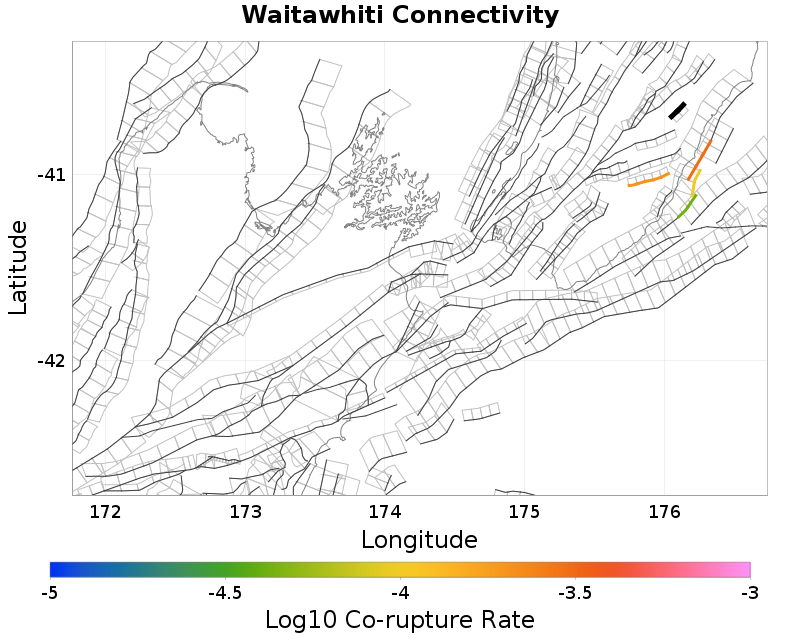

Connectivity

Nearby Sections

Fault Section
Mataikona, 5.55 km away
Mokonui Northeast, 7.82 km away
Saunders Road, 9.29 km away
Waipukaka, 10.86 km away
Pongaroa - Weber, 14.09 km away
Alfredton North, 14.48 km away
Makuri - Waewaepa, 15.67 km away
Alfredton South, 15.85 km away
Mataikona East, 16.19 km away
Pa Valley, 16.71 km away
Carterton, 18.52 km away

Mataikona, 5.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.55 km
Min Rate-Weighted Dist	8.53 km
Co-rupture Count	39
Co-rupture Rate	3.0133038E-4

Mokonui Northeast, 7.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	7.82 km
Co-rupture Count	53
Co-rupture Rate	0.0

Saunders Road, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 14.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton North, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 15.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton South, 15.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona East, 16.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Pa Valley, 16.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Carterton, 18.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
