Wellington: Tararua 2 Details

Property	Value
Rupture Count	25,953
Ruptures Above Sect Min Mag	25,950
Ruptures w/ Nonzero Rates	70
Magnitude Range	[6.71, 8.42]
Length Range	[17, 758] km
Total Rate	0.0015648579 /yr
Multi-Fault Rate	0.0015648579 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	110

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

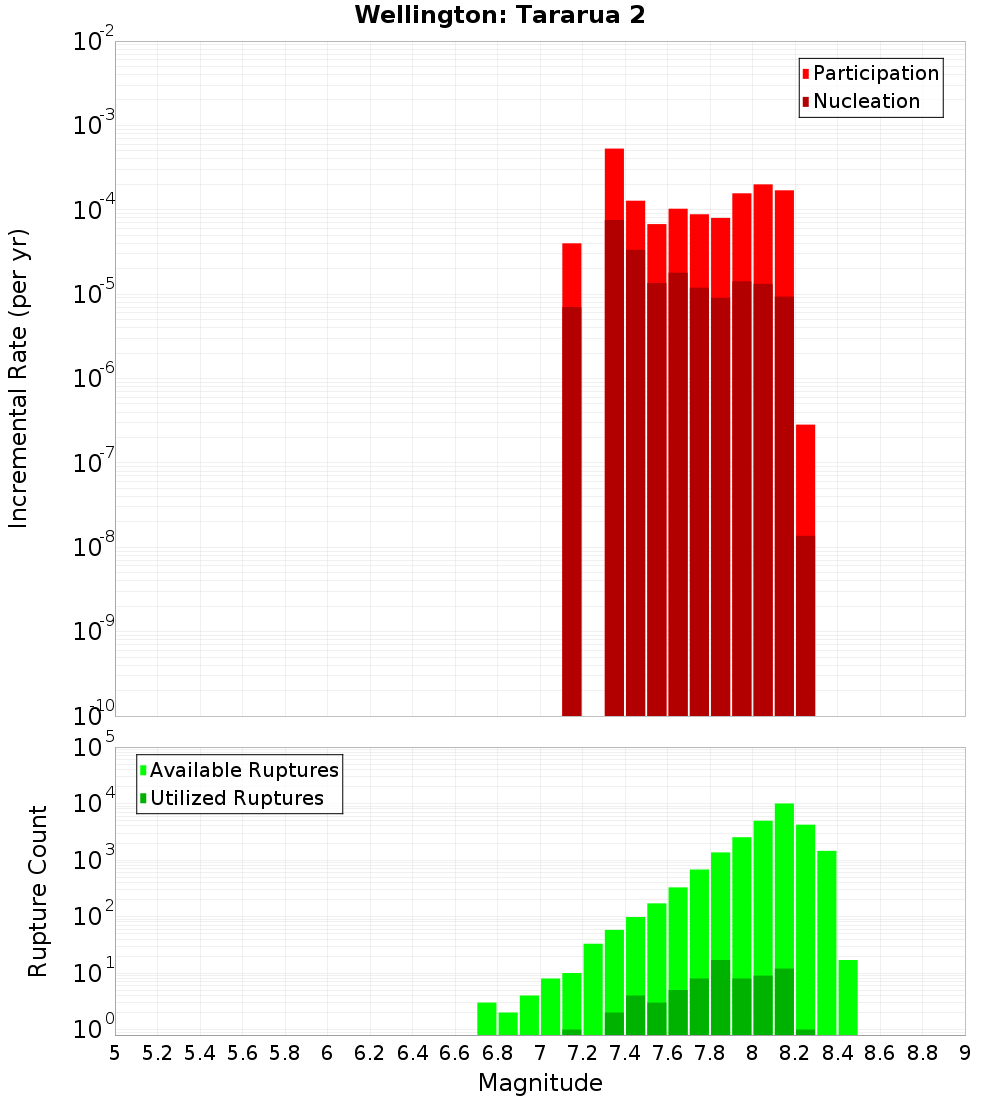

Magnitude-Frequency Distribution

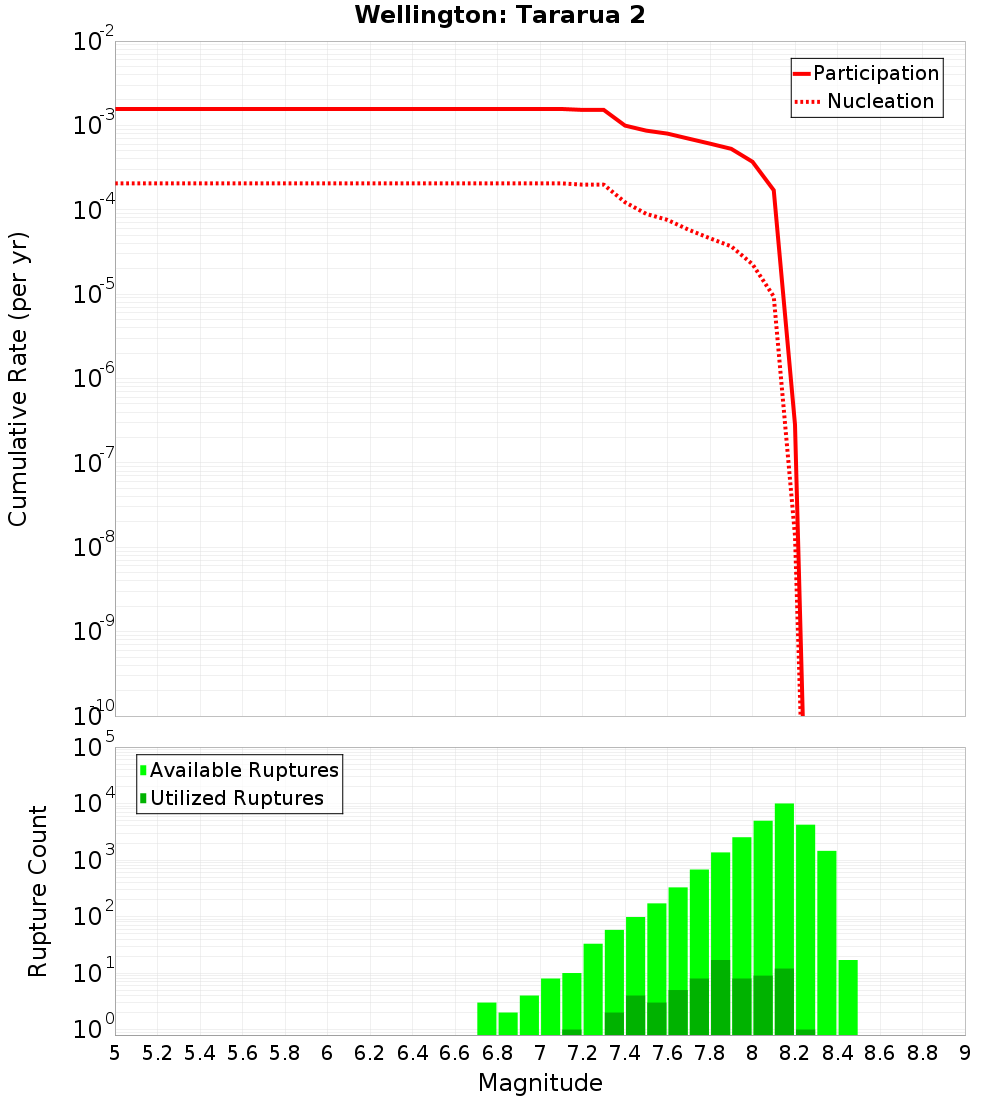

Incremental	Cumulative

Along-Strike Values

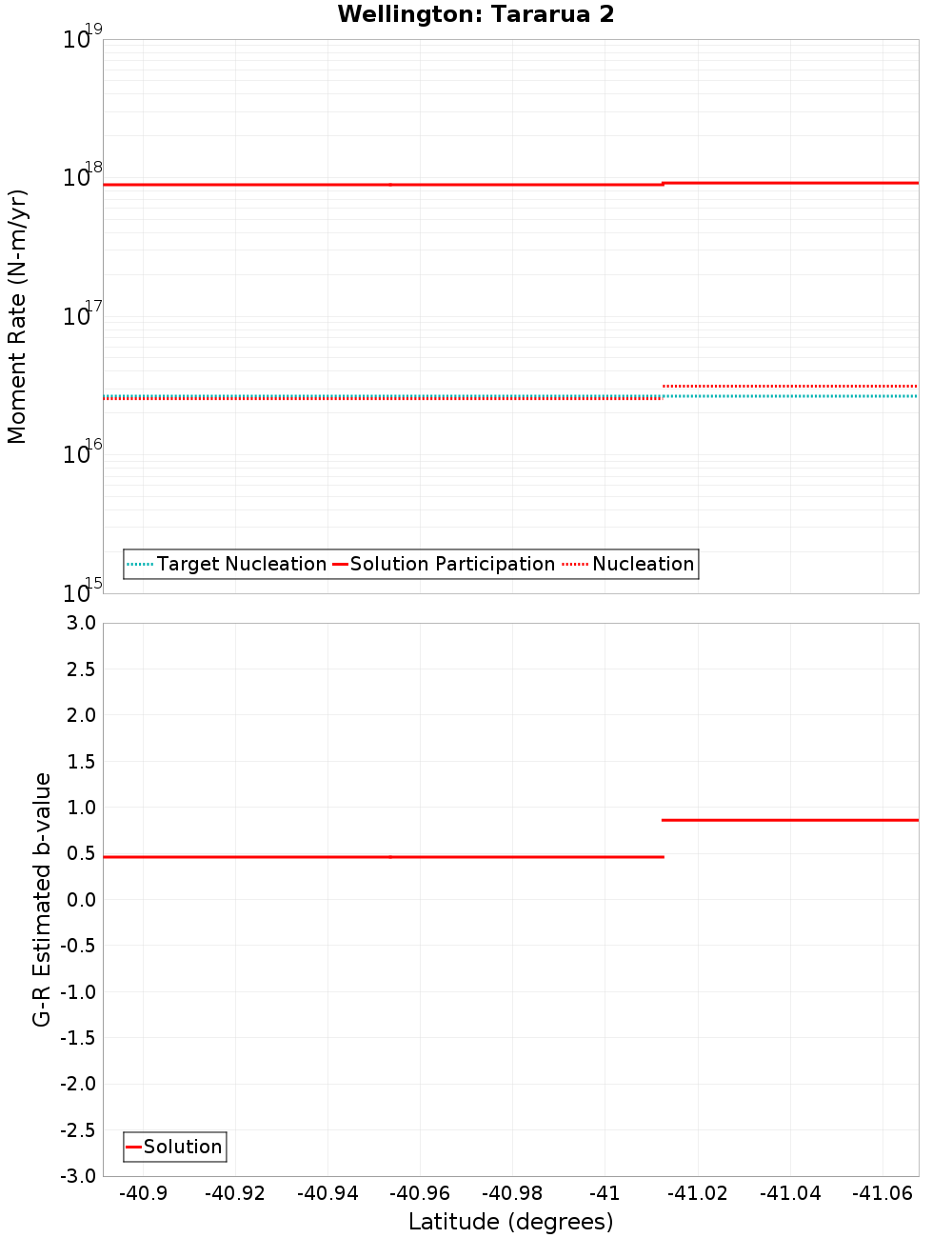

Moment-Rates and b-Values

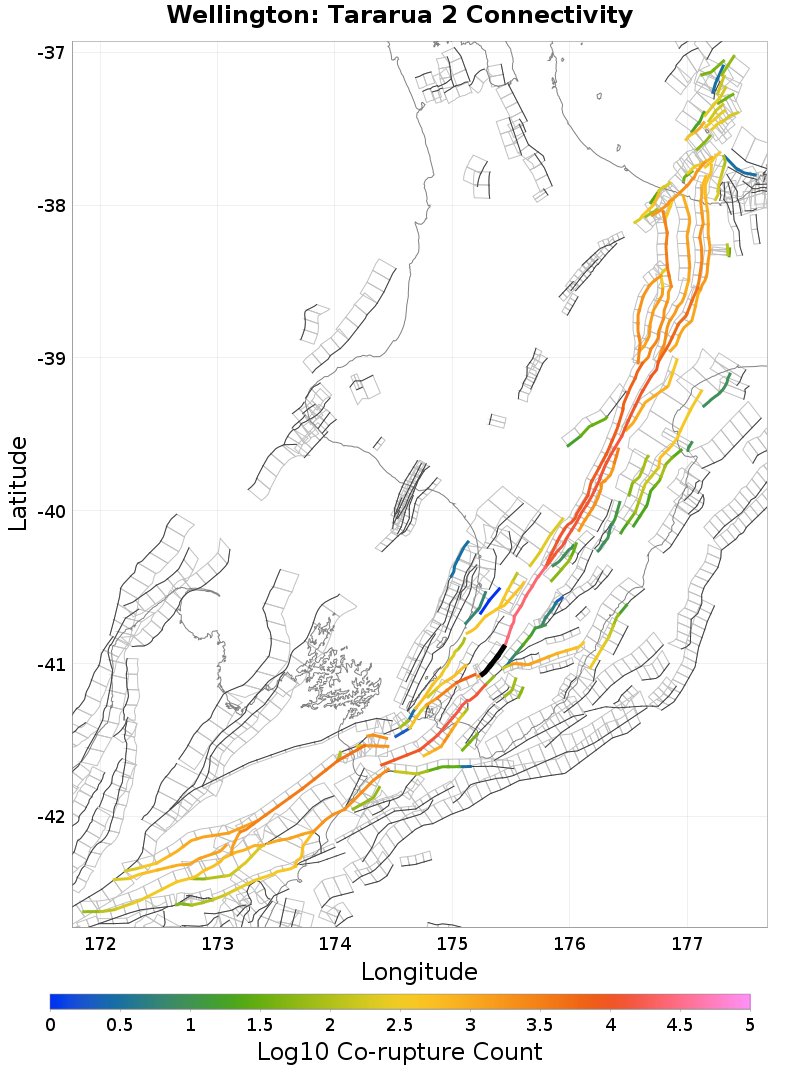

Connectivity

Nearby Sections

Fault Section	Fault Section
Wellington: Tararua 3, 0 km away	Mokonui Southwest, 9.75 km away
Wellington: Tararua 1, 0.1 km away	Otaki Forks: 1, 10.06 km away
Wellington Hutt Valley: 5, 4.57 km away	Akatarawa, 10.94 km away
Otaki Forks: 2, 6.29 km away	Bidwill, 15.27 km away
Wairarapa: 2, 6.35 km away	Wellington Hutt Valley: 4, 17.36 km away
Moonshine, 6.77 km away	Martinborough, 17.65 km away
Wairarapa: 3, 7.95 km away	Northern Ohariu, 17.76 km away
Carterton, 8.44 km away	Ohariu, 18.15 km away
Masterton, 9.41 km away

Wellington: Tararua 3, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	0 km
Co-rupture Count	25,708
Co-rupture Rate	0.0010397629

Wellington: Tararua 1, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.1 km
Min Rate-Weighted Dist	0.1 km
Co-rupture Count	1,453
Co-rupture Rate	7.726785E-4

Wellington Hutt Valley: 5, 4.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.57 km
Min Rate-Weighted Dist	4.57 km
Co-rupture Count	7,455
Co-rupture Rate	0.0010596298

Otaki Forks: 2, 6.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 6.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.35 km
Min Rate-Weighted Dist	7.43 km
Co-rupture Count	12,753
Co-rupture Rate	2.2146579E-4

Moonshine, 6.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	555
Co-rupture Rate	0.0

Wairarapa: 3, 7.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	25
Co-rupture Rate	0.0

Carterton, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	8.44 km
Min Rate-Weighted Dist	10.23 km
Co-rupture Count	1,485
Co-rupture Rate	3.617882E-5

Masterton, 9.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mokonui Southwest, 9.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 1, 10.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Akatarawa, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Bidwill, 15.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 4, 17.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,923
Co-rupture Rate	8.87252E-4

Martinborough, 17.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	78
Co-rupture Rate	0.0

Northern Ohariu, 17.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	452
Co-rupture Rate	0.0

Ohariu, 18.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?	true
Directly Connected?	false
Co-rupture Count	558
Co-rupture Rate	0.0
