Whakatane: North Details

PropertyValue
Rupture Count9,397
Ruptures Above Sect Min Mag9,391
Ruptures w/ Nonzero Rates27
Magnitude Range[6.71, 8.39]
Length Range[18, 681] km
Total Rate2.3176173E-4 /yr
Multi-Fault Rate2.3176173E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults83

Table Of Contents

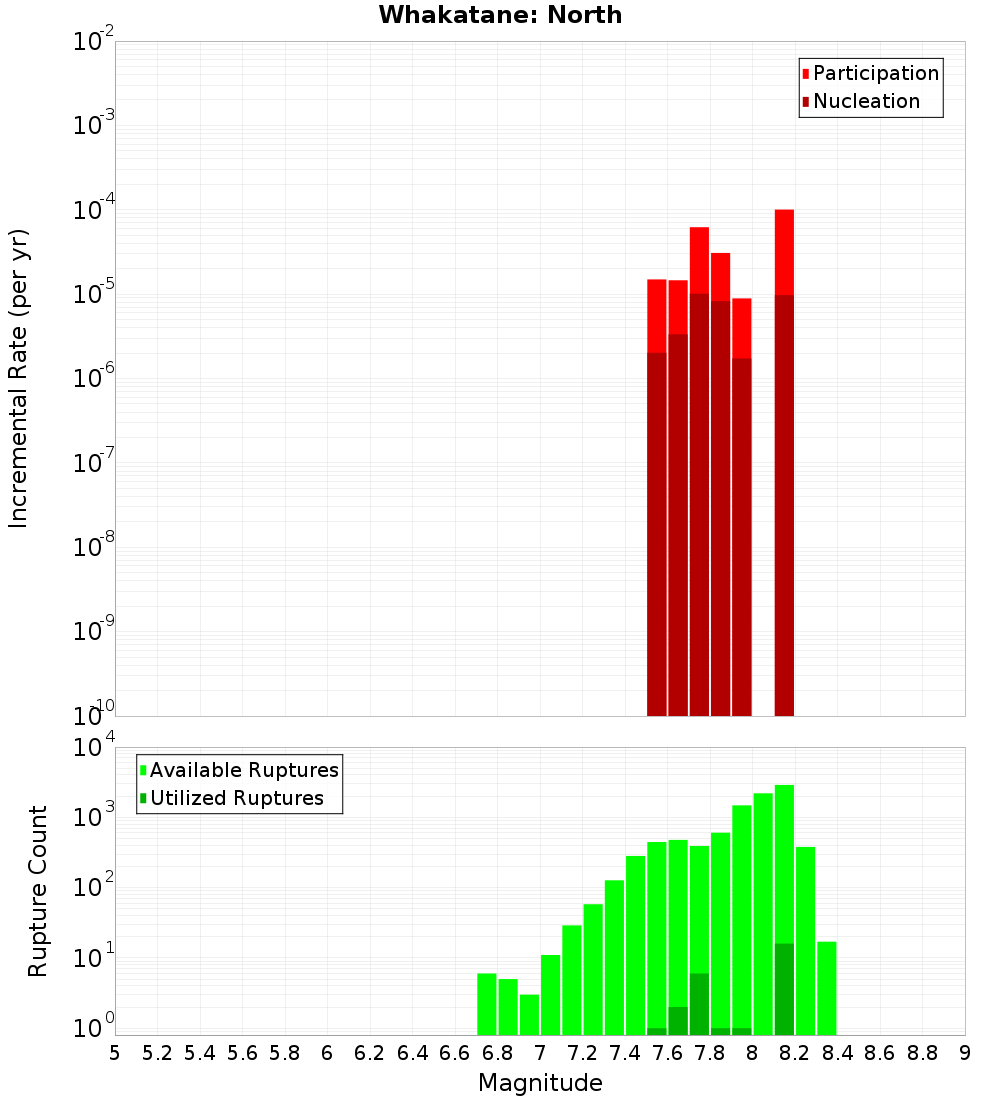

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

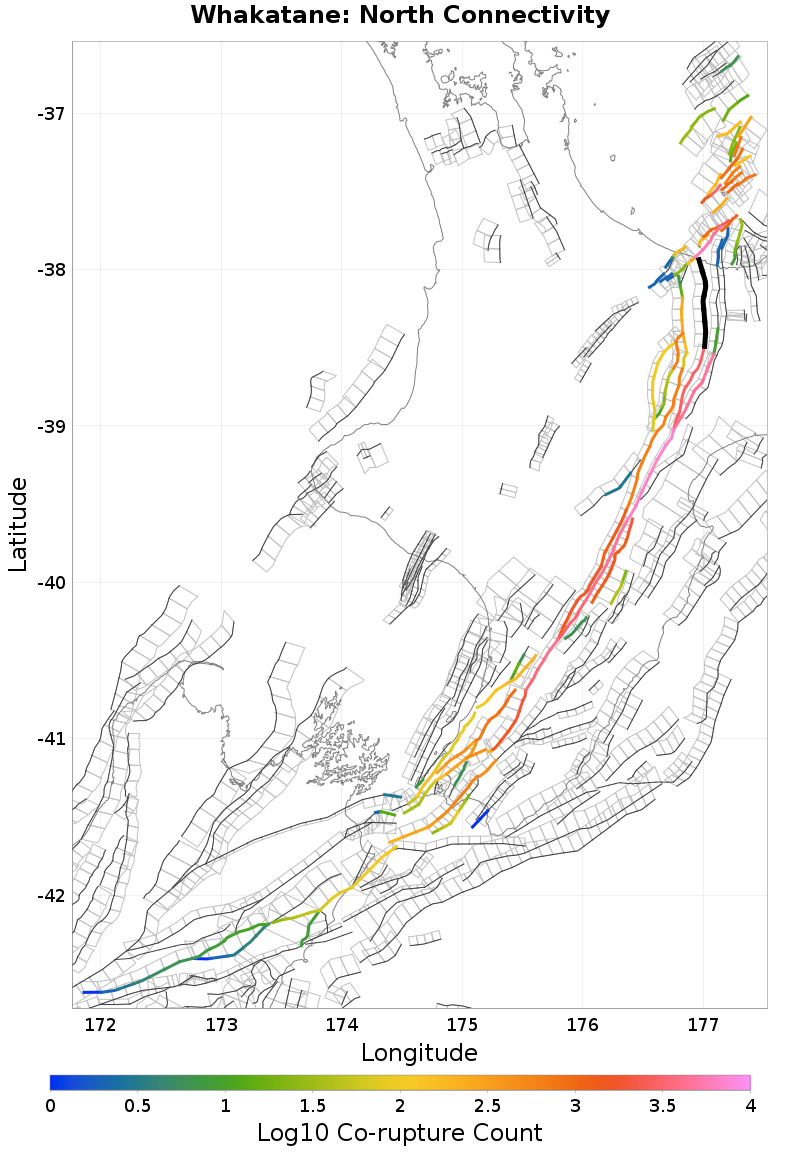

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakatane: South, 0 km awayWaiohau: South, 10.6 km away
White Island 1, 3.09 km awayWaiotahi: South, 10.84 km away
Edgecumbe Coastal, 3.09 km awayRangitaiki 1, 11.12 km away
Braemar, 6.02 km awayWaiohau: North, 12.32 km away
Edgecumbe 1987, 7.16 km awayTe Whaiti North, 13.54 km away
Waimana: North, 7.34 km awayTe Whaiti South, 14.42 km away
Awakeri, 7.56 km awayRotoitipakau, 14.47 km away
Waimana: South, 8.54 km awayRangitaiki 2, 16.94 km away
Matata, 8.83 km awayWheao: North, 17.43 km away
Waiotahi: North, 10.39 km awayWaimana - Waikaremoana, 18.17 km away

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0.9 km
Co-rupture Count2,973
Co-rupture Rate2.945619E-5

White Island 1, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.09 km
Min Rate-Weighted Dist3.09 km
Co-rupture Count5,942
Co-rupture Rate1.566232E-4

Edgecumbe Coastal, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.09 km
Co-rupture Count287
Co-rupture Rate0.0

Braemar, 6.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Edgecumbe 1987, 7.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Waimana: North, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Awakeri, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 8.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.54 km
Min Rate-Weighted Dist8.54 km
Co-rupture Count4,566
Co-rupture Rate7.874121E-5

Matata, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count198
Co-rupture Rate1.8889985E-15

Waiotahi: North, 10.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: South, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count611
Co-rupture Rate1.7724575E-5

Waiotahi: South, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count188
Co-rupture Rate0.0

Waiohau: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.53 km
Co-rupture Count263
Co-rupture Rate0.0

Te Whaiti North, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.54 km
Min Rate-Weighted Dist13.54 km
Co-rupture Count630
Co-rupture Rate1.7724575E-5

Te Whaiti South, 14.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count619
Co-rupture Rate1.7724575E-5

Rotoitipakau, 14.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Rangitaiki 2, 16.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count998
Co-rupture Rate1.4939686E-5

Wheao: North, 17.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count103
Co-rupture Rate0.0

Waimana - Waikaremoana, 18.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0
