White Island 1 Details

PropertyValue
Rupture Count32,013
Ruptures Above Sect Min Mag32,002
Ruptures w/ Nonzero Rates38
Magnitude Range[6.63, 8.29]
Length Range[14, 584] km
Total Rate5.1023223E-4 /yr
Multi-Fault Rate5.1023223E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults91

Table Of Contents

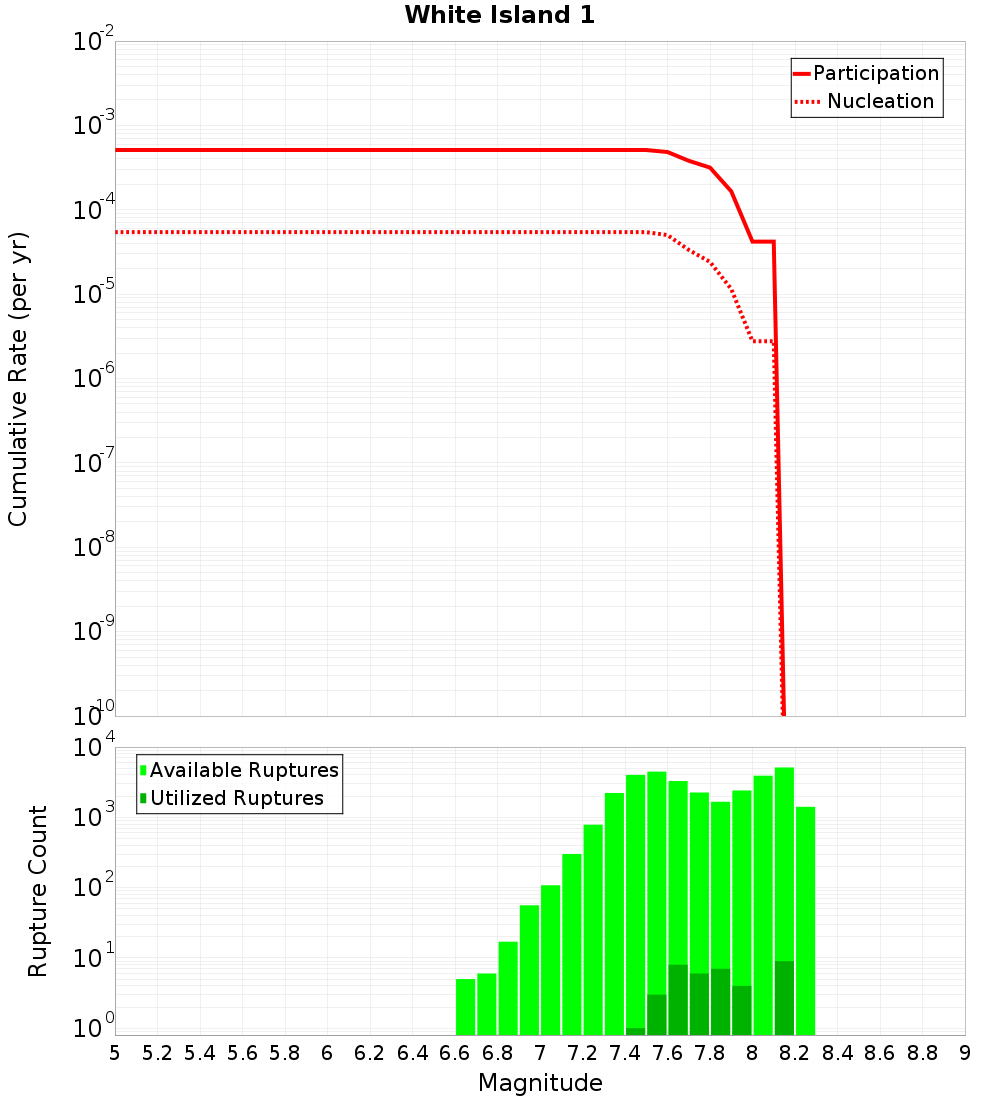

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

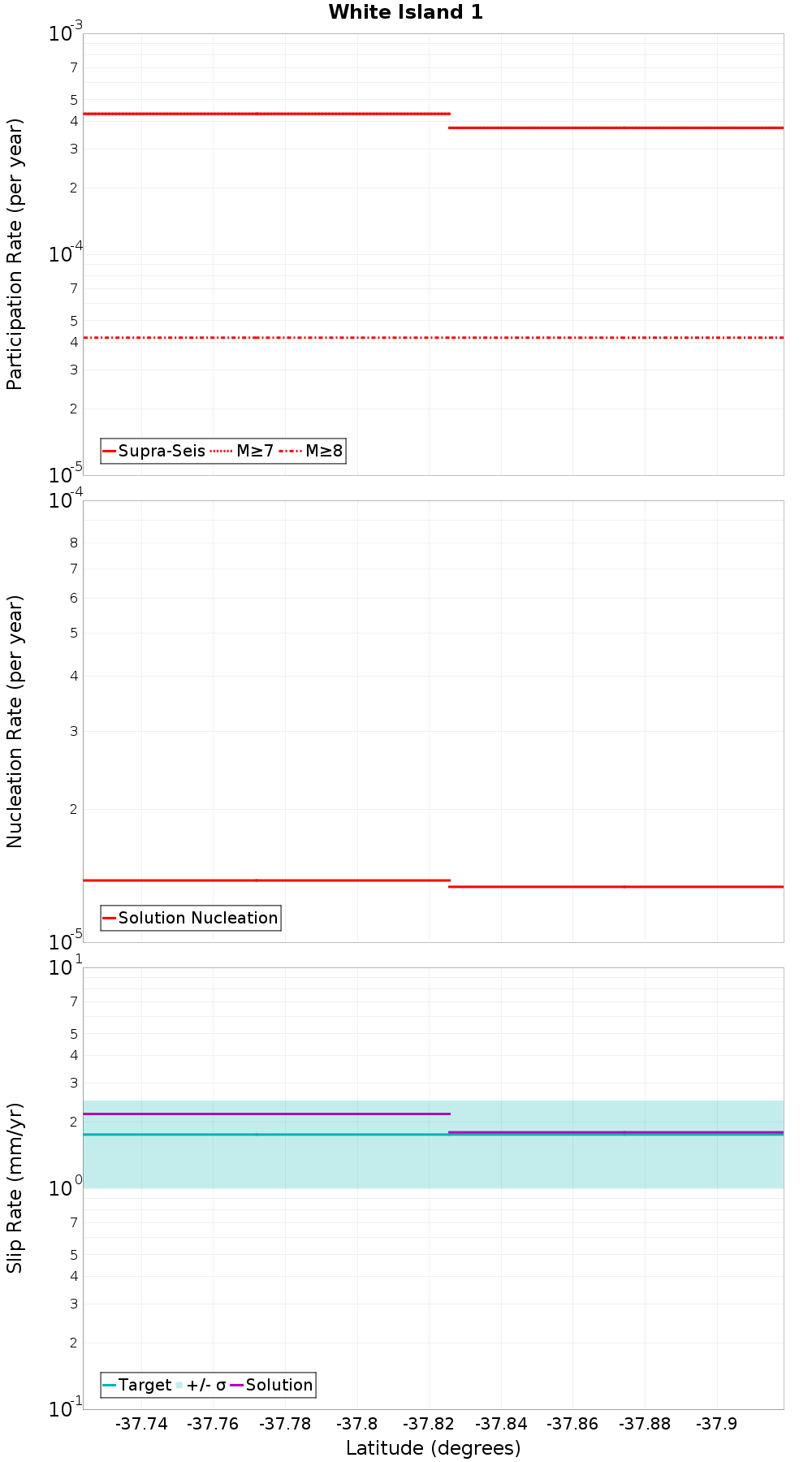

Along-Strike Values

(top)

Along-strike plot

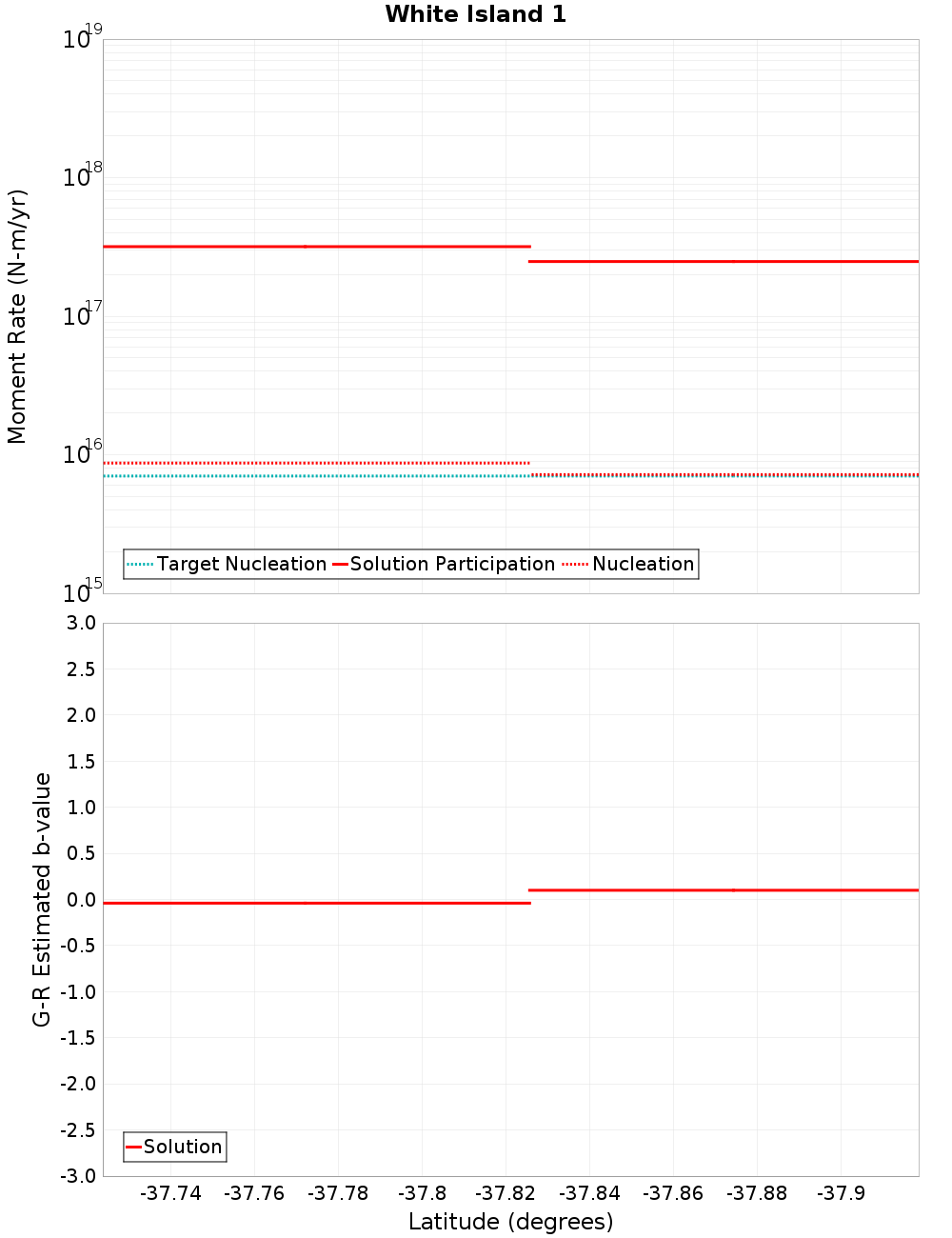

Moment-Rates and b-Values

(top)

Along-strike plot

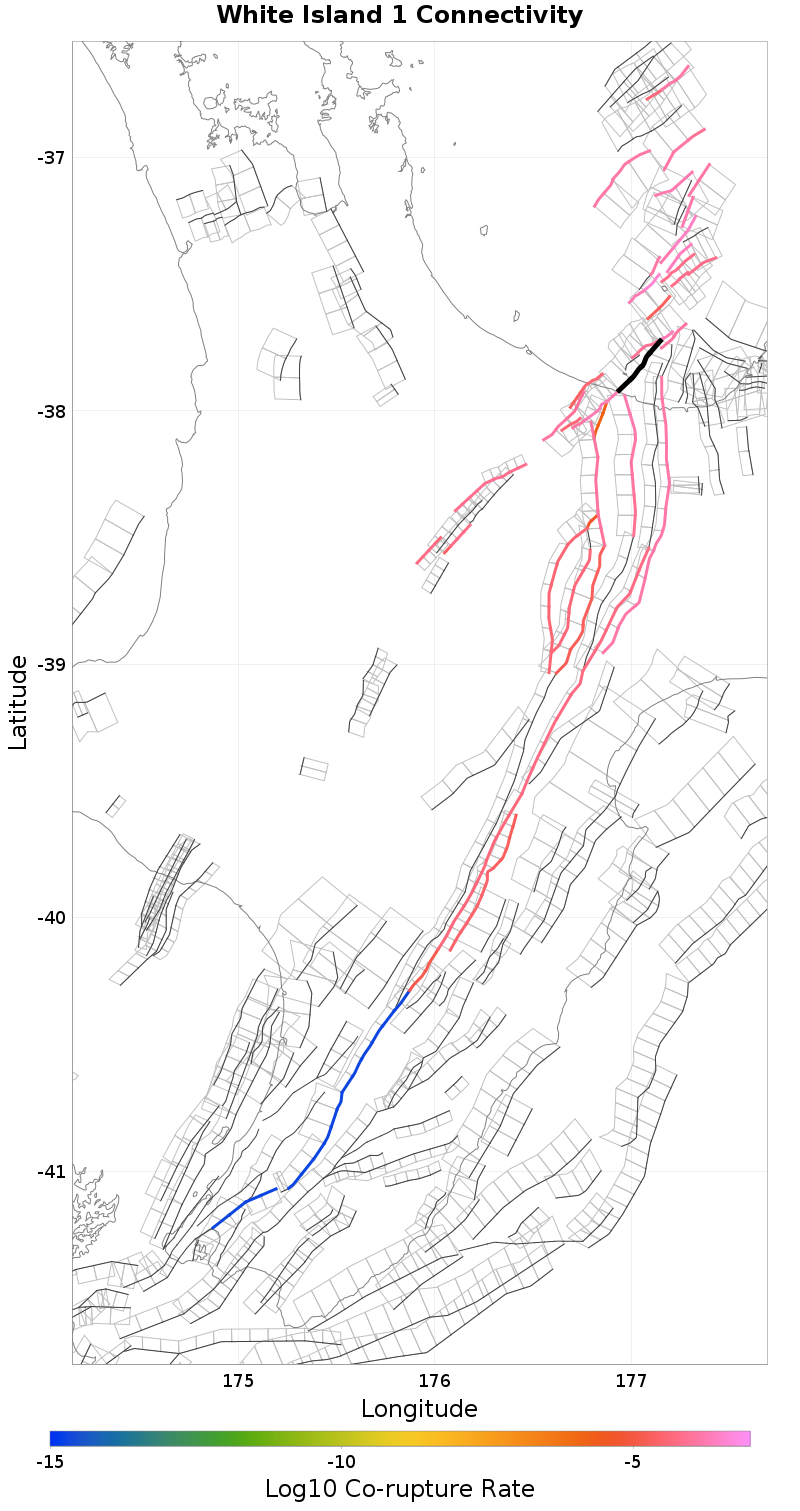

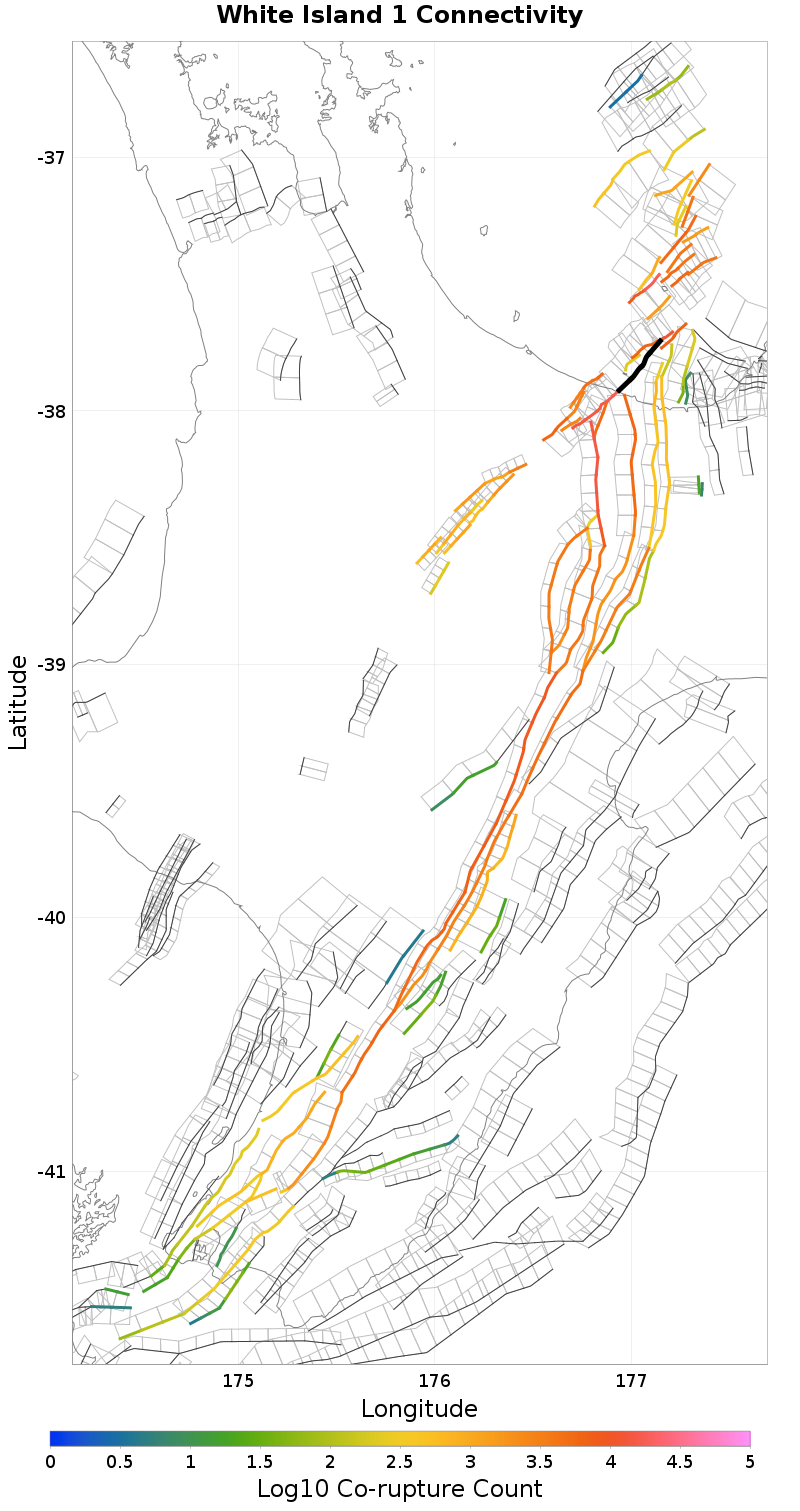

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Edgecumbe Coastal, 0 km awayCalypso 2, 8.93 km away
Ohiwa 1, 0.11 km awayWaiotahi: North, 9.8 km away
Rangitaiki 2, 0.72 km awayBraemar, 11.2 km away
Whakaari 4, 1.51 km awayOhae 1, 13.68 km away
White Island 2, 1.95 km awayOpotiki 3, 13.82 km away
Rangitaiki 1, 2.05 km awayOhae 2, 17.69 km away
Matata, 2.62 km awayTe Arawa 1, 18.12 km away
Whakatane: North, 3.09 km awayWaiohau: North, 18.73 km away
Edgecumbe 1987, 5.13 km awayOpape 1, 18.74 km away
Waimana - Waikaremoana, 5.15 km awayOpotiki 2, 19.47 km away
Waimana: North, 7.11 km awayVolkner 3, 19.71 km away
Awakeri, 7.32 km away

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count17,072
Co-rupture Rate1.9820553E-4

Ohiwa 1, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.11 km
Min Rate-Weighted Dist0.11 km
Co-rupture Count11,958
Co-rupture Rate1.9995809E-4

Rangitaiki 2, 0.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.35 km
Min Rate-Weighted Dist4.35 km
Co-rupture Count6,253
Co-rupture Rate7.8198376E-5

Whakaari 4, 1.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.51 km
Min Rate-Weighted Dist1.51 km
Co-rupture Count17,589
Co-rupture Rate3.8623155E-4

White Island 2, 1.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.95 km
Min Rate-Weighted Dist1.95 km
Co-rupture Count6,762
Co-rupture Rate1.1028489E-4

Rangitaiki 1, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count213
Co-rupture Rate0.0

Matata, 2.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.62 km
Min Rate-Weighted Dist2.62 km
Co-rupture Count7,352
Co-rupture Rate3.6779627E-5

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.09 km
Min Rate-Weighted Dist3.09 km
Co-rupture Count5,942
Co-rupture Rate1.566232E-4

Edgecumbe 1987, 5.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.13 km
Co-rupture Count15,010
Co-rupture Rate1.9663988E-4

Waimana - Waikaremoana, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count141
Co-rupture Rate0.0

Waimana: North, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.11 km
Co-rupture Count742
Co-rupture Rate0.0

Awakeri, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count5,297
Co-rupture Rate1.565649E-6

Calypso 2, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count1,386
Co-rupture Rate2.0275374E-5

Waiotahi: North, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.8 km
Min Rate-Weighted Dist9.8 km
Co-rupture Count572
Co-rupture Rate1.3694107E-4

Braemar, 11.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count8,257
Co-rupture Rate1.2744956E-4

Ohae 1, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count196
Co-rupture Rate0.0

Ohae 2, 17.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count5,562
Co-rupture Rate6.792035E-5

Waiohau: North, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count14,950
Co-rupture Rate1.0472288E-4

Opape 1, 18.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 19.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Volkner 3, 19.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDUz
Connected?true
Directly Connected?false
Co-rupture Count964
Co-rupture Rate1.2621447E-4
