Alpine: Caswell - South George Details

PropertyValue
Rupture Count117,154
Ruptures Above Sect Min Mag117,152
Ruptures w/ Nonzero Rates131
Magnitude Range[6.70, 8.64]
Length Range[15, 1,156] km
Total Rate0.0018618964 /yr
Multi-Fault Rate0.0018618964 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults89

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

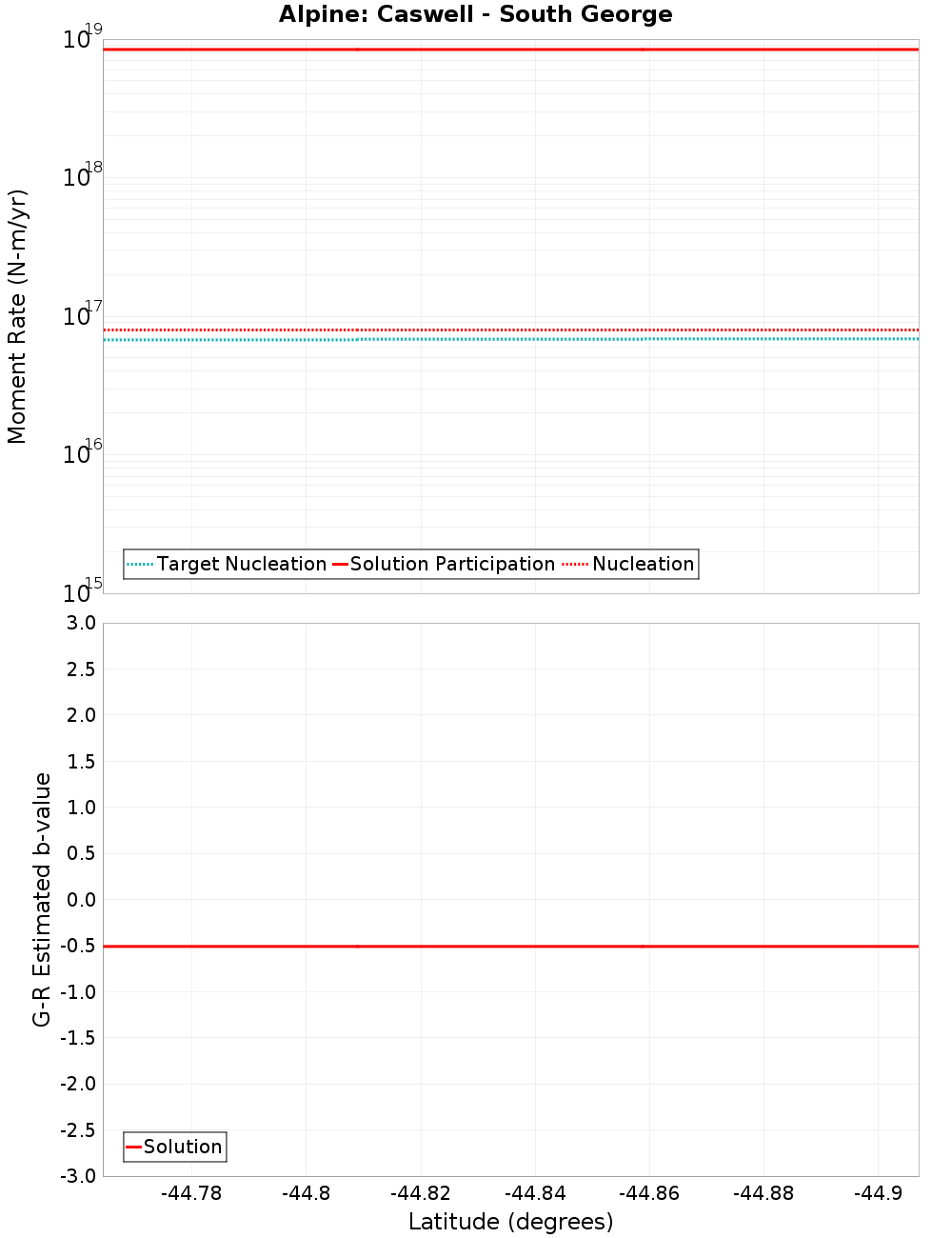

Moment-Rates and b-Values

(top)

Along-strike plot

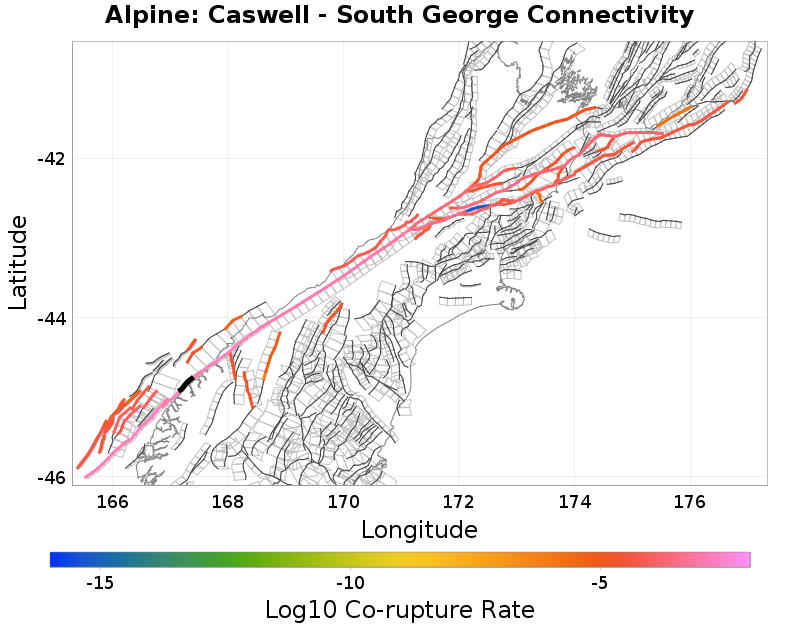

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
Alpine: George landward, 0.03 km away
Alpine: George seaward, 0.03 km away
Central Wedge 1 & 2 & 3, 9.36 km away
Madagascar, 12.23 km away
Alpine: George to Jacksons, 15.24 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count112,601
Co-rupture Rate0.0018618964

Alpine: George landward, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.03 km
Min Rate-Weighted Dist0.03 km
Co-rupture Count53,142
Co-rupture Rate0.0015110108

Alpine: George seaward, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.03 km
Min Rate-Weighted Dist0.03 km
Co-rupture Count64,437
Co-rupture Rate3.5088556E-4

Central Wedge 1 & 2 & 3, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count615
Co-rupture Rate0.0

Madagascar, 12.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count342
Co-rupture Rate1.8418394E-5

Alpine: George to Jacksons, 15.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count116,370
Co-rupture Rate0.0018618964
