Alpine: Resolution - Dagg Details

PropertyValue
Rupture Count107,258
Ruptures Above Sect Min Mag107,255
Ruptures w/ Nonzero Rates140
Magnitude Range[6.99, 8.64]
Length Range[22, 1,156] km
Total Rate0.0029707525 /yr
Multi-Fault Rate0.0029707525 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults92

Table Of Contents

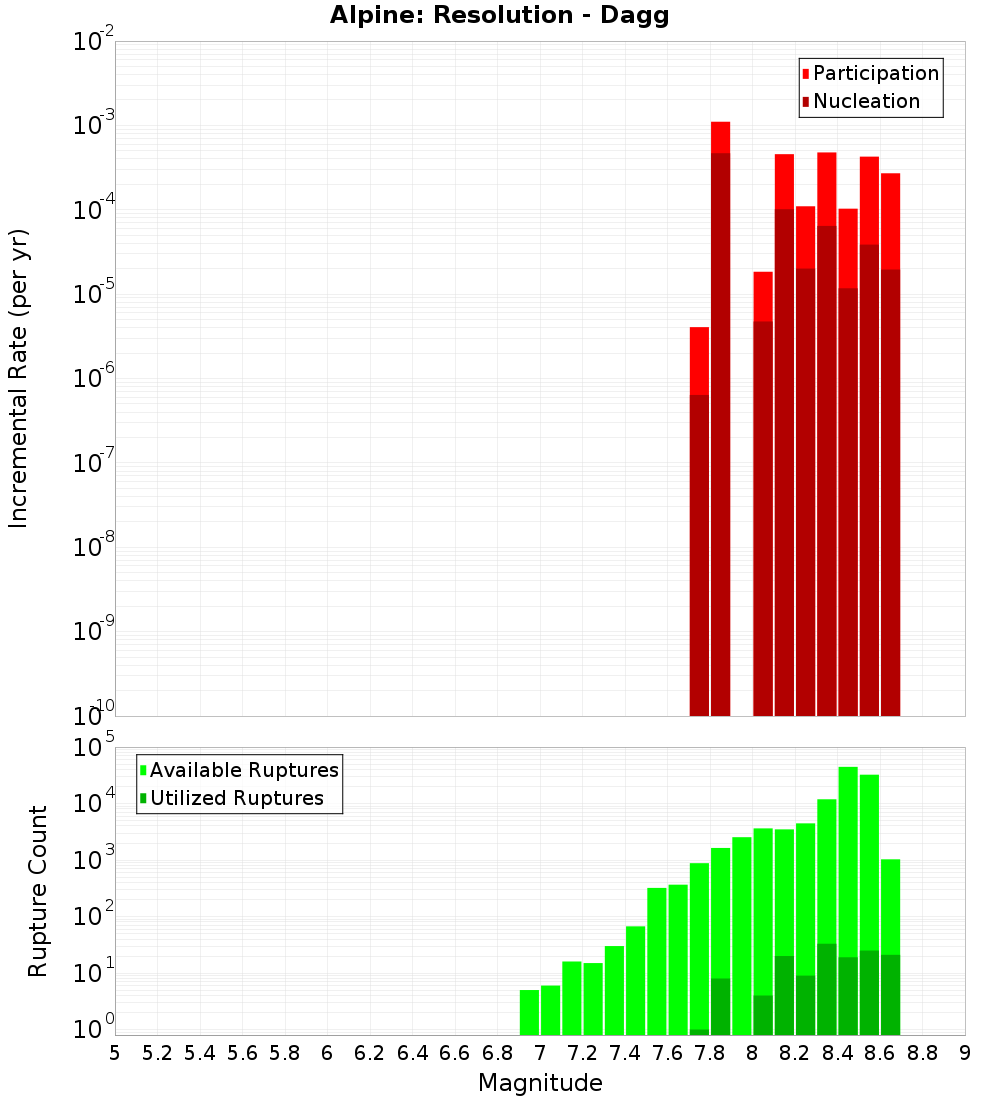

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

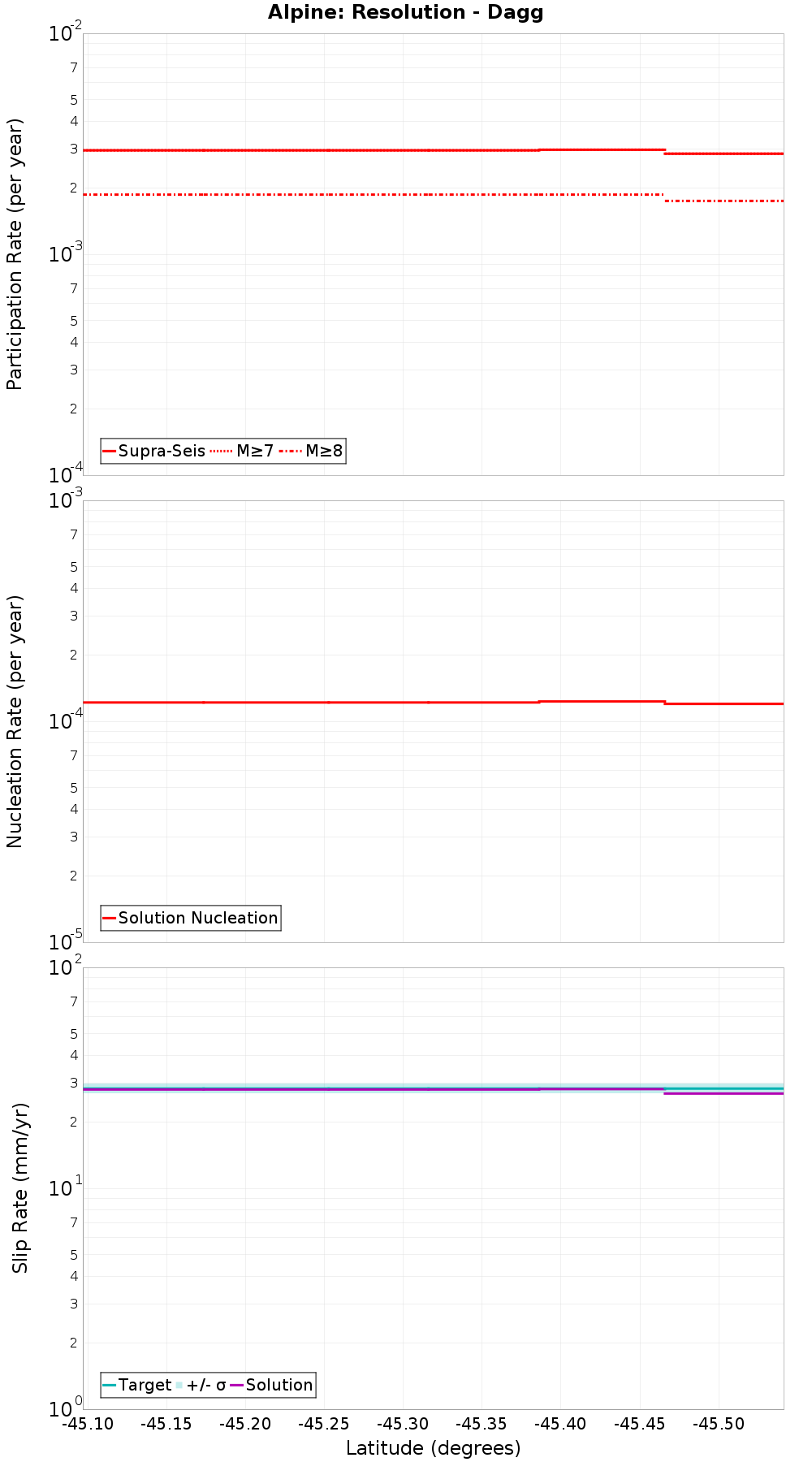

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

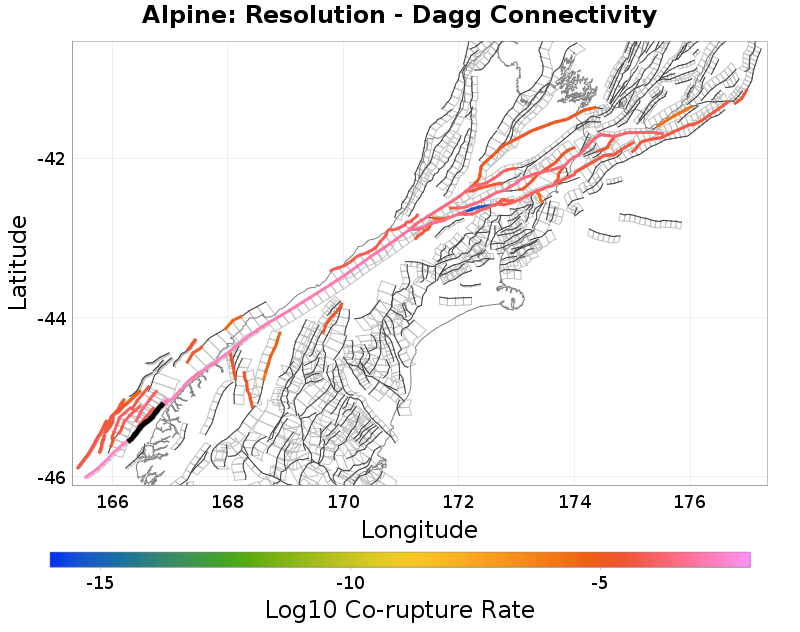

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 1, 0.07 km away
South Wedge 2, 0.17 km away
Alpine: Resolution - Five Fingers, 0.91 km away
South Wedge 3-6-10, 1.76 km away
Alpine: Nancy, 2.58 km away
Central Wedge 4 - South Wedge 411, 4.03 km away
South Wedge 5, 5.57 km away
Alpine: Caswell, 11.24 km away
Central Wedge 1 & 2 & 3, 12.75 km away
Five Fingers, 18.37 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count42,493
Co-rupture Rate0.0012618413

South Wedge 1, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.07 km
Min Rate-Weighted Dist0.07 km
Co-rupture Count2,931
Co-rupture Rate7.351566E-5

South Wedge 2, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.17 km
Min Rate-Weighted Dist0.38 km
Co-rupture Count2,781
Co-rupture Rate3.3947066E-4

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.91 km
Min Rate-Weighted Dist0.91 km
Co-rupture Count63,405
Co-rupture Rate0.0027460076

South Wedge 3-6-10, 1.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.76 km
Min Rate-Weighted Dist4.05 km
Co-rupture Count6,605
Co-rupture Rate1.6175088E-4

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.58 km
Min Rate-Weighted Dist2.58 km
Co-rupture Count63,053
Co-rupture Rate0.0013866768

Central Wedge 4 - South Wedge 411, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count2,381
Co-rupture Rate5.604606E-5

South Wedge 5, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.57 km
Min Rate-Weighted Dist8.82 km
Co-rupture Count19,804
Co-rupture Rate1.3700766E-4

Alpine: Caswell, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count104,999
Co-rupture Rate0.0018618964

Central Wedge 1 & 2 & 3, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count348
Co-rupture Rate0.0

Five Fingers, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
