Alpine: Springs Junction to Tophouse Details
| Property | Value |
|---|---|
| Rupture Count | 17,340 |
| Ruptures Above Sect Min Mag | 17,335 |
| Ruptures w/ Nonzero Rates | 33 |
| Magnitude Range | [7.01, 8.61] |
| Length Range | [21, 1,009] km |
| Total Rate | 0.0010107135 /yr |
| Multi-Fault Rate | 0.0010107135 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 80 |
Table Of Contents

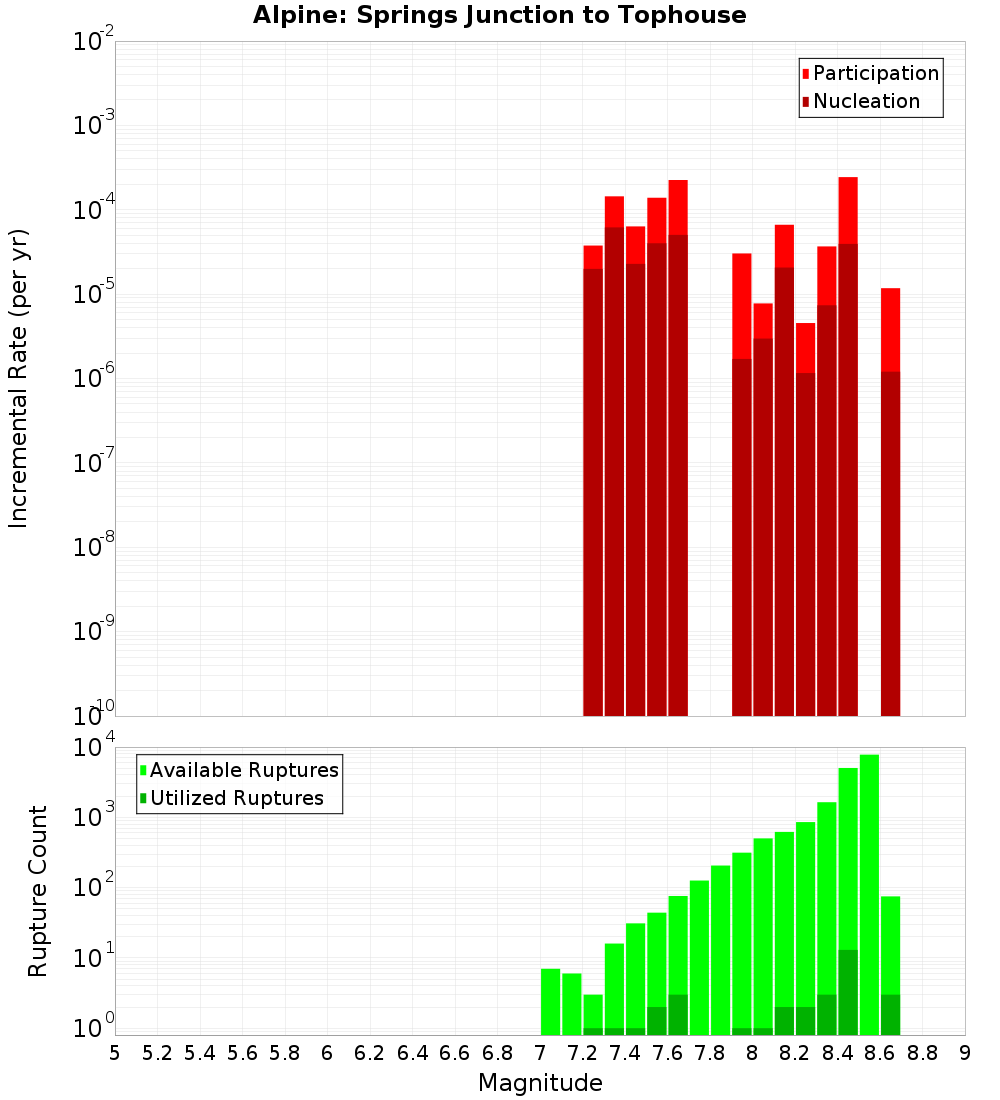

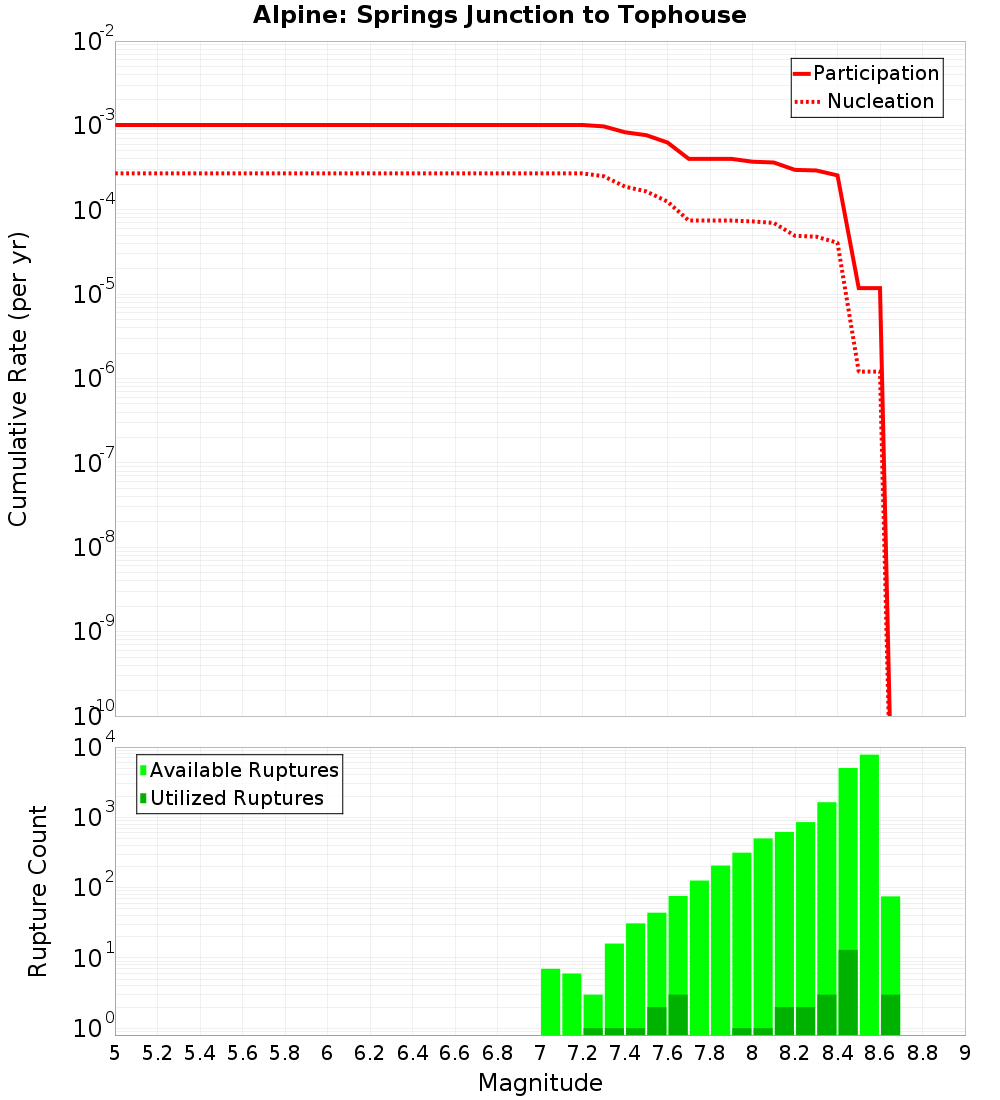

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

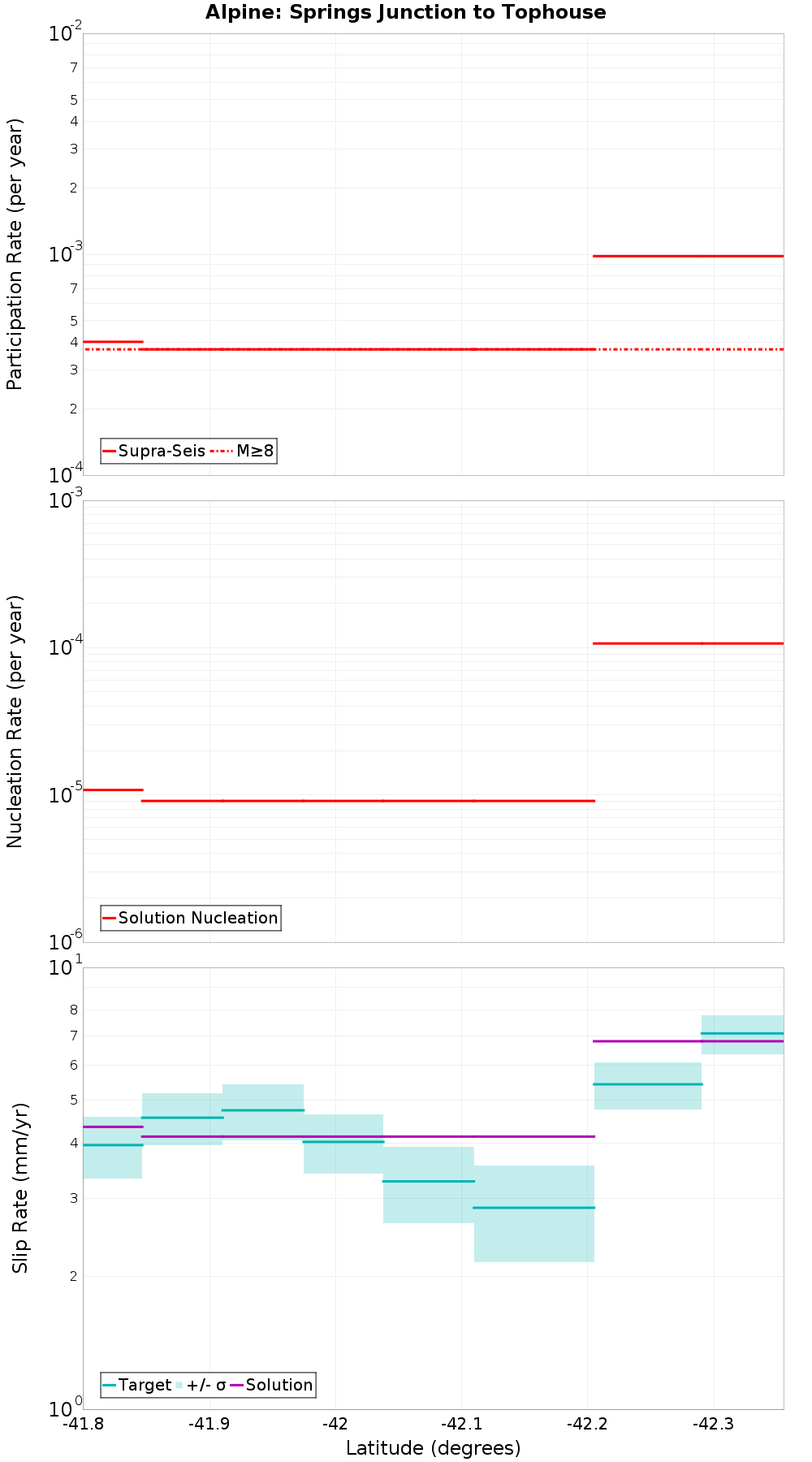

Along-Strike Values

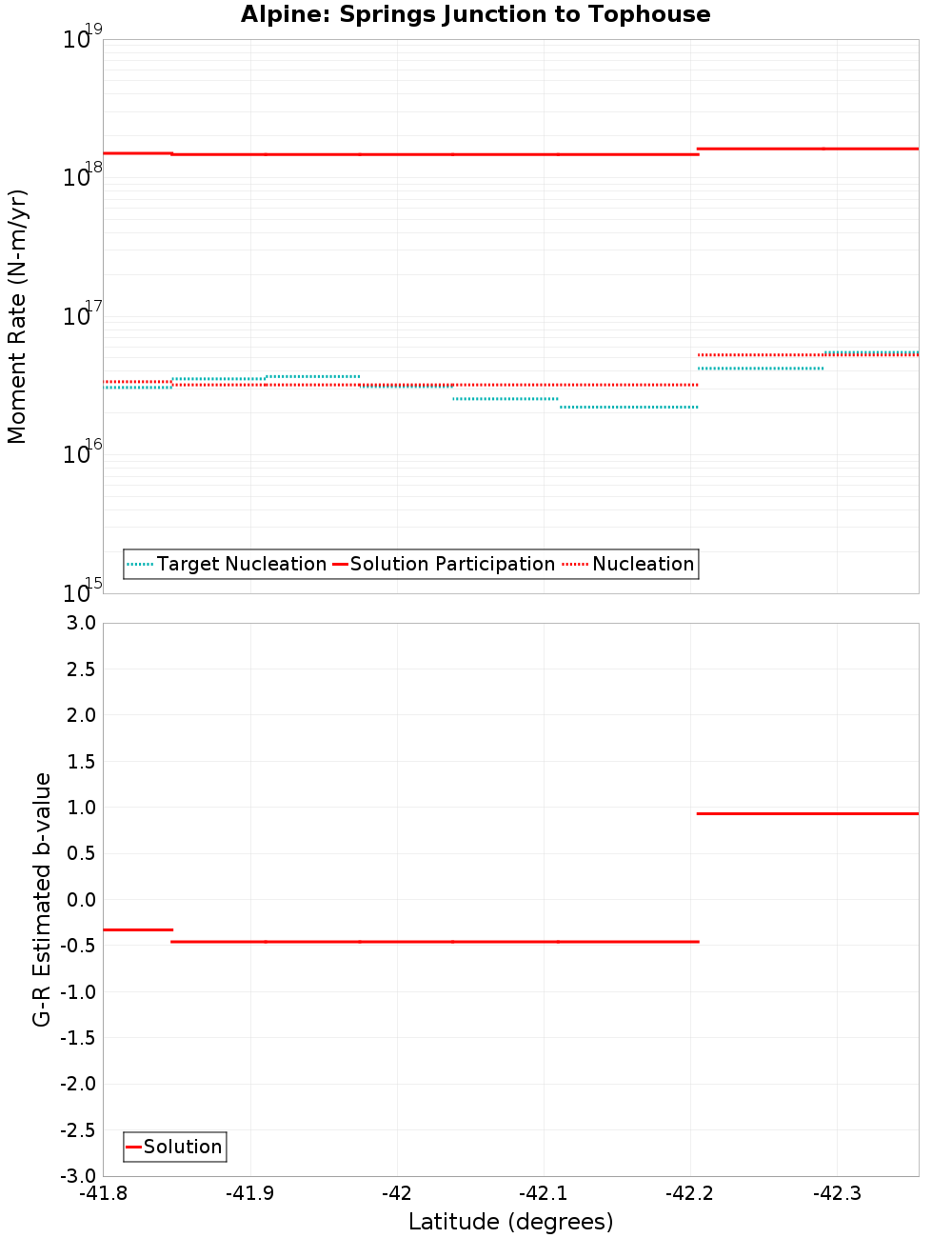

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Wairau, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 8,082 |
| Co-rupture Rate | 1.8563792E-4 |
Alpine: Kaniere to Springs Junction, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 16,854 |
| Co-rupture Rate | 9.803723E-4 |
Whangamoa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 10.52 km |
| Co-rupture Count | 1,071 |
| Co-rupture Rate | 6.267704E-5 |
Awatere: Southwest, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Co-rupture Count | 109 |
| Co-rupture Rate | 0.0 |
Fowlers, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.26 km |
| Co-rupture Count | 30 |
| Co-rupture Rate | 0.0 |
Flaxmore - Waimea - Tahunanui, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.39 km |
| Min Rate-Weighted Dist | 5.93 km |
| Co-rupture Count | 2,132 |
| Co-rupture Rate | 6.030286E-5 |
Tutaki, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.48 km |
| Min Rate-Weighted Dist | 6.19 km |
| Co-rupture Count | 642 |
| Co-rupture Rate | 1.2299555E-4 |
Clarence: Southwest, 6.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.69 km |
| Co-rupture Count | 142 |
| Co-rupture Rate | 0.0 |
Hope: Hope River, 14.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Esk North, 16.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Elliott, 19.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
