Fowlers Details

PropertyValue
Rupture Count12,675
Ruptures Above Sect Min Mag12,670
Ruptures w/ Nonzero Rates21
Magnitude Range[6.97, 8.59]
Length Range[21, 926] km
Total Rate6.6394947E-4 /yr
Multi-Fault Rate6.6394947E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults135

Table Of Contents

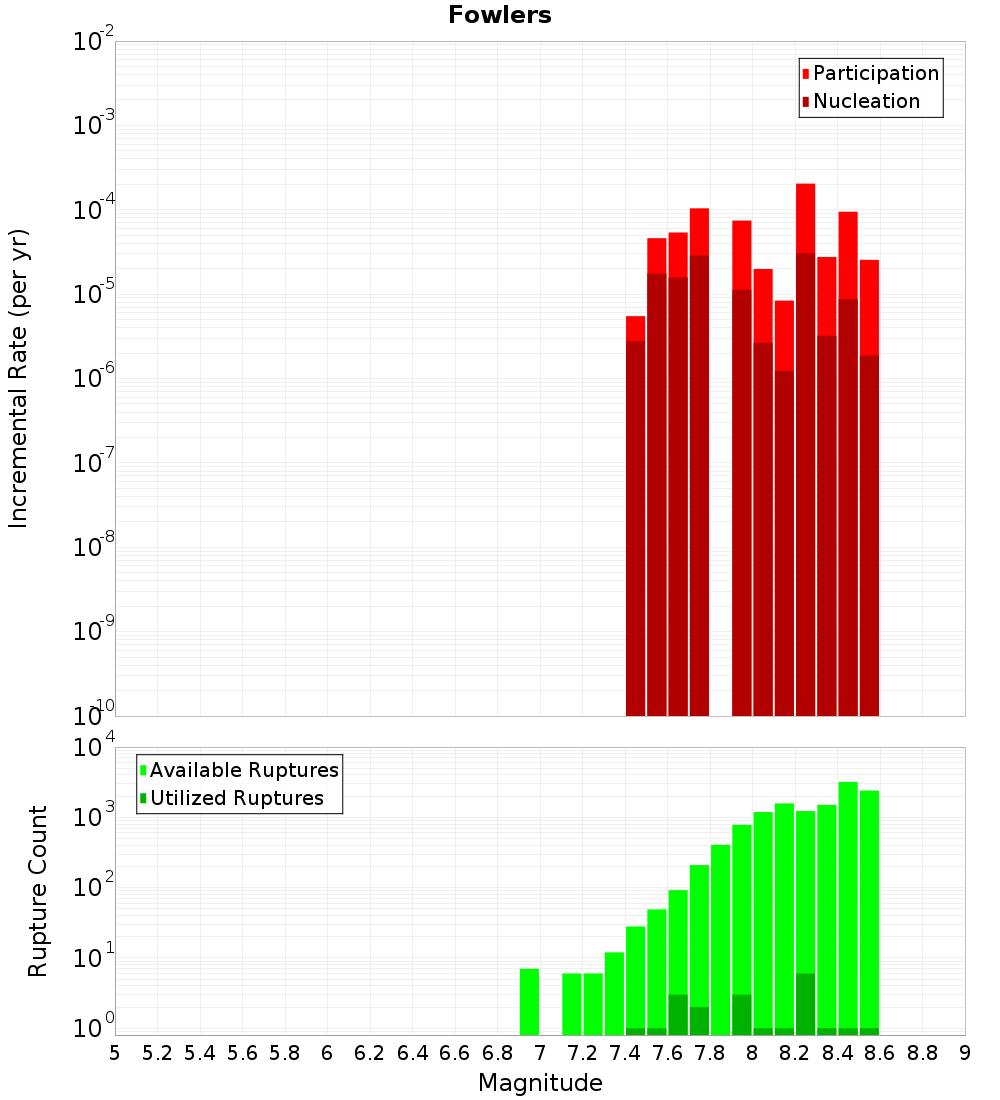

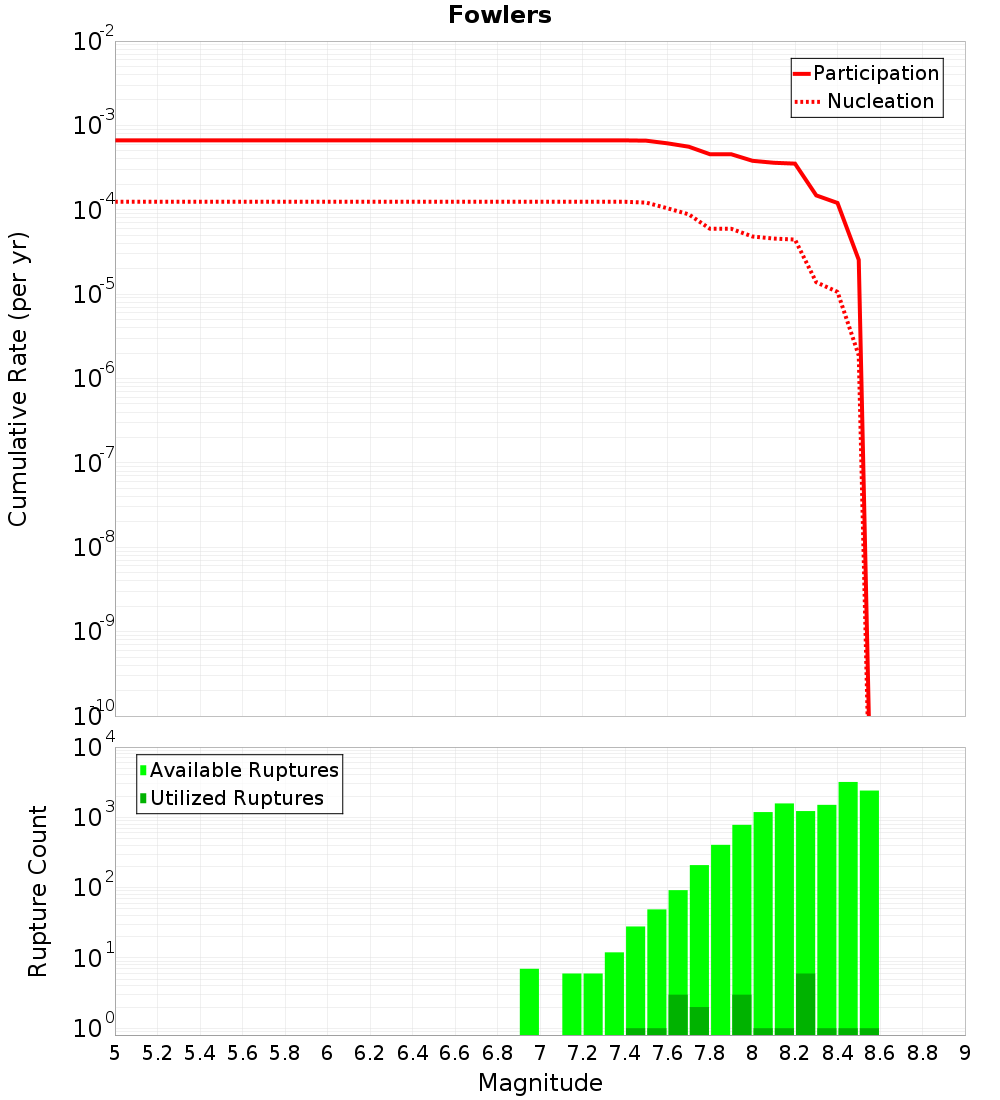

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

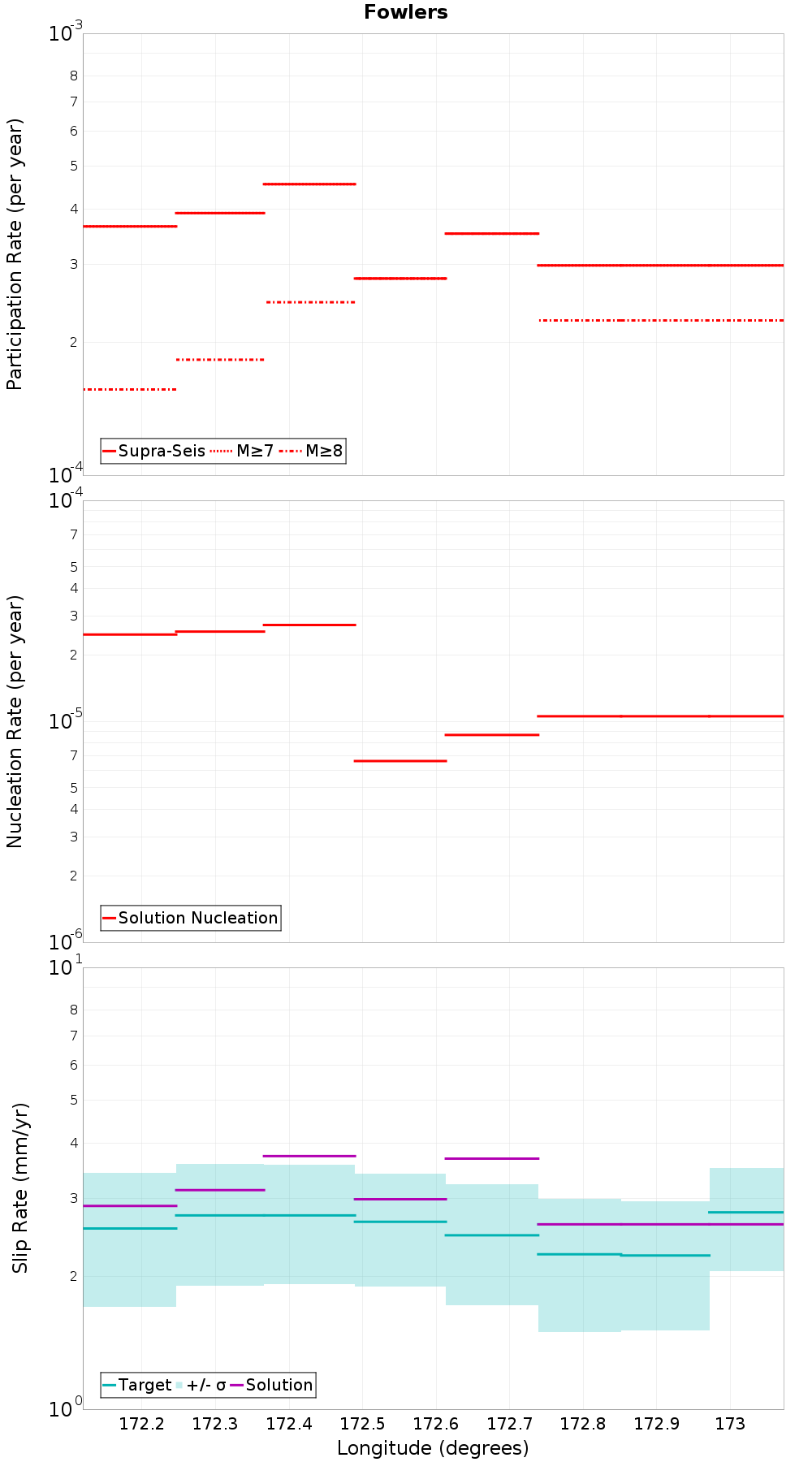

Along-Strike Values

(top)

Along-strike plot

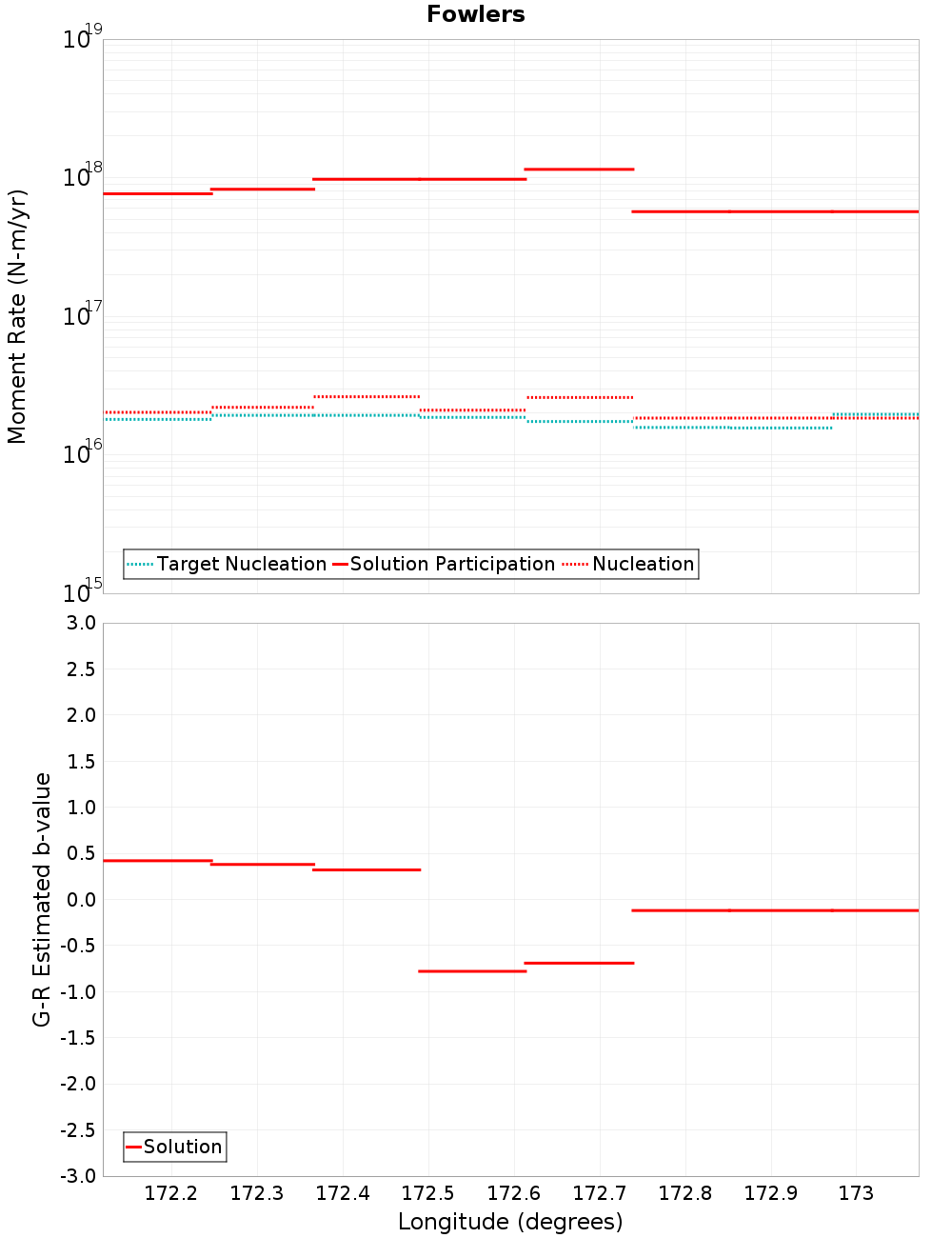

Moment-Rates and b-Values

(top)

Along-strike plot

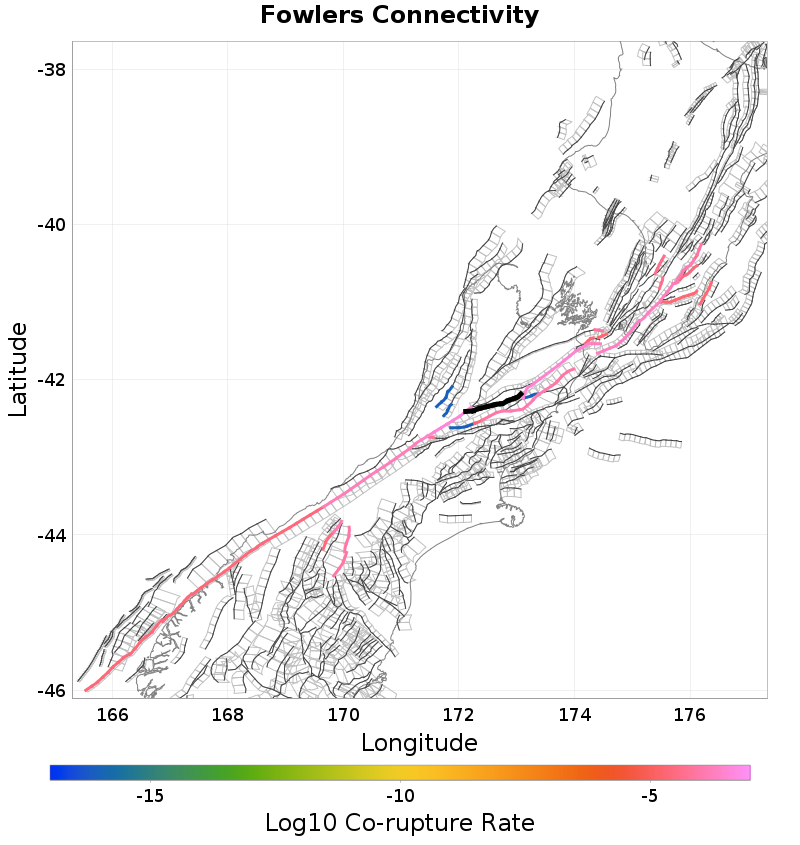

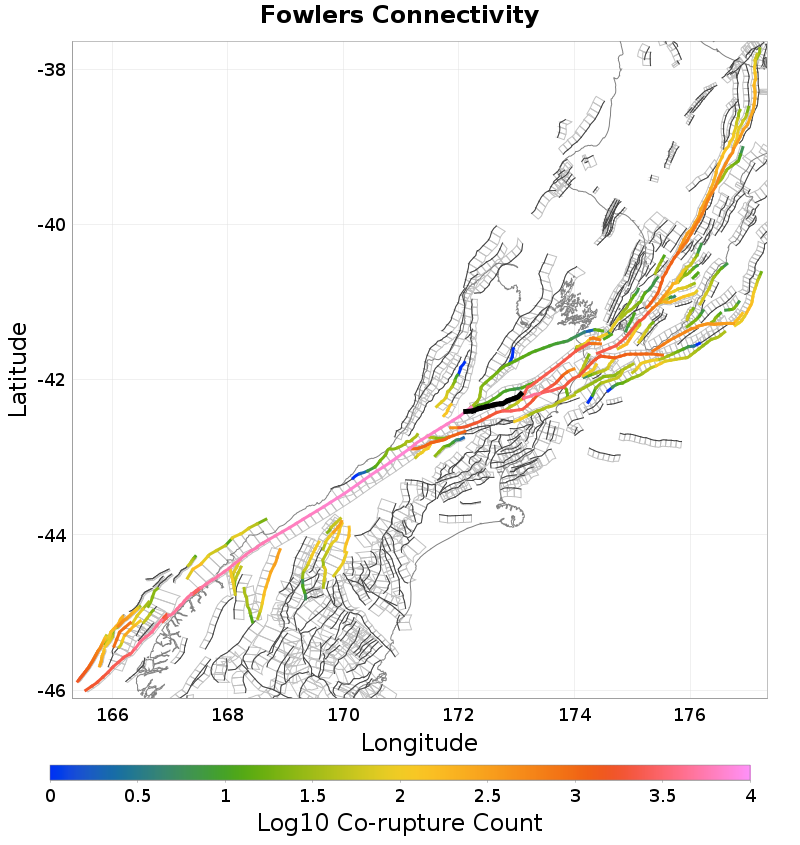

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Elliott, 0.12 km away
Clarence: Central, 0.2 km away
Alpine: Springs Junction to Tophouse, 0.26 km away
Barefell, 0.28 km away
Alpine: Kaniere to Springs Junction, 0.29 km away
Clarence: Southwest, 2.25 km away
Awatere: Southwest, 4.56 km away
Awatere: Northeast 1, 14.06 km away
White Creek - buried, 15.8 km away
White Creek, 16.18 km away
Hope: Hope River, 16.27 km away
Leader: North, 18.42 km away
Esk North, 19.03 km away
Hope: Kakapo-2-Hamner, 19.5 km away

Elliott, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.12 km
Min Rate-Weighted Dist0.12 km
Co-rupture Count2,625
Co-rupture Rate1.2244689E-4

Clarence: Central, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.2 km
Min Rate-Weighted Dist1.85 km
Co-rupture Count4,423
Co-rupture Rate8.543109E-17

Alpine: Springs Junction to Tophouse, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.26 km
Co-rupture Count30
Co-rupture Rate0.0

Barefell, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.28 km
Min Rate-Weighted Dist0.28 km
Co-rupture Count2,376
Co-rupture Rate2.9839034E-4

Alpine: Kaniere to Springs Junction, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.29 km
Min Rate-Weighted Dist0.29 km
Co-rupture Count6,768
Co-rupture Rate3.6555916E-4

Clarence: Southwest, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.25 km
Min Rate-Weighted Dist2.25 km
Co-rupture Count1,915
Co-rupture Rate9.4286755E-5

Awatere: Southwest, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.56 km
Co-rupture Count22
Co-rupture Rate0.0

Awatere: Northeast 1, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count2,379
Co-rupture Rate2.9839034E-4

White Creek - buried, 15.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count127
Co-rupture Rate8.543109E-17

White Creek, 16.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hope River, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count1,129
Co-rupture Rate0.0

Leader: North, 18.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 19.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 19.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
