Hope: Hope River Details

PropertyValue
Rupture Count87,239
Ruptures Above Sect Min Mag87,236
Ruptures w/ Nonzero Rates25
Magnitude Range[6.96, 8.64]
Length Range[20, 1,156] km
Total Rate7.694586E-4 /yr
Multi-Fault Rate5.826128E-4 /yr (75.72%)
Directly-Connected Faults4
All Co-Rupturing Faults106

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

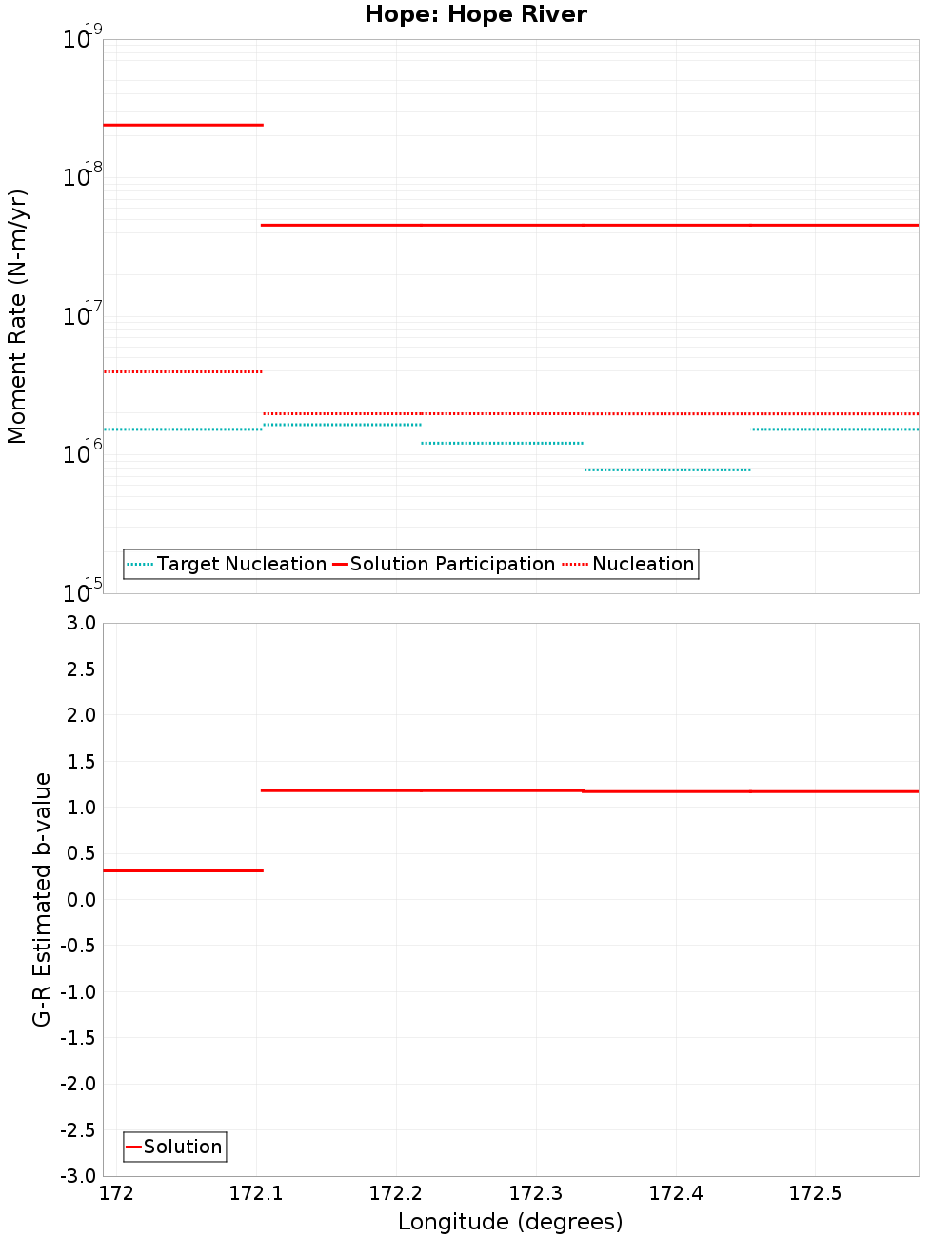

Moment-Rates and b-Values

(top)

Along-strike plot

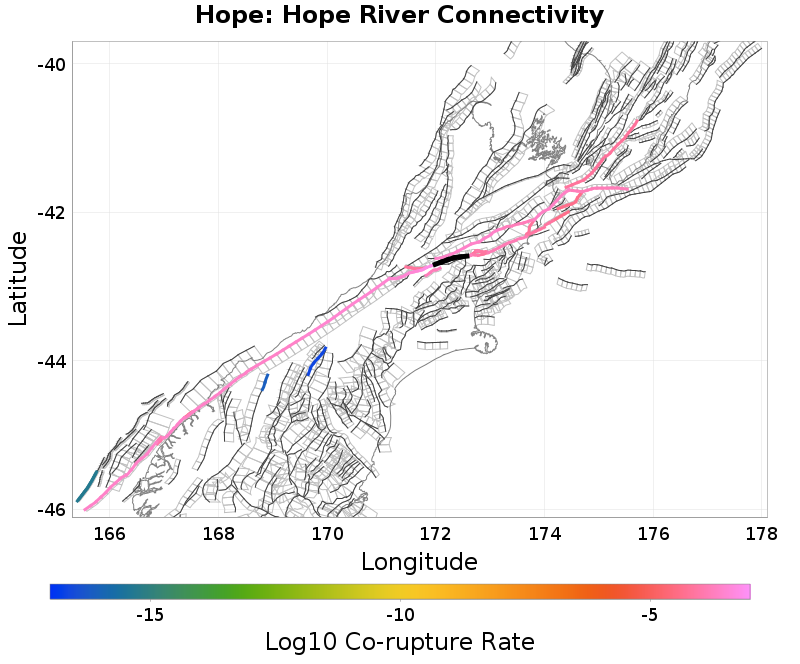

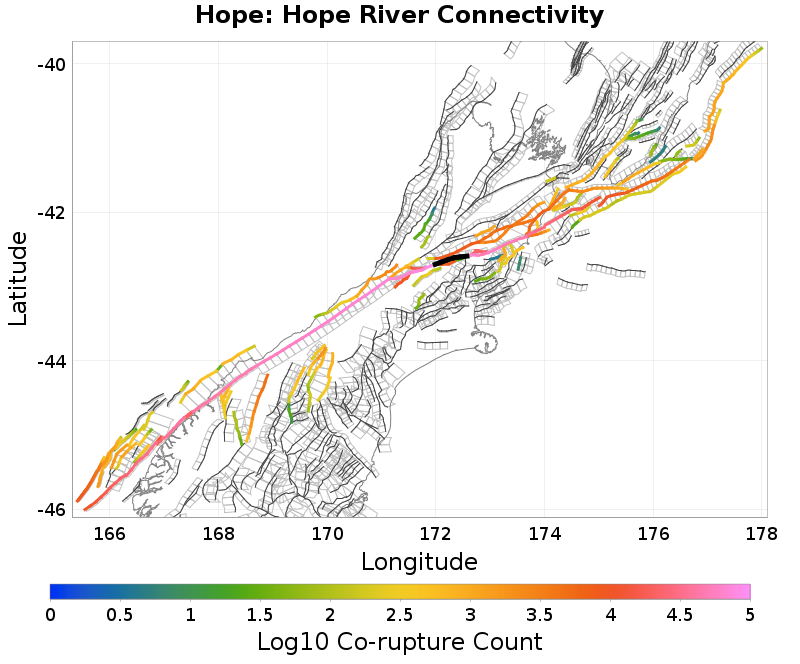

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Kakapo-2-Hamner, 0 km awayHope: Taramakau, 13.46 km away
Kakapo, 0 km awayAlpine: Springs Junction to Tophouse, 14.11 km away
Hope: Hurunui, 0 km awayHanmer, 14.35 km away
Esk North, 1.25 km awayKelly, 14.38 km away
Alpine: Kaniere to Springs Junction, 2.78 km awayFowlers, 16.27 km away
Clarence: Southwest, 5.56 km awayHope: Hanmer SE, 16.82 km away
Hope: Hanmer NW, 6.3 km awayMt Culverden, 17.08 km away
Hope: Hanmer SW, 6.3 km awayBalmoral, 17.33 km away
Poulter, 7.81 km awayWhite Creek - buried, 19.11 km away
Hurunui Peak, 11.81 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count74,860
Co-rupture Rate1.7396048E-4

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist3 km
Co-rupture Count8,102
Co-rupture Rate0.0

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count85,093
Co-rupture Rate5.826128E-4

Esk North, 1.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Kaniere to Springs Junction, 2.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count1,111
Co-rupture Rate0.0

Clarence: Southwest, 5.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.56 km
Min Rate-Weighted Dist5.94 km
Co-rupture Count8,506
Co-rupture Rate2.4112598E-4

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count21,872
Co-rupture Rate6.7829E-5

Hope: Hanmer SW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count59,258
Co-rupture Rate1.06131476E-4

Poulter, 7.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count301
Co-rupture Rate1.6752635E-4

Hurunui Peak, 11.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Taramakau, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count20,101
Co-rupture Rate6.974173E-5

Alpine: Springs Junction to Tophouse, 14.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count25,313
Co-rupture Rate1.0876548E-4

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count73,144
Co-rupture Rate5.2749715E-4

Fowlers, 16.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count1,129
Co-rupture Rate0.0

Hope: Hanmer SE, 16.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count46,119
Co-rupture Rate6.519499E-5

Mt Culverden, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Creek - buried, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count86
Co-rupture Rate0.0
