Hundalee Details

PropertyValue
Rupture Count1,843
Ruptures Above Sect Min Mag1,841
Ruptures w/ Nonzero Rates10
Magnitude Range[6.97, 8.55]
Length Range[20, 843] km
Total Rate3.7067552E-4 /yr
Multi-Fault Rate3.7067552E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults68

Table Of Contents

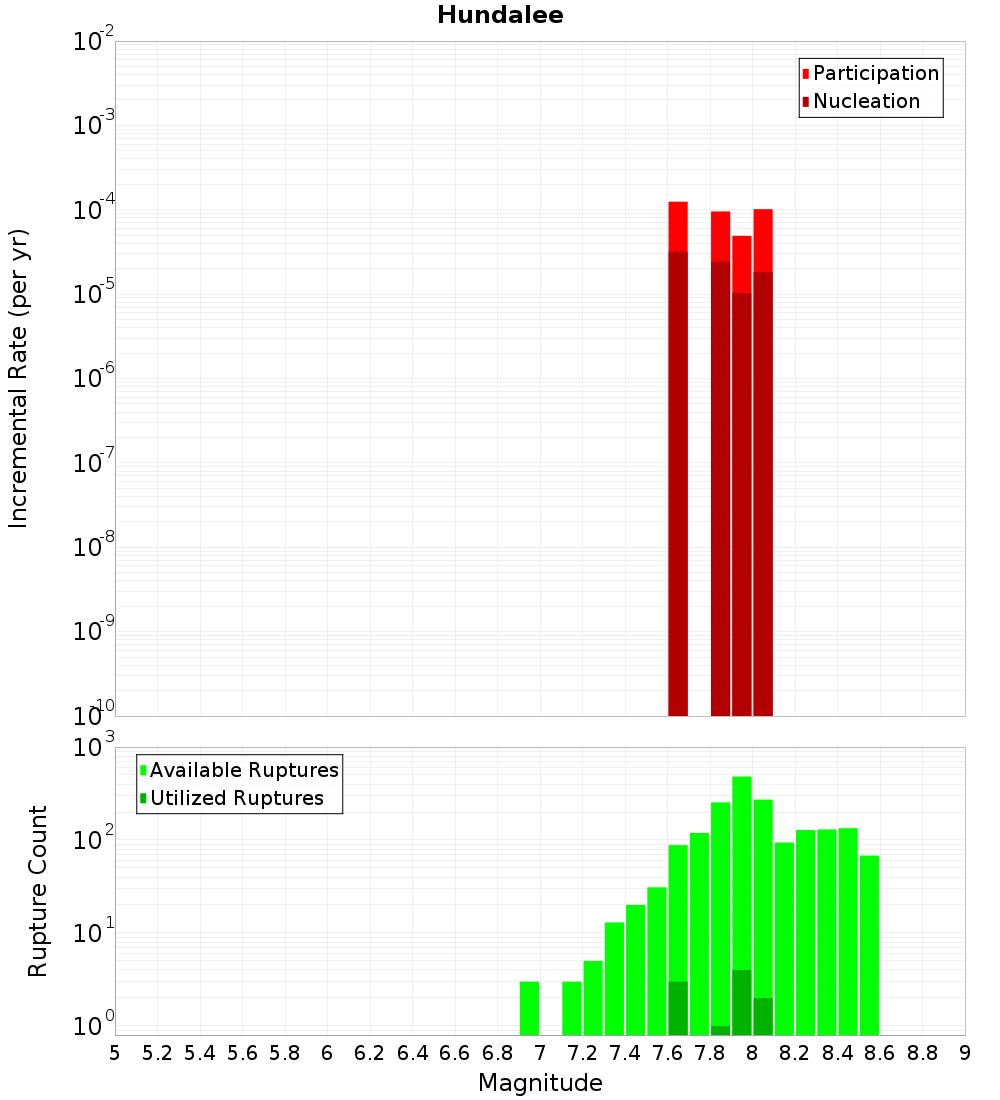

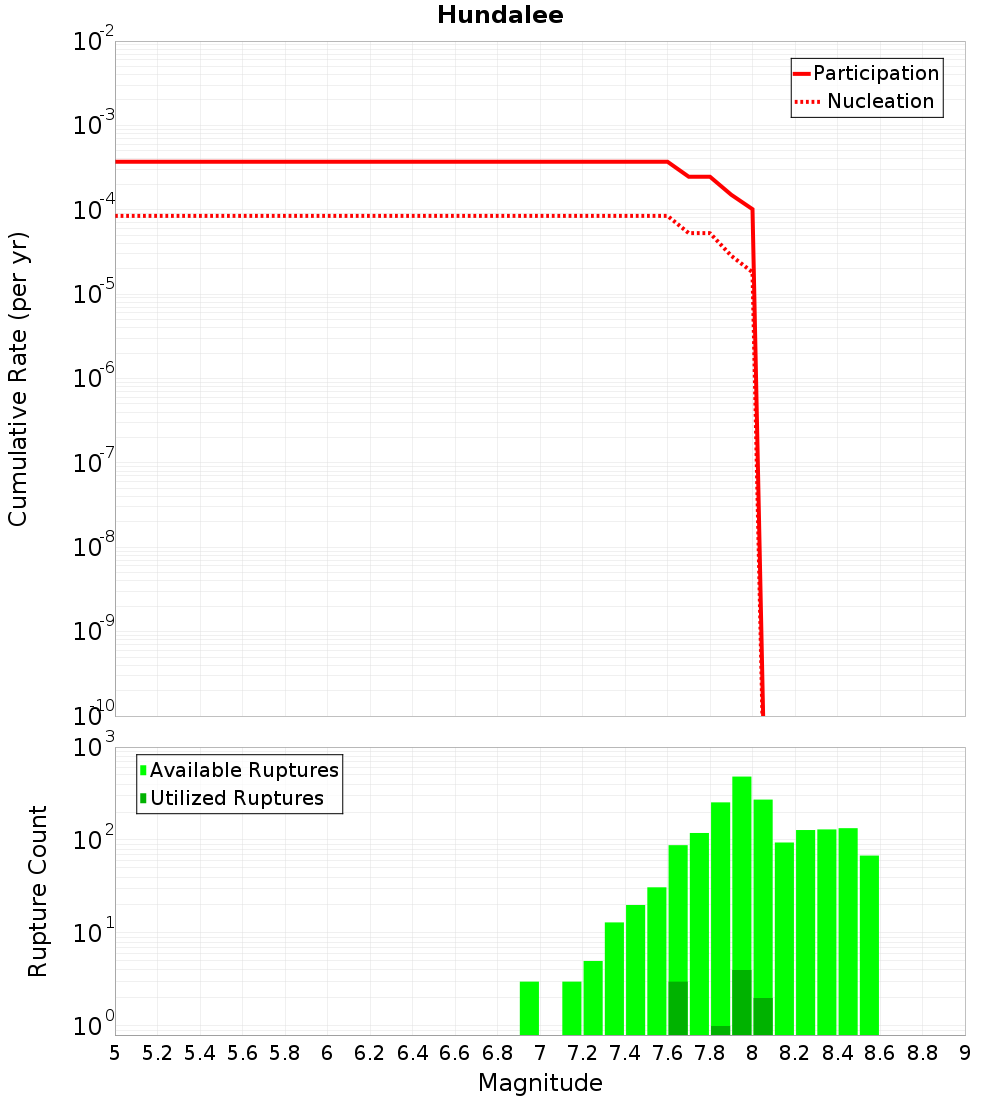

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

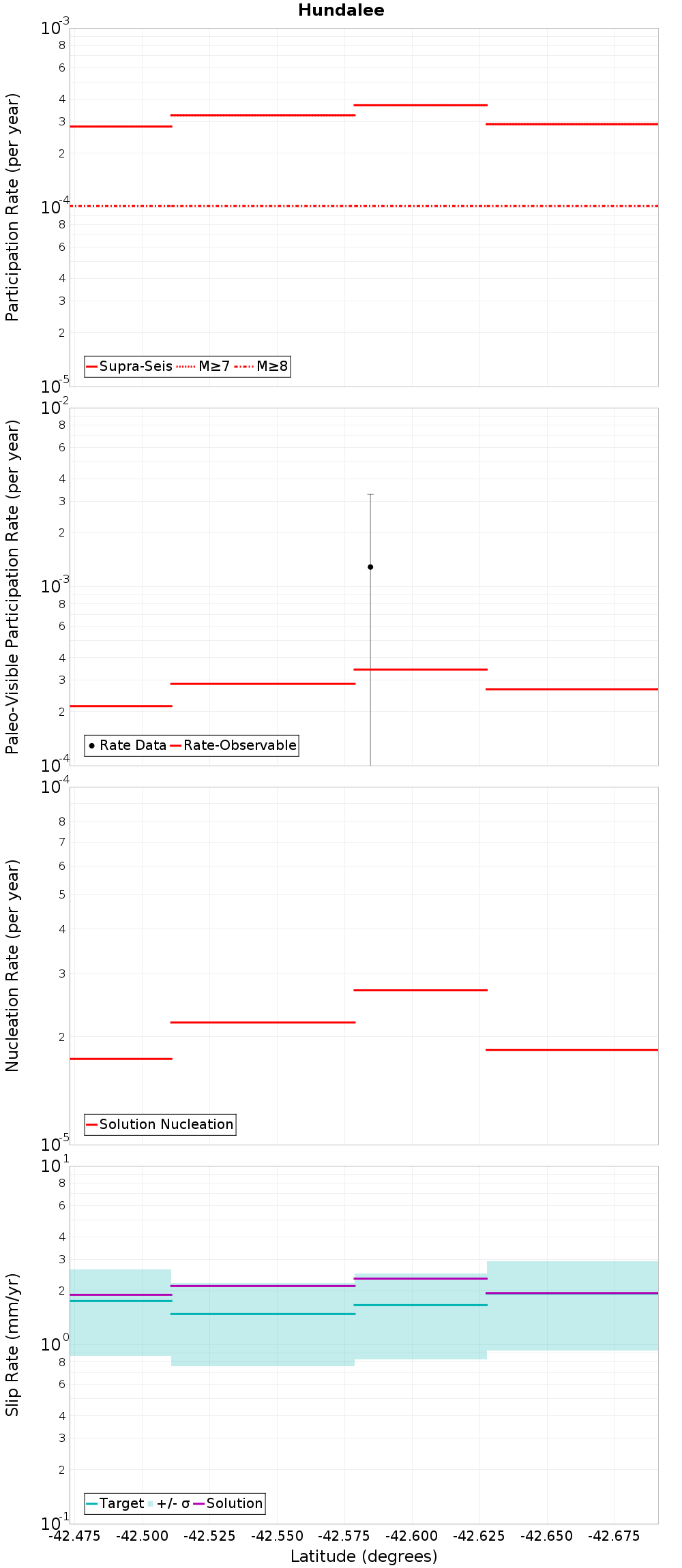

Along-Strike Values

(top)

Along-strike plot

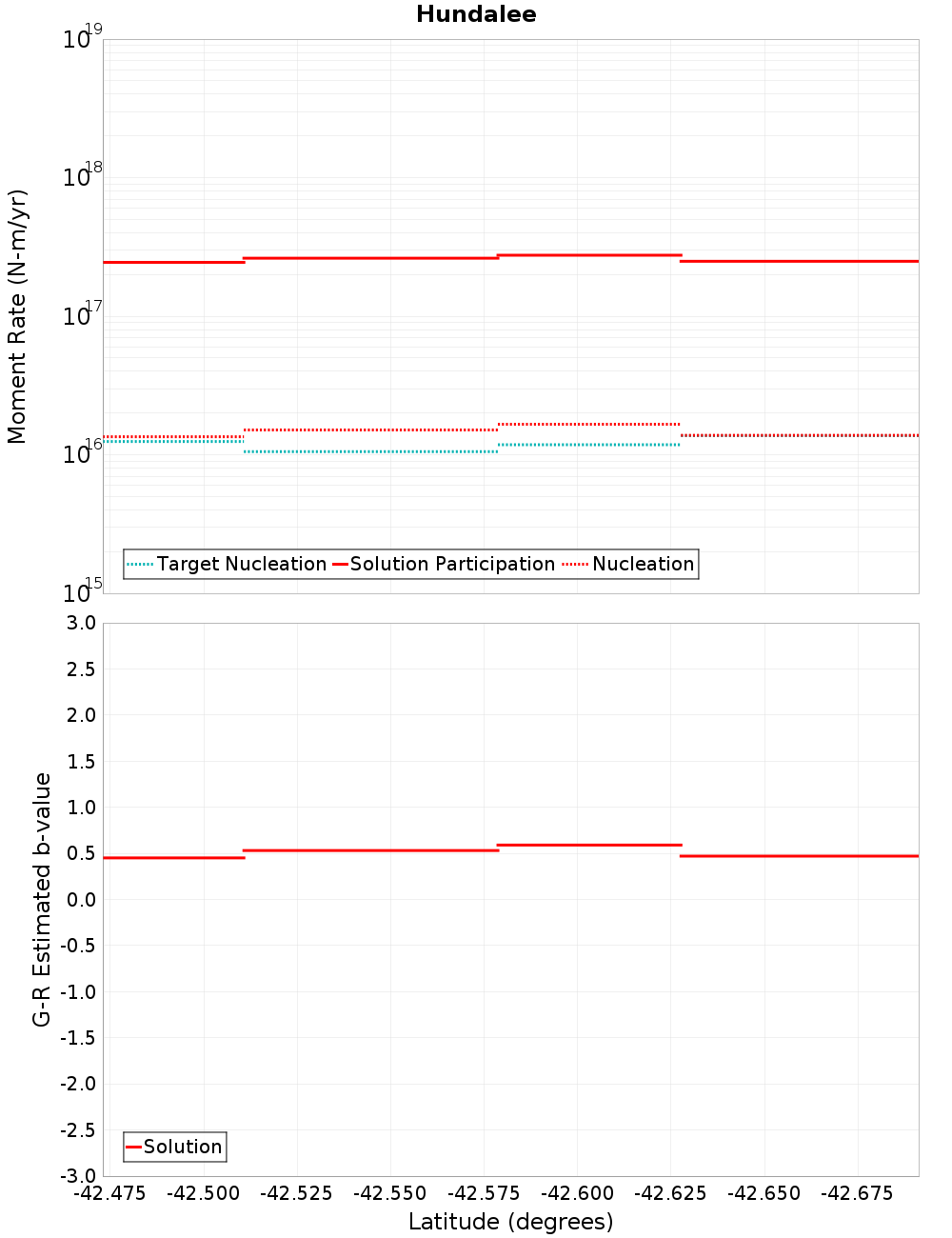

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Leader: Central, 0.23 km awayLeader: North, 12.63 km away
StoneJug, 0.23 km awayJordan, 15.34 km away
The Humps, 0.43 km awayHope: Seaward, 15.42 km away
Hawkswood, 0.92 km awayLowry, 15.49 km away
Kaiwara North, 3.48 km awayConway Trough East, 15.71 km away
Hope: Conway, 4.6 km awayMt Culverden, 16.46 km away
Conway Trough West, 5.24 km awayKaikoura - Mangamaunu, 17.62 km away
Leader: South, 5.67 km awayAlexander, 19.86 km away
Leonard Mound, 9.87 km away

Leader: Central, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.23 km
Co-rupture Count447
Co-rupture Rate0.0

StoneJug, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

The Humps, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.43 km
Min Rate-Weighted Dist2.69 km
Co-rupture Count17
Co-rupture Rate1.2458605E-4

Hawkswood, 0.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.92 km
Min Rate-Weighted Dist0.92 km
Co-rupture Count874
Co-rupture Rate1.5055815E-4

Kaiwara North, 3.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.48 km
Min Rate-Weighted Dist3.48 km
Co-rupture Count158
Co-rupture Rate9.553132E-5

Hope: Conway, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.6 km
Min Rate-Weighted Dist4.6 km
Co-rupture Count1,639
Co-rupture Rate1.4241939E-4

Conway Trough West, 5.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.22 km
Co-rupture Count20
Co-rupture Rate0.0

Leader: South, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.67 km
Co-rupture Count17
Co-rupture Rate0.0

Leonard Mound, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate9.553132E-5

Leader: North, 12.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate0.0

Jordan, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate0.0

Hope: Seaward, 15.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count492
Co-rupture Rate0.0

Lowry, 15.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate9.553132E-5

Conway Trough East, 15.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Culverden, 16.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.2458605E-4

Kaikoura - Mangamaunu, 17.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate2.140225E-5

Alexander, 19.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate0.0
