Kerepehi Waitoa Details

PropertyValue
Rupture Count140
Ruptures Above Sect Min Mag138
Ruptures w/ Nonzero Rates8
Magnitude Range[6.82, 7.76]
Length Range[17, 143] km
Total Rate1.8975364E-4 /yr
Multi-Fault Rate1.8975364E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults9

Table Of Contents

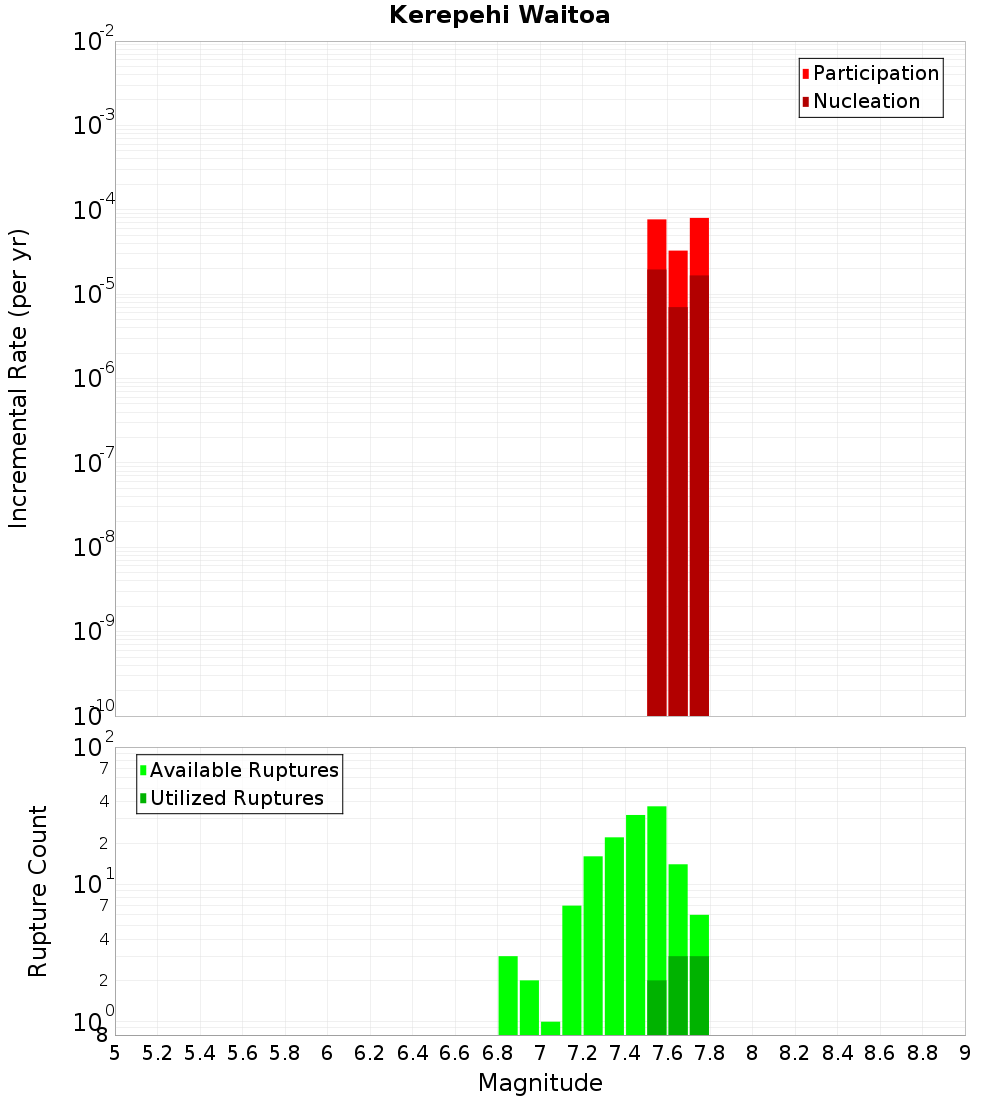

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

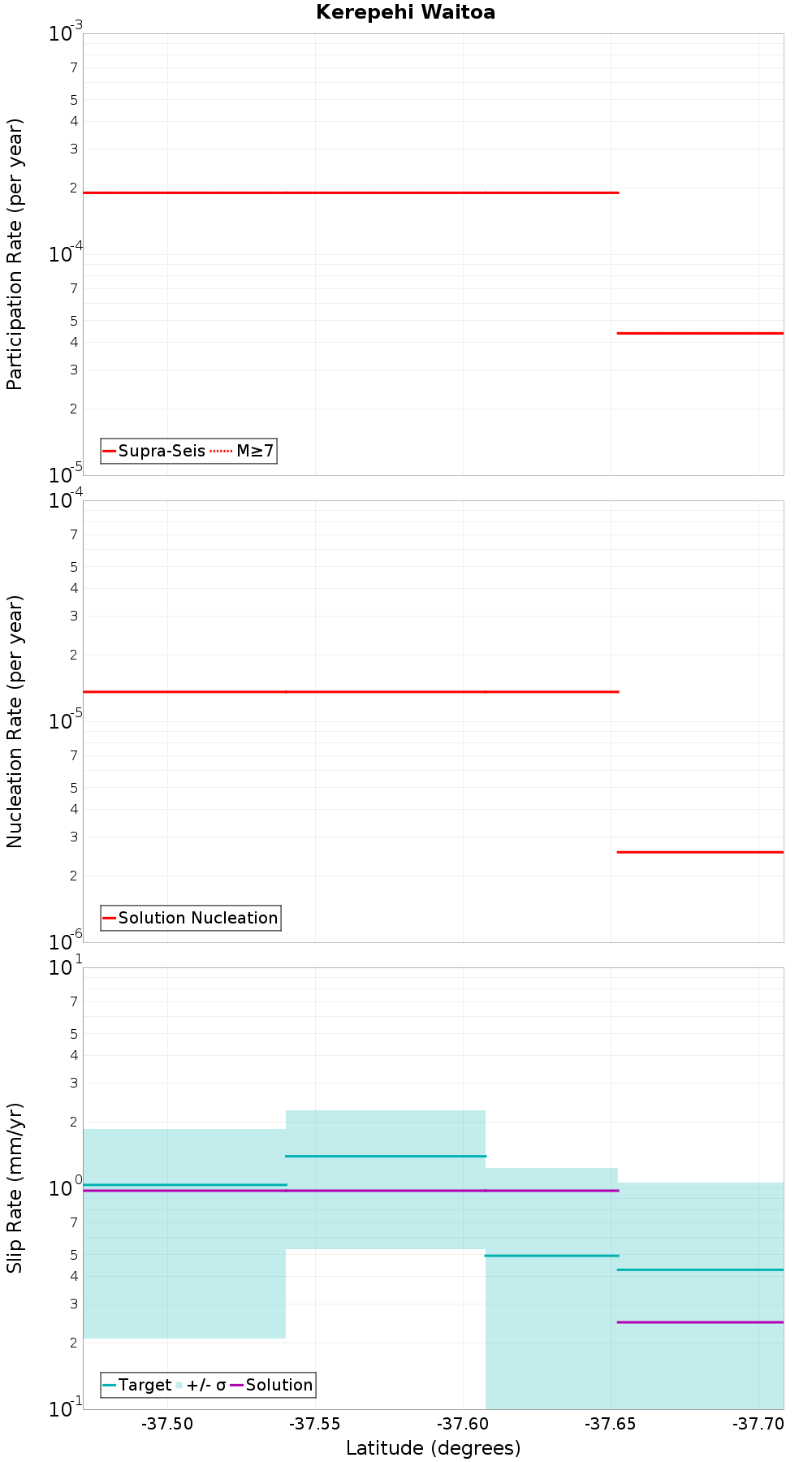

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

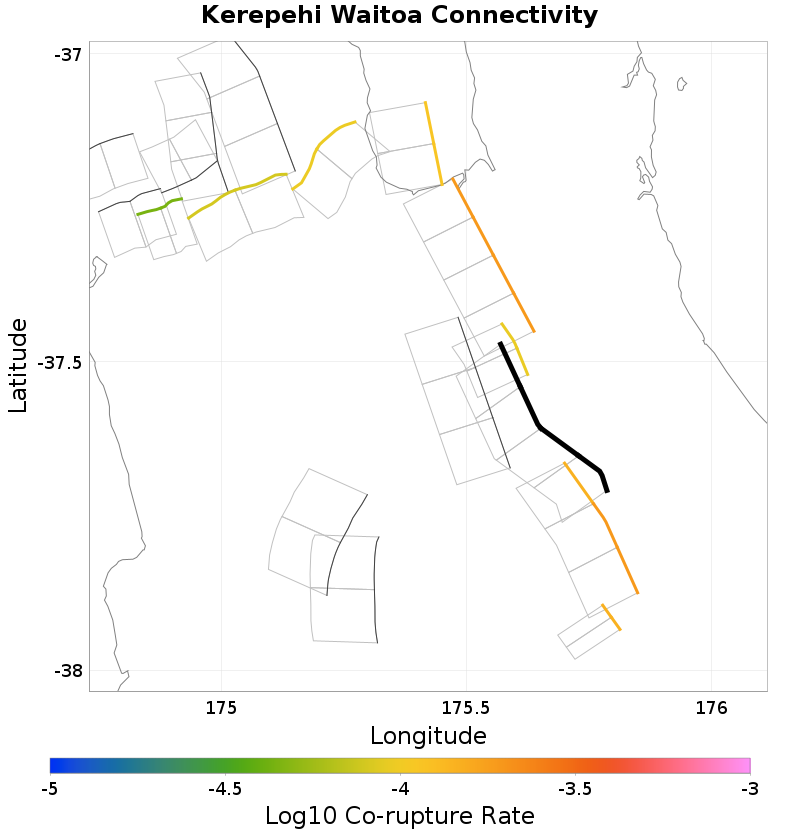

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kerepehi Elstow, 1.73 km away
Kerepehi Te Poi, 1.86 km away
Te Puninga, 4.97 km away
Kerepehi Awaiti, 5.52 km away
Kerepehi Okoroire, 19.55 km away

Kerepehi Elstow, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.73 km
Min Rate-Weighted Dist1.73 km
Co-rupture Count49
Co-rupture Rate9.403837E-5

Kerepehi Te Poi, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.86 km
Min Rate-Weighted Dist2.1 km
Co-rupture Count91
Co-rupture Rate1.8975364E-4

Te Puninga, 4.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.72 km
Co-rupture Count35
Co-rupture Rate0.0

Kerepehi Awaiti, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.52 km
Min Rate-Weighted Dist5.52 km
Co-rupture Count99
Co-rupture Rate1.8975364E-4

Kerepehi Okoroire, 19.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate1.4588771E-4
