Moonshine Details

PropertyValue
Rupture Count7,325
Ruptures Above Sect Min Mag7,323
Ruptures w/ Nonzero Rates19
Magnitude Range[6.86, 8.36]
Length Range[18, 544] km
Total Rate2.658745E-4 /yr
Multi-Fault Rate2.658745E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults98

Table Of Contents

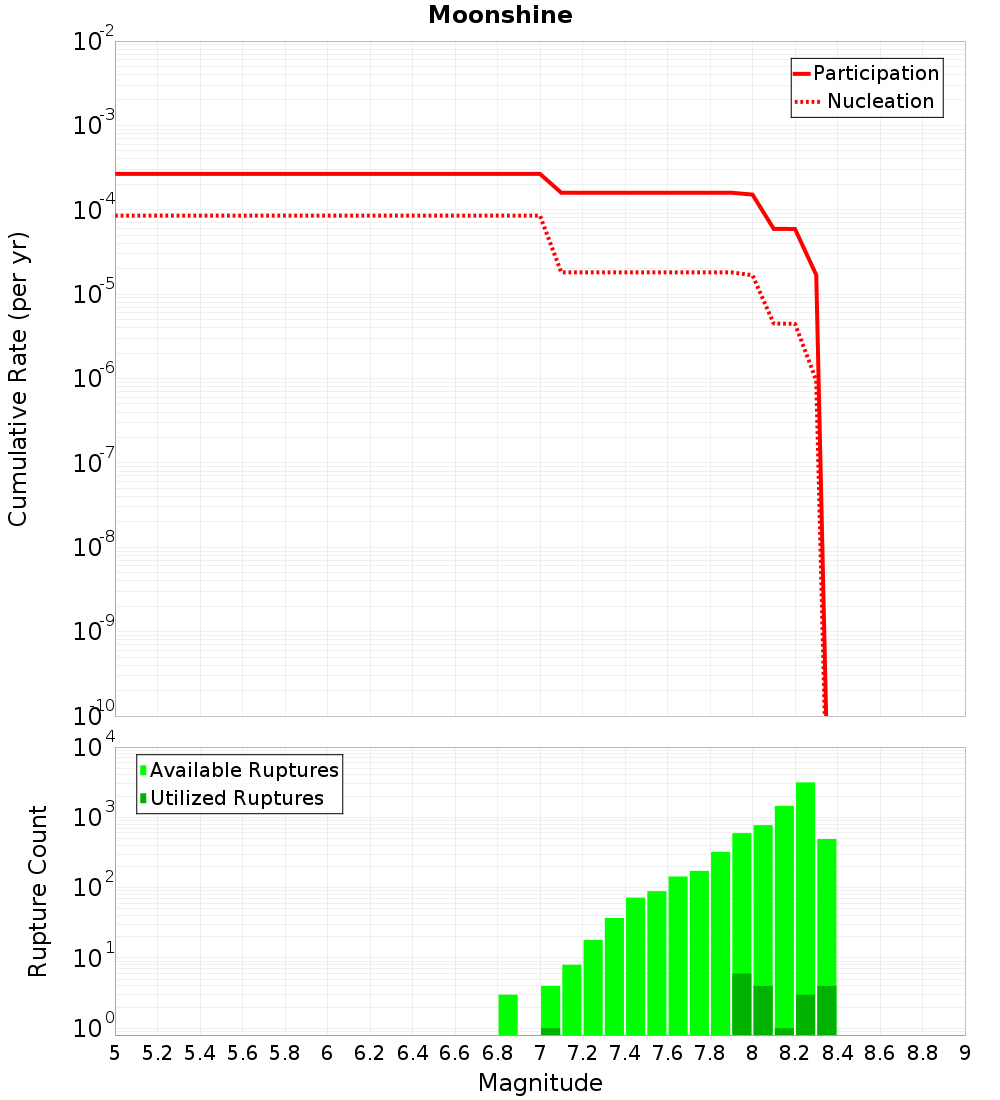

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

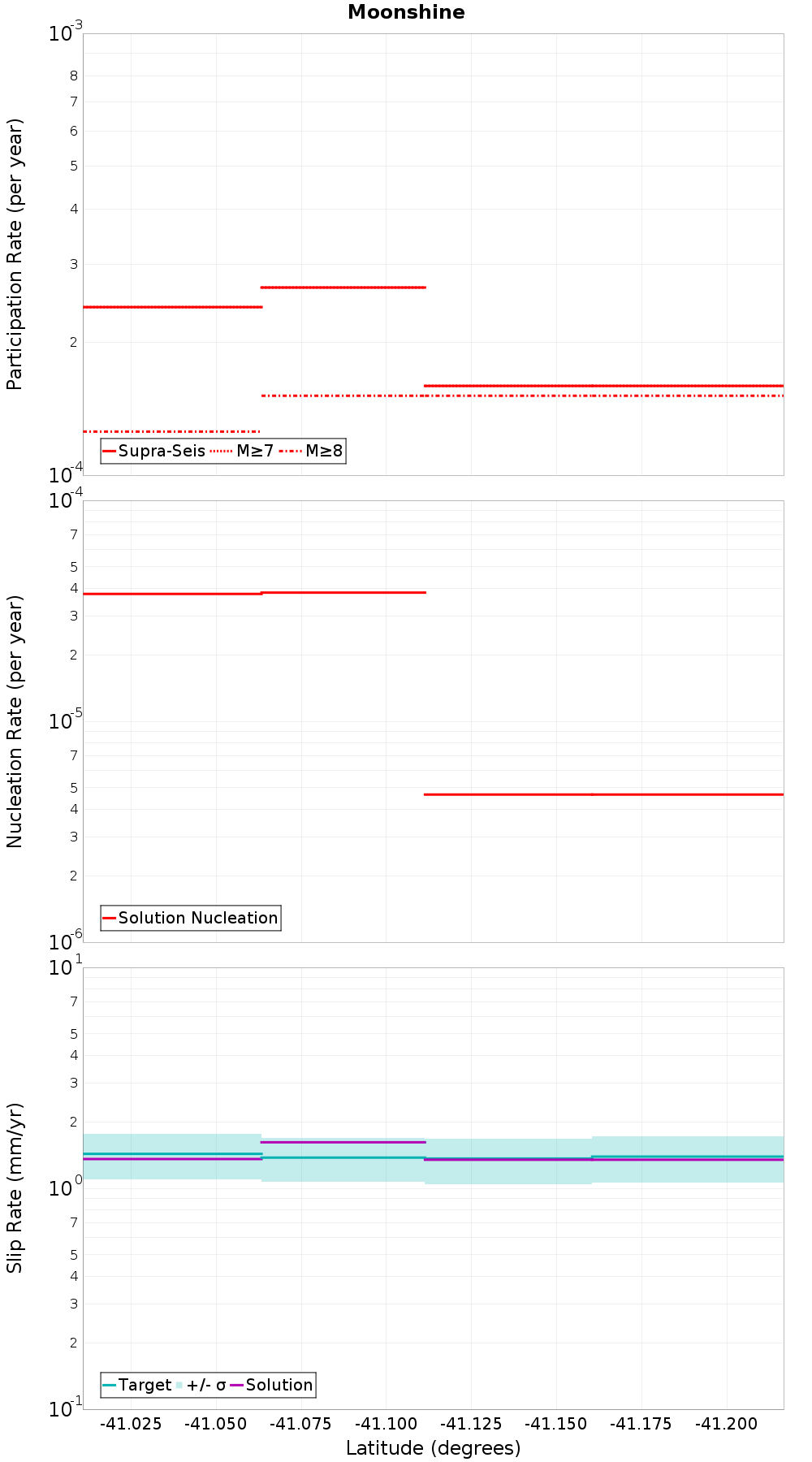

Along-Strike Values

(top)

Along-strike plot

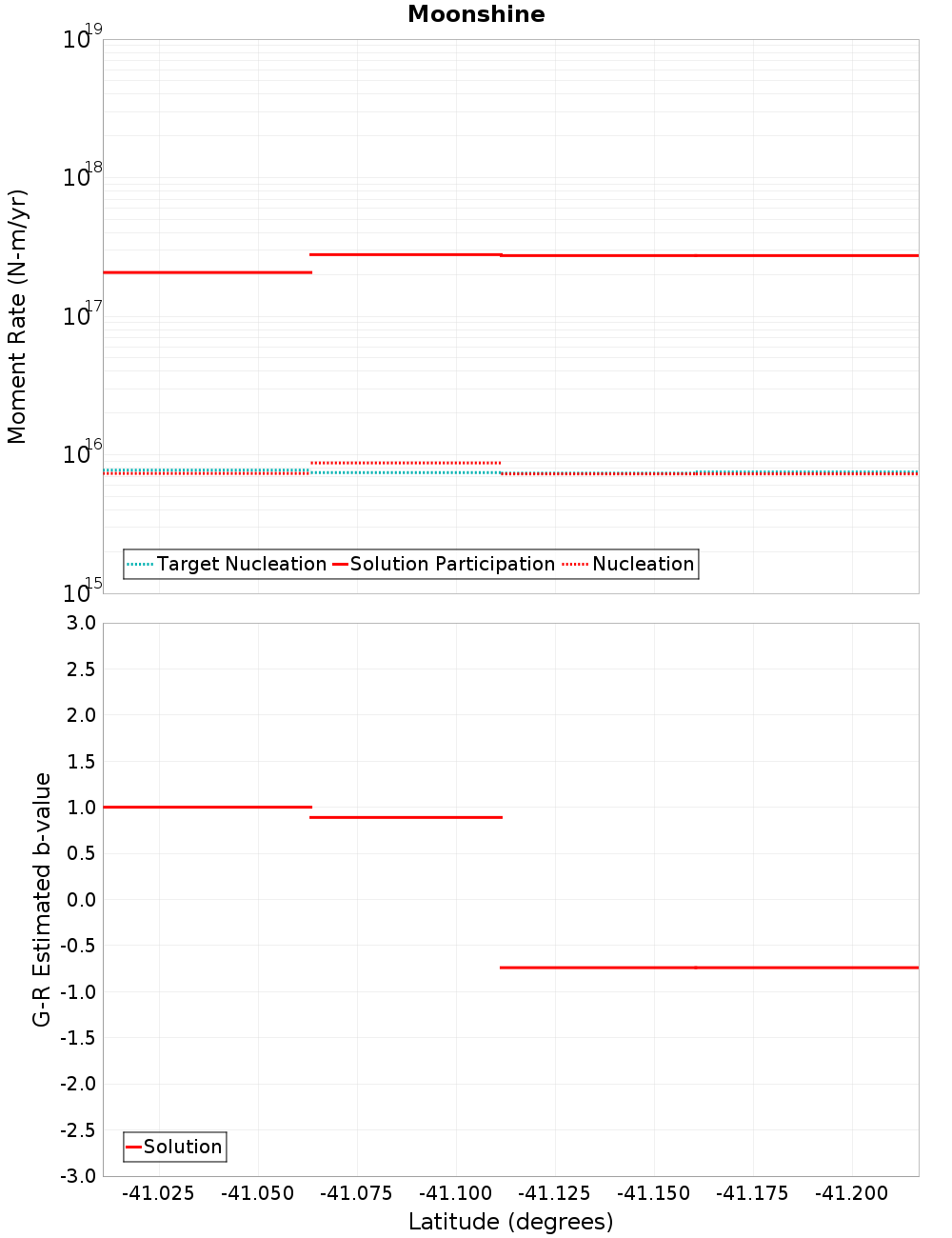

Moment-Rates and b-Values

(top)

Along-strike plot

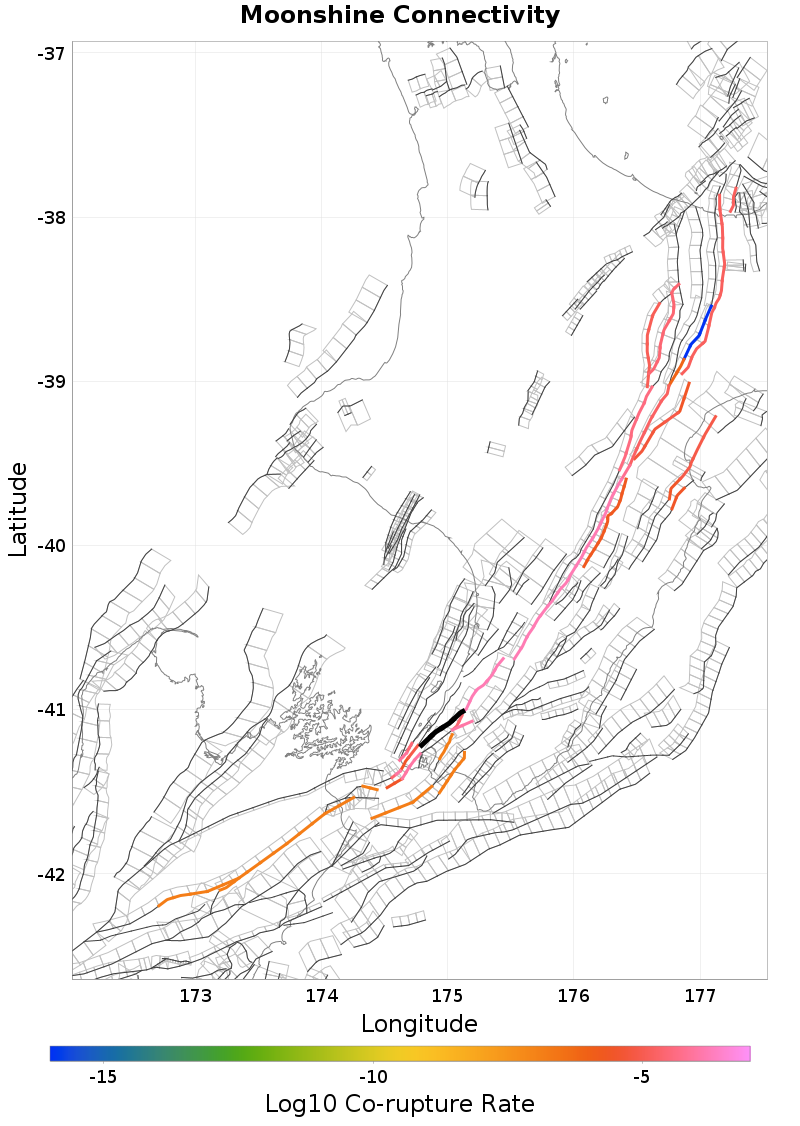

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Otaki Forks: 1, 0 km awayWellington: Tararua 2, 6.77 km away
Akatarawa, 0 km awayShepherds Gully - Mana, 9.63 km away
Whitemans Valley, 0.26 km awayPukerua - Shepherds Gully: 1, 11.23 km away
Ohariu, 2.04 km awayOtaheke South, 11.31 km away
Wellington Hutt Valley: 4, 4.31 km awayWairarapa: 2, 13.62 km away
Wellington: Tararua 1, 4.86 km awayWairarapa: 1, 13.75 km away
Wellington Hutt Valley: 5, 4.9 km awayOkupe 1, 14.37 km away
Wellington Hutt Valley: 3, 5.8 km awayWharekauhau, 15.68 km away
Pukerua - Shepherds Gully: 3, 5.97 km awayWellington Hutt Valley: 2, 16.33 km away
Aotea - Evans Bay, 6.34 km awayOtaki Forks: 2, 16.75 km away
Pukerua - Shepherds Gully: 2, 6.63 km awayFisherman 1, 19.14 km away

Otaki Forks: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count6,518
Co-rupture Rate1.5903515E-4

Akatarawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.26 km
Min Rate-Weighted Dist0.26 km
Co-rupture Count2,303
Co-rupture Rate2.5841622E-5

Whitemans Valley, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.26 km
Min Rate-Weighted Dist0.26 km
Co-rupture Count374
Co-rupture Rate1.5207759E-7

Ohariu, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.04 km
Min Rate-Weighted Dist2.45 km
Co-rupture Count1,776
Co-rupture Rate8.041456E-6

Wellington Hutt Valley: 4, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Wellington: Tararua 1, 4.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Wellington Hutt Valley: 5, 4.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.9 km
Min Rate-Weighted Dist4.9 km
Co-rupture Count578
Co-rupture Rate1.0668728E-4

Wellington Hutt Valley: 3, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.8 km
Min Rate-Weighted Dist5.8 km
Co-rupture Count1,880
Co-rupture Rate9.8298035E-5

Pukerua - Shepherds Gully: 3, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Aotea - Evans Bay, 6.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 2, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate2.97544E-5

Wellington: Tararua 2, 6.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count555
Co-rupture Rate0.0

Shepherds Gully - Mana, 9.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count221
Co-rupture Rate8.048636E-5

Otaheke South, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 13.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 1, 13.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate1.5207759E-7

Okupe 1, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 15.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate1.5207759E-7

Wellington Hutt Valley: 2, 16.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count1,124
Co-rupture Rate9.8298035E-5

Otaki Forks: 2, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count6,413
Co-rupture Rate1.5903515E-4

Fisherman 1, 19.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
