Motunau Details

PropertyValue
Rupture Count143
Ruptures Above Sect Min Mag142
Ruptures w/ Nonzero Rates3
Magnitude Range[6.92, 8.01]
Length Range[18, 240] km
Total Rate8.5094616E-5 /yr
Multi-Fault Rate8.5094616E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults18

Table Of Contents

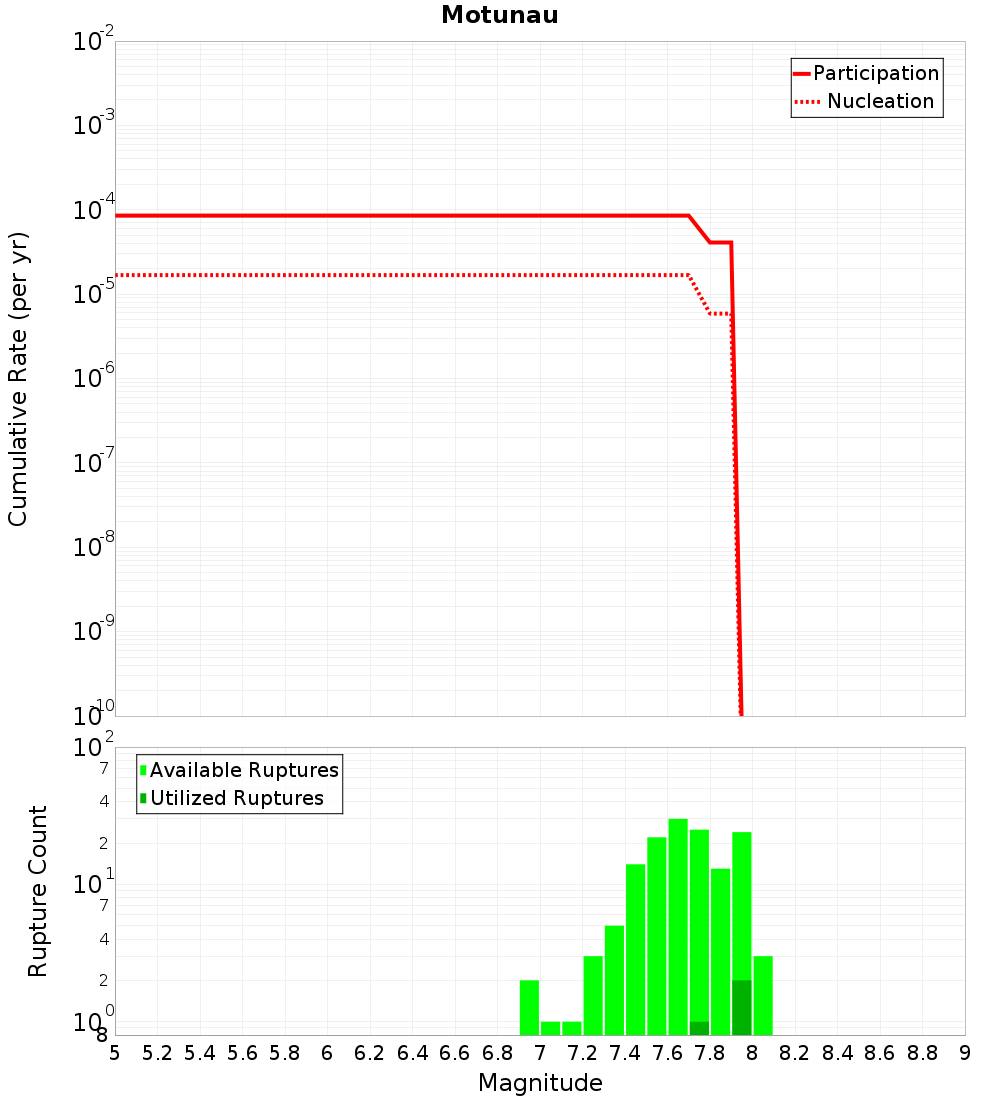

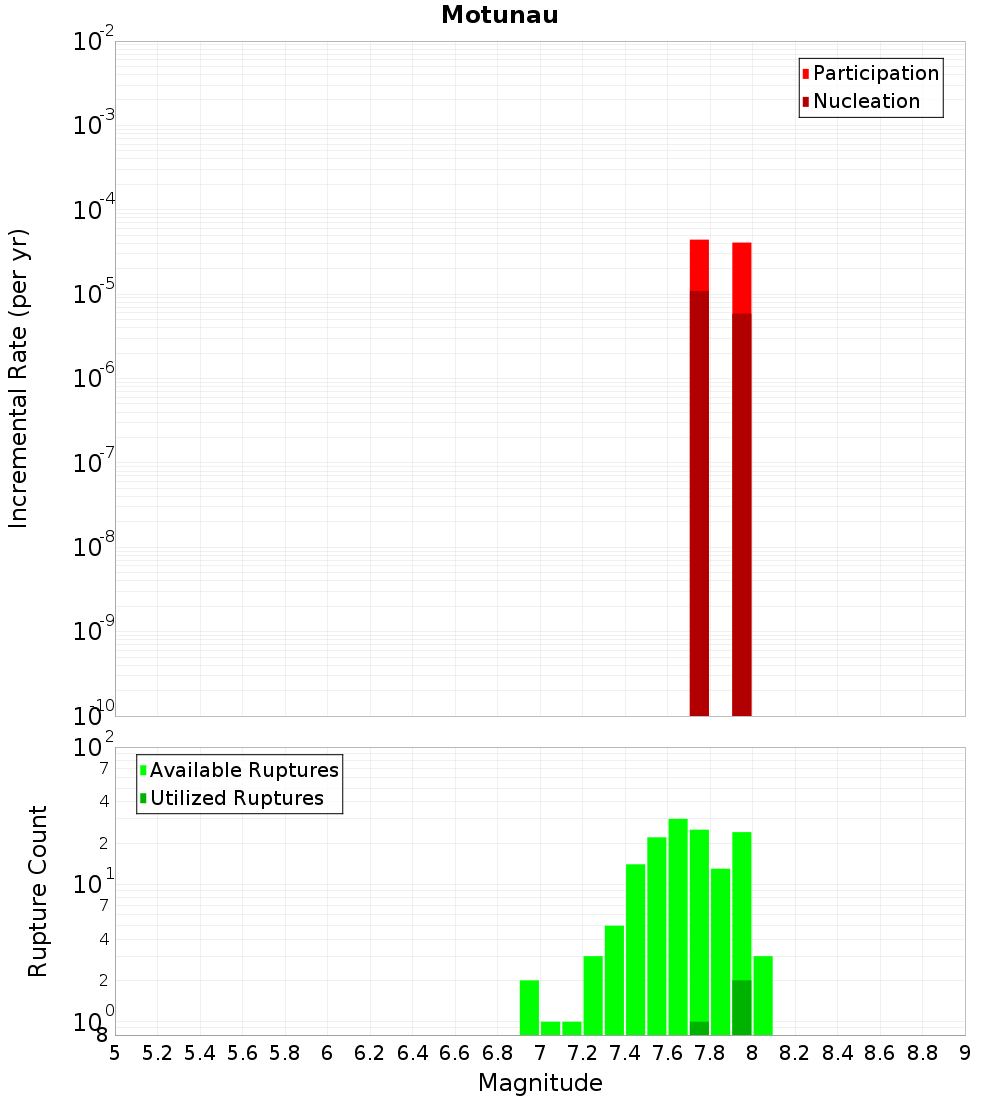

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

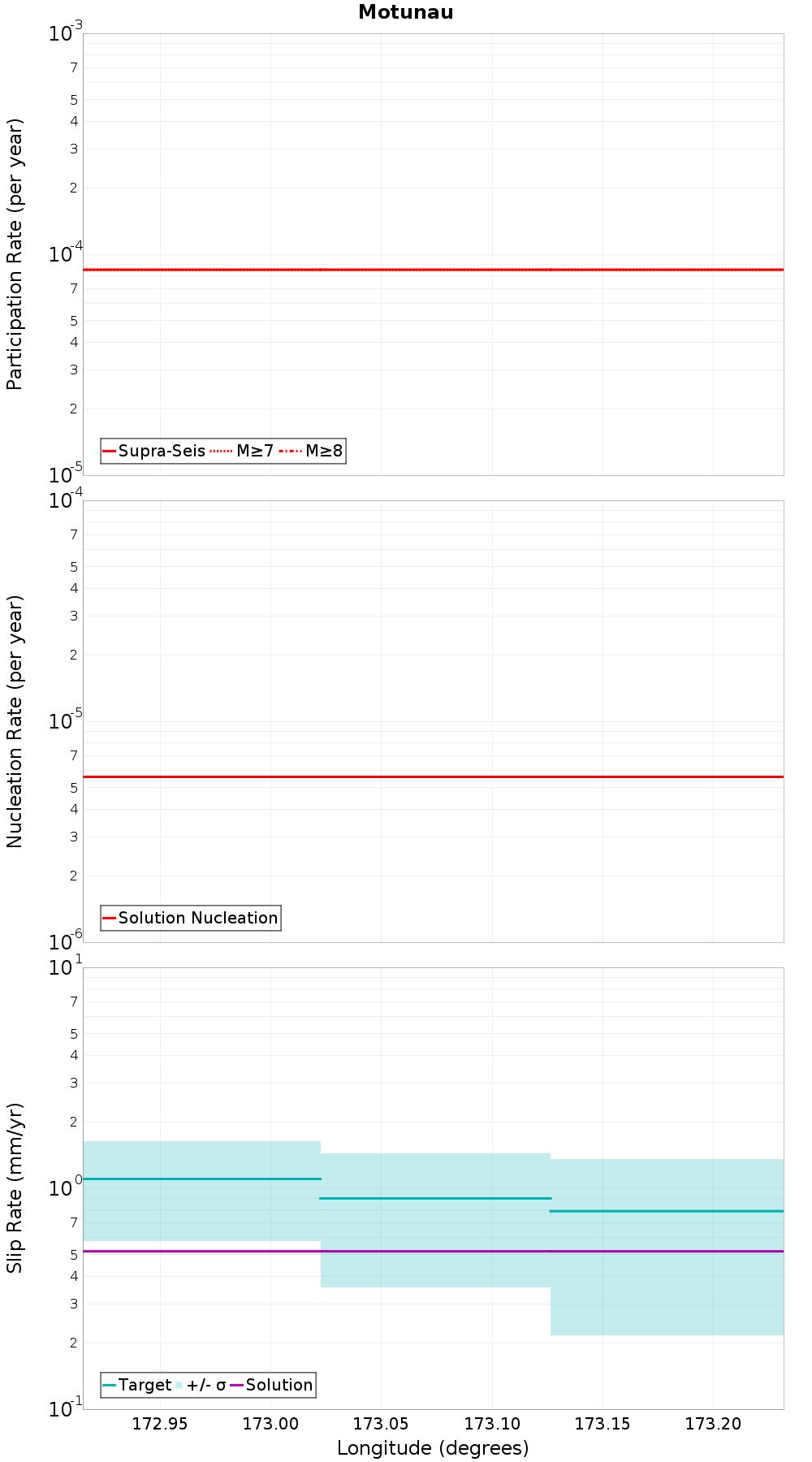

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

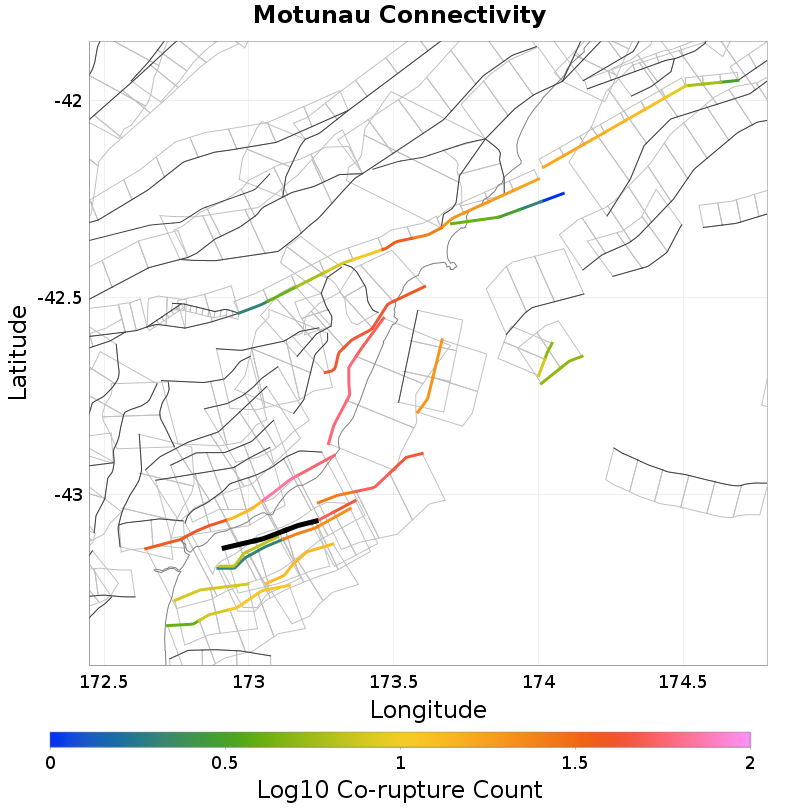

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 11, 0.21 km away
North Canterbury Shelf 2, 0.81 km away
Leithfield - NCVI - NCVII, 1.35 km away
AmberBlyth, 1.43 km away
Point Gibson, 4.61 km away
North Canterbury Shelf 4, 5.91 km away
OmihiLwrHuru, 8.07 km away
Waikuku, 9.01 km away
Pegasus Bay, 11.58 km away
Boby Stream, 13.49 km away
Kaiwara South, 15.32 km away
Alexander, 19.26 km away
Doctors, 19.84 km away

North Canterbury Shelf 11, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.21 km
Min Rate-Weighted Dist0.21 km
Co-rupture Count51
Co-rupture Rate4.4246994E-5

North Canterbury Shelf 2, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Leithfield - NCVI - NCVII, 1.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.77 km
Co-rupture Count25
Co-rupture Rate0.0

AmberBlyth, 1.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.43 km
Min Rate-Weighted Dist3.69 km
Co-rupture Count101
Co-rupture Rate4.0847626E-5

Point Gibson, 4.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.61 km
Co-rupture Count52
Co-rupture Rate4.4246994E-5

North Canterbury Shelf 4, 5.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

OmihiLwrHuru, 8.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Pegasus Bay, 11.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Boby Stream, 13.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 15.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 19.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 19.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
