North Canterbury Shelf 11 Details

PropertyValue
Rupture Count99
Ruptures Above Sect Min Mag99
Ruptures w/ Nonzero Rates1
Magnitude Range[6.82, 8.00]
Length Range[14, 236] km
Total Rate4.4246994E-5 /yr
Multi-Fault Rate4.4246994E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults18

Table Of Contents

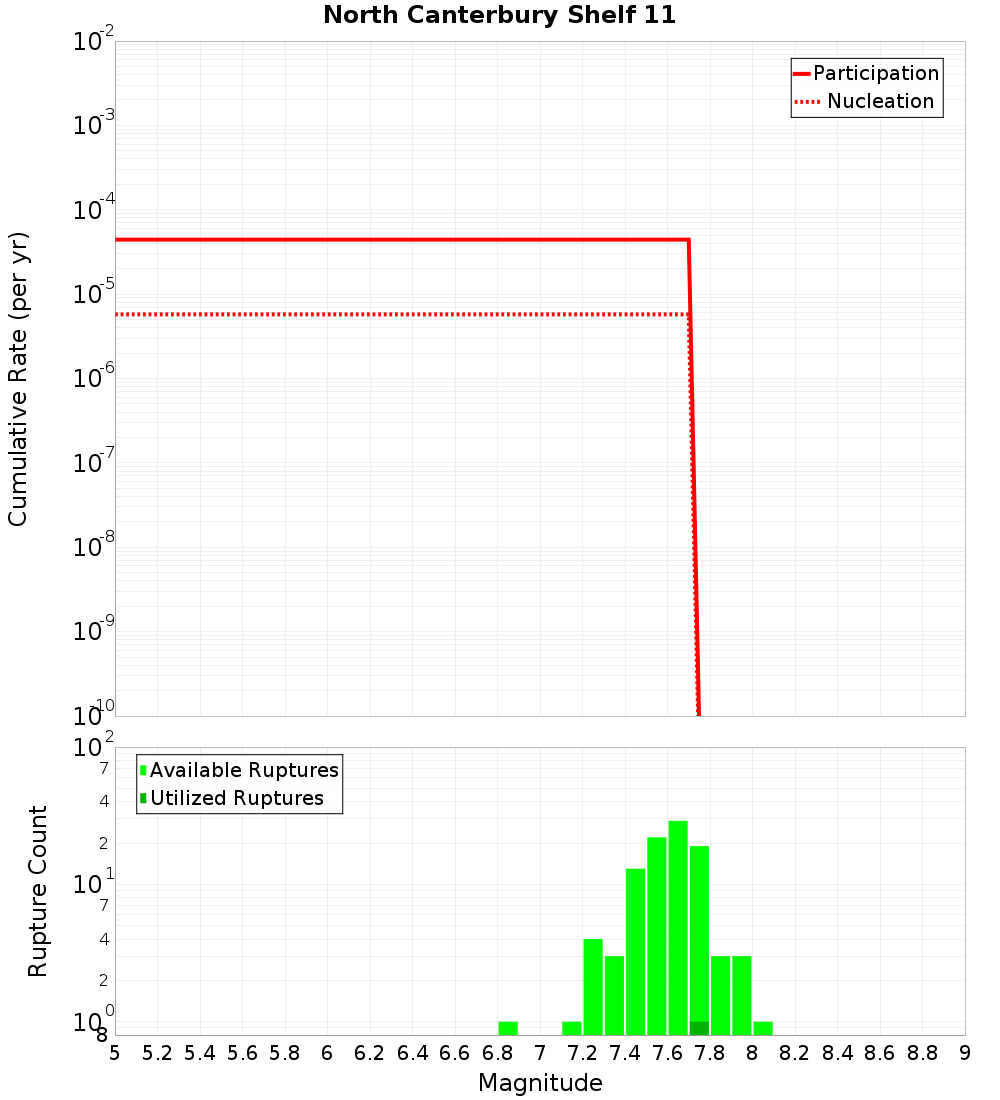

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

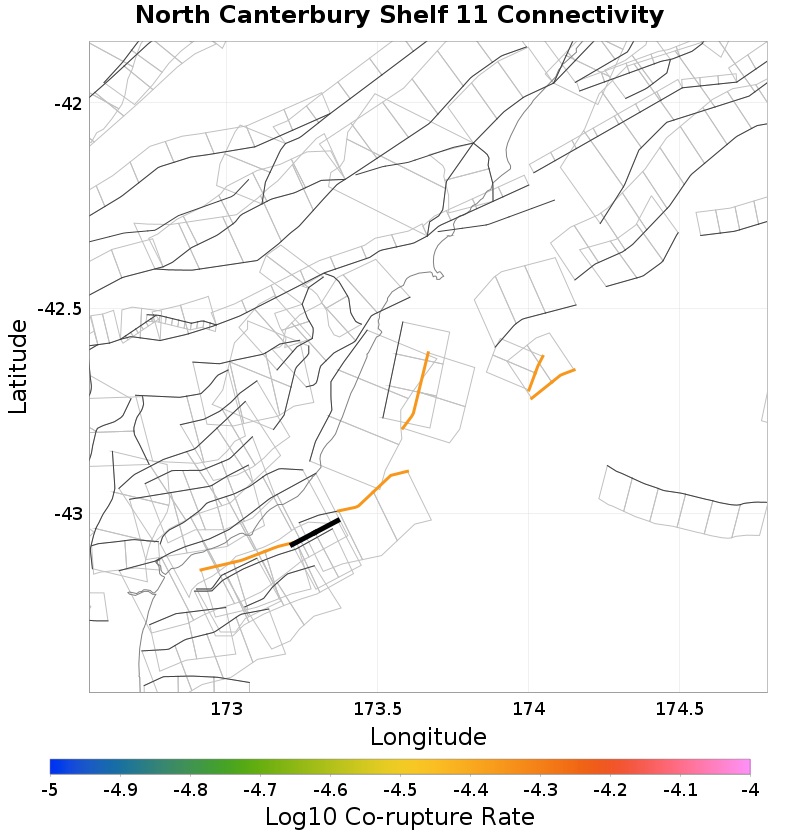

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Motunau, 0.21 km away
Leithfield - NCVI - NCVII, 1.09 km away
Point Gibson, 2.04 km away
North Canterbury Shelf 4, 5.8 km away
AmberBlyth, 6.61 km away
North Canterbury Shelf 2, 9.89 km away
OmihiLwrHuru, 11.31 km away
Hawkswood, 15.2 km away
Pegasus Bay, 17.11 km away
Kaiwara South, 18.62 km away

Motunau, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.21 km
Min Rate-Weighted Dist0.21 km
Co-rupture Count51
Co-rupture Rate4.4246994E-5

Leithfield - NCVI - NCVII, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.27 km
Co-rupture Count33
Co-rupture Rate0.0

Point Gibson, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.04 km
Min Rate-Weighted Dist2.13 km
Co-rupture Count61
Co-rupture Rate4.4246994E-5

North Canterbury Shelf 4, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.8 km
Co-rupture Count17
Co-rupture Rate0.0

AmberBlyth, 6.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate0.0

North Canterbury Shelf 2, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

OmihiLwrHuru, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Hawkswood, 15.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Pegasus Bay, 17.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0

Kaiwara South, 18.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
