Otaki Forks: 2 Details

PropertyValue
Rupture Count10,923
Ruptures Above Sect Min Mag10,922
Ruptures w/ Nonzero Rates37
Magnitude Range[6.86, 8.36]
Length Range[19, 544] km
Total Rate7.0012547E-4 /yr
Multi-Fault Rate7.0012547E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults91

Table Of Contents

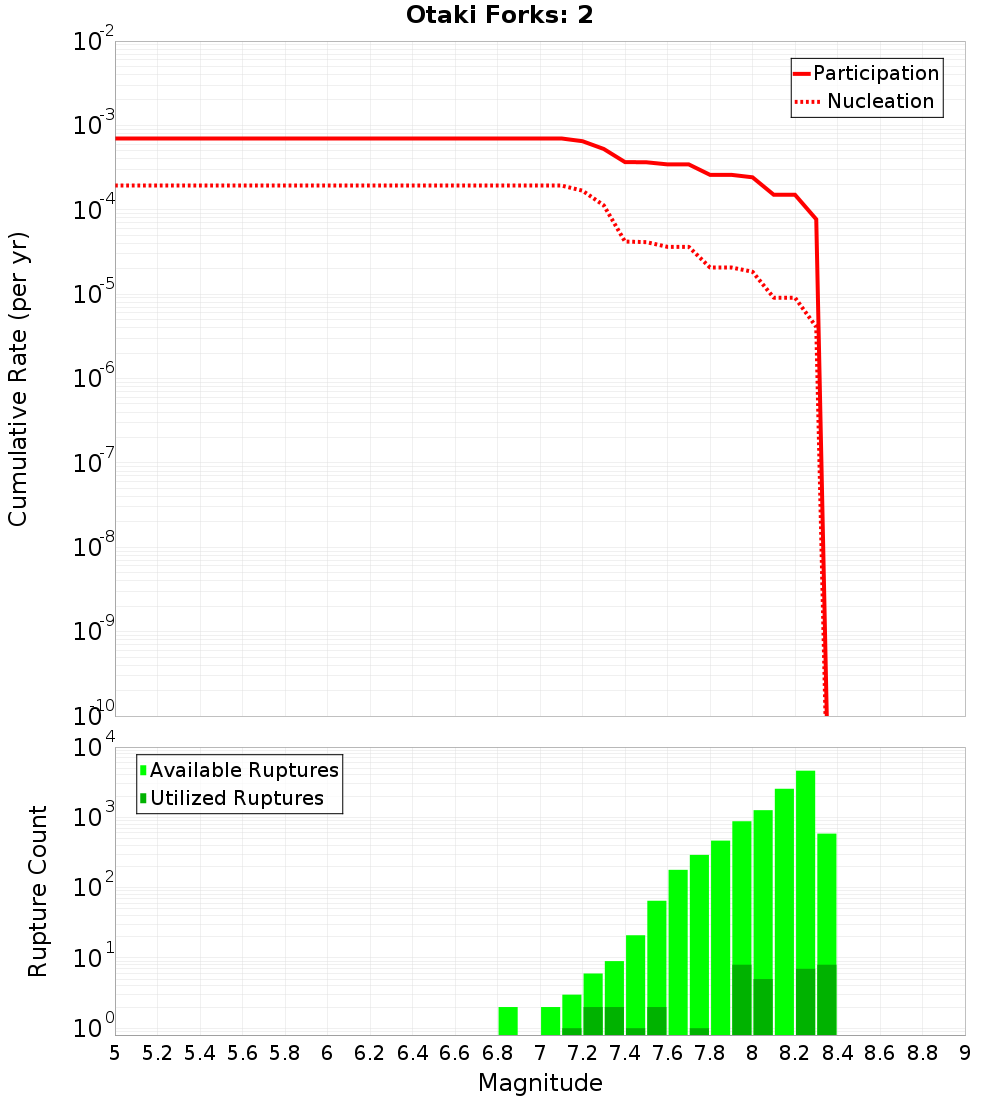

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

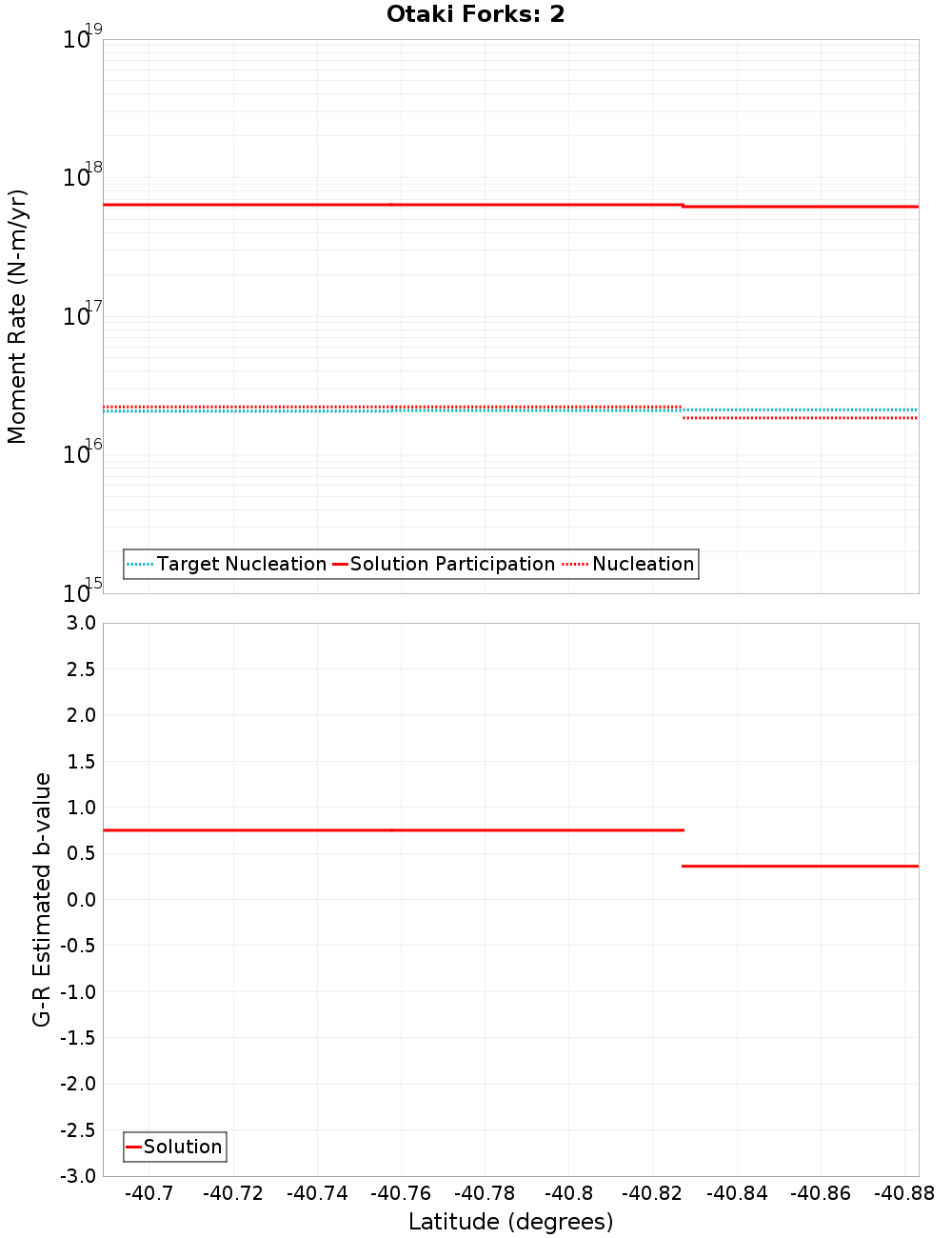

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

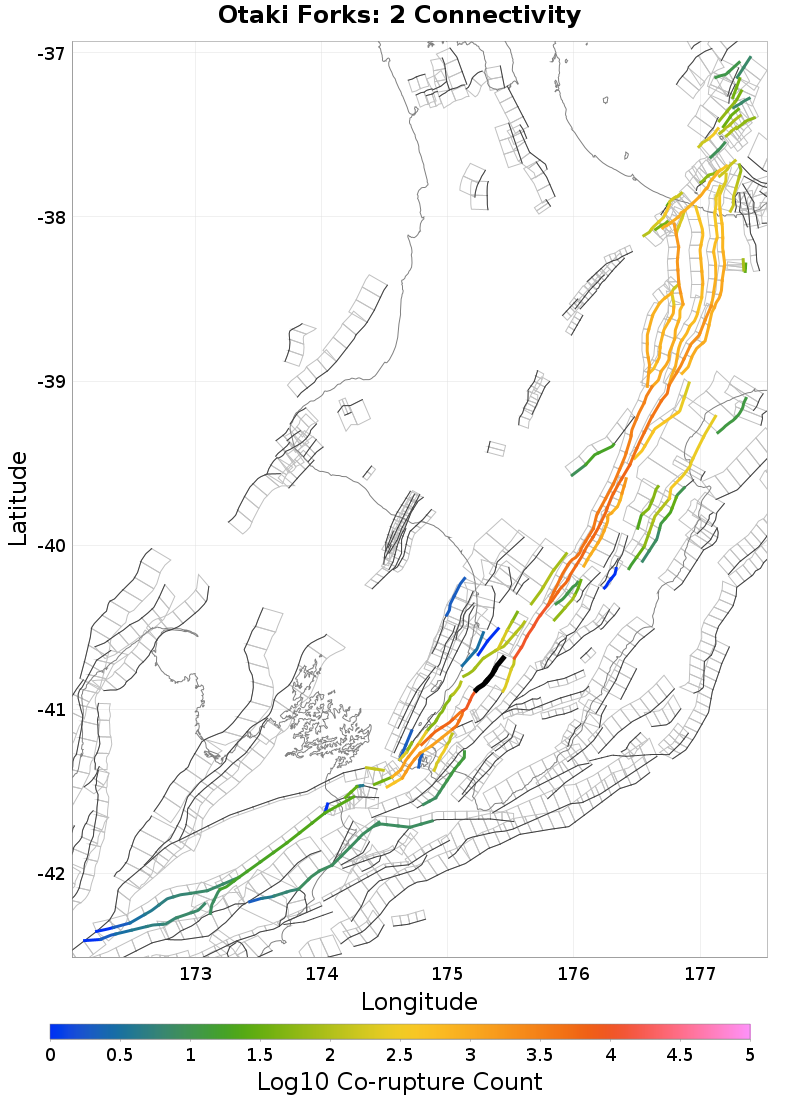

MapMap

Nearby Sections

(top)

Fault Section
Otaki Forks: 1, 0 km away
Wellington: Tararua 3, 0.25 km away
Tokomaru, 3.93 km away
Wellington: Pahiatua, 4.95 km away
Wellington: Tararua 2, 6.29 km away
Northern Ohariu, 7.03 km away
Ohariu, 11.39 km away
Wellington: Tararua 1, 13.04 km away
Levin Anticline, 14.48 km away
Wairarapa: 3, 16.73 km away
Akatarawa, 16.75 km away
Moonshine, 16.75 km away
Poroutawhao, 17.47 km away
Wairarapa: 2, 17.51 km away

Otaki Forks: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count9,245
Co-rupture Rate3.463755E-4

Wellington: Tararua 3, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.25 km
Co-rupture Count207
Co-rupture Rate0.0

Tokomaru, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.93 km
Min Rate-Weighted Dist3.93 km
Co-rupture Count187
Co-rupture Rate8.543705E-5

Wellington: Pahiatua, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.95 km
Min Rate-Weighted Dist4.95 km
Co-rupture Count10,585
Co-rupture Rate6.1468844E-4

Wellington: Tararua 2, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 7.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate0.0

Ohariu, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count1,727
Co-rupture Rate9.3478506E-5

Wellington: Tararua 1, 13.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairarapa: 3, 16.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatarawa, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count4,297
Co-rupture Rate1.2616307E-4

Moonshine, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count6,413
Co-rupture Rate1.5903515E-4

Poroutawhao, 17.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wairarapa: 2, 17.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
