Solander Details
| Property | Value |
|---|---|
| Rupture Count | 18 |
| Ruptures Above Sect Min Mag | 16 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [7.07, 7.77] |
| Length Range | [23, 119] km |
| Total Rate | 4.9580067E-5 /yr |
| Multi-Fault Rate | 1.5676073E-5 /yr (31.62%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

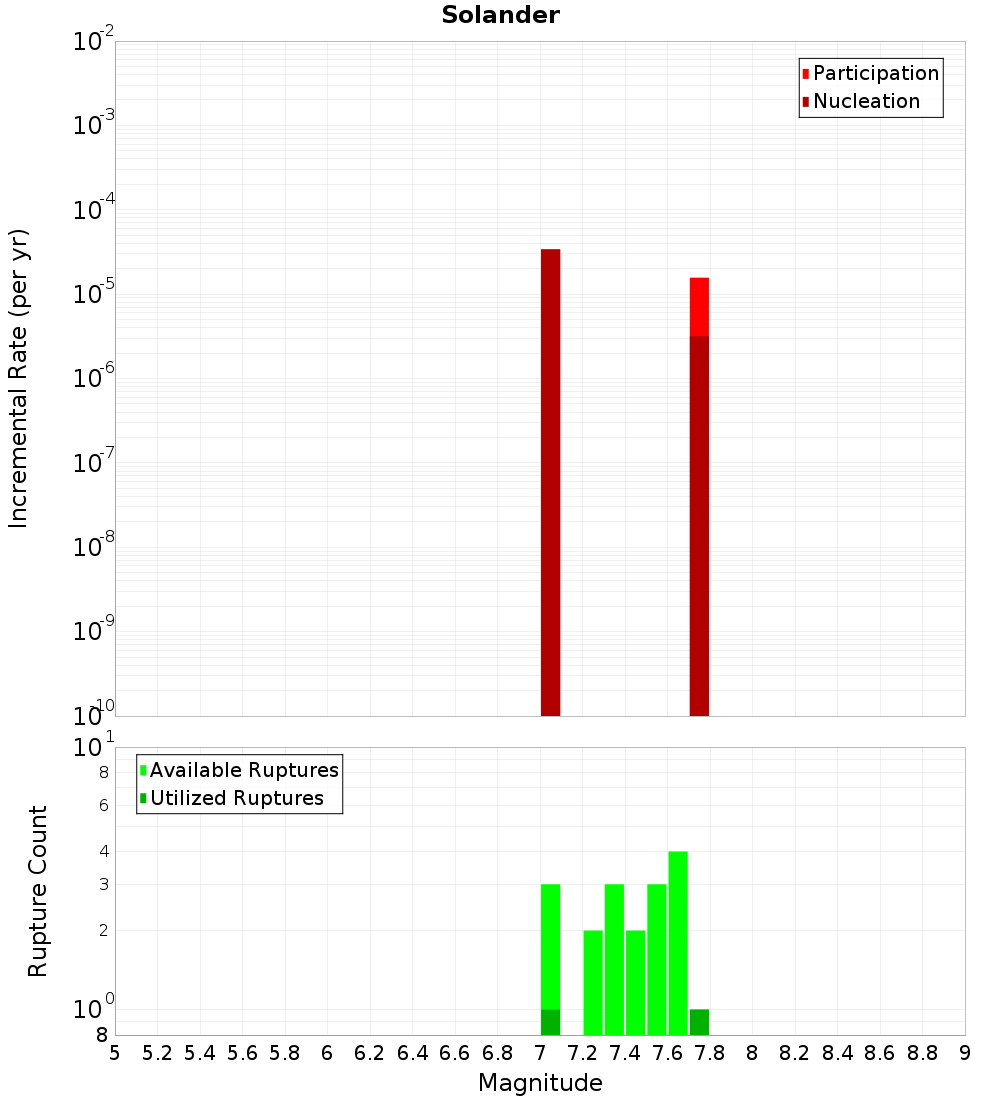

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

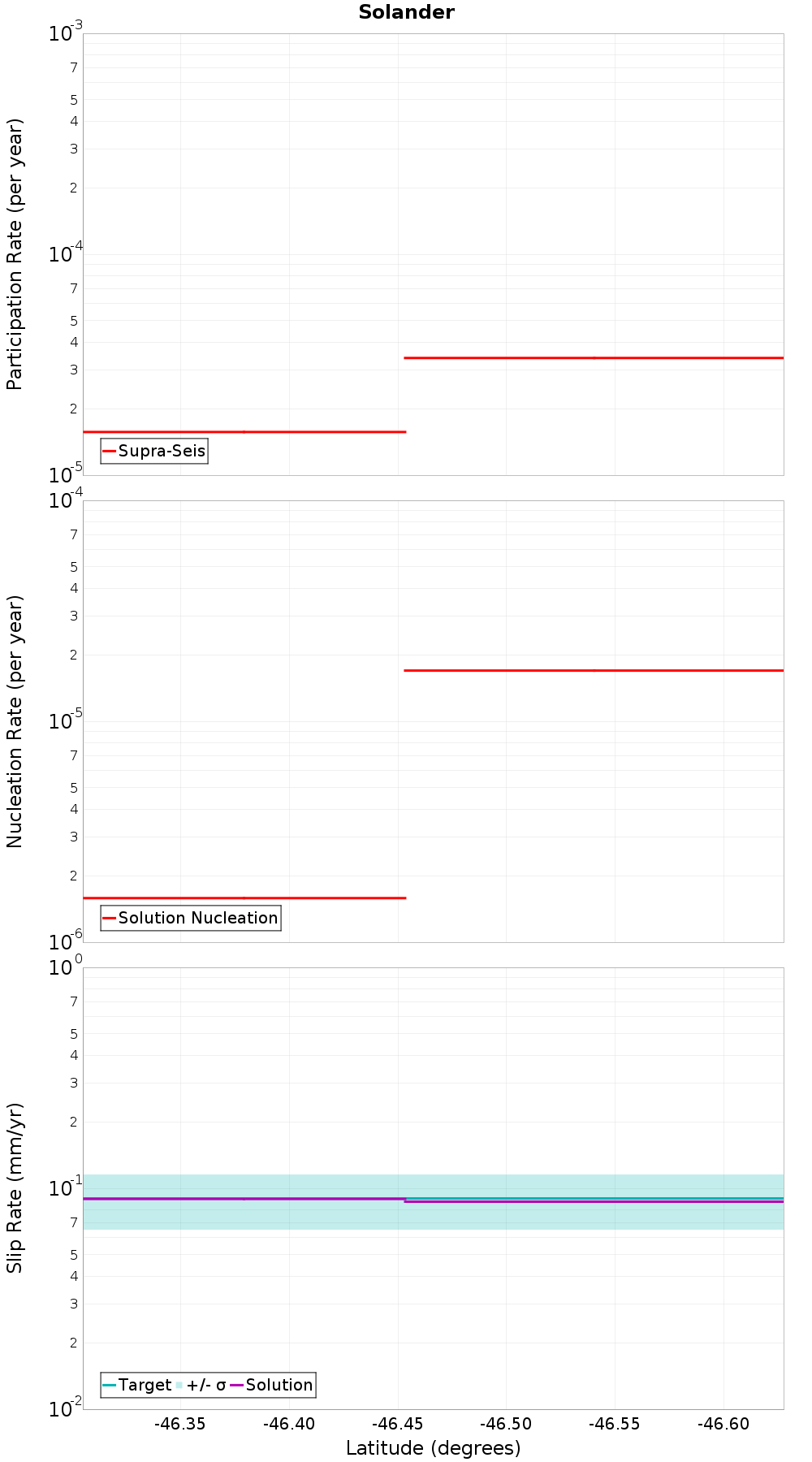

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hump Ridge, 5.29 km away |
Hump Ridge, 5.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.29 km |
| Min Rate-Weighted Dist | 5.29 km |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.5676073E-5 |
