Tutaki Details

Property	Value
Rupture Count	661
Ruptures Above Sect Min Mag	659
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.14, 8.57]
Length Range	[24, 886] km
Total Rate	1.2299555E-4 /yr
Multi-Fault Rate	1.2299555E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	20

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

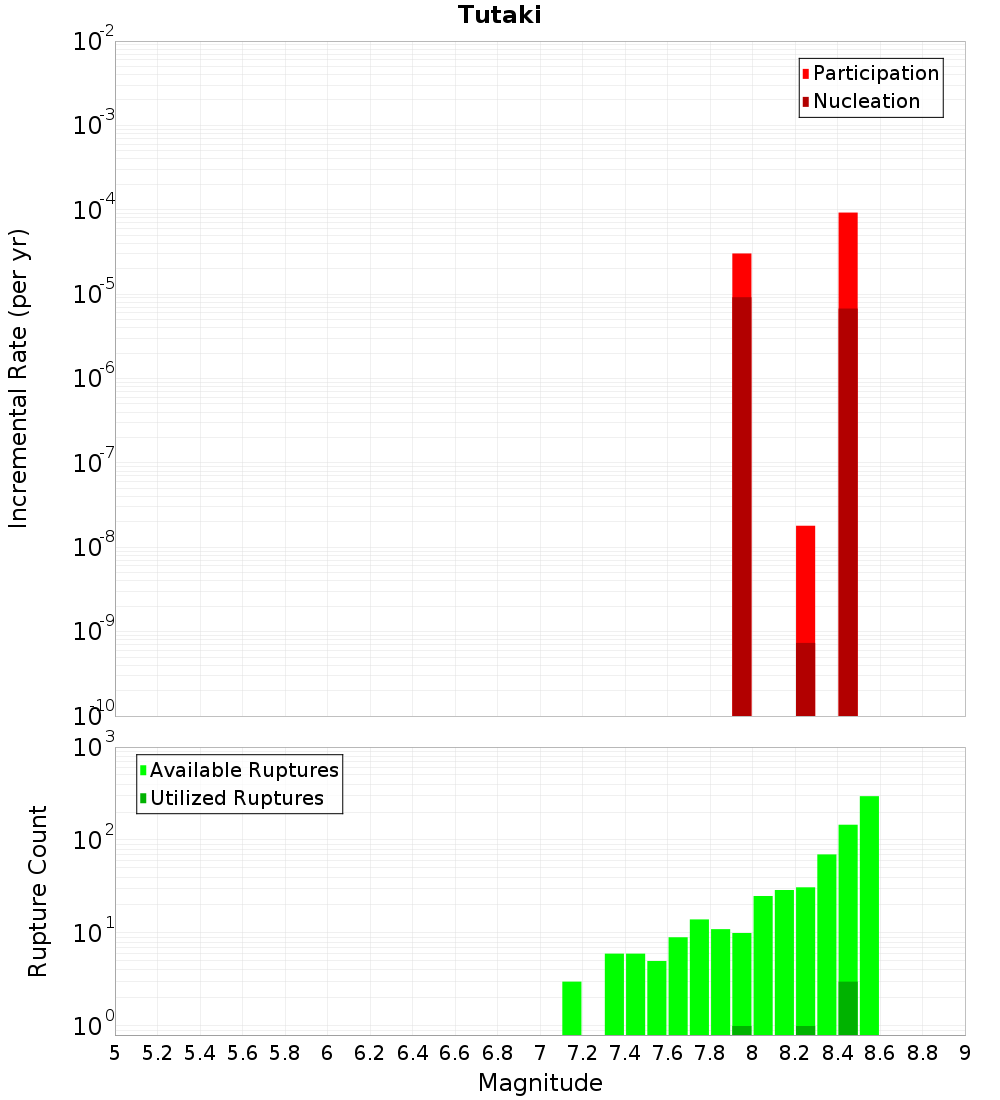

Magnitude-Frequency Distribution

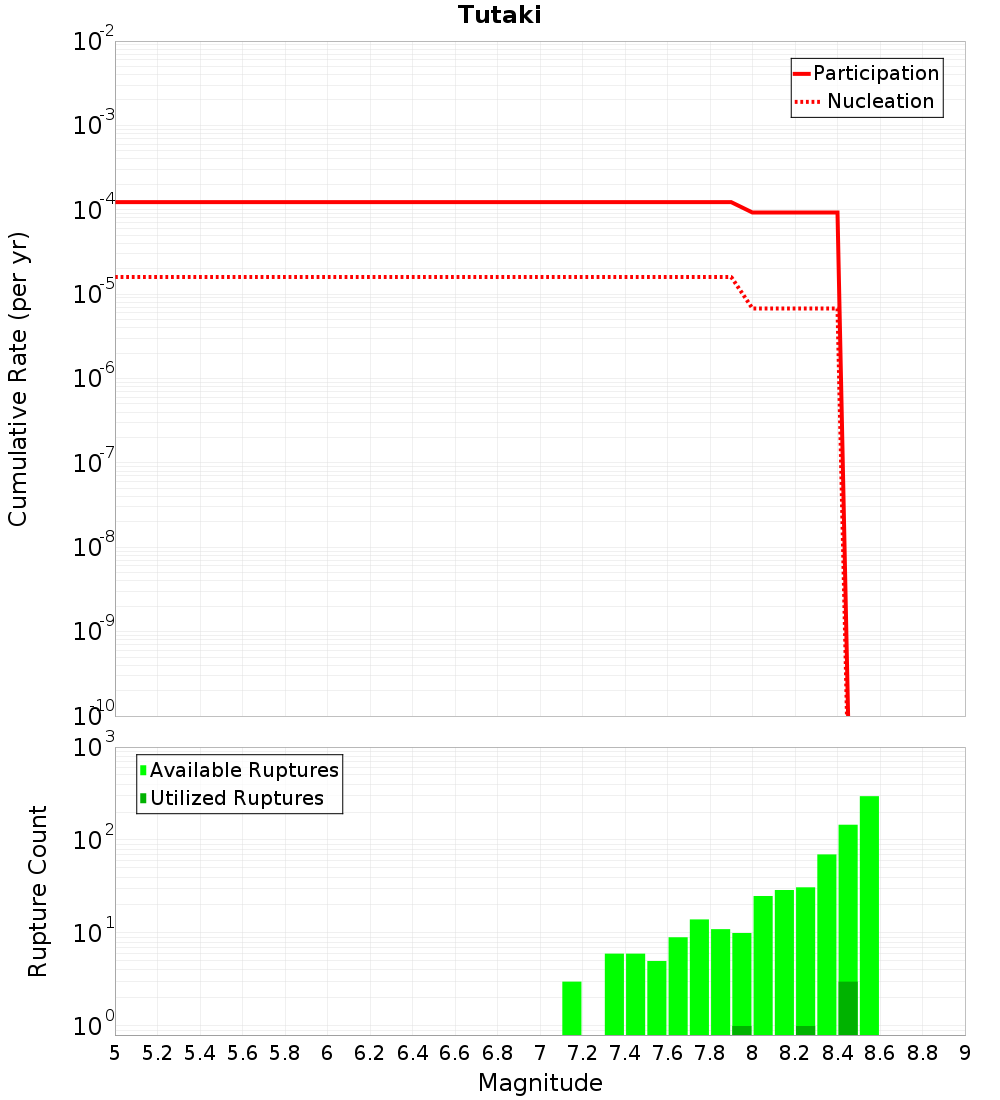

Incremental	Cumulative

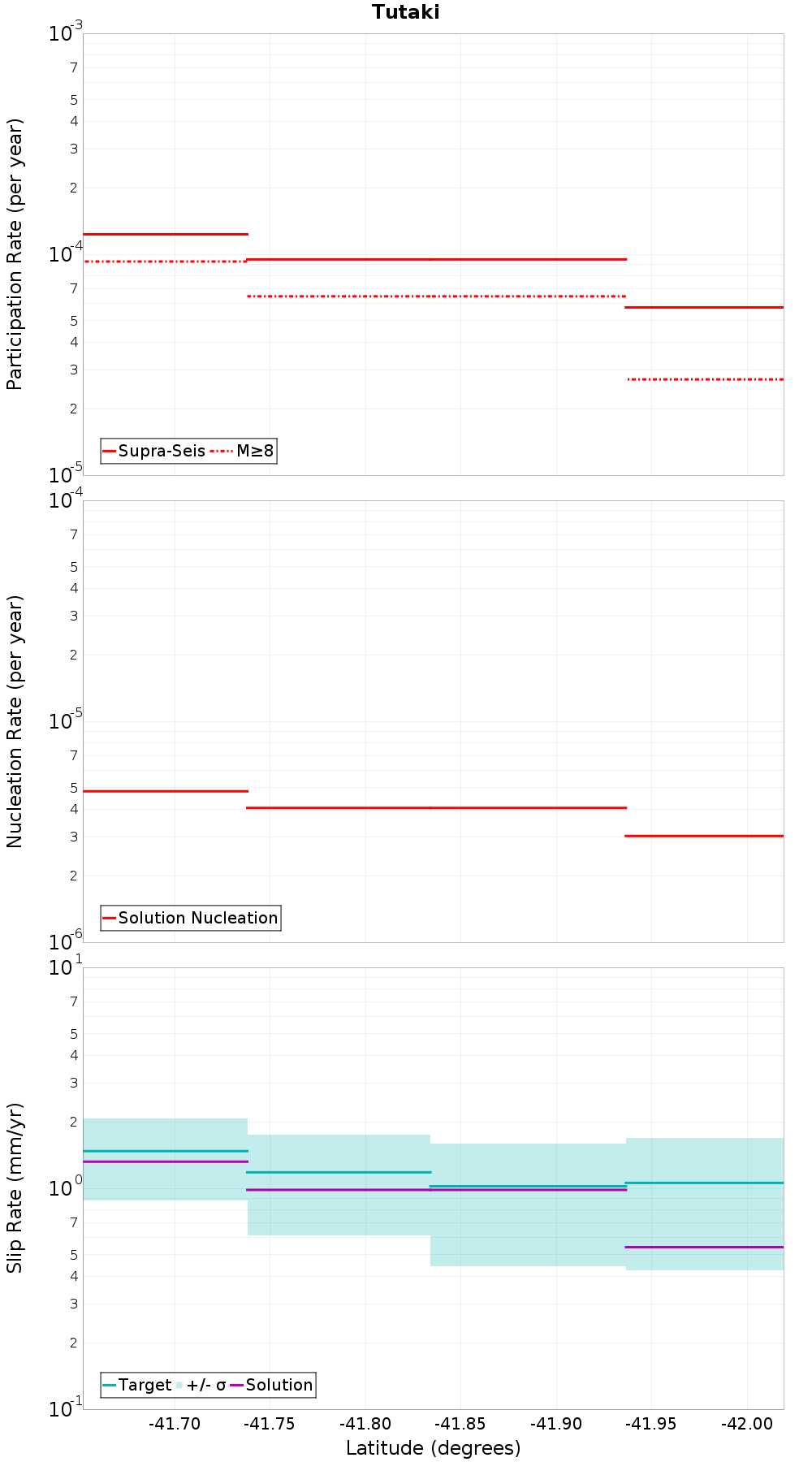

Along-Strike Values

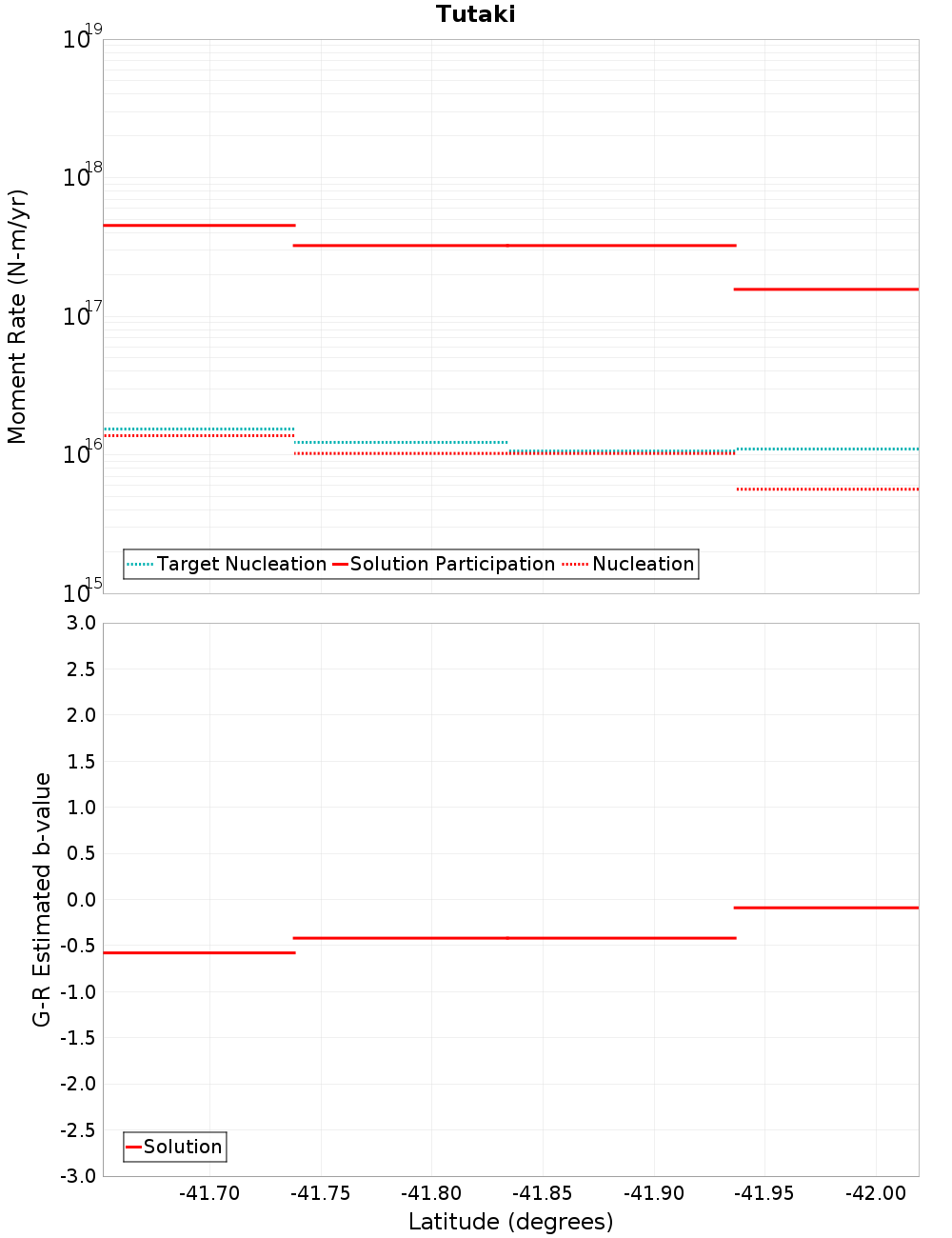

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0.48 km away
Flaxmore - Waimea - Tahunanui, 2.98 km away
Ruby Bay - Moutere, 3.43 km away
Wairau, 7.97 km away
Awatere: Southwest, 10.72 km away
Whangamoa, 15.19 km away
White Creek, 19.08 km away

Alpine: Springs Junction to Tophouse, 0.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.48 km
Min Rate-Weighted Dist	6.19 km
Co-rupture Count	642
Co-rupture Rate	1.2299555E-4

Flaxmore - Waimea - Tahunanui, 2.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruby Bay - Moutere, 3.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.43 km
Min Rate-Weighted Dist	3.43 km
Co-rupture Count	105
Co-rupture Rate	2.8206843E-5

Wairau, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	3.034122E-5

Awatere: Southwest, 10.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	10.72 km
Co-rupture Count	24
Co-rupture Rate	0.0

Whangamoa, 15.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Creek, 19.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
