Uruti Basin Details
| Property | Value |
|---|---|
| Rupture Count | 17,586 |
| Ruptures Above Sect Min Mag | 17,506 |
| Ruptures w/ Nonzero Rates | 34 |
| Magnitude Range | [6.14, 8.38] |
| Length Range | [8, 691] km |
| Total Rate | 6.0430565E-4 /yr |
| Multi-Fault Rate | 6.0430565E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 55 |
Table Of Contents

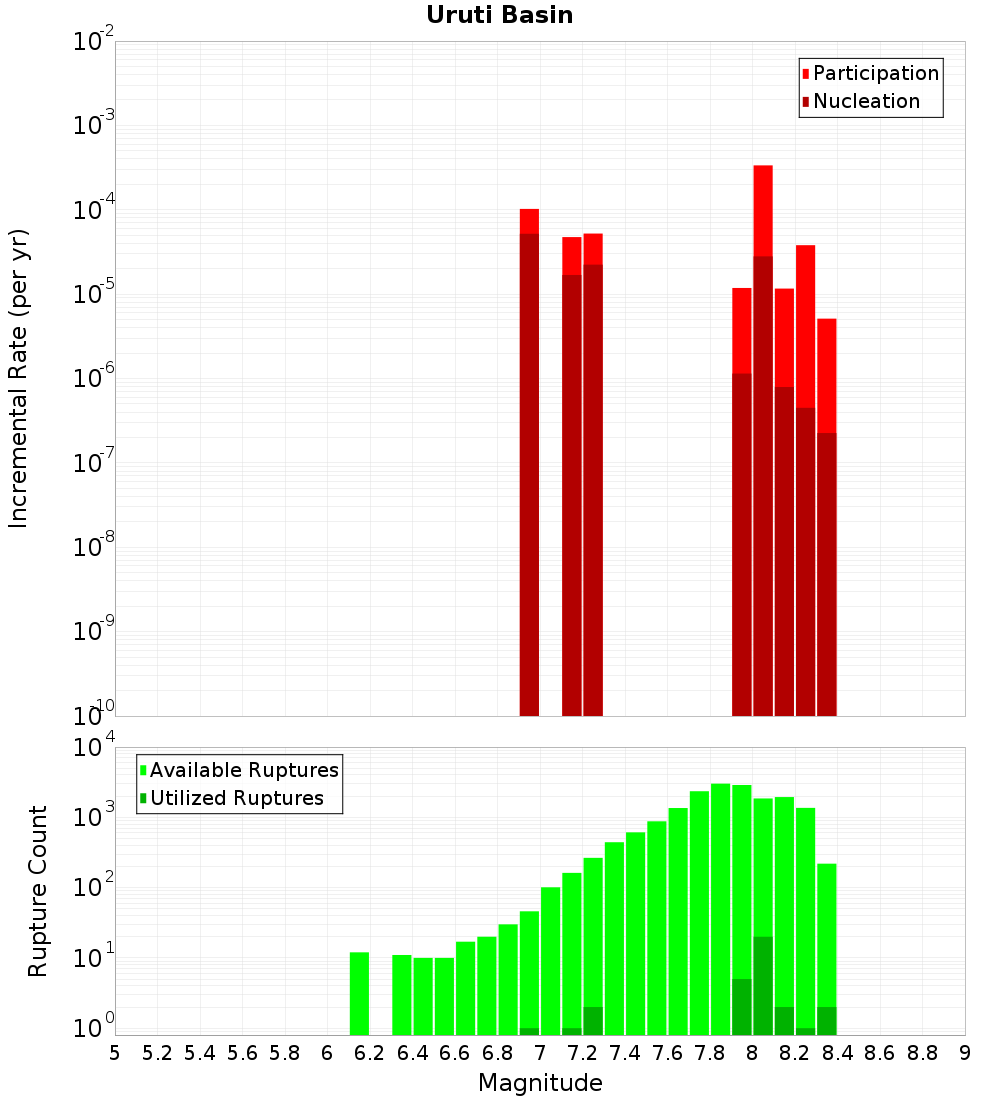

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

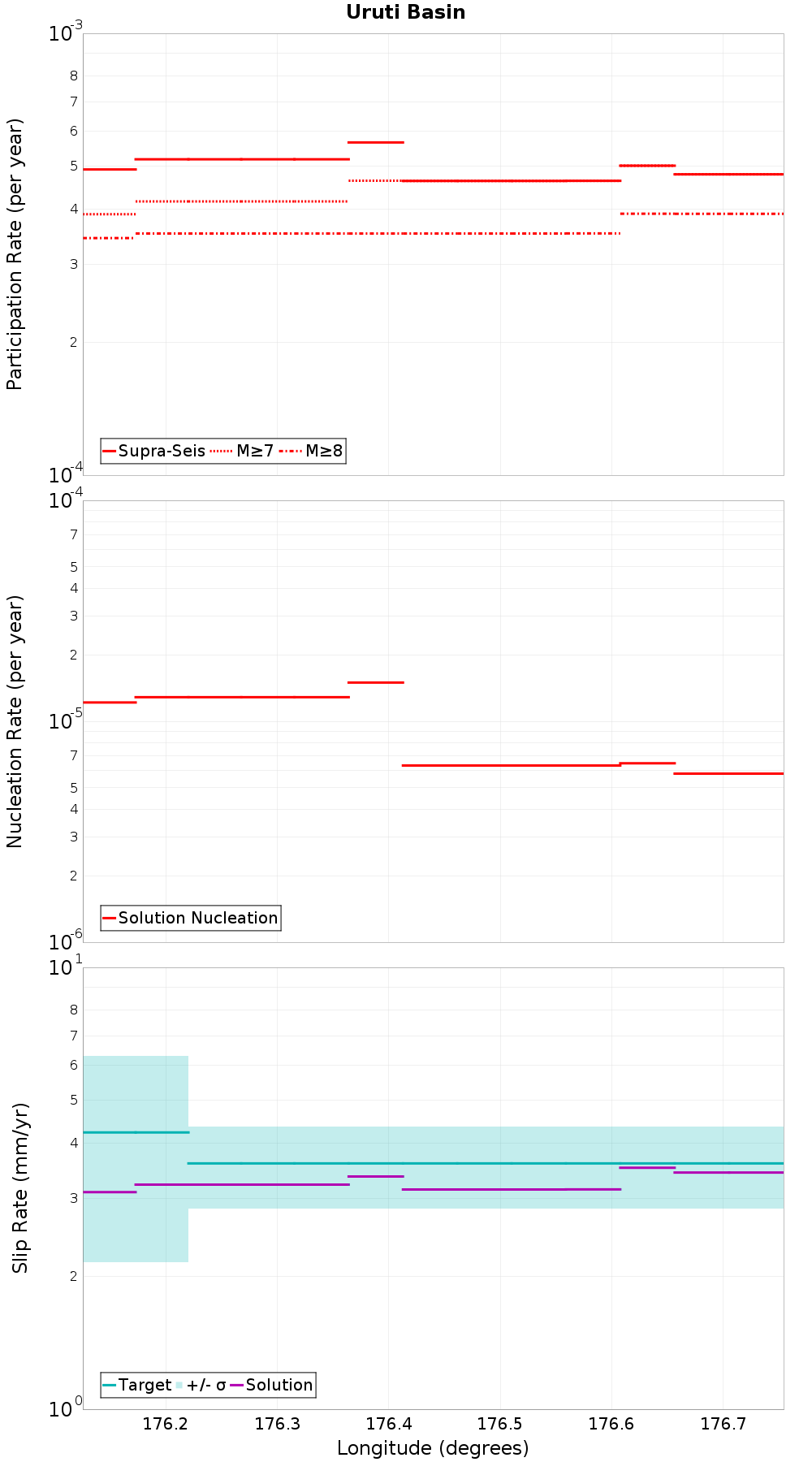

Along-Strike Values
Moment-Rates and b-Values

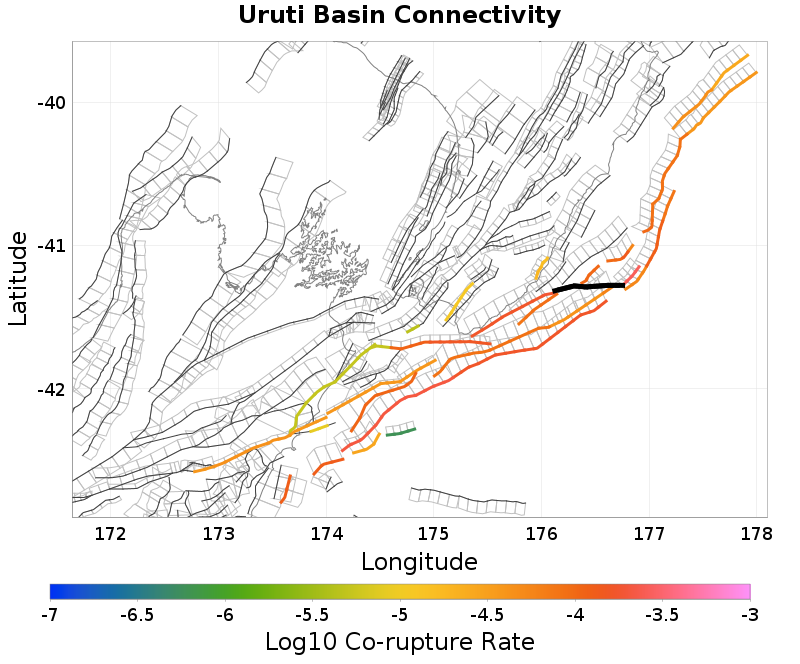

Connectivity
 |  |
|---|
Nearby Sections
Uruti Ridge 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 7,839 |
| Co-rupture Rate | 2.619317E-4 |
Uruti East - PorWest 1, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.19 km |
| Min Rate-Weighted Dist | 0.19 km |
| Co-rupture Count | 10,119 |
| Co-rupture Rate | 1.4064116E-4 |
Opouawe - Uruti, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.29 km |
| Co-rupture Count | 5,973 |
| Co-rupture Rate | 1.01039375E-4 |
Uruti Basin 2, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.4 km |
| Min Rate-Weighted Dist | 0.4 km |
| Co-rupture Count | 477 |
| Co-rupture Rate | 1.0265877E-4 |
Honeycomb, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.51 km |
| Min Rate-Weighted Dist | 0.51 km |
| Co-rupture Count | 2,240 |
| Co-rupture Rate | 9.179232E-5 |
Palliser - Kaiwhata, 1.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.36 km |
| Min Rate-Weighted Dist | 1.36 km |
| Co-rupture Count | 9,797 |
| Co-rupture Rate | 1.827211E-4 |
Pahaua, 1.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.79 km |
| Min Rate-Weighted Dist | 1.79 km |
| Co-rupture Count | 2,093 |
| Co-rupture Rate | 1.6451866E-4 |
Whareama Bank, 3.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Riversdale, 8.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.5 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Uruti Point, 17.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 458 |
| Co-rupture Rate | 1.8819197E-5 |
Uruti North, 18.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,064 |
| Co-rupture Rate | 1.3768904E-4 |
