Uruti East - PorWest 1 Details
| Property | Value |
|---|---|
| Rupture Count | 20,864 |
| Ruptures Above Sect Min Mag | 20,822 |
| Ruptures w/ Nonzero Rates | 20 |
| Magnitude Range | [6.49, 8.64] |
| Length Range | [12, 1,156] km |
| Total Rate | 1.969336E-4 /yr |
| Multi-Fault Rate | 1.969336E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 72 |
Table Of Contents
Magnitude-Frequency Distribution

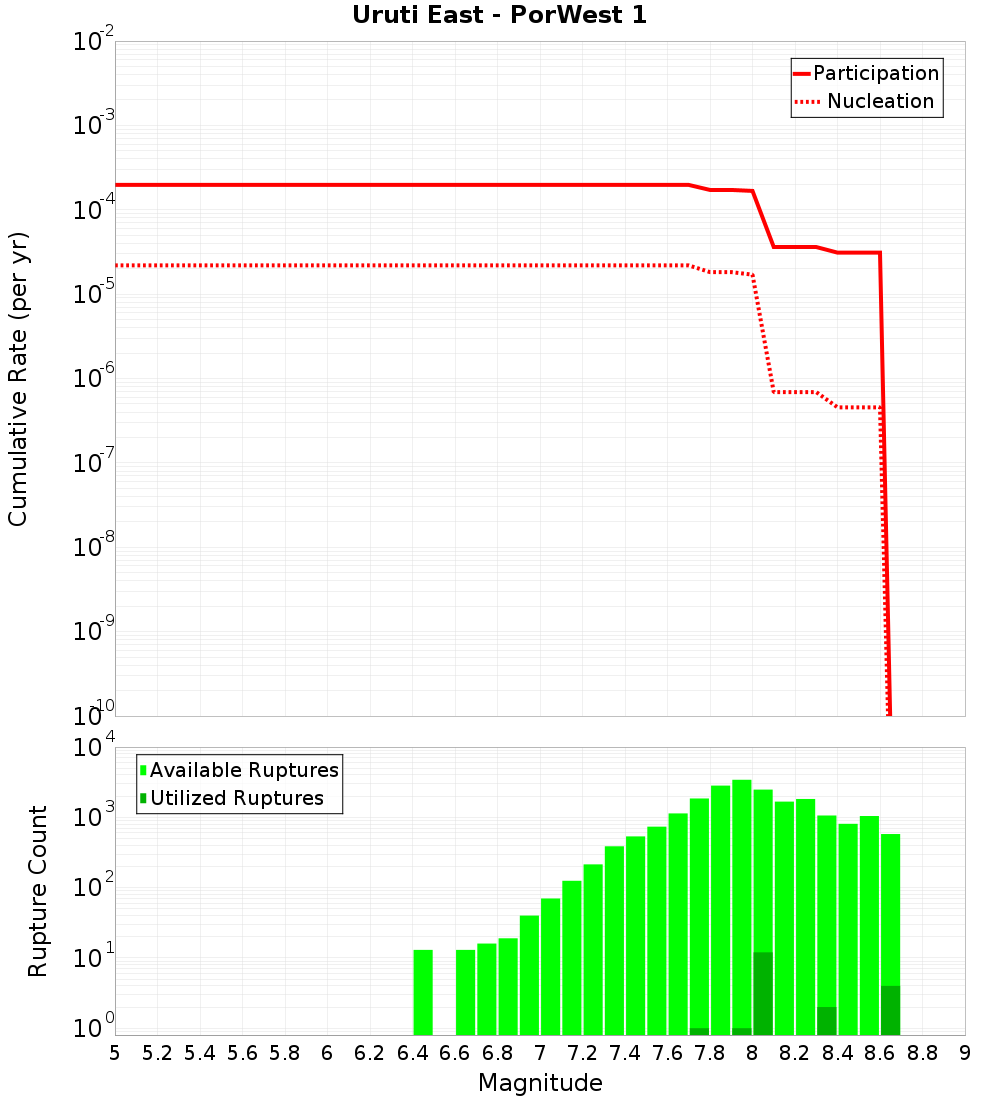

| Incremental | Cumulative |
|---|---|
 |  |

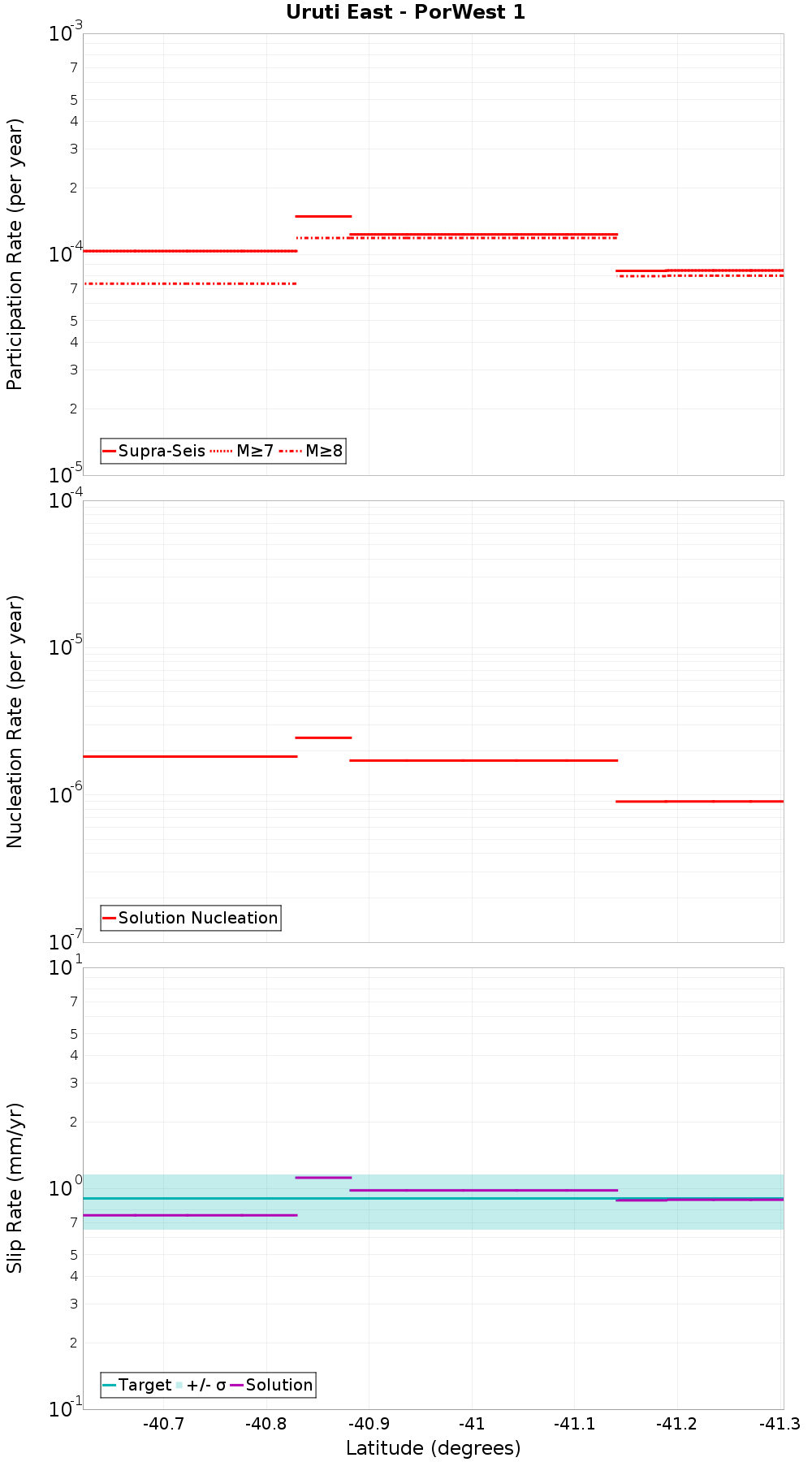

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Uruti Basin, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.19 km |
| Min Rate-Weighted Dist | 0.19 km |
| Co-rupture Count | 10,119 |
| Co-rupture Rate | 1.4064116E-4 |
Uruti Ridge 2, 2.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.03 km |
| Min Rate-Weighted Dist | 3.29 km |
| Co-rupture Count | 9,774 |
| Co-rupture Rate | 8.7216176E-5 |
Madden Banks, 4.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.32 km |
| Min Rate-Weighted Dist | 4.33 km |
| Co-rupture Count | 9,633 |
| Co-rupture Rate | 7.01533E-5 |
Opouawe - Uruti, 5.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.71 km |
| Min Rate-Weighted Dist | 5.71 km |
| Co-rupture Count | 12,846 |
| Co-rupture Rate | 7.2069946E-5 |
Uruti North, 11.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 99 |
| Co-rupture Rate | 0.0 |
Uruti Basin 2, 11.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pahaua, 11.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,011 |
| Co-rupture Rate | 0.0 |
Whareama Bank, 17.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
