White Creek - buried Details

PropertyValue
Rupture Count839
Ruptures Above Sect Min Mag839
Ruptures w/ Nonzero Rates6
Magnitude Range[6.91, 8.29]
Length Range[19, 478] km
Total Rate1.5445081E-4 /yr
Multi-Fault Rate1.5445081E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults65

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

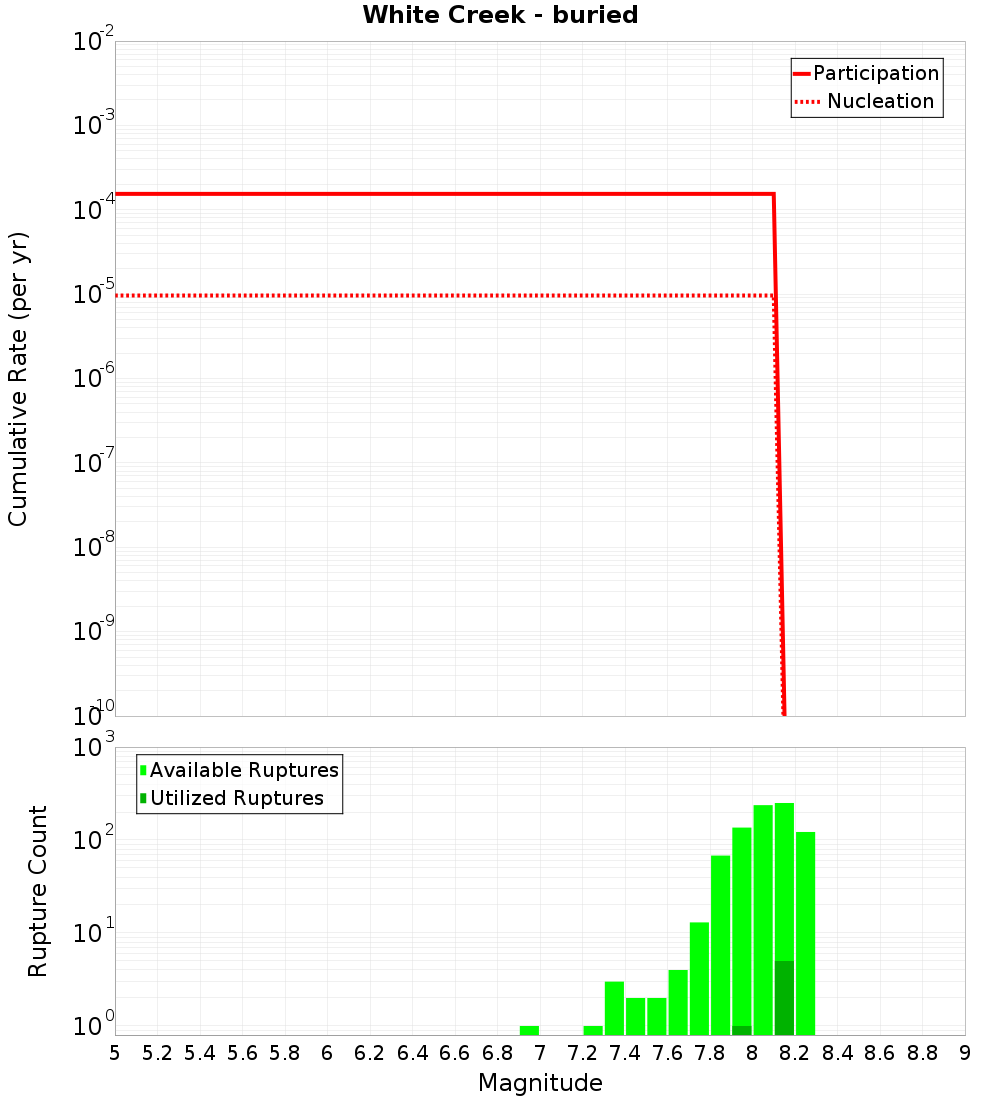

Incremental PlotCumulative Plot

Along-Strike Values

(top)

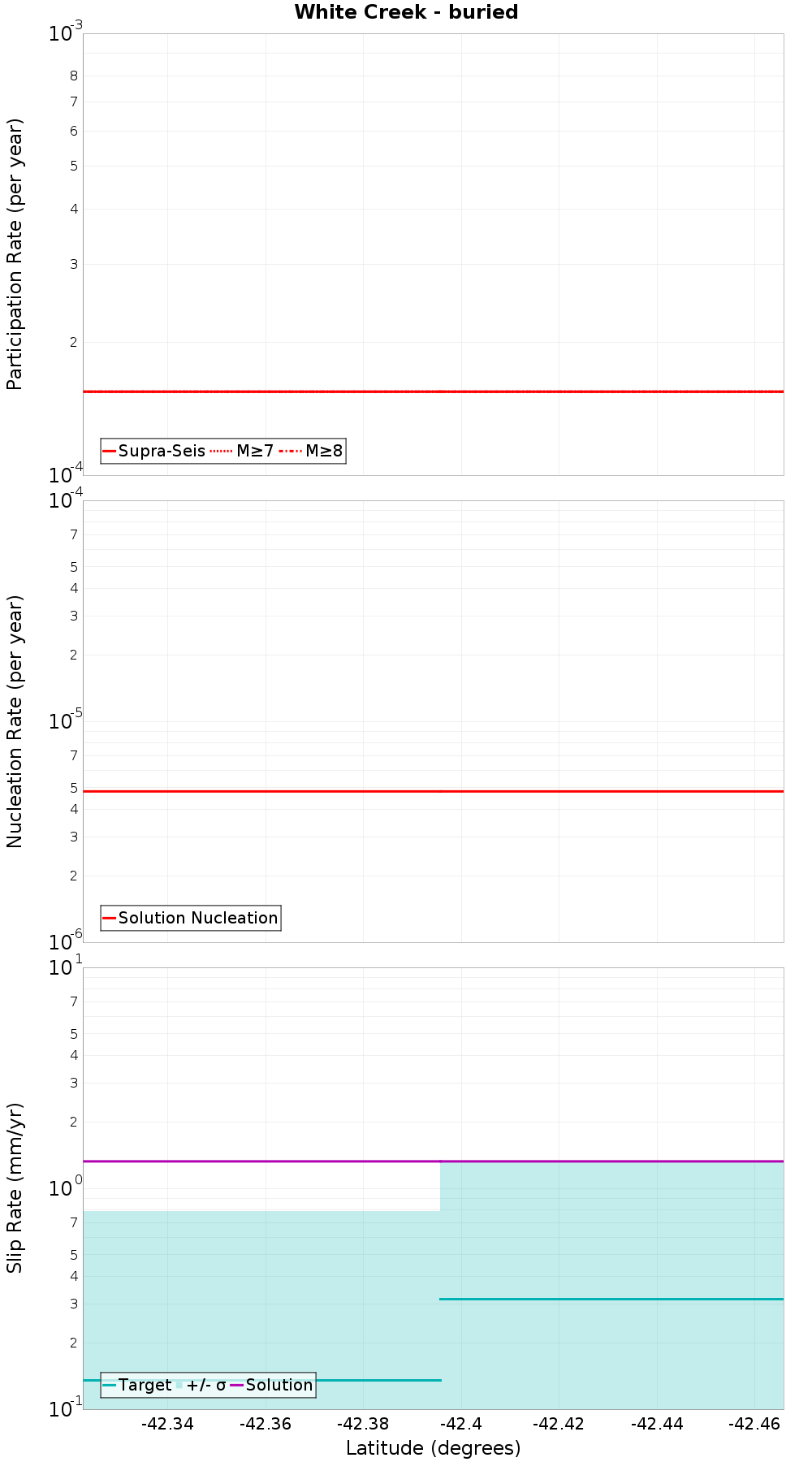

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
White Creek, 0.99 km away
Clarence: Southwest, 6.57 km away
Lyell South, 7.41 km away
Alpine: Kaniere to Springs Junction, 12.03 km away
Fowlers, 15.8 km away
Hope: Hope River, 19.11 km away

White Creek, 0.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 6.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.57 km
Min Rate-Weighted Dist6.57 km
Co-rupture Count834
Co-rupture Rate1.5445081E-4

Lyell South, 7.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.41 km
Min Rate-Weighted Dist7.41 km
Co-rupture Count441
Co-rupture Rate1.5445081E-4

Alpine: Kaniere to Springs Junction, 12.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fowlers, 15.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count127
Co-rupture Rate8.543109E-17

Hope: Hope River, 19.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY2
Connected?true
Directly Connected?false
Co-rupture Count86
Co-rupture Rate0.0
