Cape Egmont: North Details
| Property | Value |
|---|---|
| Rupture Count | 287 |
| Ruptures Above Sect Min Mag | 286 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.72, 7.91] |
| Length Range | [13, 208] km |
| Total Rate | 2.7013643E-4 /yr |
| Multi-Fault Rate | 2.7013643E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 13 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

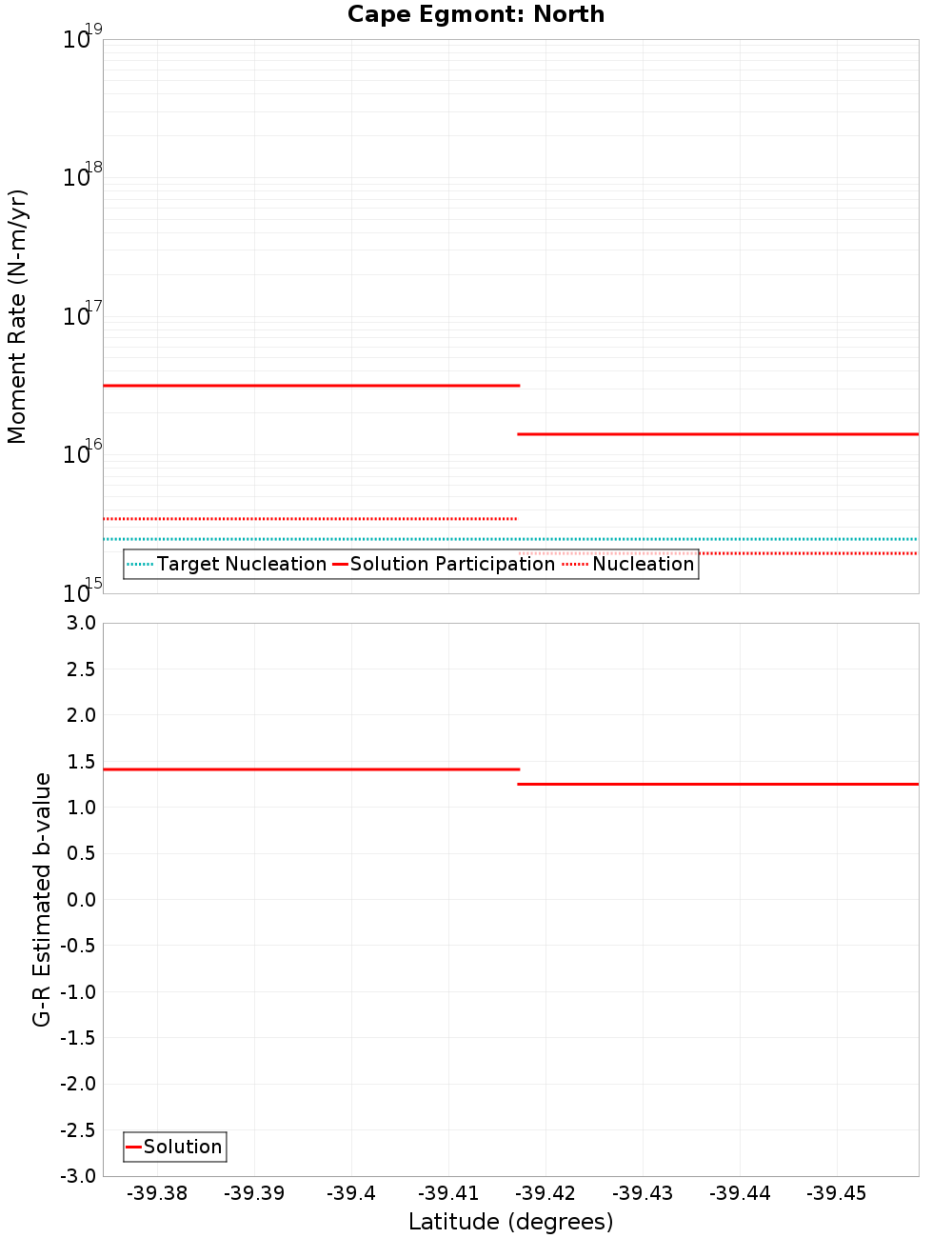

Moment-Rates and b-Values

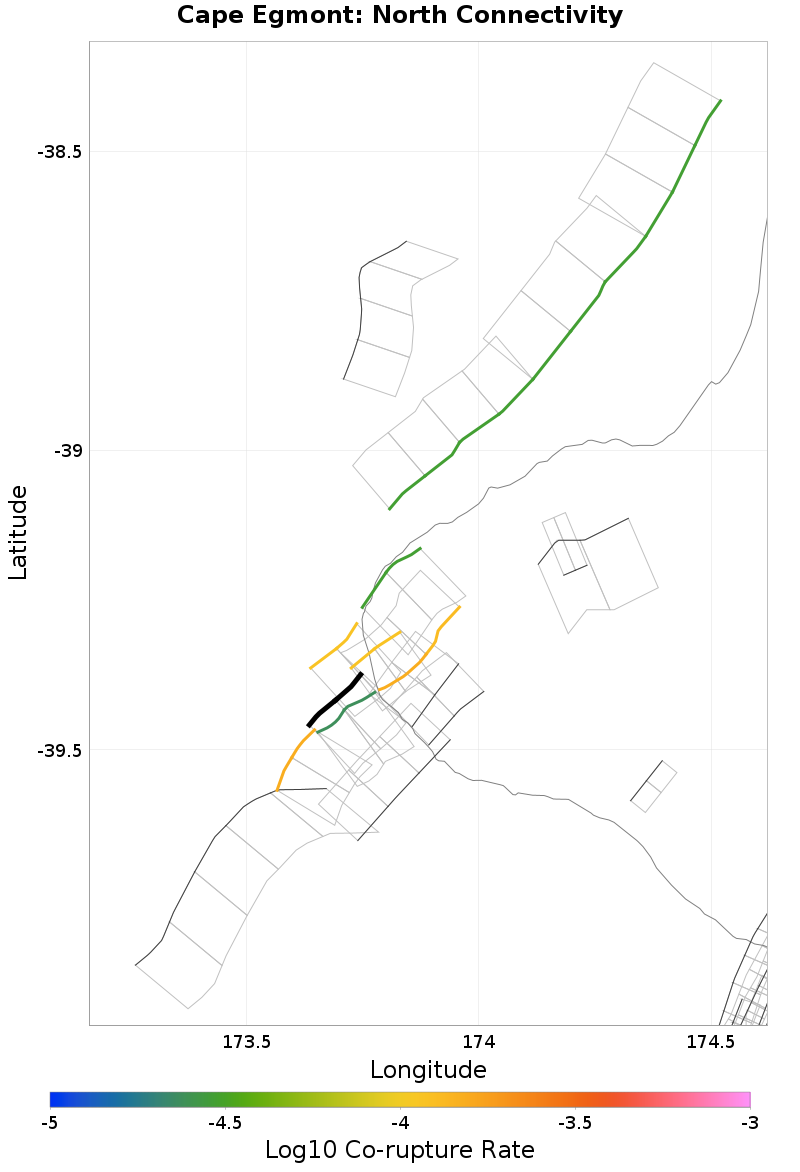

Connectivity
 |  |
|---|
Nearby Sections
Pihama, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kiri, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.47 km |
| Co-rupture Count | 101 |
| Co-rupture Rate | 0.0 |
Ihaia, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.48 km |
| Co-rupture Count | 114 |
| Co-rupture Rate | 0.0 |
Oaonui, 0.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.6 km |
| Min Rate-Weighted Dist | 0.6 km |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.5323353E-4 |
Cape Egmont: Central, 0.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.88 km |
| Min Rate-Weighted Dist | 0.88 km |
| Co-rupture Count | 216 |
| Co-rupture Rate | 1.5323353E-4 |
Manahi 1, 1.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 2.3591527E-5 |
Rahotu, 1.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.9 km |
| Min Rate-Weighted Dist | 1.9 km |
| Co-rupture Count | 42 |
| Co-rupture Rate | 1.1690291E-4 |
Manahi 2, 5.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.72 km |
| Min Rate-Weighted Dist | 5.72 km |
| Co-rupture Count | 63 |
| Co-rupture Rate | 1.1690291E-4 |
Cape Egmont: South, 10.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 172 |
| Co-rupture Rate | 0.0 |
Warea, 11.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 224 |
| Co-rupture Rate | 2.9343119E-5 |
