Conway Trough East Details
| Property | Value |
|---|---|
| Rupture Count | 129 |
| Ruptures Above Sect Min Mag | 129 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.90, 8.08] |
| Length Range | [22, 443] km |
| Total Rate | 3.4604702E-4 /yr |
| Multi-Fault Rate | 3.4604702E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 17 |
Table Of Contents

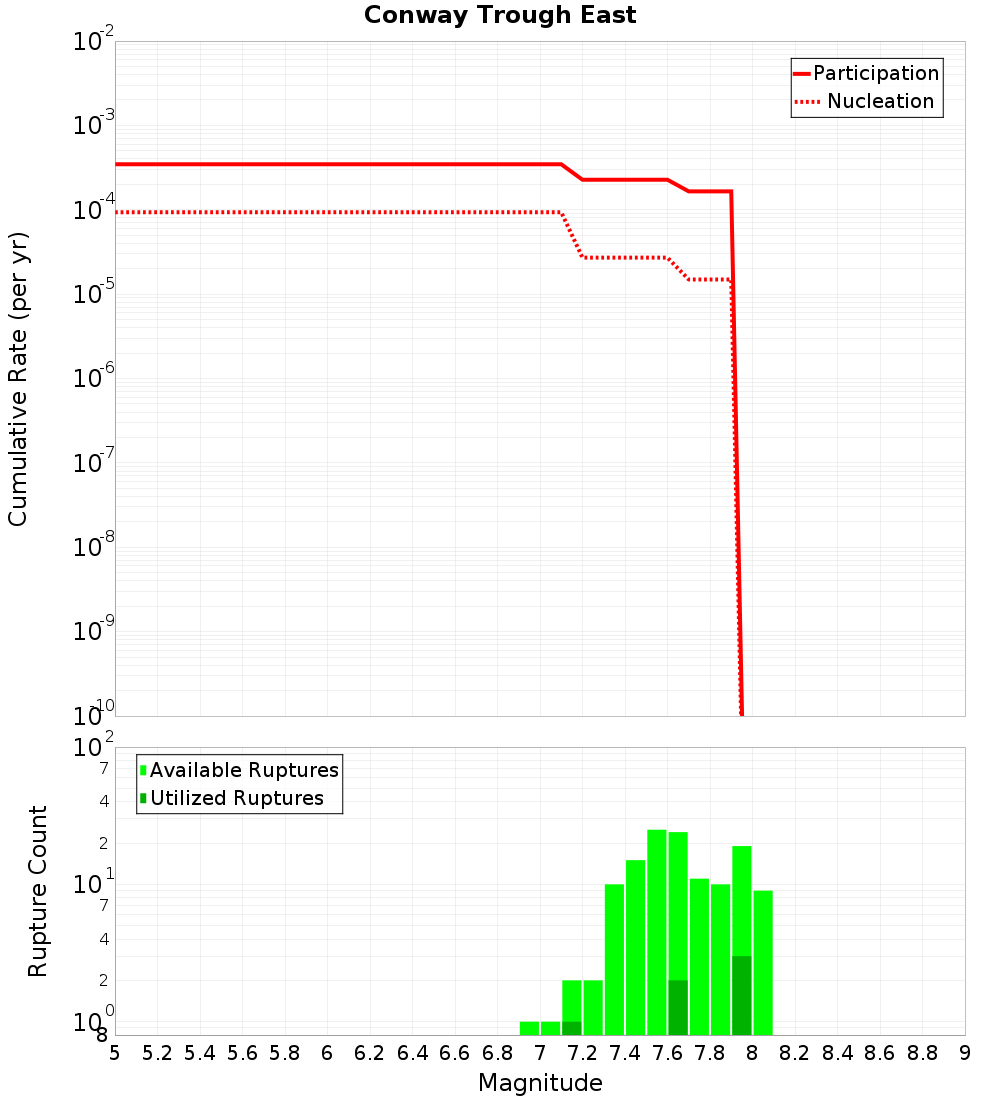

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

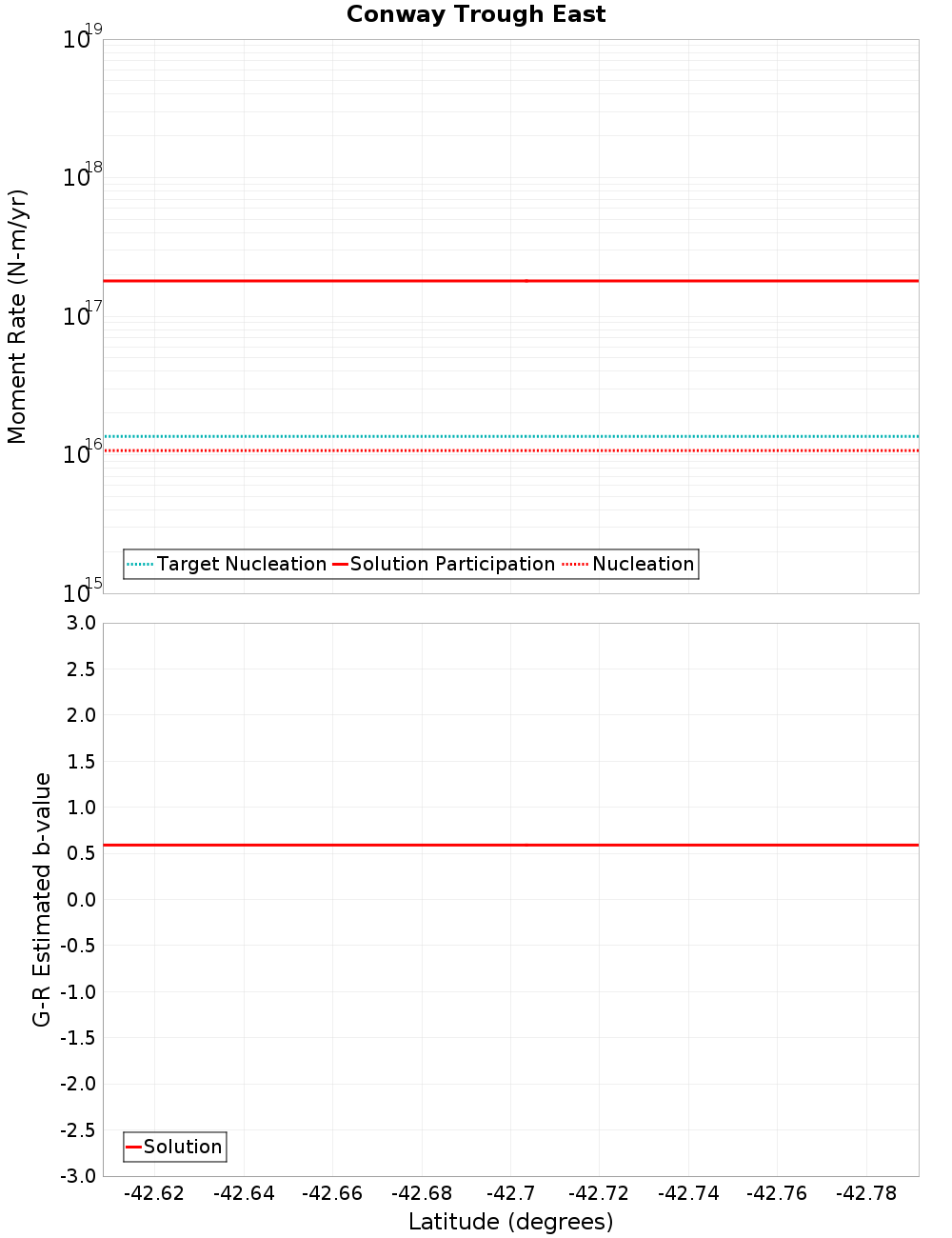

Moment-Rates and b-Values

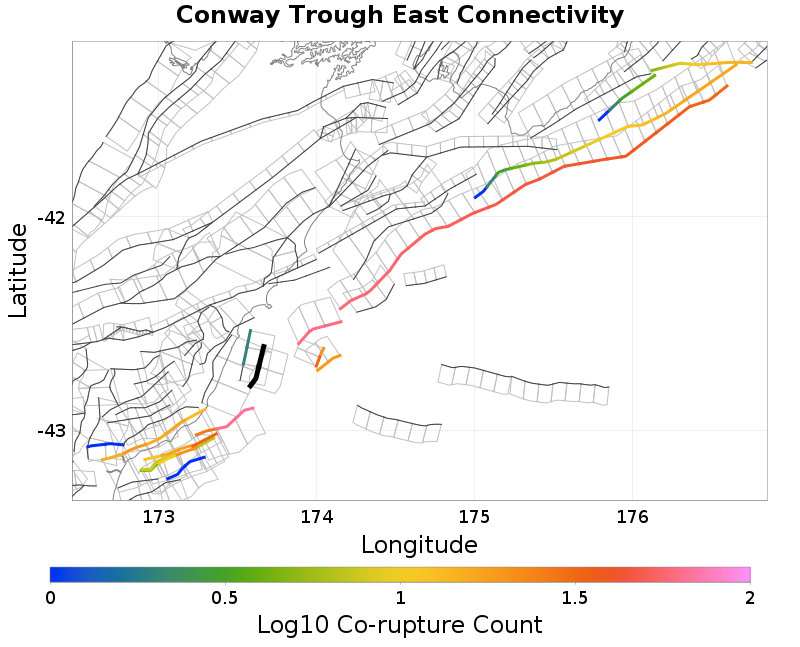

Connectivity
 |  |
|---|
Nearby Sections
Marlborough Slope 11, 3.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.55 km |
| Min Rate-Weighted Dist | 3.55 km |
| Co-rupture Count | 33 |
| Co-rupture Rate | 5.9065445E-5 |
Conway Trough West, 5.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 6.57 km |
| Min Rate-Weighted Dist | 6.57 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.1934078E-4 |
Marlborough Slope 9, 9.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 19 |
| Co-rupture Rate | 5.9065445E-5 |
Hawkswood, 9.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Point Gibson, 11.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.43 km |
| Min Rate-Weighted Dist | 11.43 km |
| Co-rupture Count | 65 |
| Co-rupture Rate | 6.164671E-5 |
Marlborough Slope 2, 13.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.46 km |
| Min Rate-Weighted Dist | 13.46 km |
| Co-rupture Count | 61 |
| Co-rupture Rate | 1.6505951E-4 |
Hundalee, 15.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
StoneJug, 19.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
