Flaxmore - Waimea - Tahunanui Details

PropertyValue
Rupture Count2,246
Ruptures Above Sect Min Mag2,239
Ruptures w/ Nonzero Rates21
Magnitude Range[6.95, 8.47]
Length Range[23, 883] km
Total Rate2.898812E-4 /yr
Multi-Fault Rate2.274506E-4 /yr (78.46%)
Directly-Connected Faults4
All Co-Rupturing Faults41

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

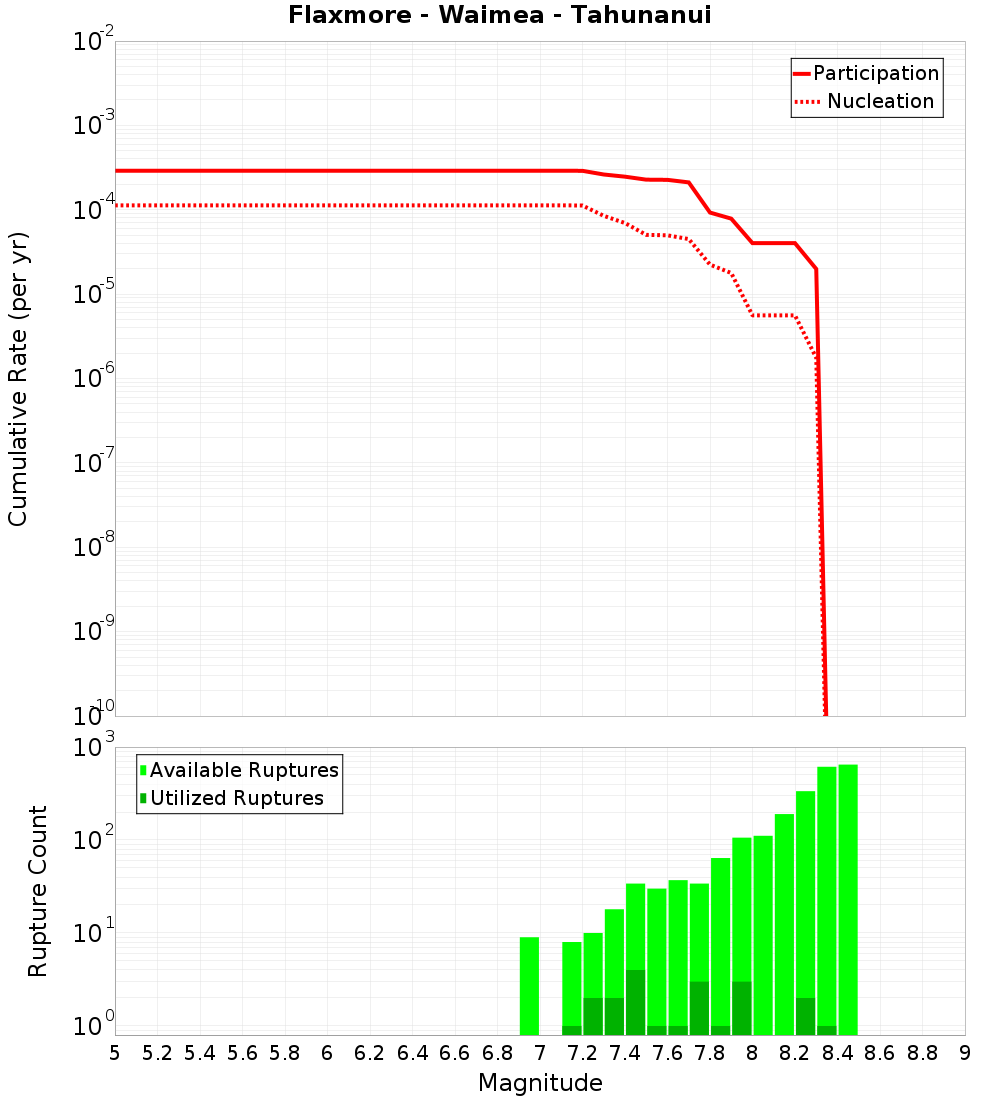

Incremental PlotCumulative Plot

Along-Strike Values

(top)

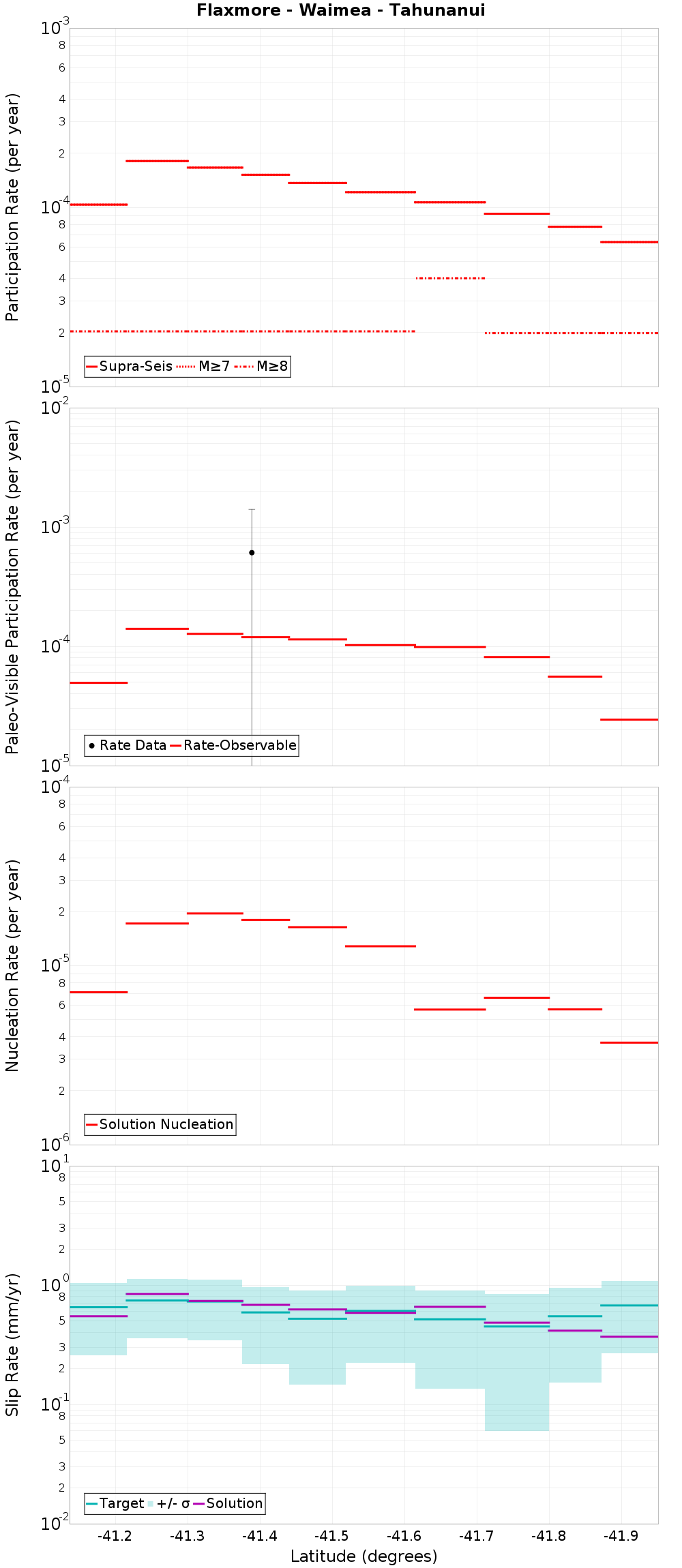

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.39 km away
Whangamoa, 2.28 km away
Tutaki, 2.98 km away
Surville, 8.82 km away
Ruby Bay - Moutere, 9.46 km away
Awatere: Southwest, 12.13 km away

Waimea Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist5.69 km
Co-rupture Count13
Co-rupture Rate8.9428075E-5

Wairau, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.17 km
Min Rate-Weighted Dist0.17 km
Co-rupture Count41
Co-rupture Rate5.8239835E-5

Alpine: Springs Junction to Tophouse, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.39 km
Min Rate-Weighted Dist7.18 km
Co-rupture Count2,132
Co-rupture Rate7.844303E-5

Whangamoa, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tutaki, 2.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Surville, 8.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.82 km
Min Rate-Weighted Dist10.82 km
Co-rupture Count15
Co-rupture Rate1.3396553E-6

Ruby Bay - Moutere, 9.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Southwest, 12.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
