Hawke Bay 4 Details
| Property | Value |
|---|---|
| Rupture Count | 34 |
| Ruptures Above Sect Min Mag | 34 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.80, 7.91] |
| Length Range | [13, 180] km |
| Total Rate | 5.027418E-5 /yr |
| Multi-Fault Rate | 5.027418E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

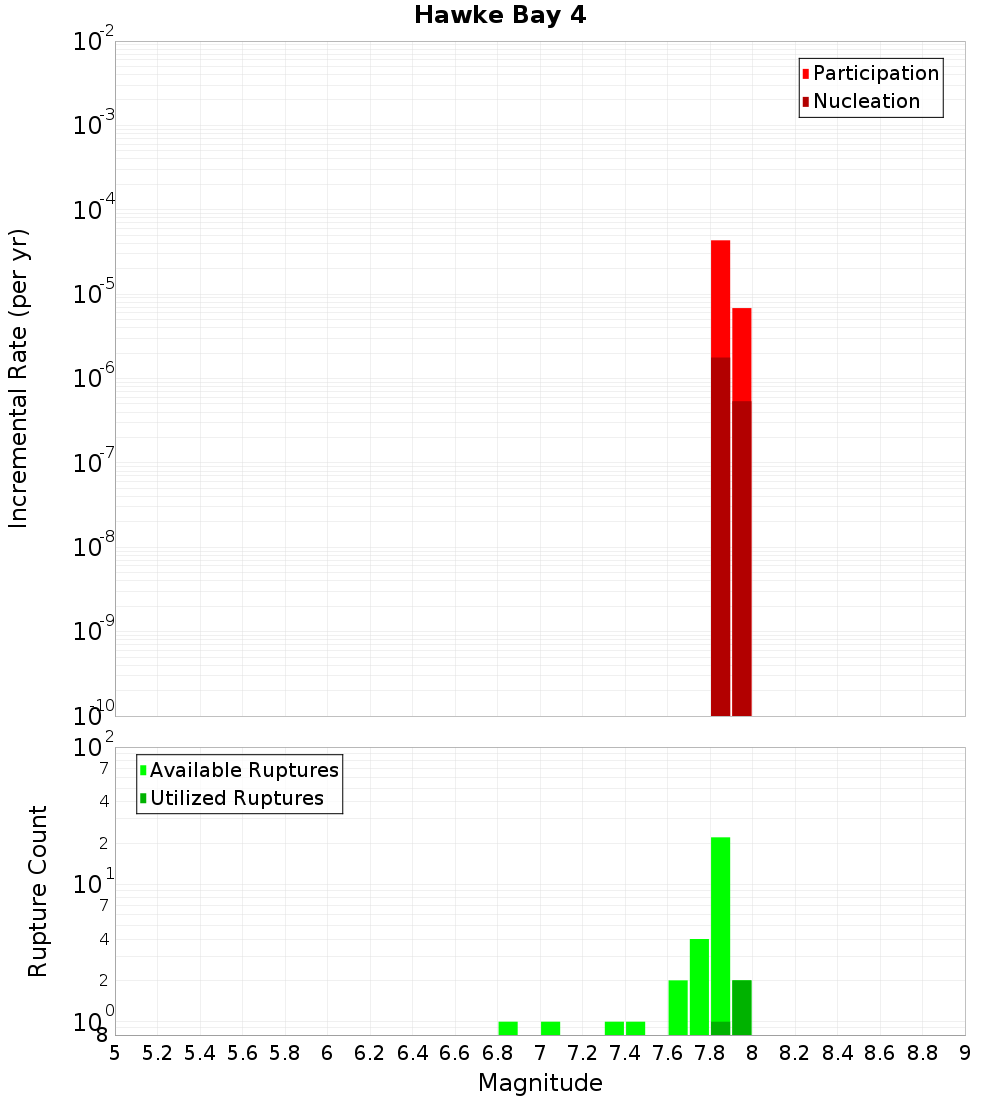

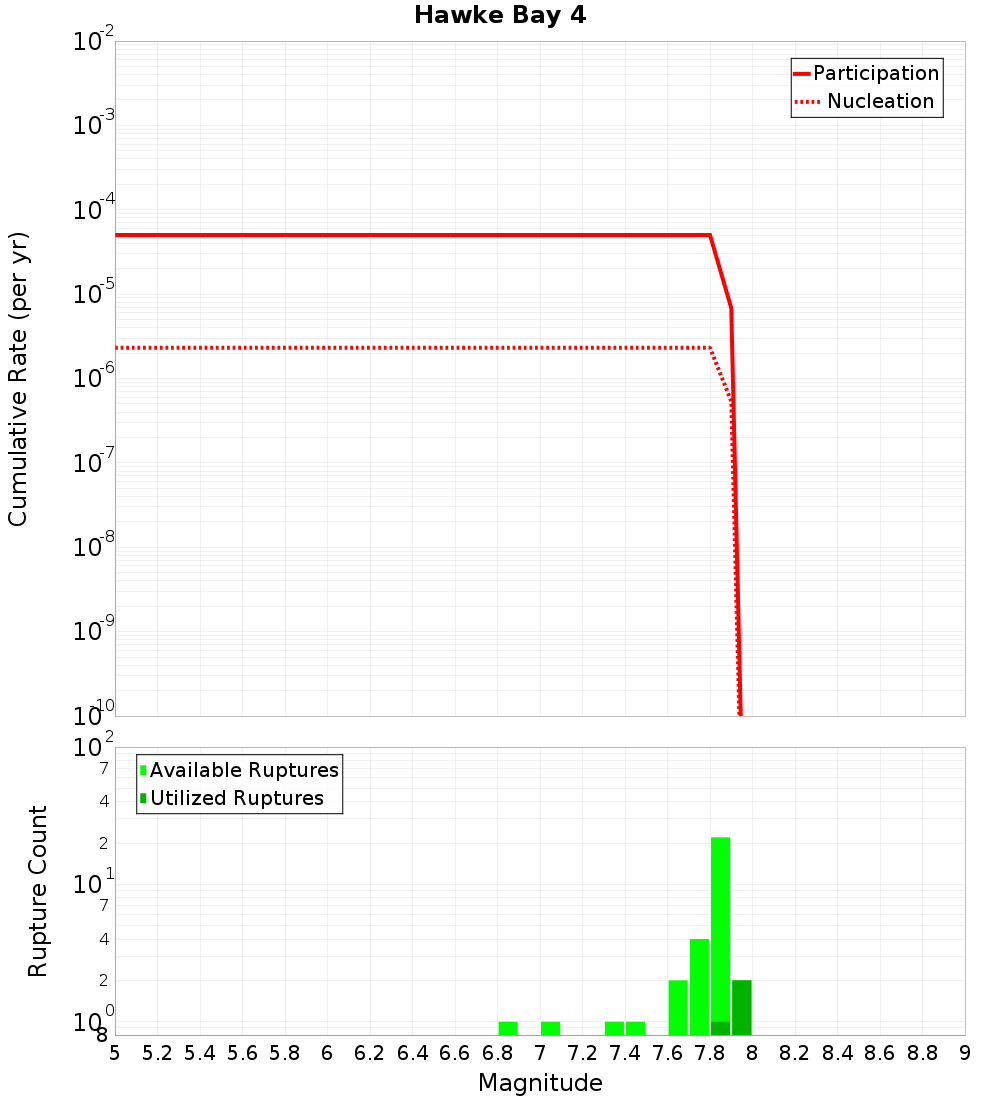

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

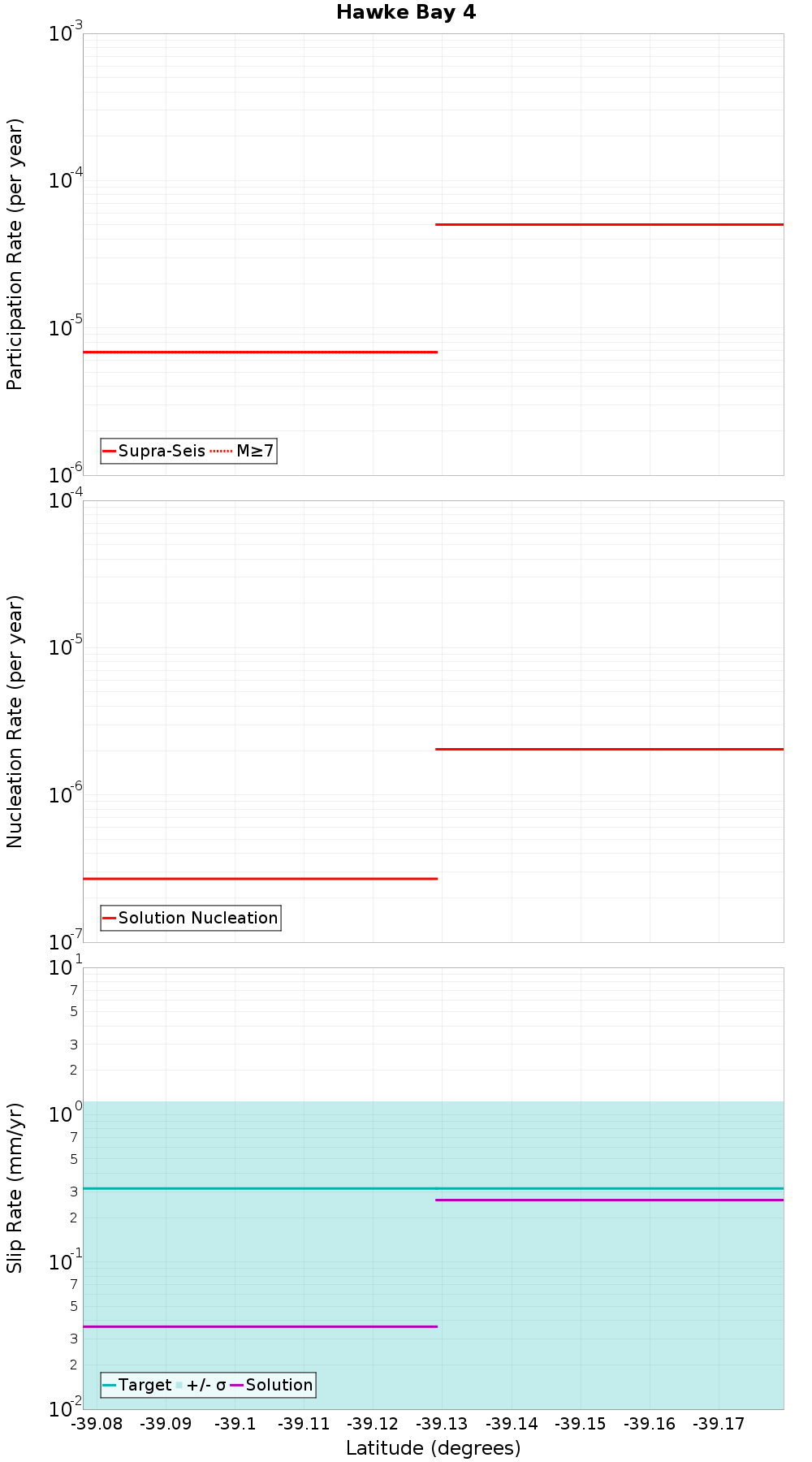

Along-Strike Values
Moment-Rates and b-Values

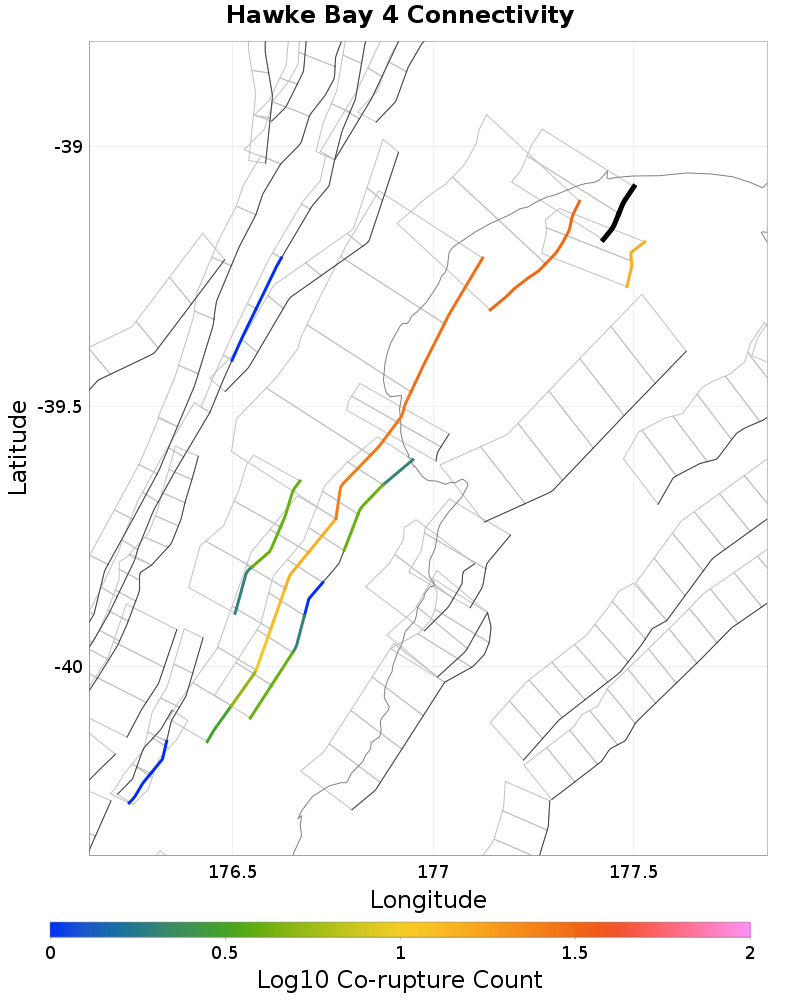

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 5 & 11, 4.23 km away |
| Hawke Bay 1, 4.44 km away |
| Kidnappers Ridge, 19.31 km away |
Hawke Bay 5 & 11, 4.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.23 km |
| Min Rate-Weighted Dist | 4.23 km |
| Co-rupture Count | 15 |
| Co-rupture Rate | 4.344164E-5 |
Hawke Bay 1, 4.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.44 km |
| Min Rate-Weighted Dist | 4.44 km |
| Co-rupture Count | 32 |
| Co-rupture Rate | 5.027418E-5 |
Kidnappers Ridge, 19.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
