Hope: Taramakau Details

PropertyValue
Rupture Count31,483
Ruptures Above Sect Min Mag31,453
Ruptures w/ Nonzero Rates18
Magnitude Range[6.12, 8.48]
Length Range[9, 916] km
Total Rate0.0011573203 /yr
Multi-Fault Rate0.0011573203 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults74

Table Of Contents

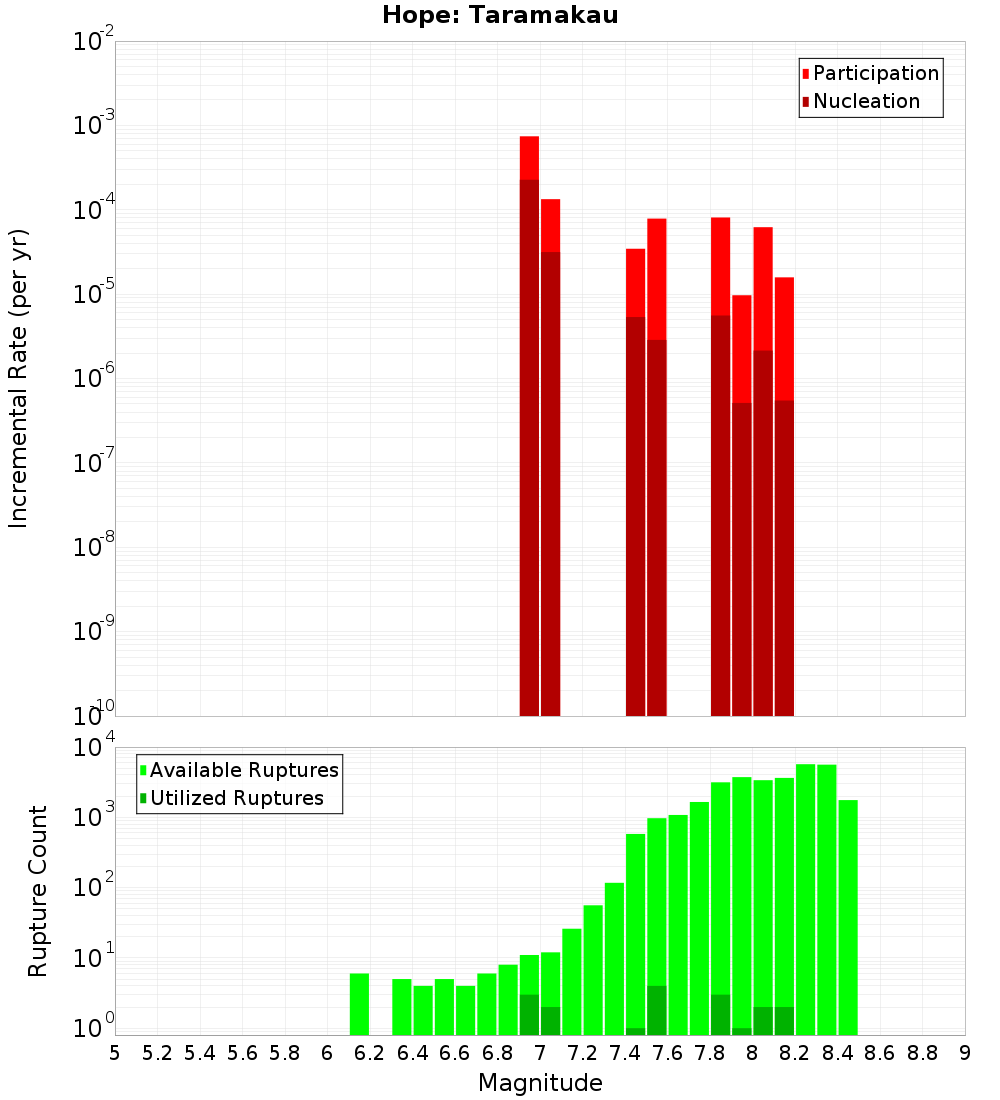

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

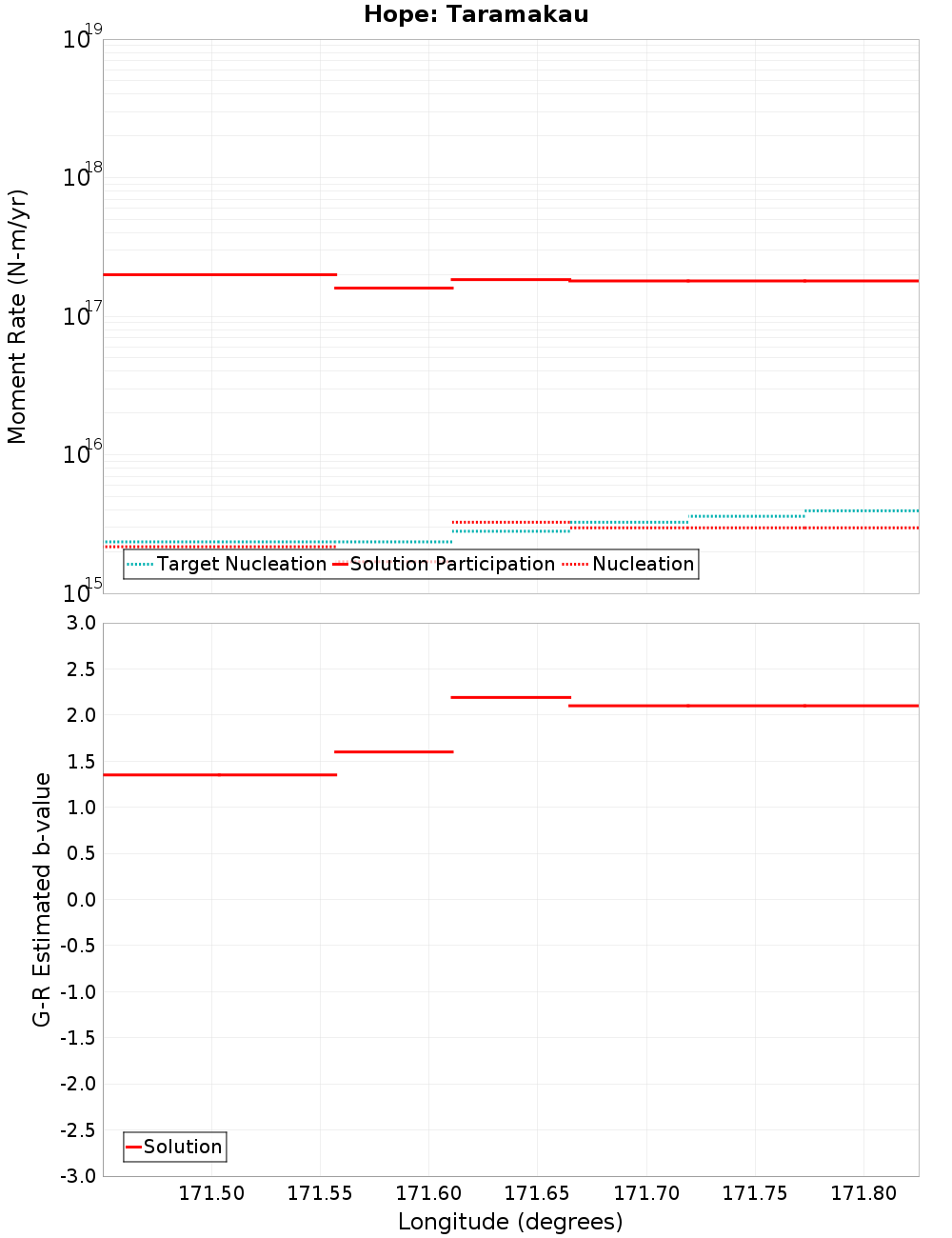

Moment-Rates and b-Values

(top)

Along-strike plot

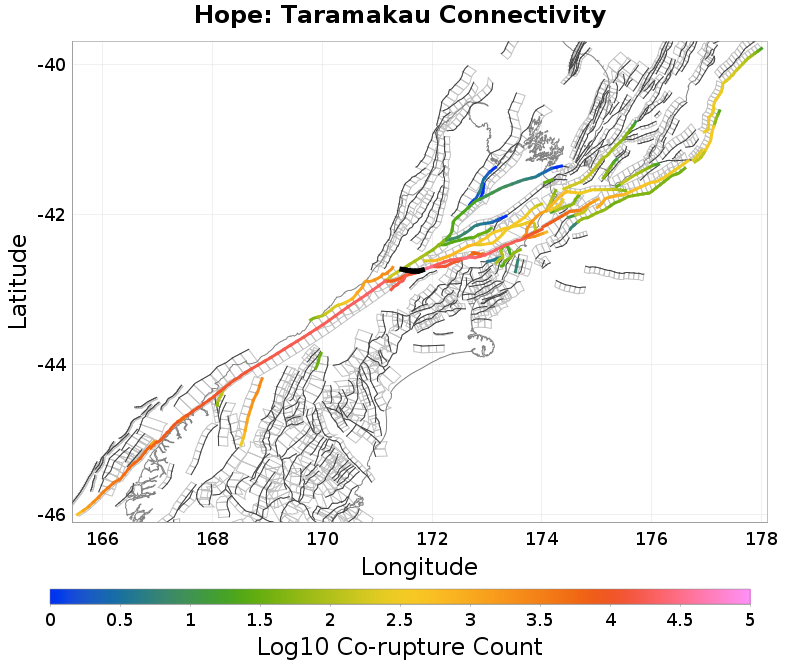

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kelly, 0 km away
Hope: Hurunui, 0 km away
Alpine: Kaniere to Springs Junction, 0.31 km away
Browning Pass, 6.97 km away
Poulter, 9.51 km away
Hohonu: South, 10.77 km away
Clarence: Southwest, 12.83 km away
Kakapo, 13.38 km away
Hope: Hope River, 13.46 km away

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.06 km
Min Rate-Weighted Dist3.1 km
Co-rupture Count14,003
Co-rupture Rate7.845239E-4

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count31,149
Co-rupture Rate0.0010624996

Alpine: Kaniere to Springs Junction, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.31 km
Min Rate-Weighted Dist0.31 km
Co-rupture Count245
Co-rupture Rate9.482078E-5

Browning Pass, 6.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.14 km
Co-rupture Count18,263
Co-rupture Rate0.0

Poulter, 9.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hohonu: South, 10.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count2,211
Co-rupture Rate0.0

Clarence: Southwest, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count673
Co-rupture Rate0.0

Kakapo, 13.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count12,662
Co-rupture Rate1.1866789E-4

Hope: Hope River, 13.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count20,101
Co-rupture Rate6.818809E-5
