Houtunui Details
| Property | Value |
|---|---|
| Rupture Count | 30 |
| Ruptures Above Sect Min Mag | 25 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.74, 7.37] |
| Length Range | [18, 86] km |
| Total Rate | 5.069838E-4 /yr |
| Multi-Fault Rate | 5.069838E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

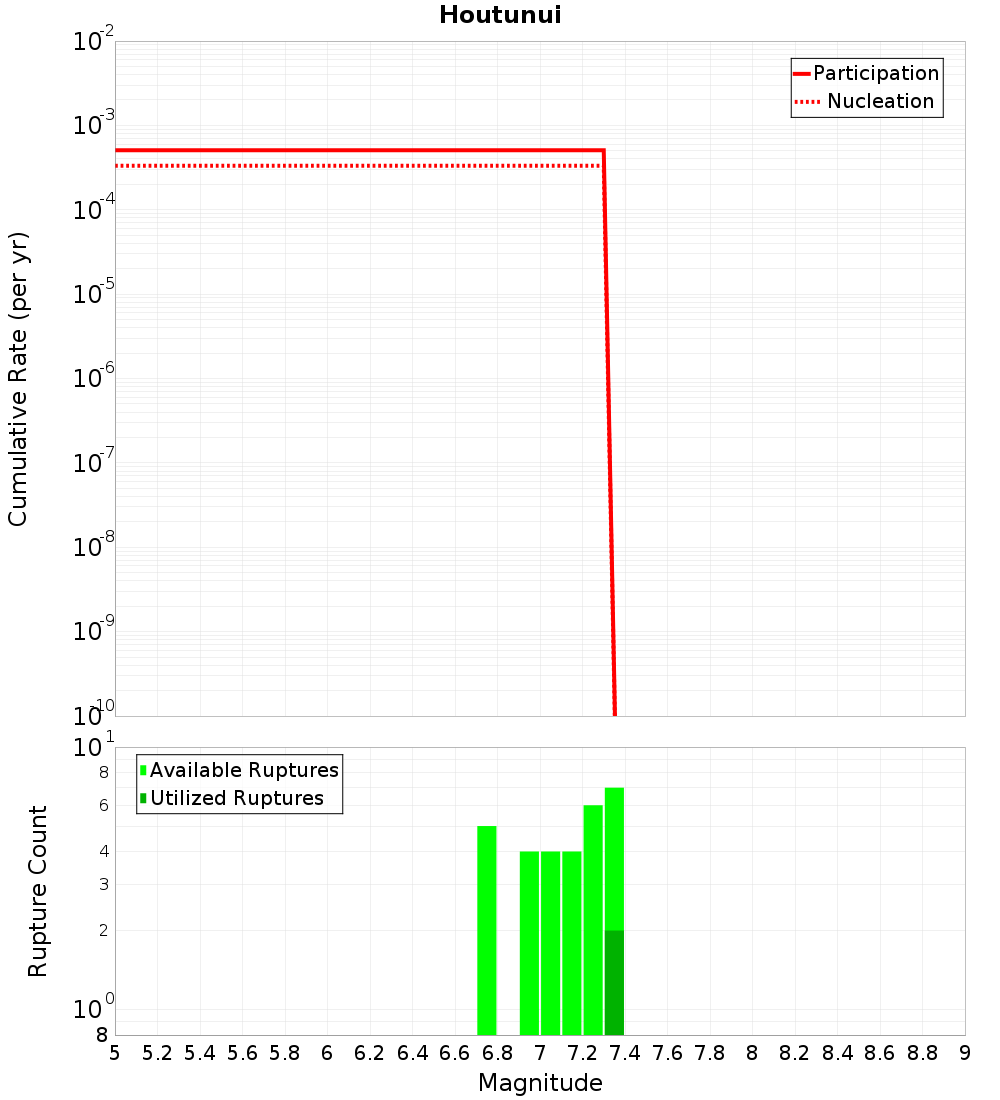

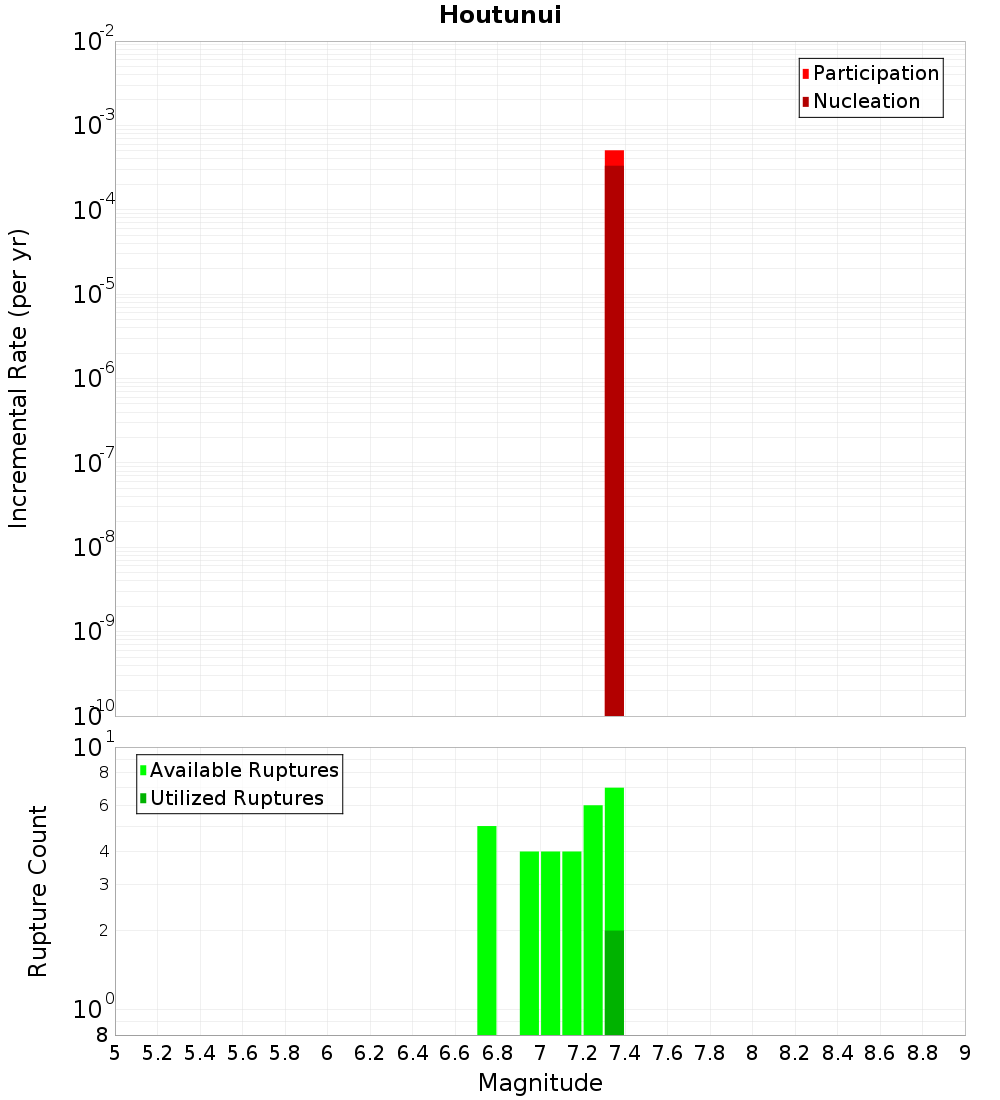

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

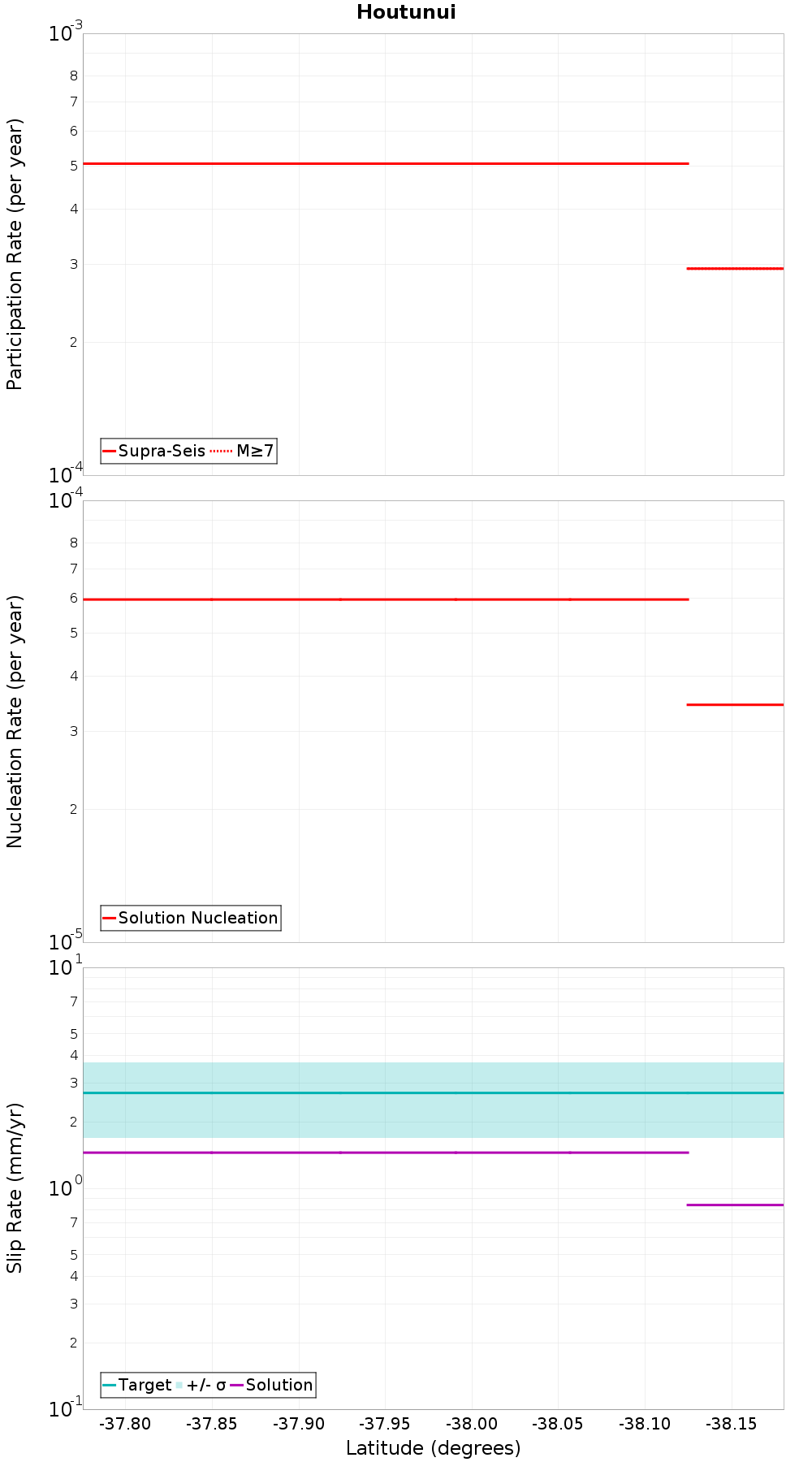

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Ruatoria South 4, 4.74 km away |
| Ruatoria South 3, 11.22 km away |
| Ariel Bank 2, 16.51 km away |
Ruatoria South 4, 4.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.74 km |
| Min Rate-Weighted Dist | 4.74 km |
| Co-rupture Count | 6 |
| Co-rupture Rate | 2.93405E-4 |
Ruatoria South 3, 11.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.22 km |
| Min Rate-Weighted Dist | 11.22 km |
| Co-rupture Count | 9 |
| Co-rupture Rate | 2.1357877E-4 |
Ariel Bank 2, 16.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
