Lowry Details

Property	Value
Rupture Count	38
Ruptures Above Sect Min Mag	36
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.96, 7.77]
Length Range	[21, 141] km
Total Rate	3.5669145E-4 /yr
Multi-Fault Rate	3.5669145E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

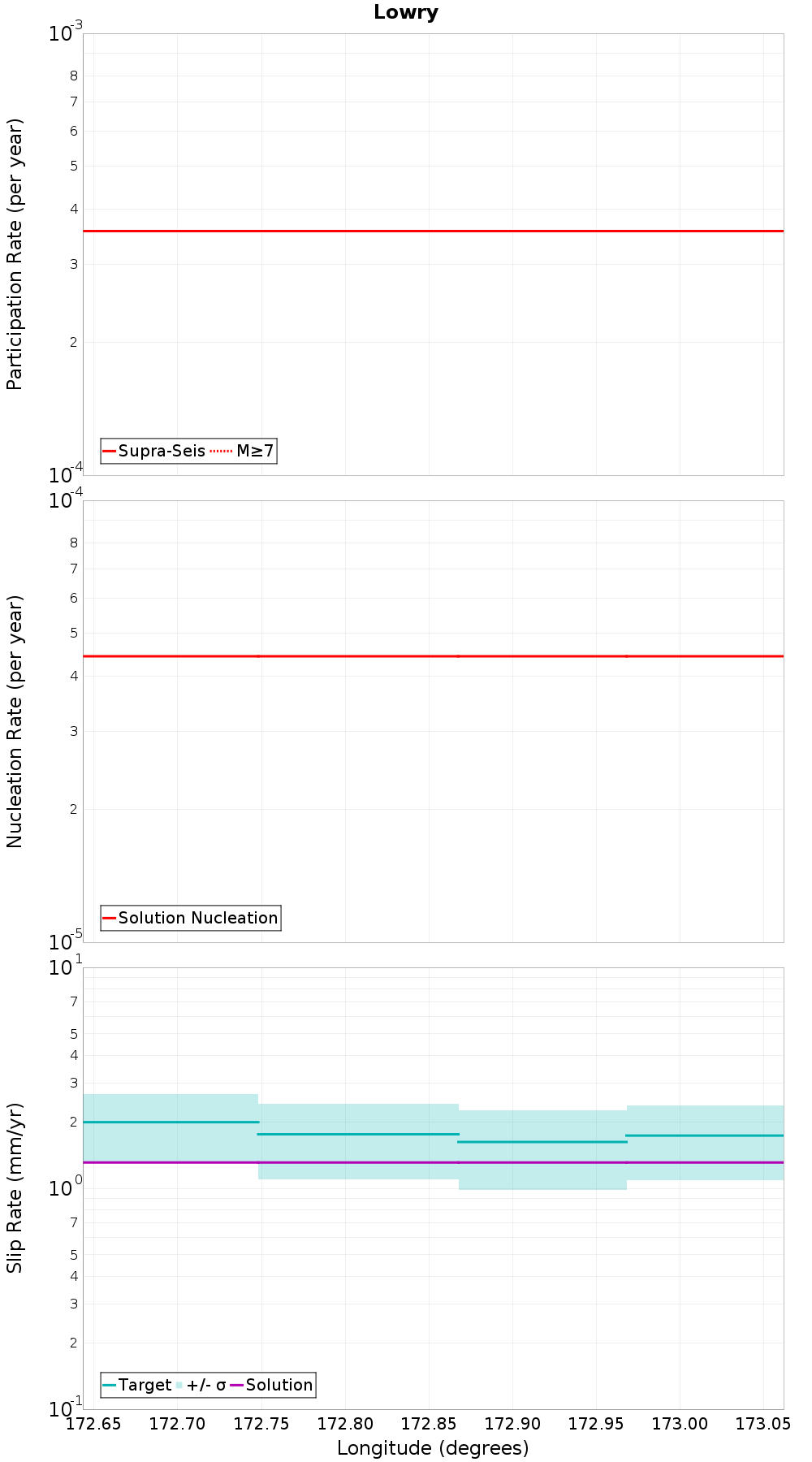

Along-Strike Values

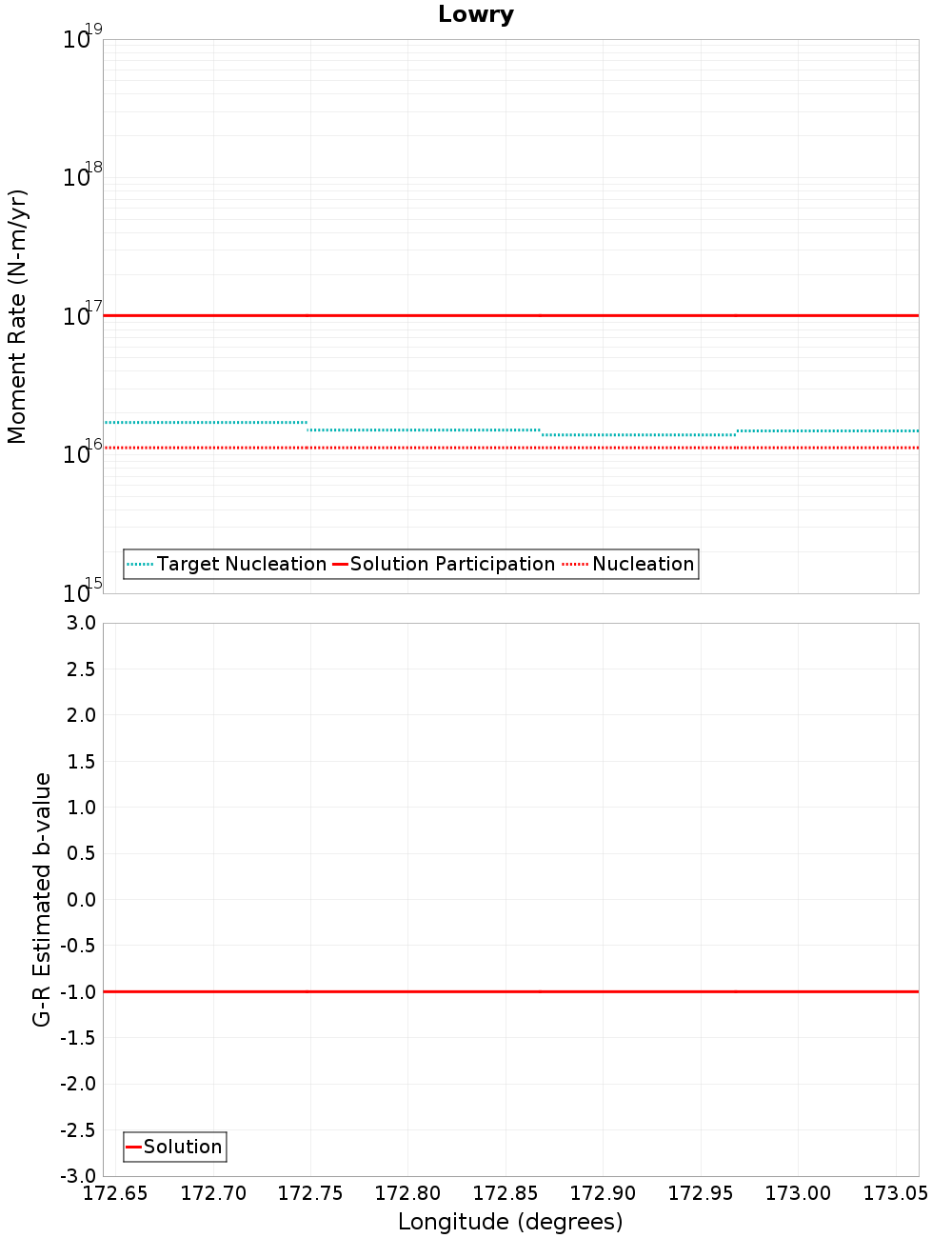

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Kaiwara North, 0.2 km away	Hurunui Peak, 9.05 km away
Doctors, 0.54 km away	Virginia, 9.27 km away
Balmoral, 0.6 km away	OmihiLwrHuru, 11.54 km away
Leonard Mound, 2 km away	Leader: South, 12.1 km away
Alexander, 2.25 km away	Hundalee, 15.49 km away
Kaiwara South, 3 km away	Pancake, 15.55 km away
Boby Stream, 6.76 km away	AmberBlyth, 16.84 km away
Mt Culverden, 7.58 km away	Hawkswood, 17.9 km away
The Humps, 8.16 km away	Starvation - Ashley, 19.22 km away
Mt Arden, 9.01 km away

Kaiwara North, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	10
Co-rupture Rate	9.36239E-5

Doctors, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.54 km
Min Rate-Weighted Dist	0.54 km
Co-rupture Count	4
Co-rupture Rate	3.5669145E-4

Balmoral, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leonard Mound, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2 km
Min Rate-Weighted Dist	2 km
Co-rupture Count	18
Co-rupture Rate	9.36239E-5

Alexander, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.25 km
Co-rupture Count	5
Co-rupture Rate	0.0

Kaiwara South, 3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3 km
Co-rupture Count	8
Co-rupture Rate	0.0

Boby Stream, 6.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Culverden, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

The Humps, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	8.16 km
Co-rupture Count	2
Co-rupture Rate	0.0

Mt Arden, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hurunui Peak, 9.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Virginia, 9.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

OmihiLwrHuru, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.54 km
Co-rupture Count	4
Co-rupture Rate	0.0

Leader: South, 12.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Hundalee, 15.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	9.36239E-5

Pancake, 15.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

AmberBlyth, 16.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Hawkswood, 17.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Starvation - Ashley, 19.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
