Lyell South Details
| Property | Value |
|---|---|
| Rupture Count | 569 |
| Ruptures Above Sect Min Mag | 564 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.80, 8.16] |
| Length Range | [19, 431] km |
| Total Rate | 6.881911E-4 /yr |
| Multi-Fault Rate | 4.815785E-4 /yr (69.98%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 34 |
Table Of Contents

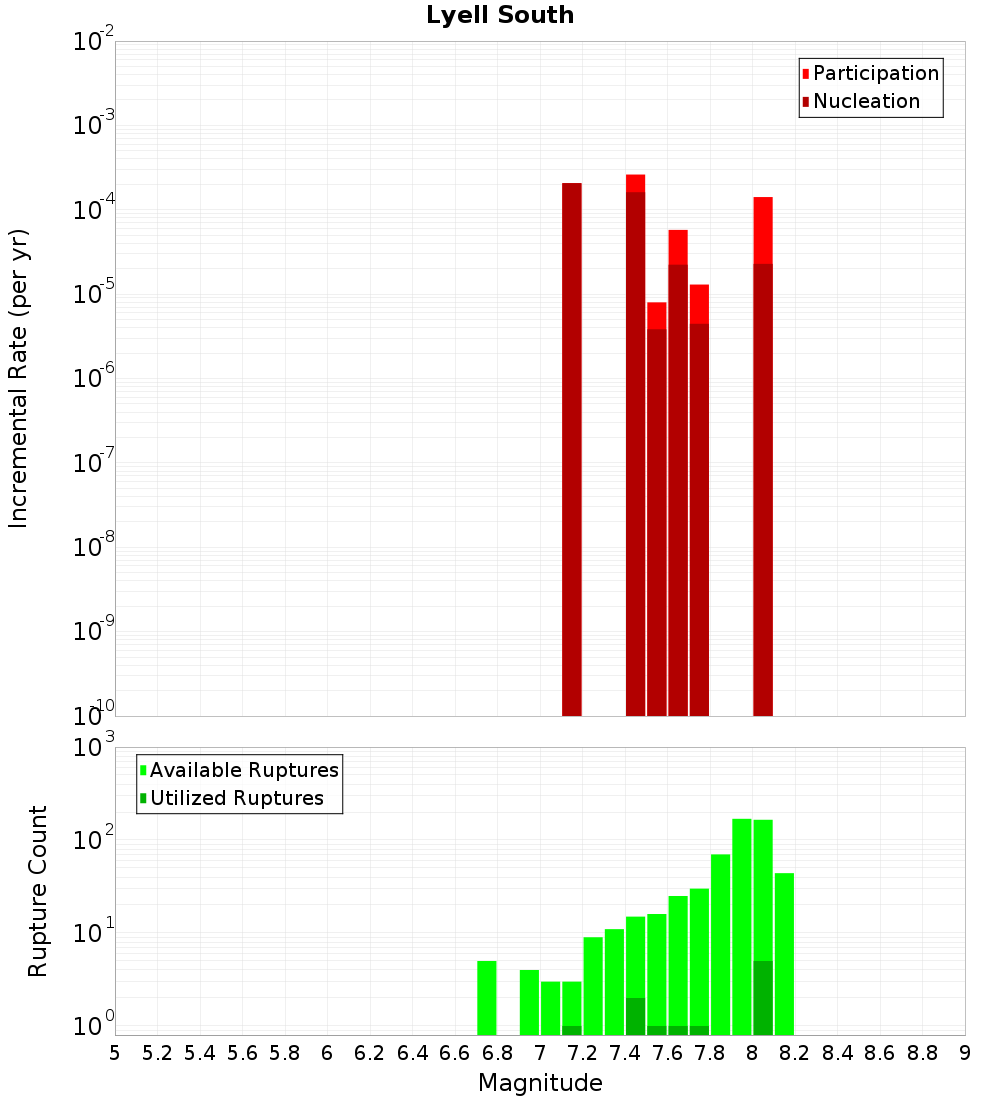

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

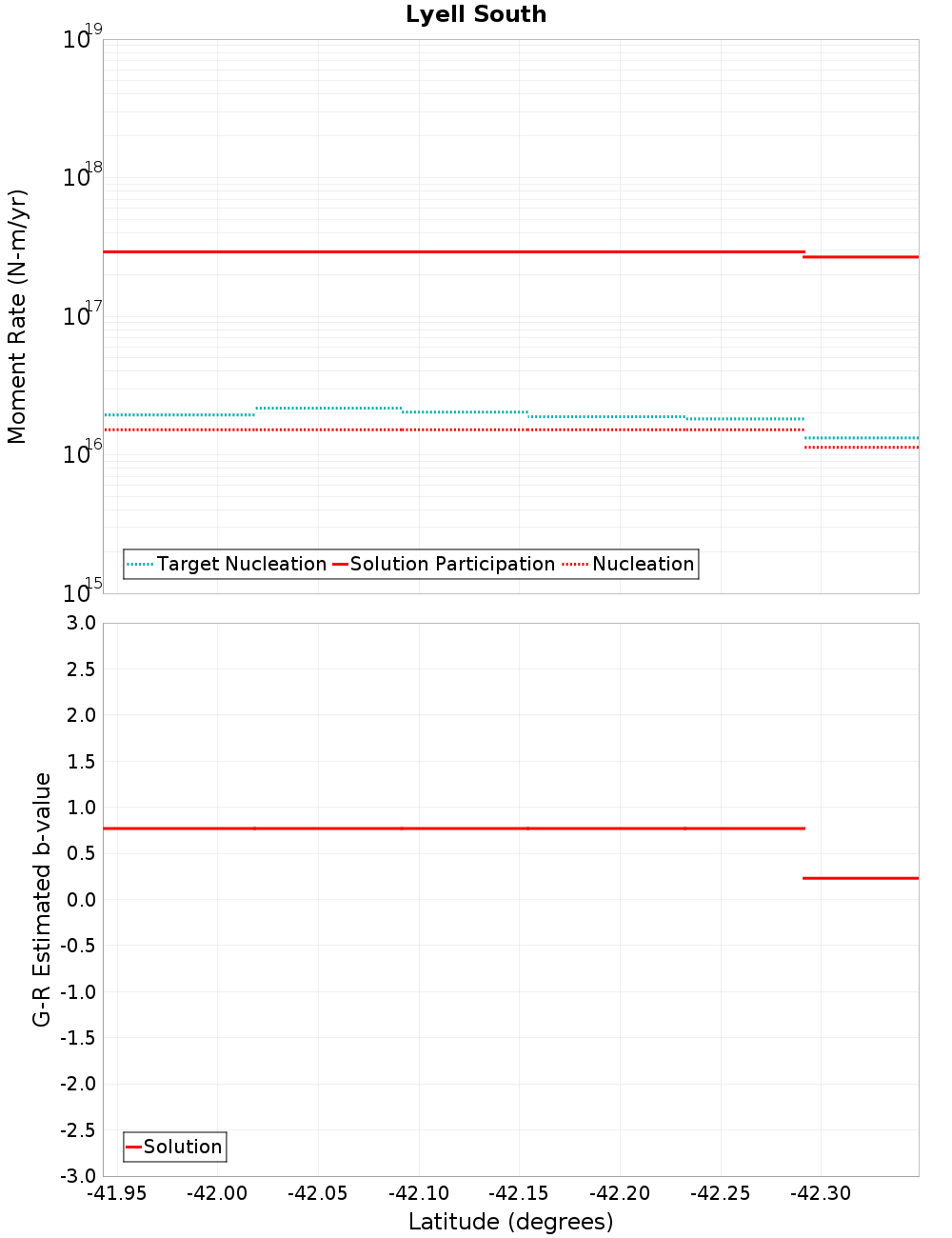

Moment-Rates and b-Values

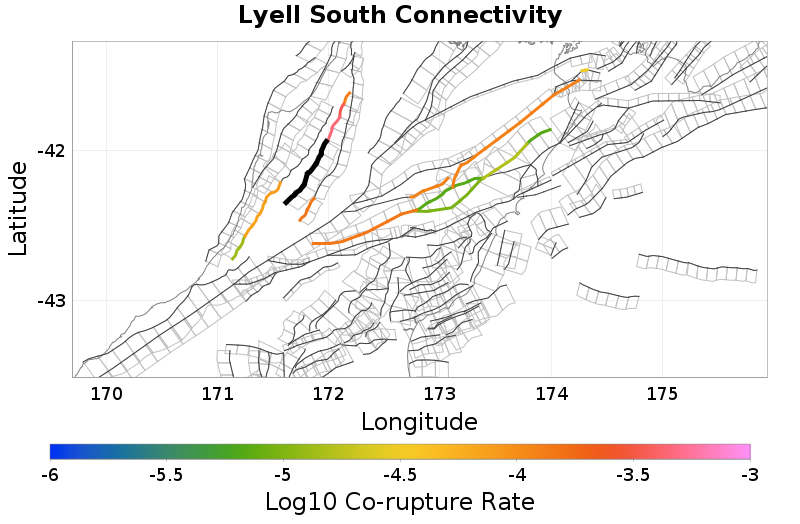

Connectivity
 |  |
|---|
Nearby Sections
Lyell, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.51 km |
| Min Rate-Weighted Dist | 1.51 km |
| Co-rupture Count | 104 |
| Co-rupture Rate | 4.4272467E-4 |
White Creek, 6.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: North, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
White Creek - buried, 7.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.41 km |
| Min Rate-Weighted Dist | 7.41 km |
| Co-rupture Count | 441 |
| Co-rupture Rate | 1.4141704E-4 |
Inangahua, 9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Maimai, 9.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.15 km |
| Co-rupture Count | 29 |
| Co-rupture Rate | 0.0 |
Maimai: South, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.17 km |
| Min Rate-Weighted Dist | 11.17 km |
| Co-rupture Count | 69 |
| Co-rupture Rate | 7.870249E-5 |
Clarence: Southwest, 19.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 437 |
| Co-rupture Rate | 1.4141704E-4 |
