Marlborough Slope 11 Details
| Property | Value |
|---|---|
| Rupture Count | 36 |
| Ruptures Above Sect Min Mag | 35 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.53, 7.73] |
| Length Range | [10, 134] km |
| Total Rate | 7.641344E-5 /yr |
| Multi-Fault Rate | 7.641344E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 9 |
Table Of Contents

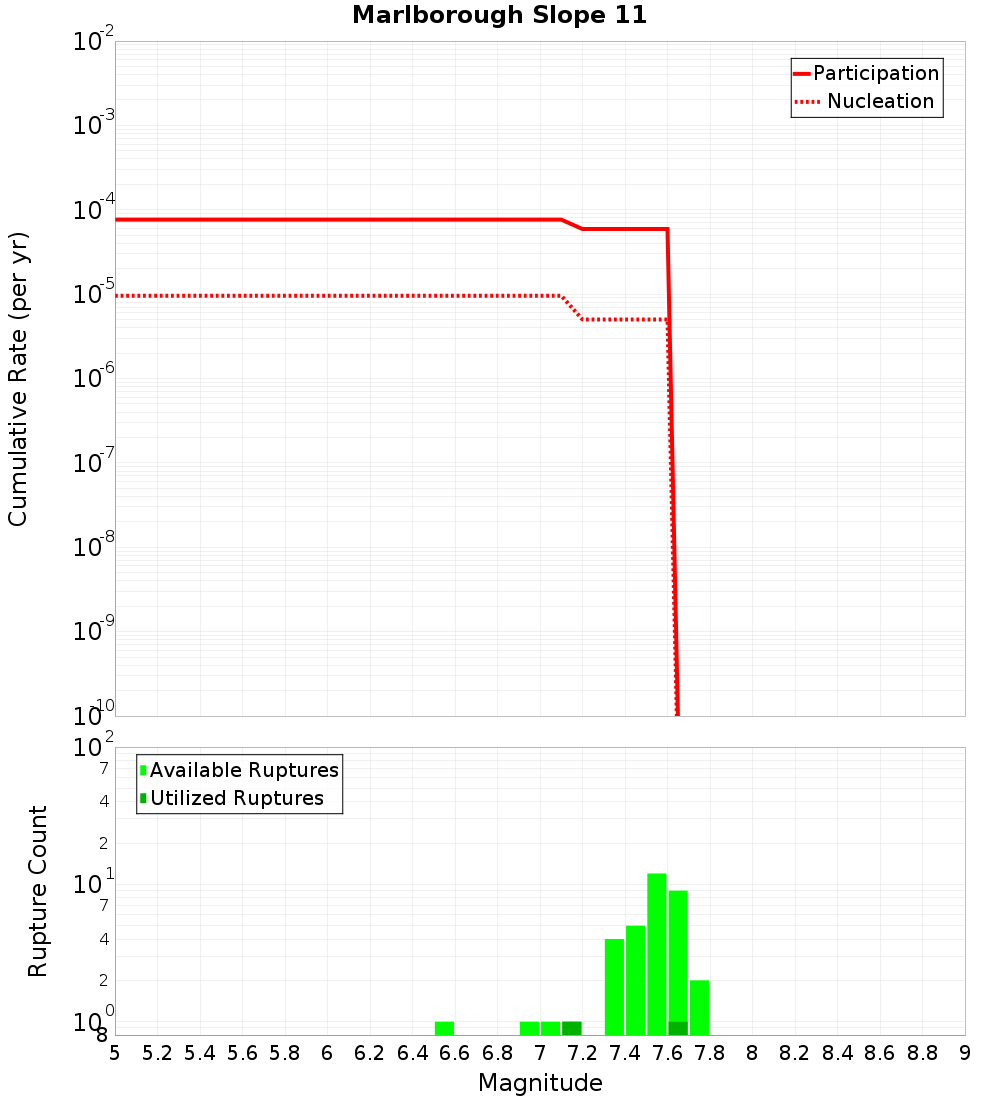

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Marlborough Slope 9, 1.66 km away |
| Conway Trough East, 3.55 km away |
| Marlborough Slope 2, 9.5 km away |
| Conway Trough West, 11.95 km away |
| Hawkswood, 14.13 km away |
Marlborough Slope 9, 1.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.66 km |
| Min Rate-Weighted Dist | 1.66 km |
| Co-rupture Count | 20 |
| Co-rupture Rate | 5.9065445E-5 |
Conway Trough East, 3.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.55 km |
| Min Rate-Weighted Dist | 3.55 km |
| Co-rupture Count | 33 |
| Co-rupture Rate | 5.9065445E-5 |
Marlborough Slope 2, 9.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Conway Trough West, 11.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.95 km |
| Min Rate-Weighted Dist | 11.95 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.7347991E-5 |
Hawkswood, 14.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
