Monowai Details

Property	Value
Rupture Count	17
Ruptures Above Sect Min Mag	16
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.96, 7.69]
Length Range	[23, 122] km
Total Rate	1.2821365E-4 /yr
Multi-Fault Rate	1.2821365E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	3

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

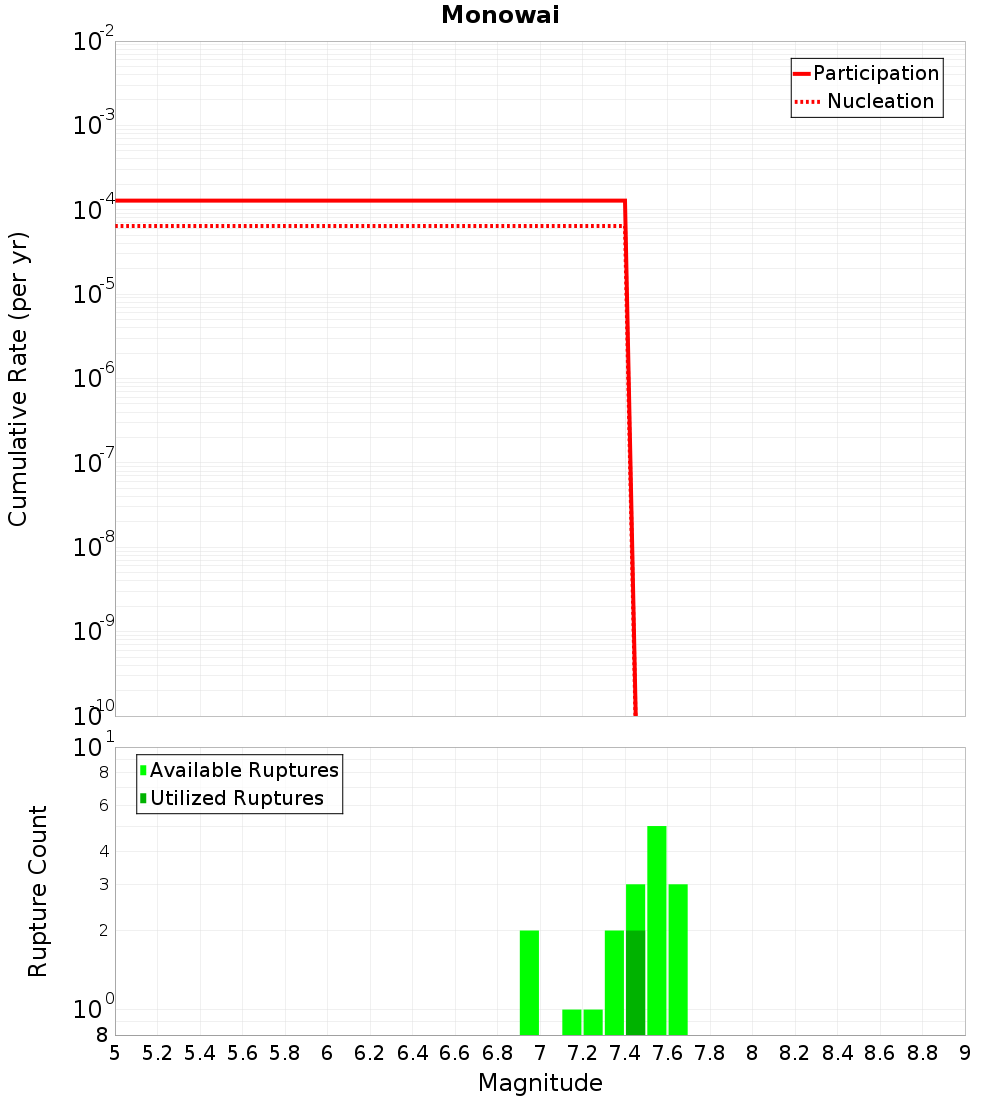

Magnitude-Frequency Distribution

Incremental	Cumulative

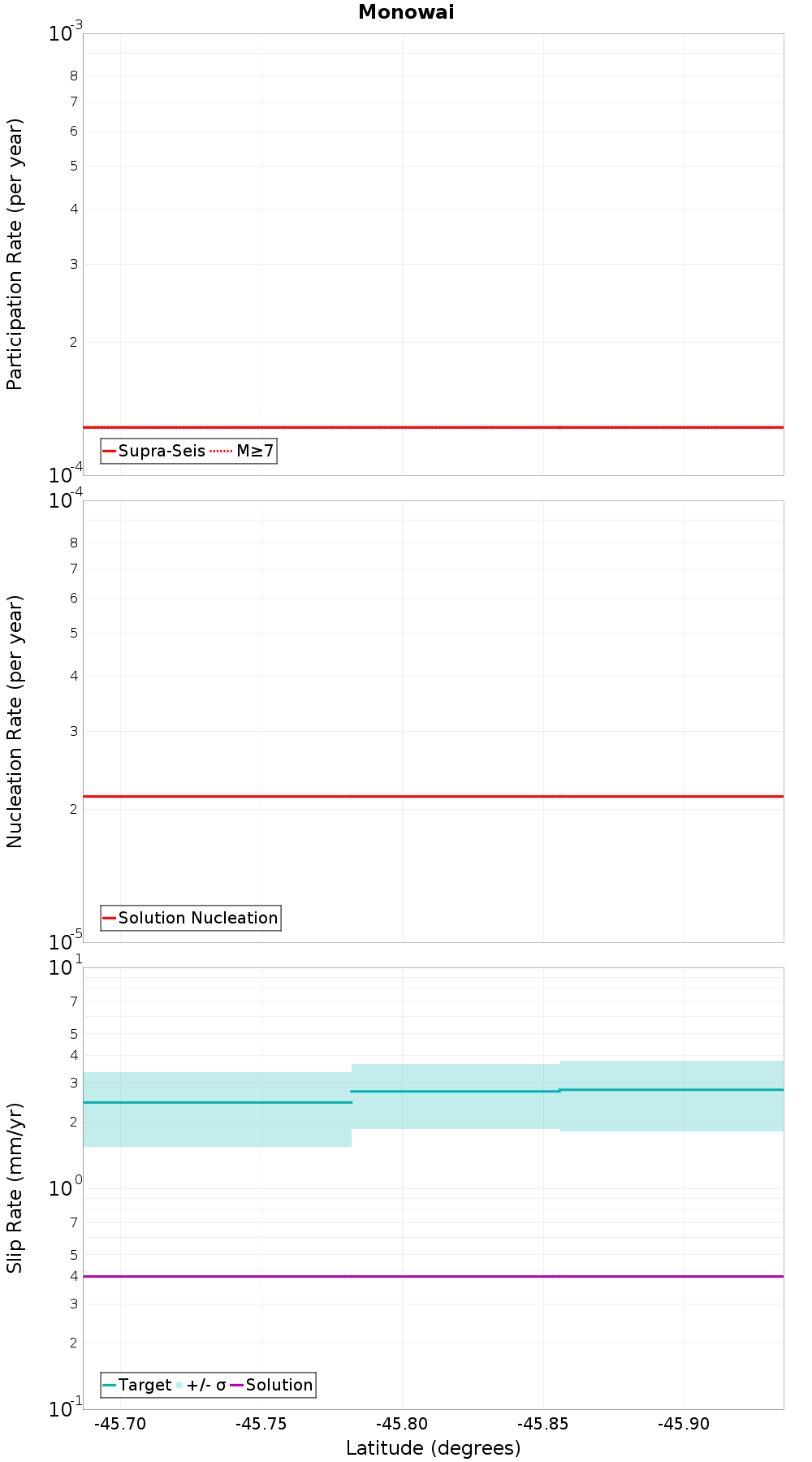

Along-Strike Values

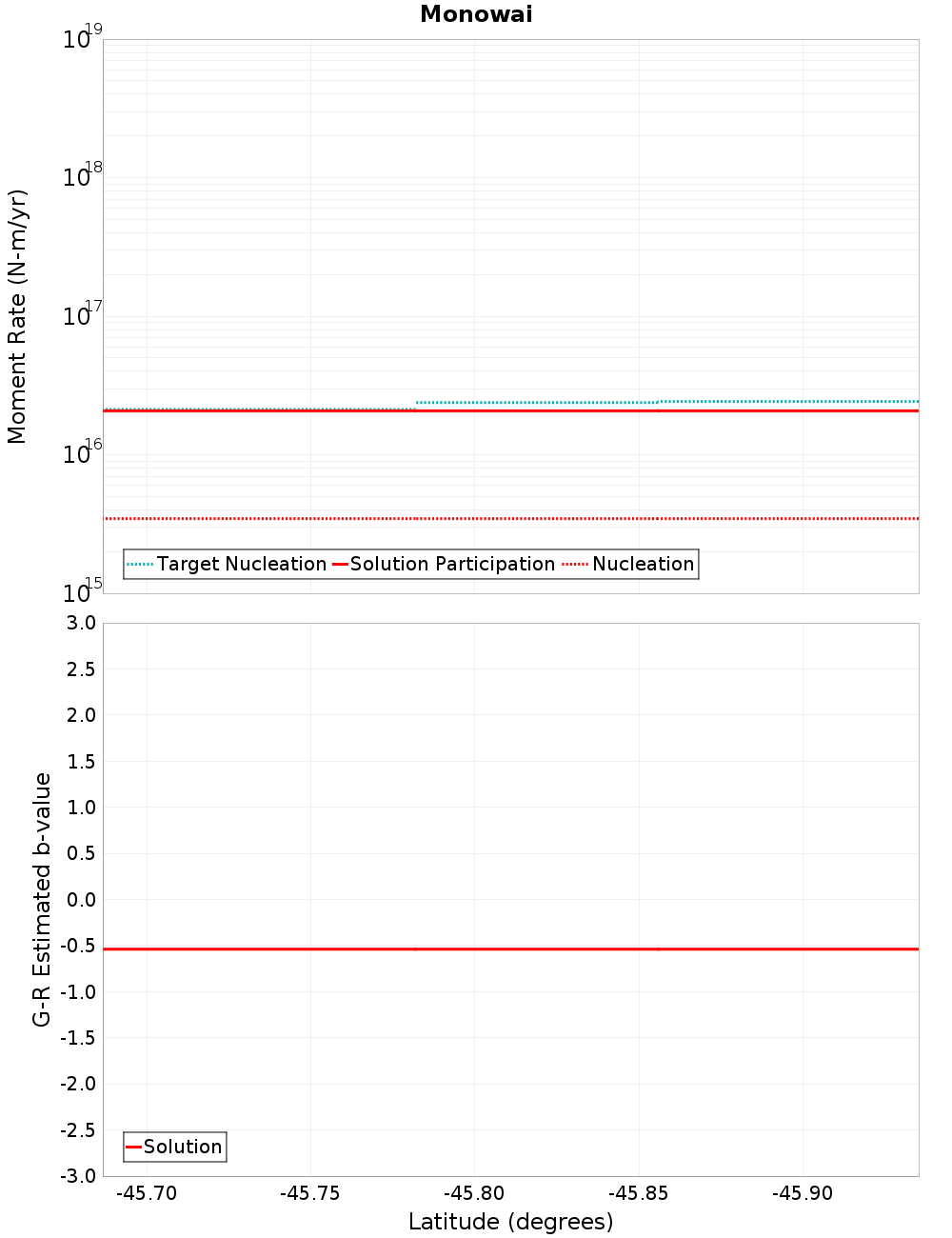

Moment-Rates and b-Values

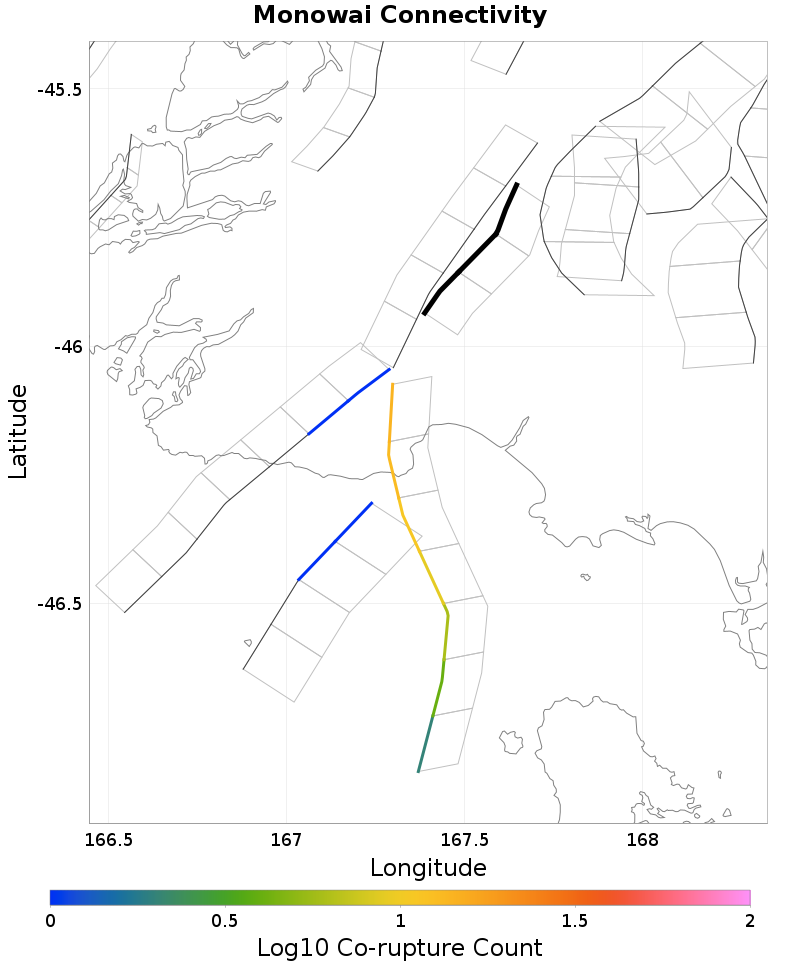

Connectivity

Nearby Sections

Fault Section
Hauroko: North, 1.01 km away
Tin Hut, 4.72 km away
McKerchar, 6.1 km away
Hump Ridge, 10.61 km away
Hauroko: South, 14.37 km away
Mossburn, 15.96 km away

Hauroko: North, 1.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tin Hut, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

McKerchar, 6.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hump Ridge, 10.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	10.61 km
Min Rate-Weighted Dist	10.61 km
Co-rupture Count	14
Co-rupture Rate	1.2821365E-4

Hauroko: South, 14.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.2662214E-4

Mossburn, 15.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
