Motatapu Details

PropertyValue
Rupture Count79
Ruptures Above Sect Min Mag78
Ruptures w/ Nonzero Rates5
Magnitude Range[6.90, 8.13]
Length Range[19, 254] km
Total Rate4.7485926E-5 /yr
Multi-Fault Rate4.7485926E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults23

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

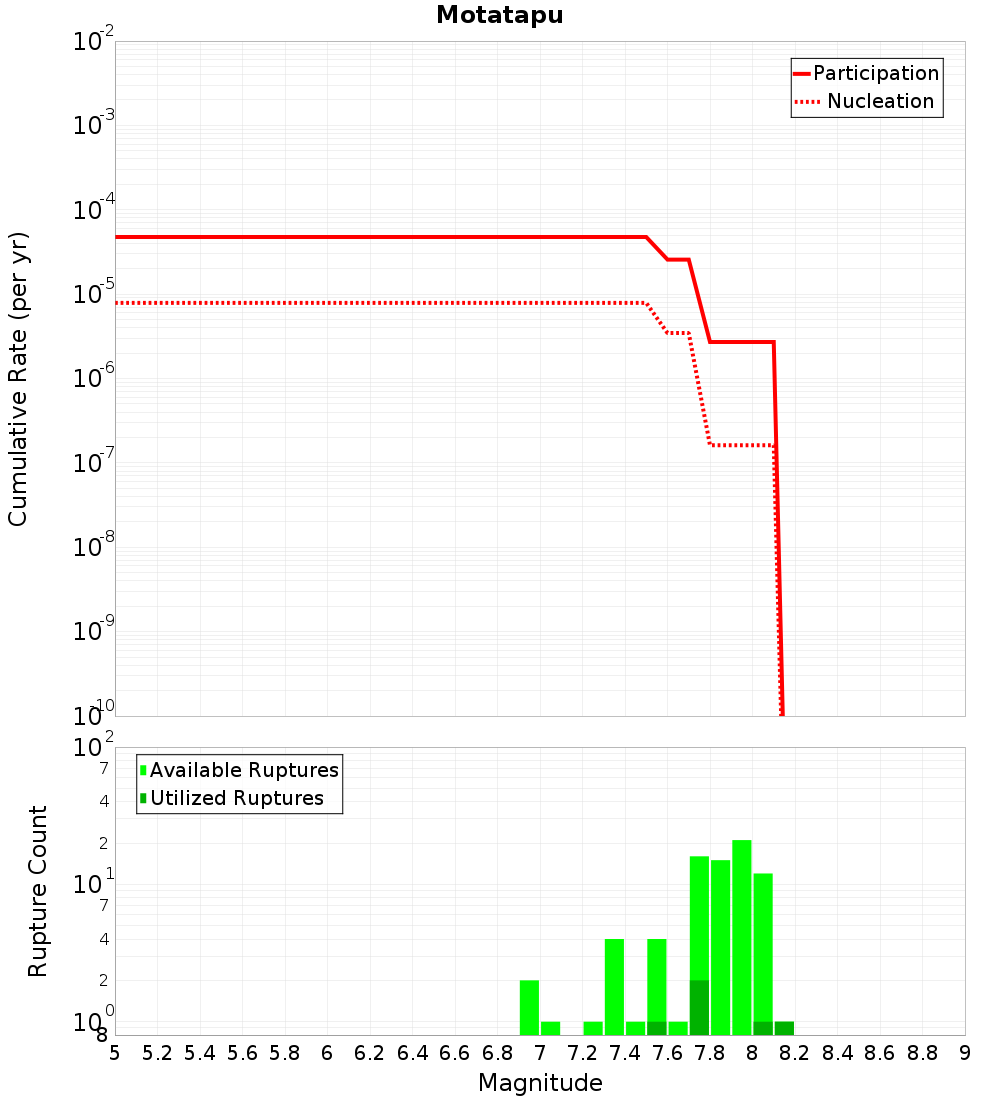

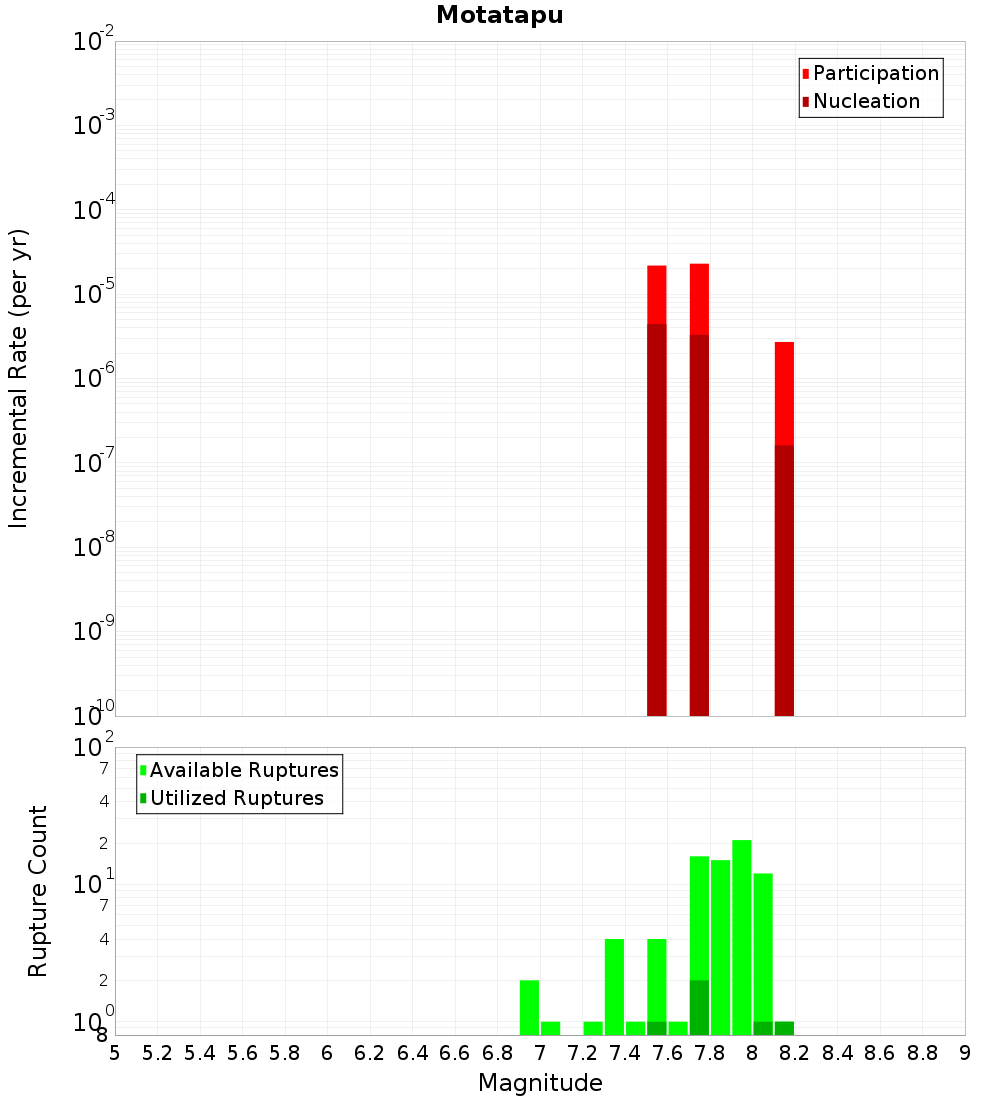

Incremental PlotCumulative Plot

Along-Strike Values

(top)

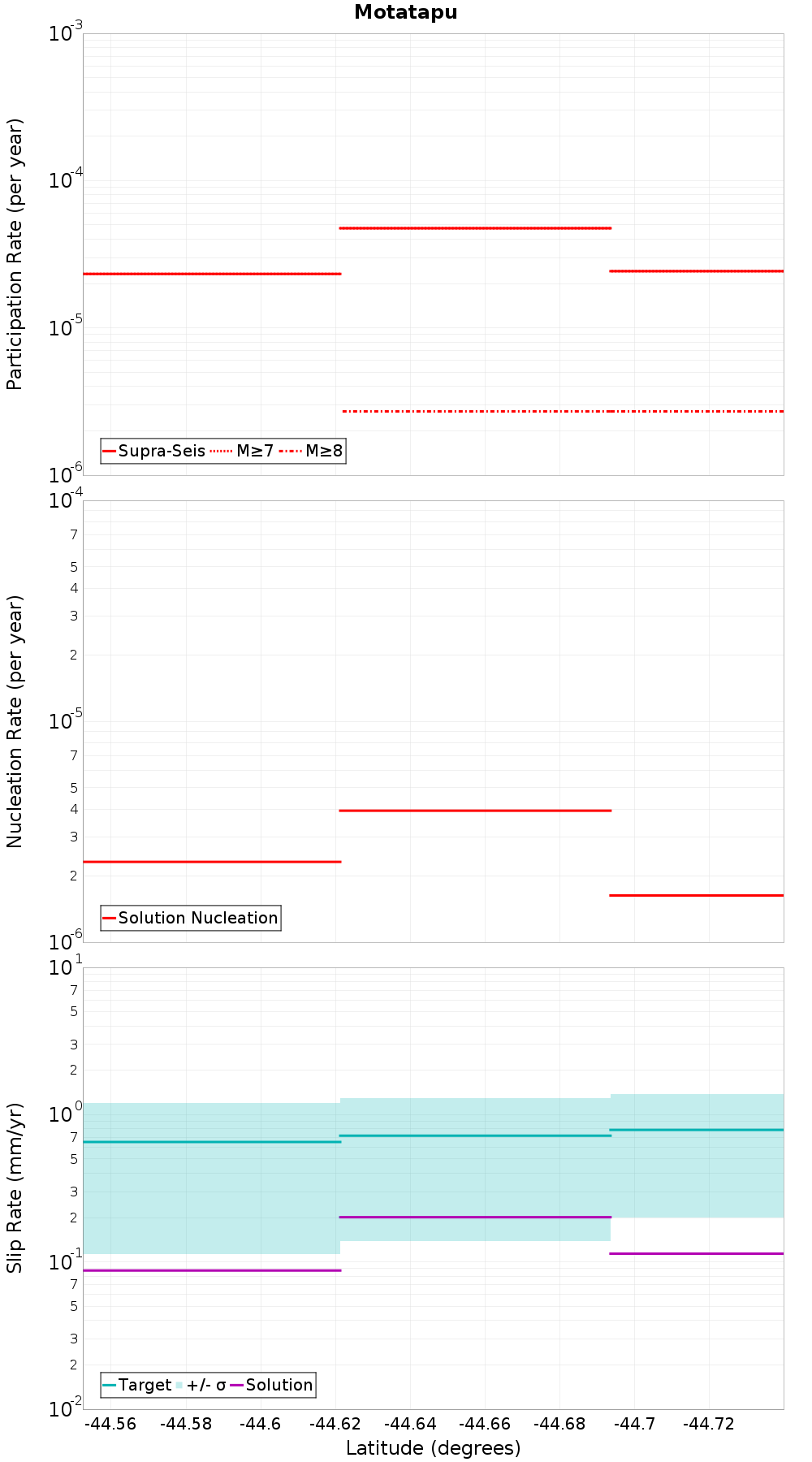

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

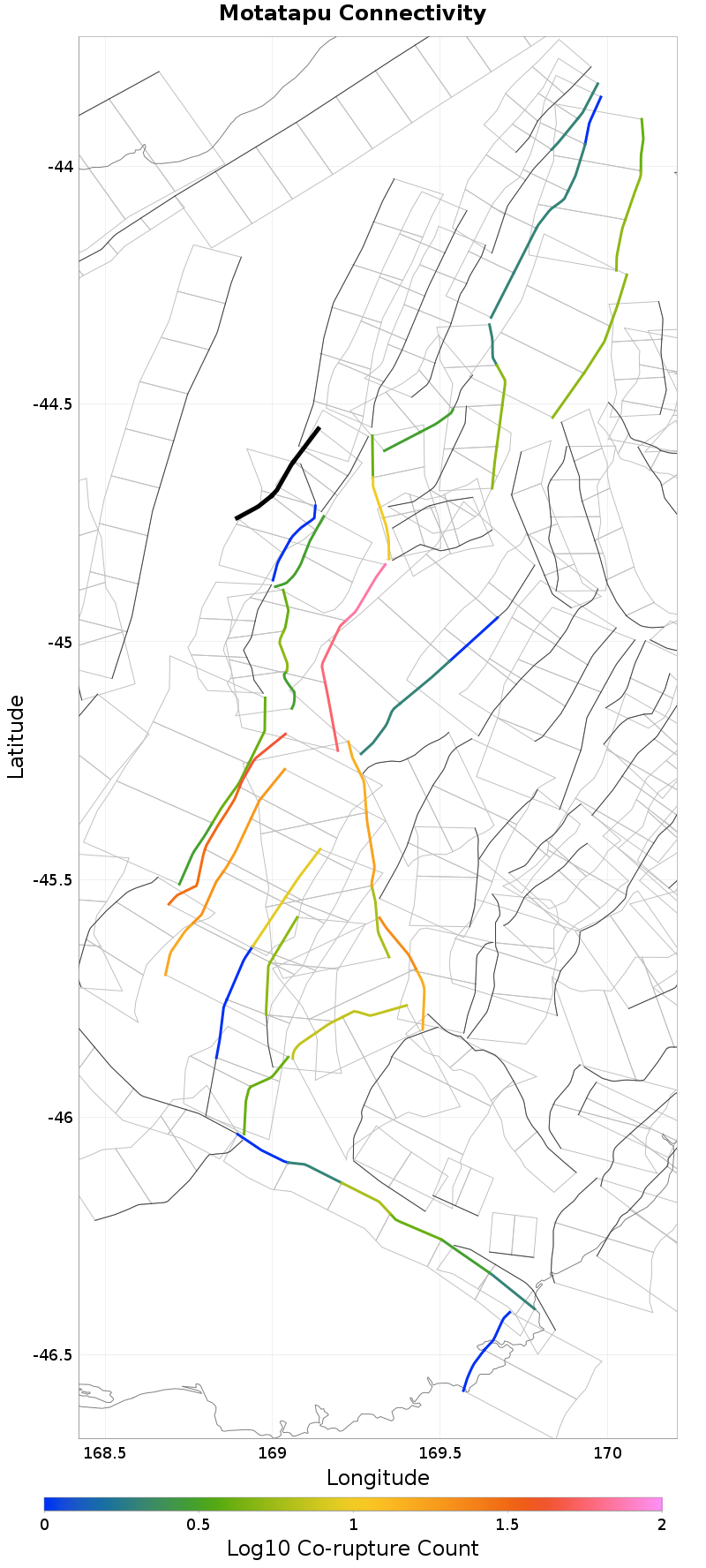

MapMap

Nearby Sections

(top)

Fault Section
NW Cardrona North, 0.14 km away
Pisa, 0.3 km away
Cardrona - Hawea, 0.46 km away
Wanaka, 1.16 km away
Hunter Valley, 6.65 km away
Timaru Creek, 7.01 km away
Cluden, 9.47 km away
Paddys Ridge, 10.99 km away
Grandview, 11.63 km away
NW Cardrona South, 11.74 km away
Roaring Meg, 13.15 km away
Dingle, 17.28 km away
Dromedary, 18.78 km away
Moonlight North, 19.58 km away

NW Cardrona North, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Co-rupture Count1
Co-rupture Rate0.0

Pisa, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.3 km
Min Rate-Weighted Dist0.54 km
Co-rupture Count72
Co-rupture Rate2.5675201E-5

Cardrona - Hawea, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wanaka, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hunter Valley, 6.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Cluden, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Paddys Ridge, 10.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist10.99 km
Min Rate-Weighted Dist10.99 km
Co-rupture Count3
Co-rupture Rate2.1810725E-5

Grandview, 11.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

NW Cardrona South, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Meg, 13.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate2.2963679E-5

Dingle, 17.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 18.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Moonlight North, 19.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
