Mt Sutton Details
| Property | Value |
|---|---|
| Rupture Count | 36 |
| Ruptures Above Sect Min Mag | 35 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.99, 7.74] |
| Length Range | [22, 124] km |
| Total Rate | 9.303461E-5 /yr |
| Multi-Fault Rate | 9.303461E-5 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

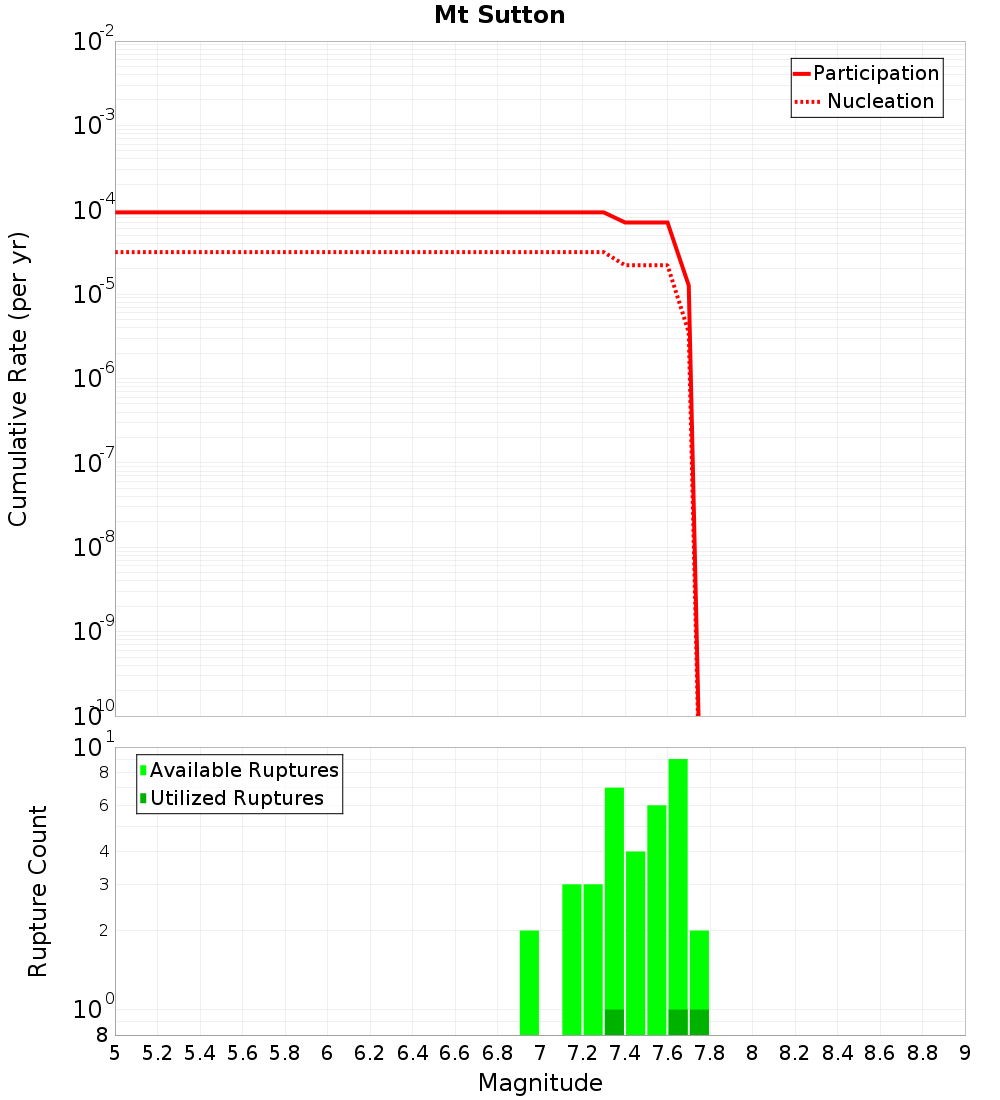

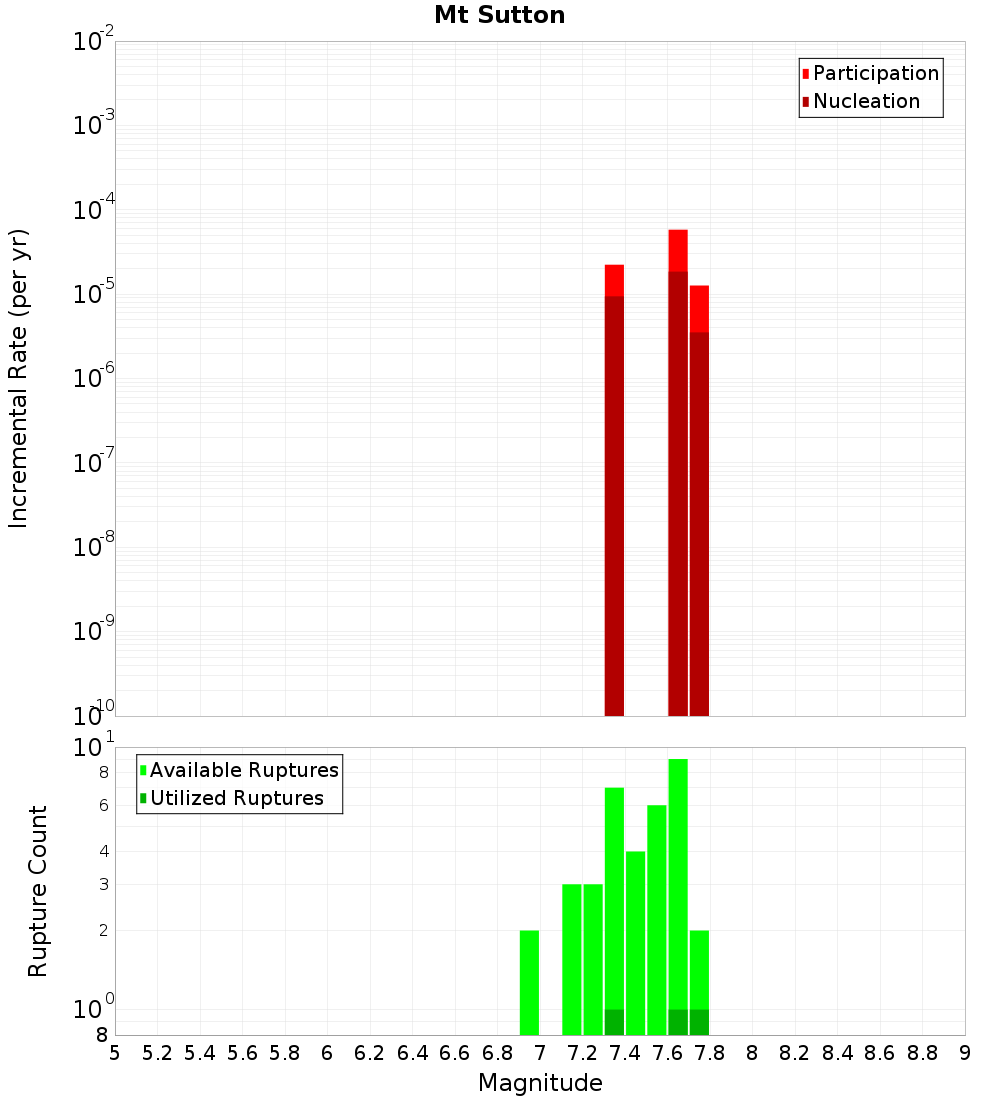

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

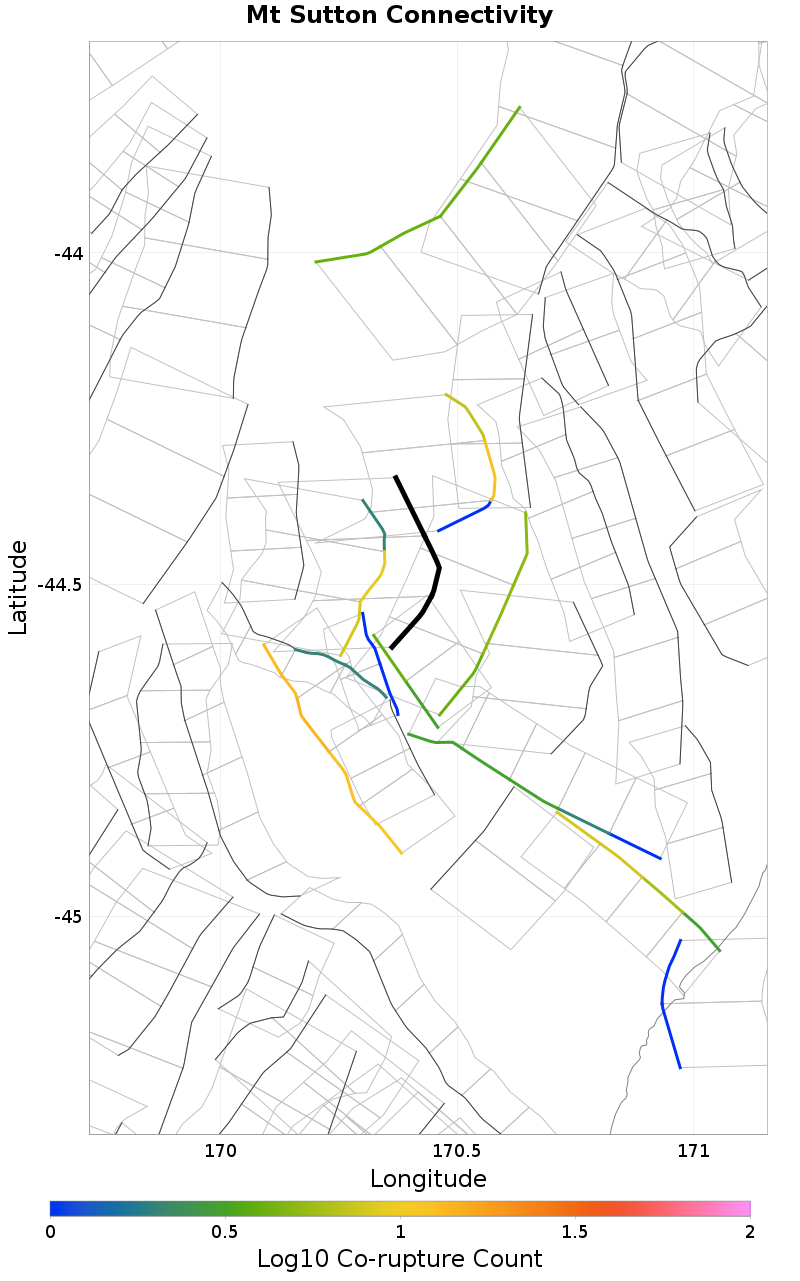

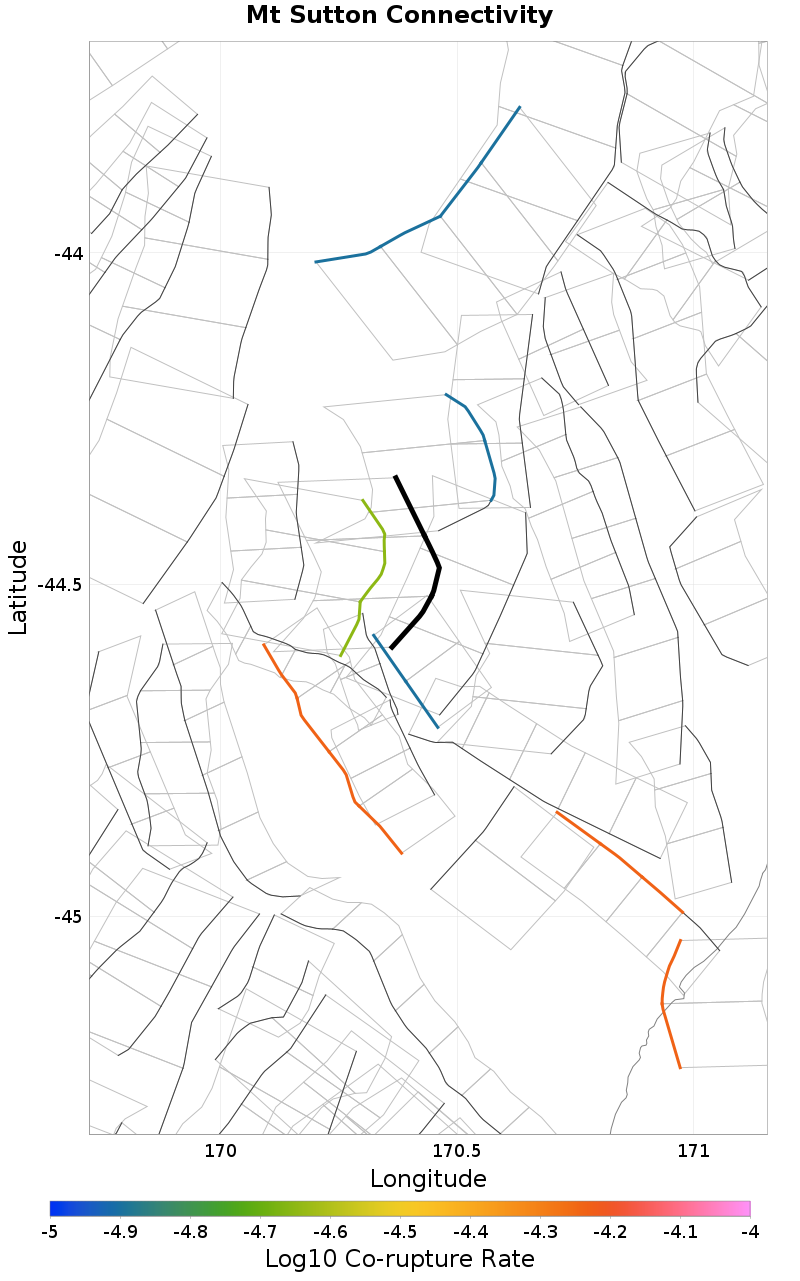

Connectivity
 |  |
|---|
Nearby Sections
Middle Range, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.18 km |
| Min Rate-Weighted Dist | 0.18 km |
| Co-rupture Count | 14 |
| Co-rupture Rate | 5.805923E-5 |
Waitangi, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.47 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Dryburgh, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.34 km |
| Min Rate-Weighted Dist | 0.34 km |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.2651563E-5 |
Grampian, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.51 km |
| Min Rate-Weighted Dist | 9.02 km |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.2651563E-5 |
Gibson, 2.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.91 km |
| Min Rate-Weighted Dist | 4.57 km |
| Co-rupture Count | 9 |
| Co-rupture Rate | 2.2323815E-5 |
Fern Gully, 3.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.67 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Falstone, 6.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Omarama Saddle, 7.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awahokomo, 8.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kirkliston, 9.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Hawkdun, 9.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Stonewall, 13.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Dalgety, 16.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 16.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ostler South, 19.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
