Nevis Details
| Property | Value |
|---|---|
| Rupture Count | 237 |
| Ruptures Above Sect Min Mag | 236 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [7.25, 8.44] |
| Length Range | [33, 728] km |
| Total Rate | 1.8942192E-4 /yr |
| Multi-Fault Rate | 1.8942192E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 28 |
Table Of Contents

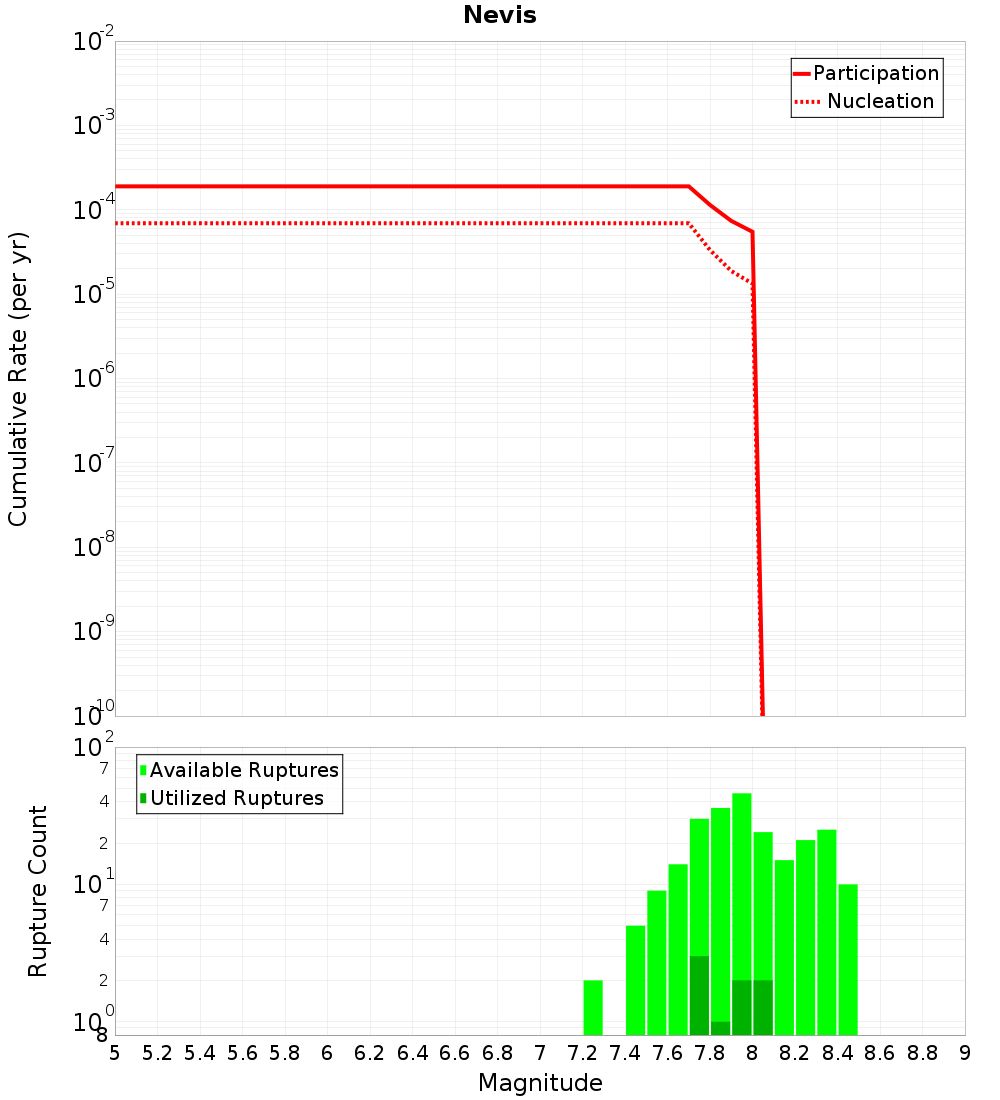

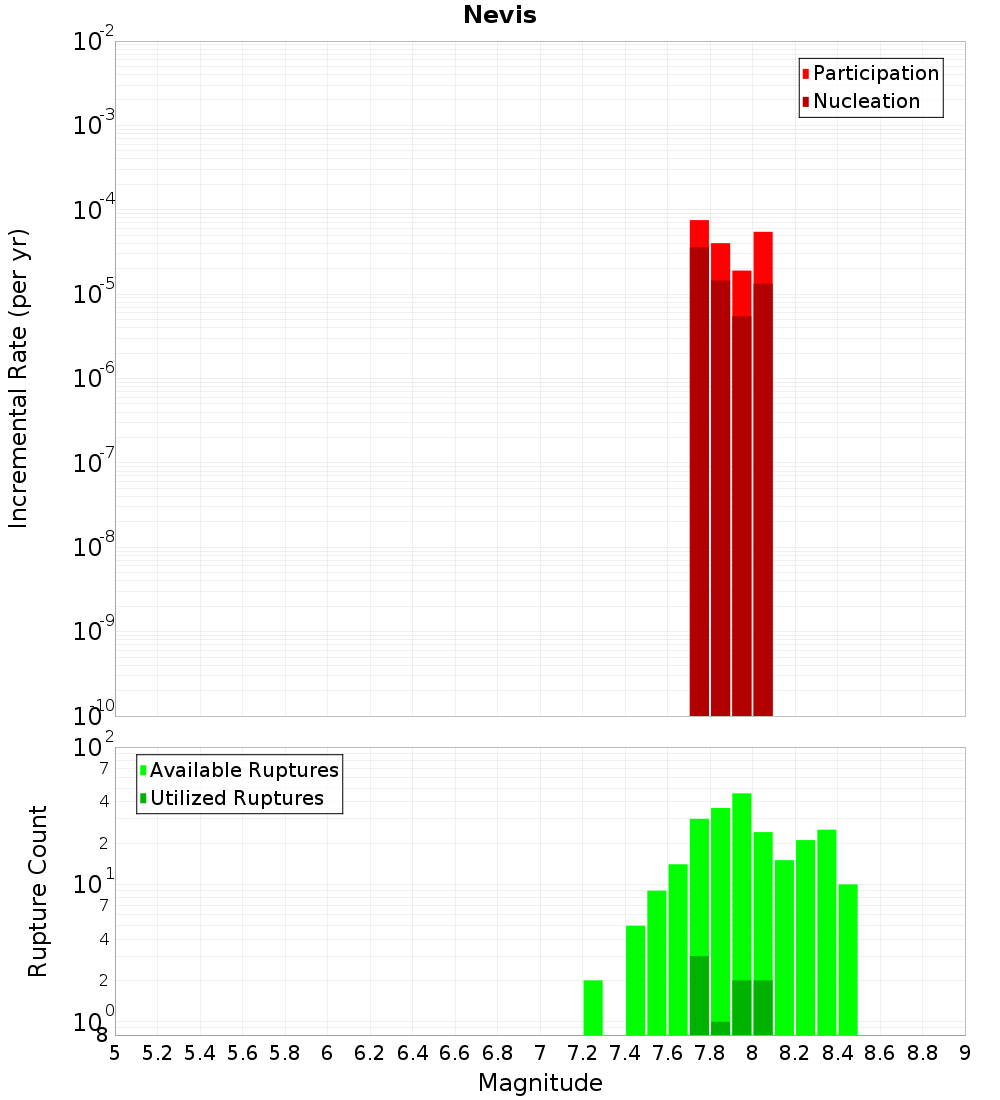

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

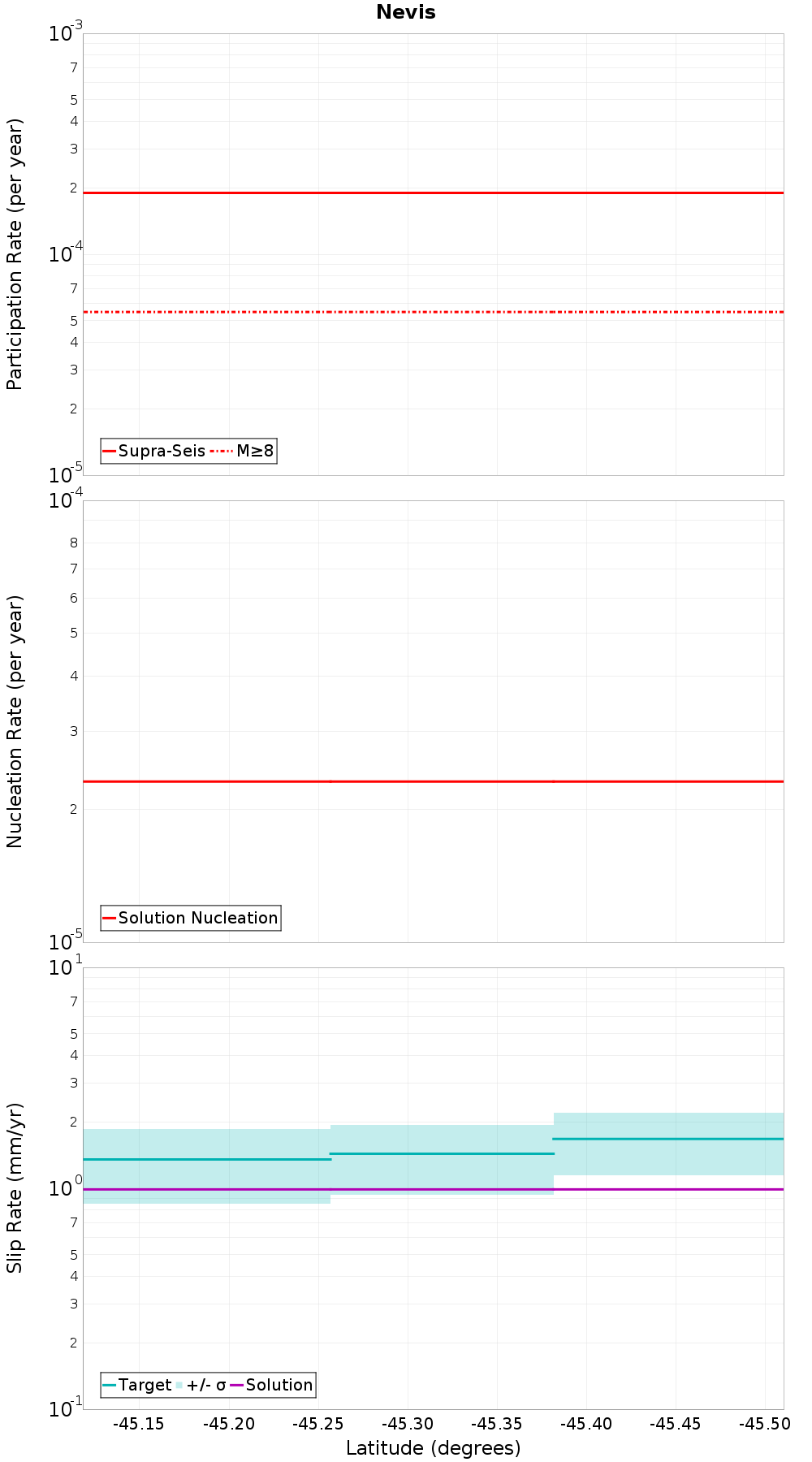

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Roaring Lion, 0.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.43 km |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
NW Cardrona South, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.51 km |
| Min Rate-Weighted Dist | 0.51 km |
| Co-rupture Count | 60 |
| Co-rupture Rate | 7.3808165E-5 |
Moonlight South, 0.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mid Dome, 0.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Acton, 0.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.96 km |
| Min Rate-Weighted Dist | 0.96 km |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.5667163E-5 |
Roaring Meg, 5.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.46 km |
| Min Rate-Weighted Dist | 5.46 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 7.54196E-5 |
Garvie, 6.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
West Wakatipu, 7.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.9 km |
| Co-rupture Count | 120 |
| Co-rupture Rate | 0.0 |
Pisa, 9.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.64 km |
| Min Rate-Weighted Dist | 9.64 km |
| Co-rupture Count | 107 |
| Co-rupture Rate | 1.8942192E-4 |
Old Man, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dunstan, 18.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 4.019415E-5 |
