Nichols Rock Details

PropertyValue
Rupture Count500
Ruptures Above Sect Min Mag500
Ruptures w/ Nonzero Rates4
Magnitude Range[6.94, 8.10]
Length Range[18, 259] km
Total Rate7.917064E-5 /yr
Multi-Fault Rate7.917064E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults24

Table Of Contents

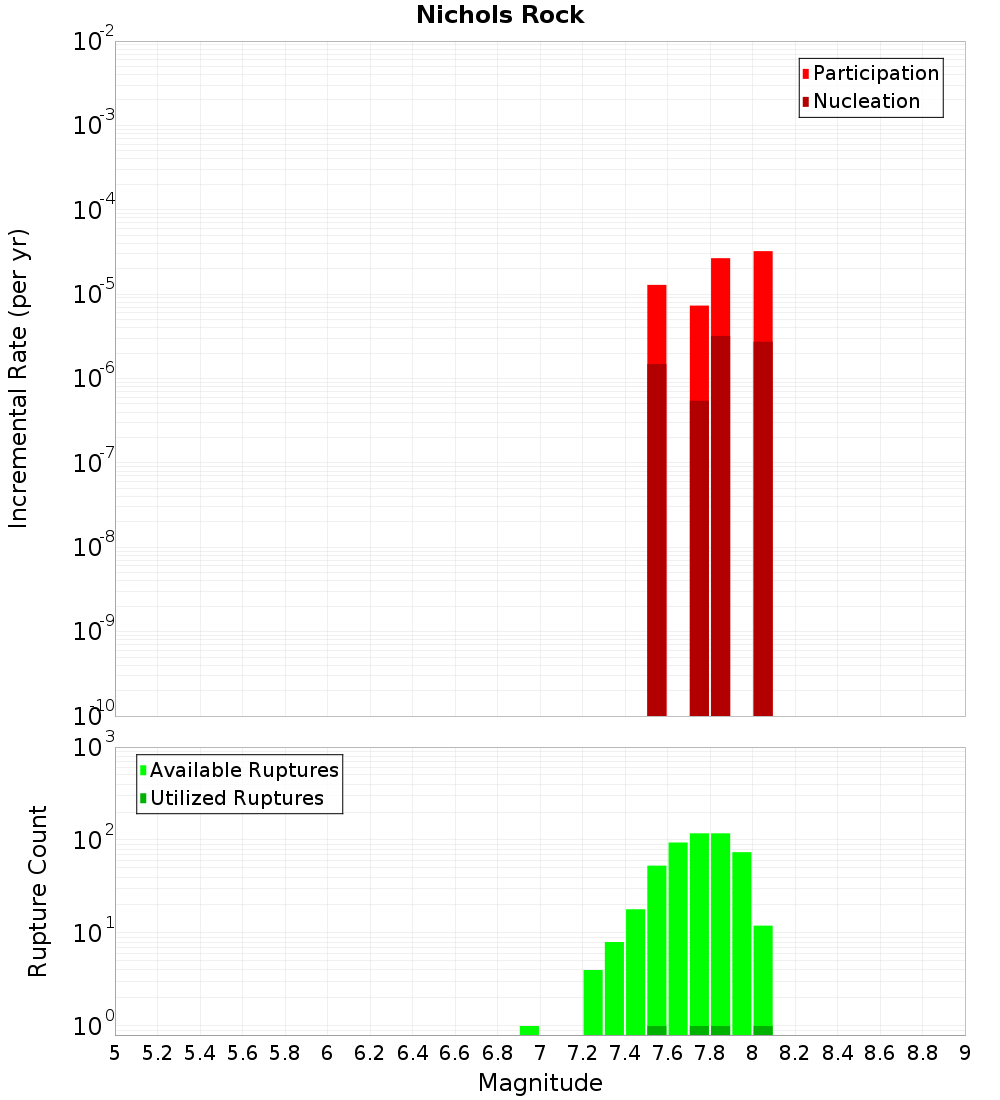

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Flat Stream - Glenpark, 0.36 km awayBillys Ridge, 9.84 km away
Logan Burn, 1.24 km awaySliver Stream - Merton, 12.31 km away
Dunback Hill, 3.51 km awayHorse Flat, 12.8 km away
Beaumont River, 4.88 km awayHyde South - The Twins, 12.84 km away
Pylap, 7.27 km awayHyde North, 13.7 km away
Murphys Creek, 7.37 km awayLong Valley, 15.25 km away
Maungatua - North Taieri, 8.44 km awayWaitahuna 1, 16.47 km away
Waipiata, 8.69 km awayWaitahuna 2, 18.79 km away

Flat Stream - Glenpark, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.36 km
Co-rupture Count107
Co-rupture Rate0.0

Logan Burn, 1.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.24 km
Min Rate-Weighted Dist1.24 km
Co-rupture Count201
Co-rupture Rate2.6663325E-5

Dunback Hill, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.51 km
Min Rate-Weighted Dist3.51 km
Co-rupture Count287
Co-rupture Rate5.2507316E-5

Beaumont River, 4.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.88 km
Min Rate-Weighted Dist4.88 km
Co-rupture Count297
Co-rupture Rate3.2316762E-5

Pylap, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate0.0

Murphys Creek, 7.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate2.0190553E-5

Maungatua - North Taieri, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.44 km
Min Rate-Weighted Dist8.44 km
Co-rupture Count44
Co-rupture Rate4.685388E-5

Waipiata, 8.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count256
Co-rupture Rate5.8980087E-5

Billys Ridge, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count107
Co-rupture Rate2.6663325E-5

Sliver Stream - Merton, 12.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Horse Flat, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate7.3167007E-6

Hyde South - The Twins, 12.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

Hyde North, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate0.0

Long Valley, 15.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 16.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
