Opouawe - Uruti Details
| Property | Value |
|---|---|
| Rupture Count | 34,329 |
| Ruptures Above Sect Min Mag | 34,307 |
| Ruptures w/ Nonzero Rates | 16 |
| Magnitude Range | [6.66, 8.54] |
| Length Range | [17, 1,156] km |
| Total Rate | 3.7036458E-4 /yr |
| Multi-Fault Rate | 3.7036458E-4 /yr (100.00%) |
| Directly-Connected Faults | 12 |
| All Co-Rupturing Faults | 86 |
Table Of Contents

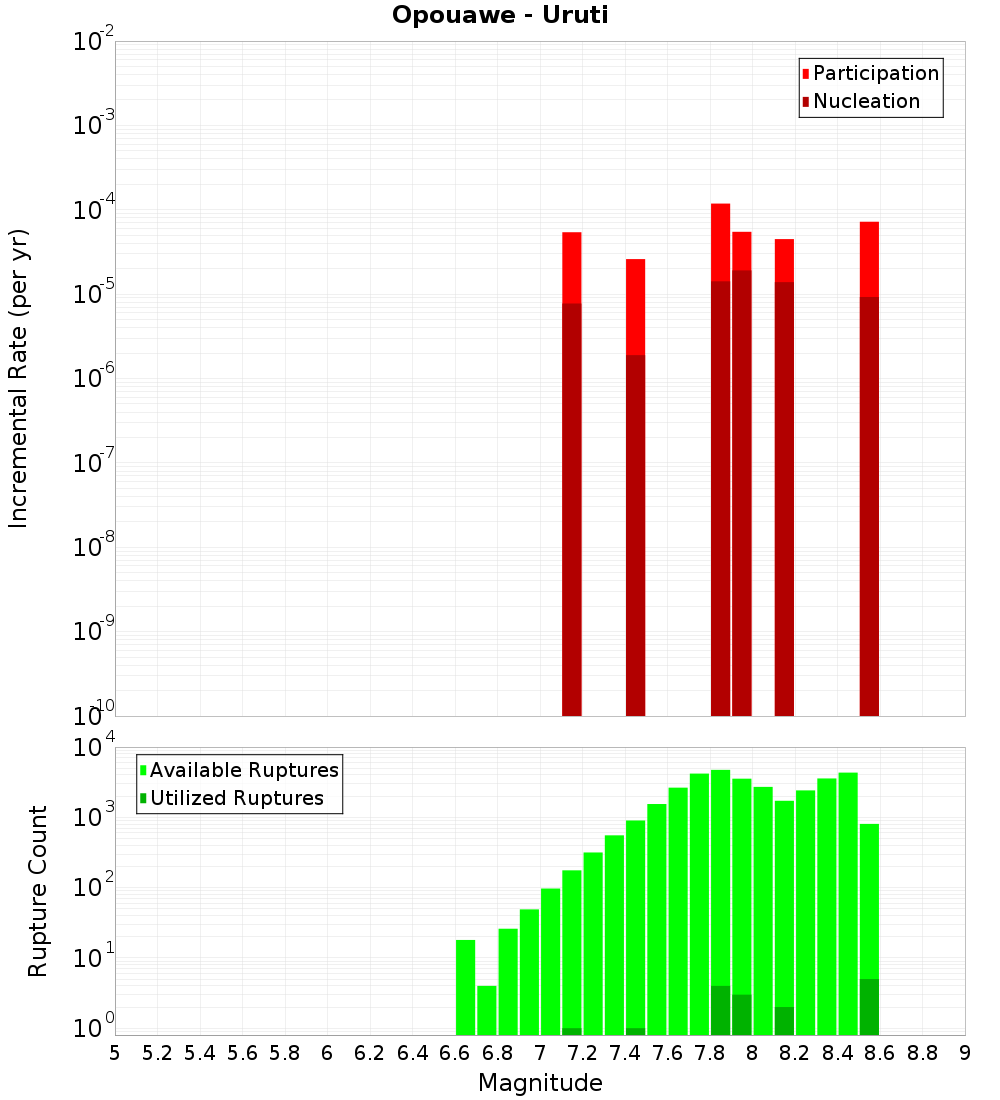

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

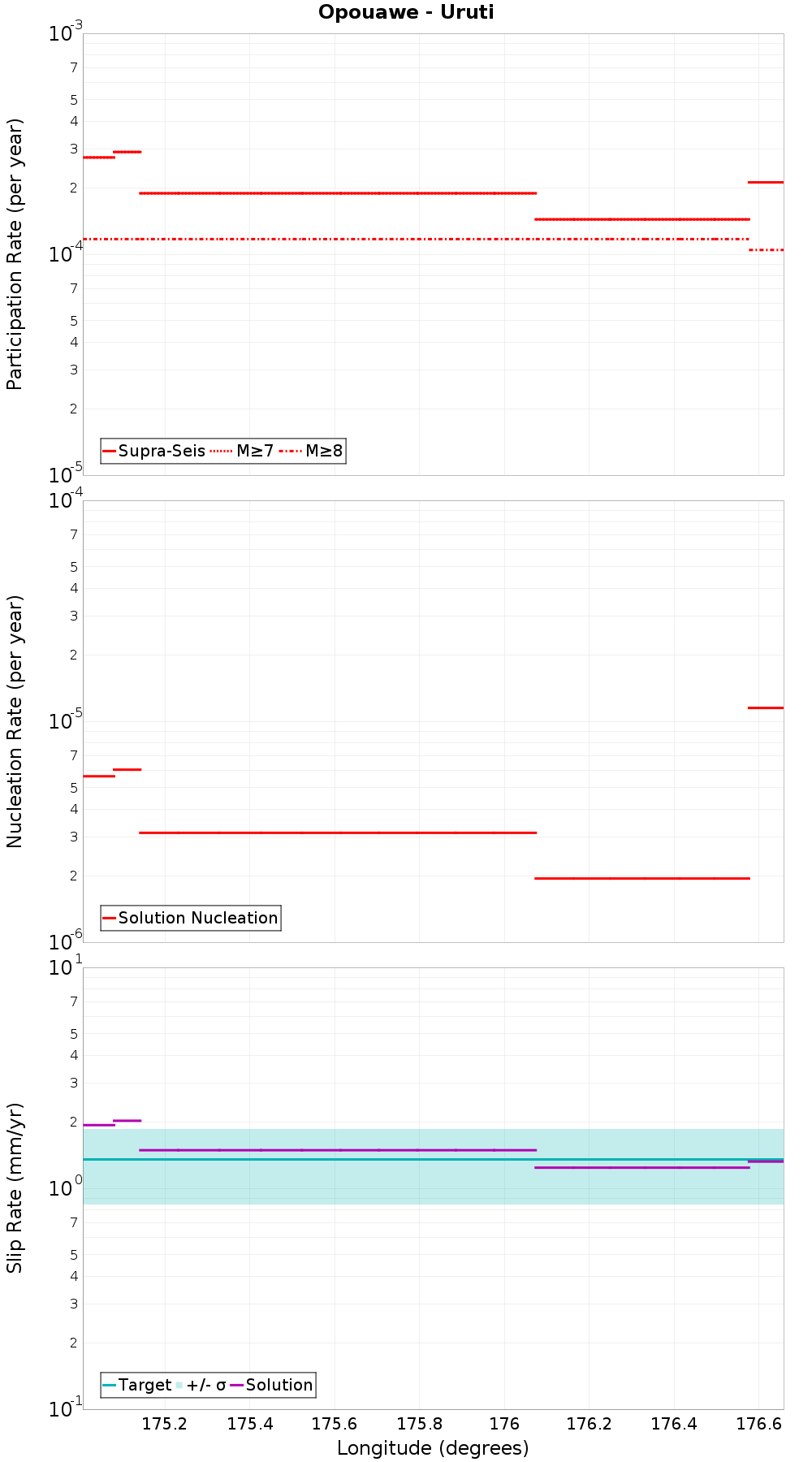

Along-Strike Values
Moment-Rates and b-Values

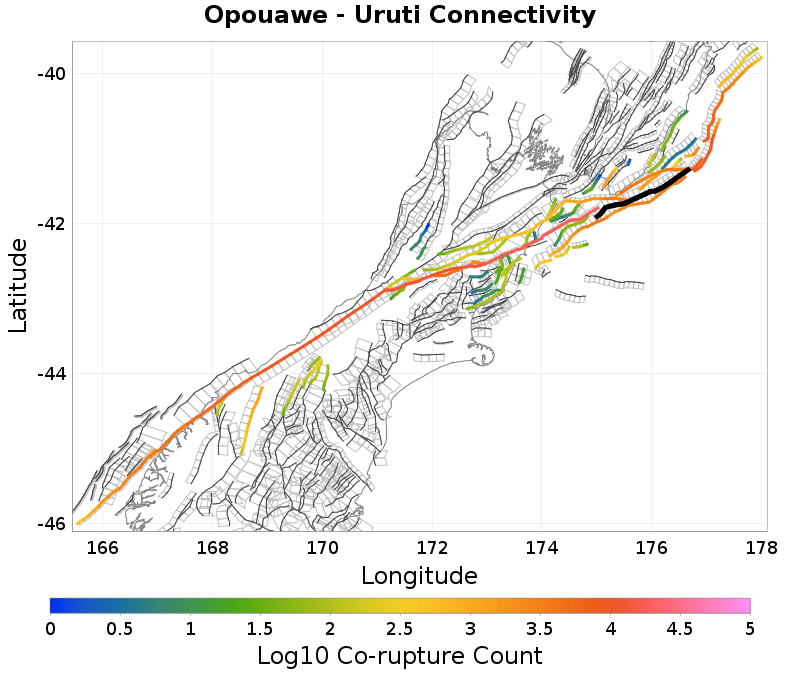

Connectivity
 |  |
|---|
Nearby Sections
BooBoo, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.14 km |
| Min Rate-Weighted Dist | 7.1 km |
| Co-rupture Count | 4,261 |
| Co-rupture Rate | 1.1749542E-4 |
Uruti Basin, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.28 km |
| Co-rupture Count | 5,952 |
| Co-rupture Rate | 1.9329994E-4 |
Uruti Basin 2, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Co-rupture Count | 321 |
| Co-rupture Rate | 6.26679E-6 |
Te Rapa 2, 0.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.63 km |
| Min Rate-Weighted Dist | 0.63 km |
| Co-rupture Count | 20,882 |
| Co-rupture Rate | 2.1844282E-4 |
Pahaua, 2.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.7 km |
| Co-rupture Count | 4,017 |
| Co-rupture Rate | 0.0 |
Uruti Ridge 2, 4.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.33 km |
| Co-rupture Count | 8,149 |
| Co-rupture Rate | 9.0499685E-5 |
Kekerengu Bank, 5.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.24 km |
| Min Rate-Weighted Dist | 5.24 km |
| Co-rupture Count | 3,940 |
| Co-rupture Rate | 5.5683566E-5 |
Uruti East - PorWest 1, 5.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.71 km |
| Min Rate-Weighted Dist | 5.71 km |
| Co-rupture Count | 12,837 |
| Co-rupture Rate | 9.2327464E-5 |
Honeycomb, 5.9 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.9 km |
| Min Rate-Weighted Dist | 5.9 km |
| Co-rupture Count | 1,474 |
| Co-rupture Rate | 4.4980054E-5 |
Palliser - Kaiwhata, 8.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.63 km |
| Co-rupture Count | 5,239 |
| Co-rupture Rate | 1.0142096E-4 |
Otaraia, 11.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.1 km |
| Co-rupture Count | 1,515 |
| Co-rupture Rate | 1.0142096E-4 |
Upper Slope, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 0.0 |
Uruti North, 13.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.55 km |
| Min Rate-Weighted Dist | 13.55 km |
| Co-rupture Count | 2,643 |
| Co-rupture Rate | 1.4466183E-4 |
Whareama Bank, 15.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Dry River - Huangarua: 1, 15.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Bank, 16.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
Riversdale, 19.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDY3 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 65 |
| Co-rupture Rate | 0.0 |
